Hitachi DH50MB Rotary Hammer Parts

Hitachi DH50MB Rotary Hammer Parts Image

Hitachi DH50MB Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi DH50MB
2" SDS Max Rotary Ha...
$870.99
Tool Diagram    (Click image to Zoom in) View larger Image

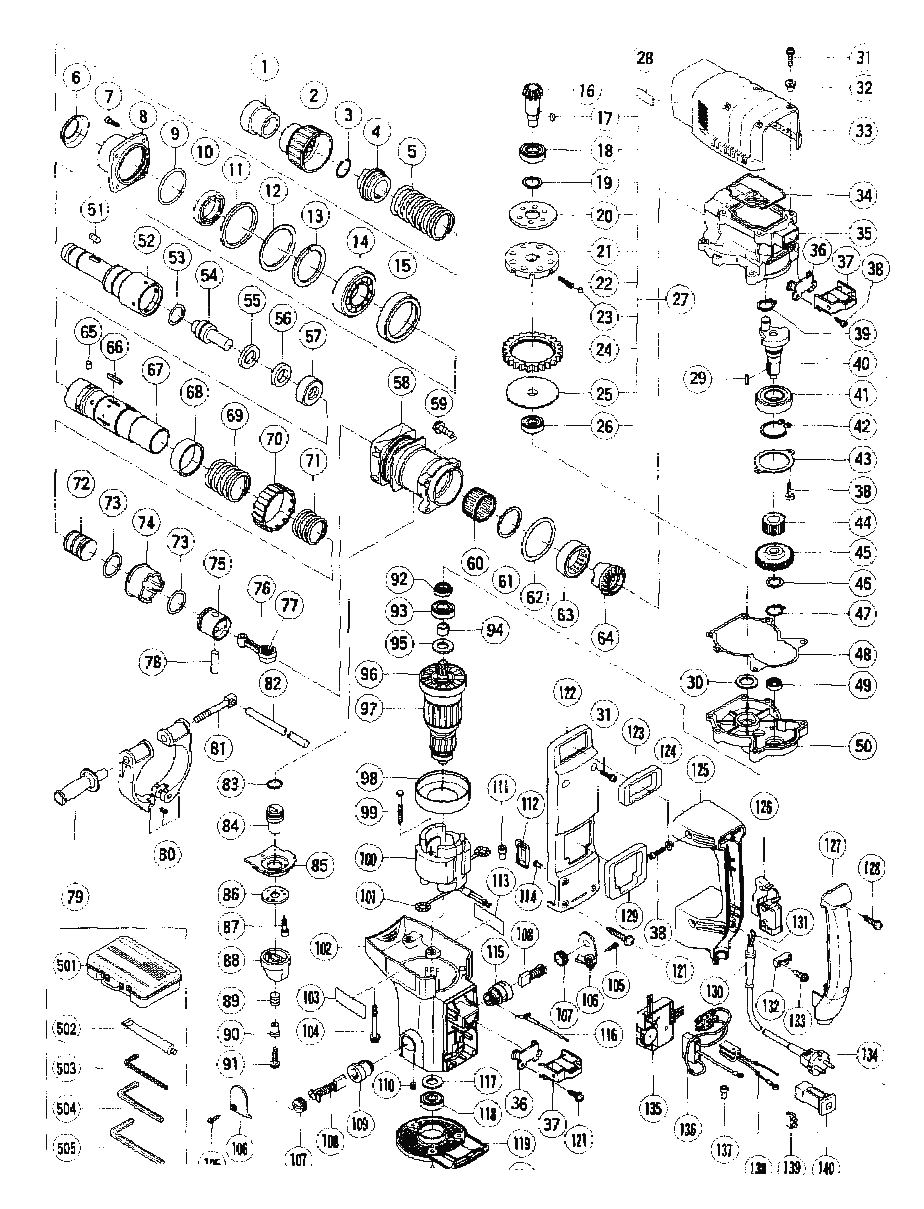

Hitachi DH50MB Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 313-415 FRONT CAP DH40MA DH40MB DH50MB $3.21
2 318-608 GRIP DH50MB $7.93
3 318-590 STOPPER RING DH50MB DH40MR $1.58
4 313-413 NEEDLE HOLDER DH40MA DH40MB $14.57
5 313-419 RETAINER SPRING DH40MA/MB $2.68
7 880-810 NYLOCK HEX SKT HD BLT M8x25 $1.02
8 318-587 FRONT COVER DH50MB $26.71
9 878-863 O-RING (S-70):NR65AK NV75AG $2.15
10 318-588 OIL SEAL DH50MB DH50MRY $7.12
11 318-586 URETHANE RING DH50MB DH50MRY $6.26
12 318-585 URETHANE RING HOLDER DH50MB $2.96
13 318-582 RETAINING RING DH50MB DH50MRY $5.74
14 600-8CM BALL BEARING DH50MB DH50MRY $15.32
15 318-581 SLEEVE DH50MB DH50MRY $30.57
16 318-551 BEVEL PINION DH50MB $36.12
17 941719131 UNIVERSAL WRENCH DCS431 $13.88
18 620-2DD BALL BEARING 6202DDCMPS2L P12R $7.09
19 313-058 WASHER DH40FB/MB/FA/MA $1.01
20 318-552 WASHER (A) DH50MB DH50MRY $6.26
21 318-554 GEAR HOLDER DH50MB DH50MRY $11.26
22 318-555 SPRING (C) DH50MB $8.79
23 313-057 NEEDLE PIN D 6x6 DH40FB/MB/FA $3.77
24 318-553 SECOND GEAR DH50MB $44.40
25 318-556 SPACER DH50MB $18.16
29 945-072 KEY M5x5x15mm P12R/P12RA $1.41
30 944-525 BEARING WASHER (C) DH38YE DH40 $1.05
31 313-082 NYLOCK BOLT w/FLANGE M5x16 $1.01
33 318-584 CRANKCASE COVER DH50MB $25.04
34 313-084 RUBBER SEAL DH40MA/MB/FA/FB $2.39
35 318-543 CRANKCASE DH50MB $43.73
36 980-750 GUIDE PLATE DH50SB H45SB H55SC $16.25
37 980-727 HANDLE RUBBER DH50SB H55SC $12.32
38 878-181 NYLOCK HEX. SOCKET HD. BOLT M5 $1.06
39 939-542 RETAINING RING D12SHAFT 10 PCS $2.11
40 318-544 CRANKSHAFT DH50MB $52.68
41 620-5DD BALL BEARING 6205DDCMPS2L H65 $10.87
42 965-469 RETAINING RING DH50MB DH22PG $1.41
43 318-548 BEARING COVER DH50MB $2.95
44 318-545 SECOND PINION DH50MB $14.83
45 318-546 FIRST GEAR DH50MB $25.90
46 318-547 THRUST WASHER DH50MB $1.58
47 967-261 RetainingRingC-TYPEforD17shaft $1.31
48 318-549 SEAL PACKING DH50MB $2.95
49 939-299 NEEDLE BEARING (M661) DH38YE $9.31
50 318-595 GEAR COVER DH50MB $41.65
51 313-421 NEEDLE ROLLER D8x20 DH40MA/B $4.58
52 318-580 RETAINER SLEEVE DH50MB $124.91
53 986-104 O'RING (1AS-60) DH38YE..DH40.. $1.01
54 318-554 GEAR HOLDER DH50MB DH50MRY $11.26
55 318-565 DAMPER WASHER DH50MB $8.79
56 318-566 DAMPER DH50MB $5.74
57 318-567 DAMPER HOLDER DH50MB $14.02
58 318-568 CYLINDER CASE DH50MB $43.73
59 318-451 NYLOCK BOLT w/FLANGE M6x35 $1.65
60 318-560 NEEDLE BEARING DH50MB $22.56
61 981-973 CYLINDER WASHER DH38YE DH50MB $2.80
62 985-779 O-RING (D) DH50SB DH50MB $2.15
63 318-659 NEEDLE BEARING DH50MB $41.65
64 318-559 BEVEL GEAR DH50MB $72.02
65 313-057 NEEDLE PIN D 6x6 DH40FB/MB/FA $3.77
66 971-750 FEATHER KEY 3x3x20 DH38YE $1.05
68 318-583 SLEEVE (A) DH50MB $5.74
69 318-563 LOCK SPRING DH50MB $4.35
70 318-562 LOCK SLEEVE DH50MB DH50MRY $6.26
71 318-631 CLUTCH SPRING DH50MB $4.34
72 318-630 STRIKER DH50MB $36.12
73 318-917 O-RING DH50MB $6.01
74 318-561 CLUTCH DH50MB $63.73
75 985-772 PISTON DH50SBK DH50MB $49.91
76 318-557 CONNECTING ROD ASSY DH50MB $43.73
77 980063 TERMINAL CR12V D13V DH38YE $1.06
78 955-593 PISTON PIN DH50SB DH50MB $2.68
80 318-575 HANDLE HOLDER DH50MB DH50MRY $26.71
81 318-576 HANDLE BOLT DH50MB DH50MRY $9.60
83 873-095 O-RING (P16) CJ65V2/VA2 DH40FA $1.01
84 318-577 LEVER SHAFT DH50MB $15.64
85 318-578 UNDER COVER DH50MB $4.35
86 313-411 SHAFT COVER DH40MA DH40MB $2.15
87 318-579 HEX SOCKET HD BOLT M4x12DH50MB $2.95
88 313-410 LEVER DH40MA/DH40MB DH50MB $3.21
89 307-605 SPRING DH40MA DH40MB DH50MB $1.29
90 313-424 SLEEVE DH40MA DH40MB DH50MB $2.15
91 313-077 NYLOCK BOLT w/FLANGE M5x25 $5.16
92 318-596 OIL SEAL DH50MB $7.12
93 620-3VV BALL BEARING 6203VVCMPS2L H65 $6.97
94 318-597 SLEEVE (B) DH50MB $16.51
95 318-594 DUST WASHER DH50MB $1.58
96 318-918 FAN DH50MB DH45MR DH50MRY $7.13
97 360-520U ARMATURE ASS'Y DH50MB $328.93
99 953-121 HEX TAPPING SCREW D5x50 C7BMR $1.01
100 340-463C STATOR ASS'Y DH50MB $110.72
101 958-032 BRUSH TERMINAL G18SE2 G23SC2 $1.31
102 318-607 HOUSING ASSY DH50MB $80.32
104 318-570 NYLOCK BOLT w/FLANGE M6x40 $6.26
105 307-811 TAP SCREW w/FLANGE D4x16 G12SR $1.01
106 318-599 BRUSH CAP COVER DH50MB $4.34
107 940-540 BRUSH CAP CC12Y G18SE2 G23SC2 $1.41
108 999-077 CARBON BRUSH AUTO (pair)DH50MB $13.29
109 980-487 BRUSH HOLDER G18SE2 G23SC2 $6.95
110 938051 CORD ARMOR D10.1 M12V H45SB2 $1.01
111 957-150-040 CTRL.PARTS(CARB.),DCS340 $14.61
112 313-948 DIAL FRAME DH40FB DH40MB $2.68
114 318-632 PRISM DH50MB $1.58
115 318-593 BRUSH HOLDER DH50MB $18.16
117 944-954 BEARING WASHER H65 H90SB $1.06
118 608VVM BALL BEARING G10SR SP18SA $5.78
119 318-598 TAIL COVER DH50MB $41.65
120 303-273 TAP SCREW w/FLANGE D5x16 $1.01
121 305-558 SCREW W/FLANGE D5x25 C10FS $1.24
122 318-571 SIDE COVER ASS'Y DH50MB $20.88
123 318-572 HANDLE PACKING (A) DH50MB $1.58
124 986011 TAP SCREW D5x30 GP2/S2 CR18DL $1.31
125 318-601 HANDLE DH50MB $30.57
126 313-093 SWITCH (C) 2P ScrewType DH38MS $13.71
127 318-602 HANDLE COVER DH50MB $27.80
128 301-653 TAP SCREW w/FLANGE D4x20 C7SB $1.05
129 318-573 HANDLE PACKING (B) DH50MB $2.95
130 940-778 CORD ARMOR D10.7 C10FA C15FB $2.64
130 958-049 CORD ARMOR D8.2 SAT180 SP18V $1.01
131 992-810 TERMINAL H45MA DH40FA/FB/MA/MB $1.01
131 930-804 TERMINAL M4.0 10PS DH40FA/MB $2.68
132 960266 CORD CLIP C7BD/SB C8 DH38YE $1.01
133 984750 TAP SCREW w/FLANGE D4x16 C8 $1.01
134 500-434Z CORD, ELECTRICAL, 2 WIRE C7SB $19.02
134 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
135 318-606 CONTROLLER CIRCUIT DH50MB $182.95
136 2918660004 WASHER $0.89
