Hitachi DH45MR Rotary Hammer Parts

Hitachi DH45MR Rotary Hammer Parts Image

Hitachi DH45MR Parts

Download Schematic

Time to buy a new tool?

Hitachi DH45MR

SDS Max 1 3/4 Inch R...

$667.99

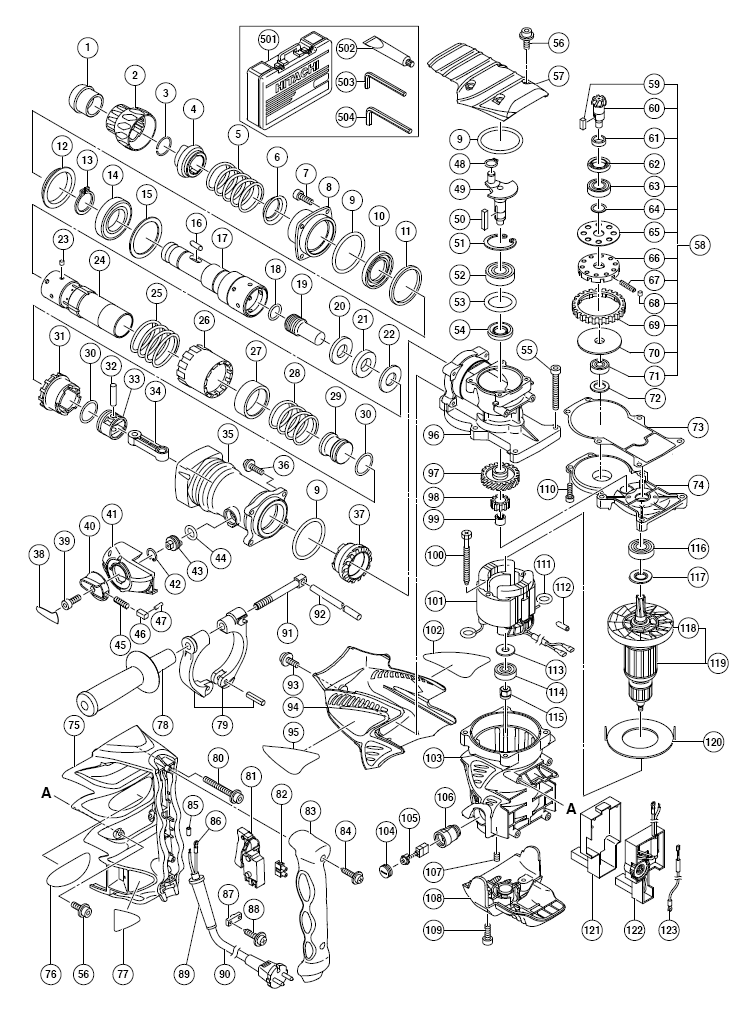

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	321-306	FRONT CAP DH40MR DH45MR	$3.53
2	321-305	GRIP DH40MR DH40MRY DH45MR	$5.26
3	318-590	STOPPER RING DH50MB DH40MR	$1.88
4	321-304	NEEDLE HOLDER DH40MR DH40MRY	$26.51
5	321-303	RETAINER SPRING DH40MR DH40MRY	$5.26
6	321-302	SPRING HOLDER (A) DH40MR	$5.26
7	981-942	SEAL LOCK BOLT M6x25 H45SB/MR	$1.97
8	321-300	FRONT COVER DH40MR DH40MRY	$23.82
9	956-996	O-Ring (1AS - 60)	$3.38
10	321-301	OIL SEAL DH40MR DH40MRY DH45MR	$6.97
11	325-229	RUBBER RING	$3.27
12	315-868	URETHANE RING HOLDER DH40MR	$3.58
13	948-131	RETAINING RING DH40MR D35SHAFT	$1.88
15	321-297	BEARING WASHER DH40MR DH40FR	$3.53
16	313-421	NEEDLE ROLLER D8x20 DH40MA/B	$5.56
17	324-919	RETAINER SLEEVE	$95.20
18	324-921	O-RING (C)	$3.27
19	324-920	SECOND HAMMER	$13.73
20	324-922	DAMPER WASHER	$6.37
21	324-923	DAMPER	$3.27
22	324-924	DAMPER HOLDER	$6.37
23	313-057	NEEDLE PIN D 6x6 DH40FB/MB/FA	$4.57
24	324-925	CYLINDER	$84.00
25	324-930	LOCK SPRING	$1.75
26	324-931	LOCK SLEEVE	$4.81
27	324-927	SPRING HOLDER (B)	$6.37
28	324-928	CLUTCH SPRING	$1.75
29	324-926	STRIKER	$13.73
31	324-929	CLUTCH	$53.28
32	324-917	PISTON PIN	$4.81
33	324-915	PISTON	$6.37
34	324-916	CONNECTING ROD	$6.37
35	324-932	CYLINDER CASE	$53.28
36	991-712	Hex. Socket HD. Bolt (W/Flange) M8X25	$1.24
37	324-933	BEVEL GEAR	$42.95
39	983-162	HEX SKT HD BOLT M4x12 DH38YE	$1.20
41	324-935	LEVER HOLDER	$3.27
42	311-229	RETAINING RING DH40MR D20SHAFT	$1.20
43	324-934	LEVER SHAFT	$21.72
44	873-095	O-RING (P16) CJ65V2/VA2 DH40FA	$1.19
45	321-310	LEVER SPRING DH40MR DH40FR	$1.88
46	321-311	PUSHING BUTTON DH40MR DH40FR	$1.88
47	321-312	PIN D2x10 DH40MR DH40FR	$1.88
48	939-540	RETAINING RING FOR D10 SHAFT (10 PCS.)	$2.25
49	324-909	CRANK SHAFT	$34.40
50	971-750	FEATHER KEY 3x3x20 DH38YE	$1.24
51	948-391	C-RING FOR D40 HOLE CC14SC	$1.73
52	620-3DD	BALL BEARING H45MR DH40MR/FR	$9.34
53	996-363	O-RING (S-40) DH40MR/Y DH40FR	$1.88
54	971-745	Oil Seal (A)	$5.15
55	986-940	SEAL LOCK HEX SOCKET HD BOLT	$1.27
56	994-192	HEX. SOCKET HD. BOLT (W/FLANGE) M5X16	$1.48
57	324-937	CRANK COVER	$9.43
58	324-912	SLIP CLUTCH ASS’Y	$151.97
59	944-109	FEATHER KEY 3X3X8	$3.37
60	324-913	BEVEL PINION	$18.04
61	321-279	COLLAR DH40MR DH40FR DH40MRY	$8.95
62	313-050	OIL SEAL (A) DH40FA/FB/MA/MB	$4.29
63	600-2DD	BALL BEARING 6002DDCMPS2L	$10.83
64	313-058	WASHER DH40FB/MB/FA/MA	$1.19
65	313-053	WASHER (A) DH40FB/MB/FA/FB	$3.87
66	321-281	GEAR HOLDER DH40MR DH40FR	$20.78
67	321-282	SPRING (C) DH40MR DH40FR	$1.88
68	320-343	NEEDLE DH40MR DH30PC DH40FR	$3.53
69	324-914	SECOND GEAR	$31.51
70	321-283	SPACER DH40MR DH40MRY DH40FR	$16.72
72	944-525	BEARING WASHER (C) DH38YE DH40	$1.24
73	325-230	SEAL PACKING	$3.27
74	324-944	GEAR COVER	$31.51
75	324-947	HANDLE	$21.72
77	324-938	SDS MAX LABEL	$1.75
79	313-079	HANDLE HOLDER DH40FA/FB DH40MA	$18.77
80	980-673	HEX. SOCKET HD. BOLT (W/FLANGE) M5X40	$1.10
81	313-093	SWITCH (C) 2P ScrewType DH38MS	$16.72
82	938-307	Pillar Terminal	$3.23
83	324-948	HANDLE COVER	$11.88
84	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.24
85	981373	TUBE(D) C15FB C10FS C8FB2	$1.48
86	980063	TERMINAL CR12V D13V DH38YE	$1.24
86	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
87	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.19
87	981-987Z	Cord Clip	$1.19
88	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
89	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
89	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
90	500-434Z	CORD, ELECTRICAL, 2 WIRE C7SB	$23.20
90	EC162	Power Tools Replacement Electical Cords (SJO) 16...	$14.19
91	313-080	HANDLE BOLT DH40MA/MB/FA/FB	$12.69
93	998-471	HEX. SOCKET HD. BOLT M5X12	$1.19
94	324-936	HOOD (A)	$14.93
96	324-908	CRANK CASE	$45.79
97	324-910	FIRST GEAR	$24.81
98	324-911	SECOND PINION	$12.49
99	939-299	NEEDLE BEARING (M661) DH38YE	$11.33
100	961-501	HEX. HD. TAPPING SCREW D5X60	$1.55
101	340-646G	STATOR ASS’Y 120V	$48.63
103	324-943	HOUSING ASS’Y	$84.00
104	945-161	BRUSH CAP DH40FA/FB/MA/MB SB75	$1.67
105	999-071	Carbon Brush (Auto Stop Type) (1 Pair)	$16.19
106	962-777	BRUSH HOLDER	$6.37
107	938-477	Hex. Socket Set Screw M5X8	$1.19
108	324-946	TAIL COVER	$8.82
109	984-508	SEAL LOCK HEX. SOCKET HD. BOLT M5X20	$1.10
110	321-313	SEAL LK HEX SOCKET HD BOLT	$1.88
111	937-623	BRUSH TERMINAL C8 C7SB/2 H55SC	$1.24
112	321-322	VIYNL TUBE DH40MR DH40FR	$1.88
113	985-436	Dust Washer	$1.27
114	620-0VV	BALL BEARING 6200VVCMPS2L	$6.67
115	318-721	MAGNET SP18VA DH40MR DH40FR	$20.46
116	620-2DD	BALL BEARING 6202DDCMPS2L P12R	$8.62
117	980-700	DUST WASHER (B) DH38YE H45SB	$1.24
118	318-918	FAN DH50MB DH45MR DH50MRY	$8.67
119	360-737U	ARMATURE ASS’Y 120V	$146.54
120	324-945	FAN GUIDE	$4.81
121	324-942	CASE (B)	$4.81
122	324-941	CONTROLLER CIRCUIT 120V	$108.61
