Hitachi DH40MRY Rotary Hammer Parts

Hitachi DH40MRY Rotary Hammer Parts Image

Hitachi DH40MRY Parts

Download Schematic

Time to buy a new tool?

Hitachi DH40MRY

1-9/16 Inch EVS SDS-...

$531.99

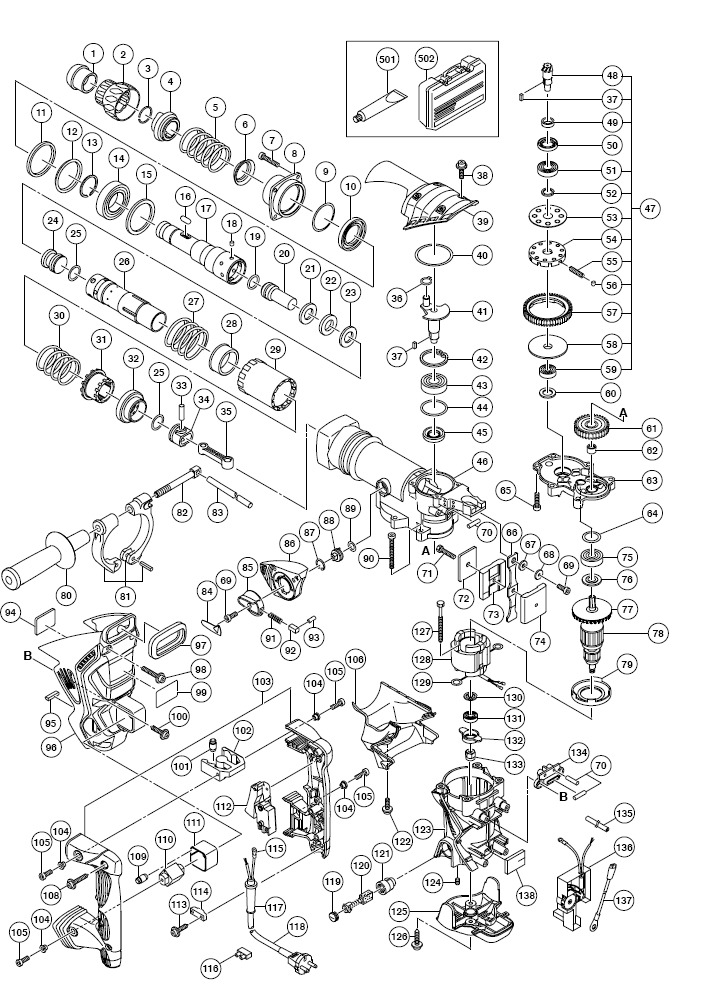

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	321-306	FRONT CAP DH40MR DH45MR	$3.53
2	321-305	GRIP DH40MR DH40MRY DH45MR	$5.26
3	318-590	STOPPER RING DH50MB DH40MR	$1.88
4	321-304	NEEDLE HOLDER DH40MR DH40MRY	$26.51
5	321-303	RETAINER SPRING DH40MR DH40MRY	$5.26
6	321-302	SPRING HOLDER (A) DH40MR	$5.26
7	981-942	SEAL LOCK BOLT M6x25 H45SB/MR	$1.97
8	321-300	FRONT COVER DH40MR DH40MRY	$23.82
9	956-996	O-Ring (1AS - 60)	$3.38
10	321-301	OIL SEAL DH40MR DH40MRY DH45MR	$6.97
11	325-229	RUBBER RING	$3.27
12	315-868	URETHANE RING HOLDER DH40MR	$3.58
13	320-850	RETAINING RING D35	$1.81
15	321-297	BEARING WASHER DH40MR DH40FR	$3.53
16	313-421	NEEDLE ROLLER D8x20 DH40MA/B	$5.56
17	321-286	RETAINER SLEEVE DH40MR	$127.27
18	313-057	NEEDLE PIN D 6x6 DH40FB/MB/FA	$4.57
19	313-396	O-RING (C) DH40MA/MB/MR/MRY	$5.27
20	326-371	SECOND HAMMER	$15.59
21	321-288	DAMPER WASHER DH40MR	$9.99
22	321-289	DAMPER DH40MR DH40MRY	$6.97
23	321-290	DAMPER HOLDER DH40MR DH40MRY	$10.98
24	326-373	STRIKER	$13.13
25	986-104	O'RING (1AS-60) DH38YE..DH40..	$1.20
26	326-372	CYLINDER	$67.27
27	326-470	LOCK SPRING	$4.81
28	321-293	SPRING HOLDER (B) DH40MR	$5.26
29	321-299	LOCK SLEEVE DH40MR DH40MRY	$8.95
30	326-469	CLUTCH SPRING	$3.27
31	321-295	CLUTCH DH40MR DH40FR DH40MRY	$47.17
32	321-296	BEVEL GEAR DH40MR DH40FR	$61.58
33	980-708	PISTON PIN DH38YE DH40...	$2.59
34	326-369	Piston	$3.59
35	326-370	CONNECTING ROD	$3.59
36	939-540	RETAINING RING FOR D10 SHAFT (10 PCS.)	$2.25
37	944-109	FEATHER KEY 3X3X8	$3.37
38	994-192	HEX. SOCKET HD. BOLT (W/FLANGE) M5X16	$1.48
39	326-473	CRANK COVER	$9.43
40	317-1 19	O-RING (S-56) H60MB H60MR	$1.89
41	326-468	CRANK SHAFT	$34.40
42	948-391	C-RING FOR D40 HOLE CC14SC	$1.73
43	620-3DD	BALL BEARING H45MR DH40MR/FR	$9.34
44	996-363	O-RING (S-40) DH40MR/Y DH40FR	$1.88
45	321-274	OIL SEAL (B) DH40MR DH40FR	$5.26
46	326-467	CYLINDER CRANK CASE	$76.29
47	321-277	SLIP CLUTCH ASS'Y DH40MR	$140.14
48	321-278	BEVEL PINION DH40MR DH40FR	$29.29
49	321-279	COLLAR DH40MR DH40FR DH40MRY	$8.95
50	313-050	OIL SEAL (A) DH40FA/FB/MA/MB	$4.29
51	600-2DD	BALL BEARING 6002DDCMPS2L	$10.83
52	313-058	WASHER DH40FB/MB/FA/MA	$1.19
53	313-053	WASHER (A) DH40FB/MB/FA/FB	$3.87
54	321-281	GEAR HOLDER DH40MR DH40FR	$20.78
55	321-282	SPRING (C) DH40MR DH40FR	$1.88
56	320-343	NEEDLE DH40MR DH30PC DH40FR	$3.53
57	321-280	SECOND GEAR DH40MR DH40FR	$31.19
58	321-283	SPACER DH40MR DH40MRY DH40FR	$16.72
60	944-525	BEARING WASHER (C) DH38YE DH40	$1.24
61	321-276	FIRST GEAR DH40MR DH40FR	$30.25
62	939-299	NEEDLE BEARING (M661) DH38YE	$11.33
63	326-482	GEAR COVER	$25.85
64	872-767	O-RING (S-32)	$2.04
65	321-313	SEAL LK HEX SOCKET HD BOLT	$1.88
66	326-374	LEAF SPRING	$4.81
67	326-375	SPRING BUMPER (A)	$1.75
68	326-477	WASHER M4.5	$1.75
69	983-162	HEX SKT HD BOLT M4x12 DH38YE	$1.20
70	878-418	NEEDLE ROLLER NR83A NR90AC	$1.88
71	991-690	SEAL LOCK HEX SOC.HDBOLT M5x12	$1.24
72	326-486	RUBBER SHEET (B)	$1.75
73	326-476	WEIGHT (B)	$11.88
74	326-475	WEIGHT (A)	$8.18
75	620-1DD	BALL BEARING SP18SA P12R	$8.52
76	302-429	DUST WASHER (B) C7BD C7SB C8	$1.27
77	321-640	FAN	$6.97
78	360-591U	ARMATURE ASS'Y 110-120v DH40MR	$134.17
79	321-320	FAN GUIDE DH40MR DH40FR	$3.53
81	313-079	HANDLE HOLDER DH40FA/FB DH40MA	$18.77
82	313-080	HANDLE BOLT DH40MA/MB/FA/FB	$12.69
86	326-471	LEVER HOLDER	$3.27
87	311-229	RETAINING RING DH40MR D20SHAFT	$1.20
88	321-307	LEVER SHAFT DH40MR/FR/MRY	$18.75
89	873-095	O-RING (P16) CJ65V2/VA2 DH40FA	$1.19
90	986-940	SEAL LOCK HEX SOCKET HD BOLT	$1.27
91	321-310	LEVER SPRING DH40MR DH40FR	$1.88
92	321-311	PUSHING BUTTON DH40MR DH40FR	$1.88
93	321-312	PIN D2x10 DH40MR DH40FR	$1.88
94	326-487	RUBBER SHEET (A)	$1.75
95	326-376	SPRING BUMPER (B)	$1.75
96	326-478	BACK COVER	$16.80
97	326-378	BELLOWS	$3.27
98	319-589	HEX SCKT HD BLT M5x35 DH30PC	$1.88
100	302-089	SCREW W/FLANGE D5X20 BLACK	$1.24
101	310-124	HANDLE DAMPER H45SB2 H45MA	$4.57
102	310-123	TRANSATORY UNIT H45SB2/MA	$12.70
103	326-485	HANDLE (A).(B) SET	$19.84
104	991-711	Distance Piece (B)	$1.20
105	991-690	SEAL LOCK HEX SOC.HDBOLT M5x12	$1.24
106	326-472	HOOD	$6.37
108	307-028	SCREW W/FLANGE D4x25 CR13VA/2	$1.19
109	310-124	HANDLE DAMPER H45SB2 H45MA	$4.57
110	326-377	HANDLE SHAFT	$4.81
111	326-479	HOLDER	$3.27
112	990-941	SWITCH (B) (1P SCREW TYPE) W/O LOCK	$28.42
113	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
114	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.19
114	981-987Z	Cord Clip	$1.19
115	980063	TERMINAL CR12V D13V DH38YE	$1.24
116	938-307	Pillar Terminal	$3.23
117	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
119	935-829	BRUSH CAP H45MA/H45SB2	$1.19
120	999-073	CARBON BRUSH AUTO (pair) CR10V	$16.19
121	971-001	BRUSH HOLDER DH40MR/Y DH40FR	$6.98
122	998-471	HEX. SOCKET HD. BOLT M5X12	$1.19
123	326-481	HOUSING ASS’Y	$37.24
124	938-477	Hex. Socket Set Screw M5X8	$1.19
125	326-483	TAIL COVER	$6.37
126	302-089	SCREW W/FLANGE D5X20 BLACK	$1.24
127	953-174	HEX. HD. TAPPING SCREW D5X55	$1.55
129	930-703	Brush Terminal	$2.59
130	982-631	WASHER (A)H45SB2 DH24PE/B/C/B2	$0.94
131	608VVM	BALL BEARING G10SR SP18SA	$7.02
132	326-484	BEARING HOLDER	$4.81
133	318-721	MAGNET SP18VA DH40MR DH40FR	$20.46
134	326-474	SPRING BASE	$3.27
135	326-541	VINYL TUBE (I.D.9.5XT0.56X85)	$1.75
137	326-492	INTERNAL WIRE	$3.27
