Hitachi DH40FR Rotary Hammer Parts

Hitachi DH40FR Rotary Hammer Parts Image

Hitachi DH40FR Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi DH40FR
1-9/16 Inch Spline S...
$545.99

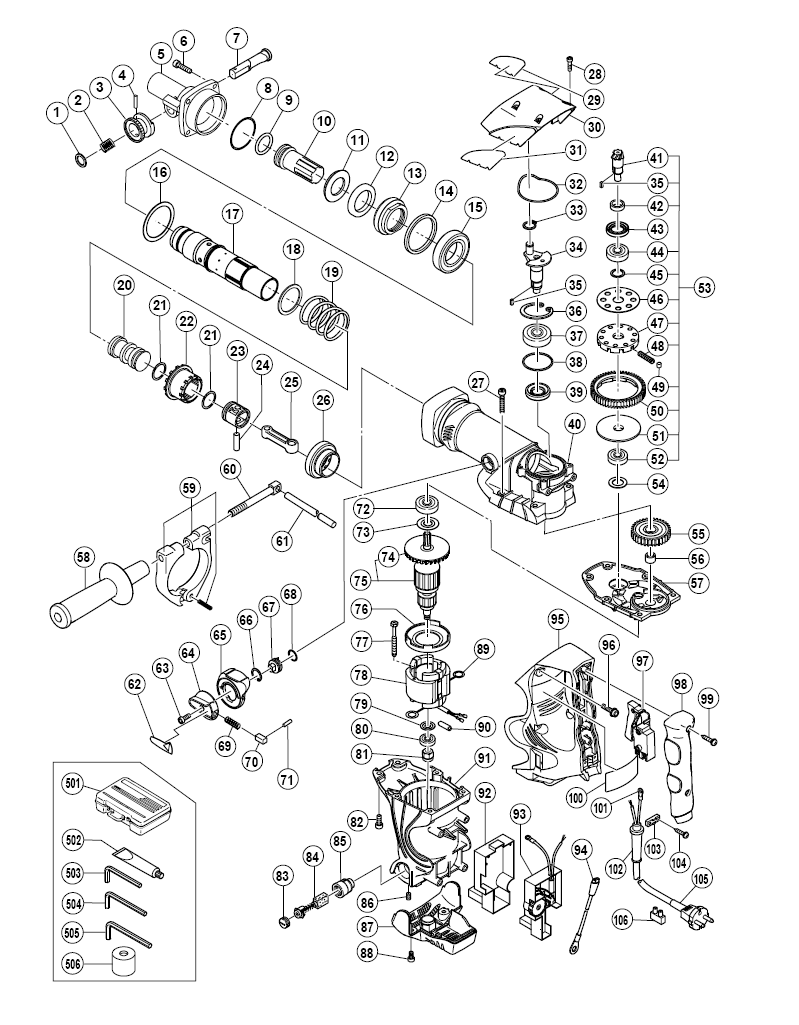

Tool Diagram    (Click image to Zoom in) View larger Image
Hitachi DH40FR Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 983-242 STOPPER WASHER DH38YE $1.24
2 981-937 STOPPER SPRING DH38YE DH40FR $1.24
3 983-241 KNOB (A) DH38YE DH40.. H45SB2 $37.77
4 943-364 NEEDLE ROLLER D4x20 DH38YE $1.24
5 322-159 FRONT COVER $119.32
6 981-942 SEAL LOCK BOLT M6x25 H45SB/MR $1.97
7 985-372 Stop Lever $61.58
8 956-996 O-Ring (1AS - 60) $3.38
9 981-857 O-Ring (C) $6.42
10 985-370 Second Hammer $98.40
11 981-862 Damper Washer $11.18
13 981-860 Cylinder Cap $28.72
14 981-859 URETHANE RING DH38YE DH40MR/FR $3.38
16 321-297 BEARING WASHER DH40MR DH40FR $3.53
17 322-156 CYLINDER $113.34
18 322-158 CYLINDER WASHER $3.53
19 321-294 CLUTCH SPRING DH40MR $5.26
20 322-157 STRIKER $15.73
21 986-104 O'RING (1AS-60) DH38YE..DH40.. $1.20
22 321-295 CLUTCH DH40MR DH40FR DH40MRY $47.17
23 321-284 PISTON DH40MR DH40FR $6.97
24 980-708 PISTON PIN DH38YE DH40... $2.59
25 321-285 CONNECTING ROD DH40MR DH40FR $5.26
26 321-296 BEVEL GEAR DH40MR DH40FR $61.58
27 986-940 SEAL LOCK HEX SOCKET HD BOLT $1.27
28 983-162 HEX SKT HD BOLT M4x12 DH38YE $1.20
30 321-315 CRANK COVER DH40MR DH40FR $16.06
32 321-314 RUBBER SEAL DH40MR DH40FR $3.53
33 939-540 RETAINING RING FOR D10 SHAFT (10 PCS.) $2.25
34 321-275 CRANKSHAFT DH40MR DH40FR $58.52
35 944-109 FEATHER KEY 3X3X8 $3.37
36 948-391 C-RING FOR D40 HOLE CC14SC $1.73
37 620-3DD BALL BEARING H45MR DH40MR/FR $9.34
38 996-363 O-RING (S-40) DH40MR/Y DH40FR $1.88
39 321-274 OIL SEAL (B) DH40MR DH40FR $5.26
40 322-155 CYLINDER CRANK CASE $113.34
41 321-278 BEVEL PINION DH40MR DH40FR $29.29
42 321-279 COLLAR DH40MR DH40FR DH40MRY $8.95
43 313-050 OIL SEAL (A) DH40FA/FB/MA/MB $4.29
44 600-2DD BALL BEARING 6002DDCMPS2L $10.83
45 313-058 WASHER DH40FB/MB/FA/MA $1.19
46 313-053 WASHER (A) DH40FB/MB/FA/FB $3.87
47 321-281 GEAR HOLDER DH40MR DH40FR $20.78
48 321-282 SPRING (C) DH40MR DH40FR $1.88
49 320-343 NEEDLE DH40MR DH30PC DH40FR $3.53
50 321-280 SECOND GEAR DH40MR DH40FR $31.19
51 321-283 SPACER DH40MR DH40MRY DH40FR $16.72
53 321-277 SLIP CLUTCH ASS'Y DH40MR $140.14
54 944-525 BEARING WASHER (C) DH38YE DH40 $1.24
55 321-276 FIRST GEAR DH40MR DH40FR $30.25
56 939-299 NEEDLE BEARING (M661) DH38YE $11.33
57 321-319 GEAR COVER DH40MR DH40FR $44.01
59 313-079 HANDLE HOLDER DH40FA/FB DH40MA $18.77
60 313-080 HANDLE BOLT DH40MA/MB/FA/FB $12.69
63 983-162 HEX SKT HD BOLT M4x12 DH38YE $1.20
65 322-160 LEVER HOLDER $5.26
66 311-229 RETAINING RING DH40MR D20SHAFT $1.20
67 321-307 LEVER SHAFT DH40MR/FR/MRY $18.75
68 873-095 O-RING (P16) CJ65V2/VA2 DH40FA $1.19
69 321-310 LEVER SPRING DH40MR DH40FR $1.88
70 321-311 PUSHING BUTTON DH40MR DH40FR $1.88
71 321-312 PIN D2x10 DH40MR DH40FR $1.88
72 620-1DD BALL BEARING SP18SA P12R $8.52
73 302-429 DUST WASHER (B) C7BD C7SB C8 $1.27
74 321-640 FAN $6.97
75 360-591U ARMATURE ASS'Y 110-120v DH40MR $134.17
76 321-320 FAN GUIDE DH40MR DH40FR $3.53
77 953-174 HEX. HD. TAPPING SCREW D5X55 $1.55
78 340-542G STATOR ASS'Y 120v DH40FR/MR $73.87
79 982-631 WASHER (A)H45SB2 DH24PE/B/C/B2 $0.94
80 608VVM BALL BEARING G10SR SP18SA $7.02
81 318-721 MAGNET SP18VA DH40MR DH40FR $20.46
82 321-313 SEAL LK HEX SOCKET HD BOLT $1.88
83 935-829 BRUSH CAP H45MA/H45SB2 $1.19
84 999-073 CARBON BRUSH AUTO (pair) CR10V $16.19
85 971-001 BRUSH HOLDER DH40MR/Y DH40FR $6.98
86 938-477 Hex. Socket Set Screw M5X8 $1.19
87 321-321 TAIL COVER DH40MR DH40FR $10.98
88 877-839 SL LK HEX HD BOLT M5x10 H90SB $1.24
89 930-703 Brush Terminal $2.59
90 321-322 VIYNL TUBE DH40MR DH40FR $1.88
91 321-318 HOUSING ASS'Y DH40MR DH40FR $104.41
92 321-317 CASE (B) DH40MR DH40FR $5.26
93 321-328 CONTROLLER CIRCUIT 120v DH40FR $181.80
95 321-323 HANDLE DH40MR DH40FR $31.48
96 998-485 HEX SOCKET HD BOLT M5x14DH40MR $1.20
97 313-093 SWITCH (C) 2P ScrewType DH38MS $16.72
98 321-324 HANDLE COVER DH40MR DH40FR $23.82
99 301-653 TAP SCREW w/FLANGE D4x20 C7SB $1.24
101 980063 TERMINAL CR12V D13V DH38YE $1.24
101 930-804 TERMINAL M4.0 10PS DH40FA/MB $3.23
102 940-778 CORD ARMOR D10.7 C10FA C15FB $3.19
103 960266 CORD CLIP C7BD/SB C8 DH38YE $1.19
103 981-987Z Cord Clip $1.19
104 984750 TAP SCREW w/FLANGE D4x16 C8 $1.19
105 500-434Z CORD, ELECTRICAL, 2 WIRE C7SB $23.20
105 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
106 938-307 Pillar Terminal $3.23
