Hitachi DH30PC2 Rotary Hammer Parts

Hitachi DH30PC2 Rotary Hammer Parts Image

Hitachi DH30PC2 Parts

Download Schematic

Time to buy a new tool?

Hitachi DH30PC2

1 3/16 Inch SDS Plus...

$481.99

Free Shipping

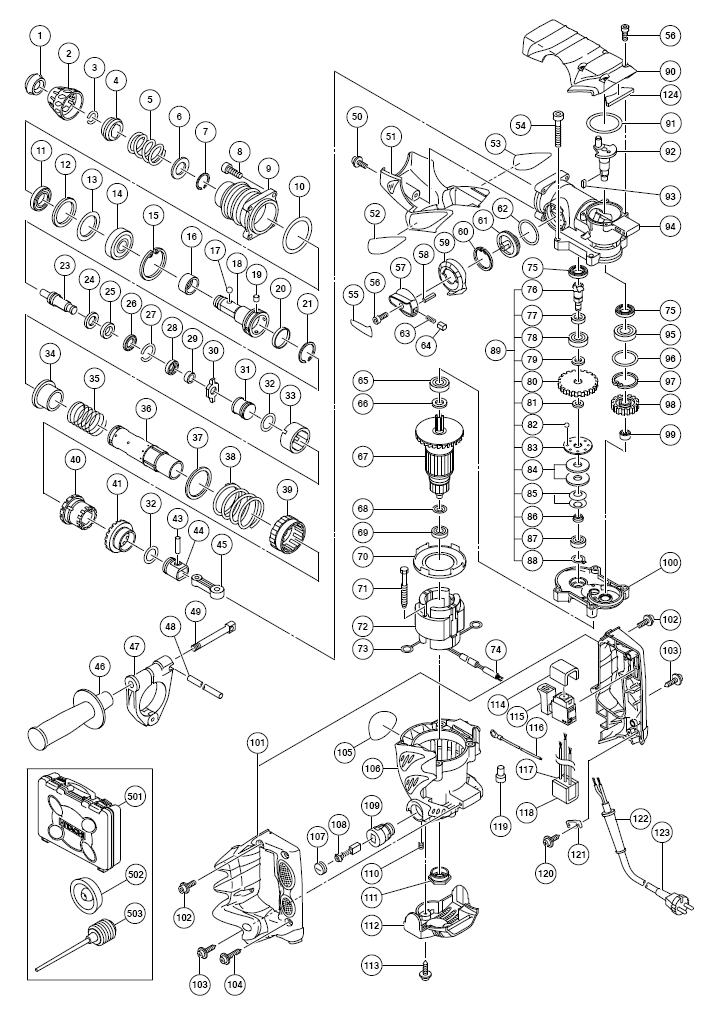

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	323-078	FRONT CAP	$2.99
2	323-077	GRIP	$4.80
3	306-340	STOPPER RING DH22PG DH30PC2	$1.31
4	323-076	BALL HOLDER	$24.48
5	323-075	RETAINER SPRING	$2.99
6	325-668	WASHER (D)	$2.99
7	306-993	RETAINING RING	$1.70
8	321-313	SEAL LK HEX SOCKET HD BOLT	$1.58
9	325-651	CYLINDER CASE	$21.70
10	980-744	O-Ring (S - 55)	$2.63
11	320-324	OIL SEAL DH30PC DH30PC2	$2.93
12	320-325	DAMPER (B) DH30PC DH30PC2	$2.93
13	320-326	DAMPER WASHER (B) DH30PC	$4.34
15	948-227	RETAINING RING WH16 WR12DH	$1.31
16	325-667	SLEEVE	$2.99
17	959-156	STEEL BALL D7.0 DH20DV 10PS	$1.58
18	325-652	RETAINER SLEEVE	$99.95
19	325-658	NEEDLE PIN	$1.61
20	326-301	SLEEVE (C)	$13.05
21	313-420	RETAINING RING D38	$2.06
23	325-653	SECOND HAMMER	$21.93
24	323-059	DAMPER WASHER	$8.31
25	323-060	DAMPER	$2.99
26	323-061	DAMPER HOLDER	$7.45
27	323-062	STOPPER RING	$1.61
28	326-302	DAMPER HOLDER (B)	$7.18
29	326-303	DAMPER (C)	$2.99
30	326-300	SLIDE RING	$26.74
31	325-660	STRIKER	$11.37
32	319-577	O-RING (I.D 19.2)	$3.28
33	325-656	SLIDE SLEEVE (B)	$2.99
34	325-655	SLIDE SLEEVE (A)	$13.88
35	325-664	CLUTCH SPRING	$6.36
36	325-654	CYLINDER	$117.54
37	325-661	WASHER (C)	$4.39
38	325-662	LOCK SPRING	$6.36
39	325-663	LOCK SLEEVE	$17.51
40	325-665	CLUTCH	$56.07
41	325-666	BEVEL GEAR	$56.07
43	319-581	PISTON PIN DH30PC DH30PC2	$1.58
44	319-580	PISTON	$3.28
45	319-585	CONNECTING ROD	$3.28
47	325-672	HANDLE HOLDER	$13.88
49	313-080	HANDLE BOLT DH40MA/MB/FA/FB	$10.42
50	998-471	HEX. SOCKET HD. BOLT M5X12	$1.10
51	325-677	HOOD	$8.04
54	986-940	SEAL LOCK HEX SOCKET HD BOLT	$1.07
55	321-867	LEVER LABEL	$1.73
56	983-162	HEX SKT HD BOLT M4x12 DH38YE	$1.01
57	321-309	CHANGE LEVER DH40MR DH40FR	$2.93
58	321-312	PIN D2x10 DH40MR DH40FR	$1.58
59	325-671	LEVER HOLDER	$2.99
60	948-391	C-RING FOR D40 HOLE CC14SC	$1.45
61	325-670	LEVER SHAFT	$21.82
62	980-948	O-Ring	$1.43
63	321-310	LEVER SPRING DH40MR DH40FR	$1.58
64	321-311	PUSHING BUTTON DH40MR DH40FR	$1.58
66	971-736	WASHER (B) H45MA H45SB2	$1.01
67	360-768U	ARMATURE ASS’Y 120V	$126.31
68	982-631	WASHER (A)H45SB2 DH24PE/B/C/B2	$0.80
69	608VVM	BALL BEARING G10SR SP18SA	$5.78
70	323-083	FAN GUIDE	$2.99
71	953-121	HEX TAPPING SCREW D5x50 C7BMR	$1.01
72	340-672G	STATOR ASS’Y 120V	$79.39
73	930-703	Brush Terminal	$2.37
74	321-322	VIYNL TUBE DH40MR DH40FR	$1.58
75	981-851	OIL SEAL DH38YE DH30PC2	$2.64
76	325-647	BEVEL PINION	$25.89
77	325-648	COLLAR	$1.61
79	992-503	WASHER DH25PB DH30PC2	$0.88
80	325-649	SECOND GEAR	$28.95
81	971-087	Stopper Washer	$0.96
82	959-155	STEEL BALL D3.97 10PS DH38YE	$1.01
83	992-916	Clutch Plate	$2.78
84	992-926	Spring Plate	$1.11
85	980-877	BELLEVILLE SPRING	$1.10
86	325-650	BUSHING	$4.61
87	608VVM	BALL BEARING G10SR SP18SA	$5.78
88	940-079	RETAINING RING CJ120V D8SHAFT	$1.31
89	325-646	SLIP CLUTCH ASS’Y	$81.21
90	325-669	CRANK CASE COVER	$13.05
91	980-715	O-RING (S-48)	$2.37
92	325-644	CRANK SHAFT	$44.90
94	325-643	CRANK CASE	$64.44
95	600-2DD	BALL BEARING 6002DDCMPS2L	$8.89
96	872-767	O-RING (S-32)	$1.87
97	948-001	RETAINING RING D13VB2 DV20VB	$1.70
98	325-645	FIRST GEAR	$23.40
99	939-299	NEEDLE BEARING (M661) DH38YE	$9.31
100	325-674	GEAR COVER	$30.90
101	325-680	HANDLE (A).(B) SET	$33.73
102	994-192	HEX. SOCKET HD. BOLT (W/FLANGE) M5X16	$1.36
103	302-089	SCREW W/FLANGE D5X20 BLACK	$1.05
104	307-028	SCREW W/FLANGE D4x25 CR13VA/2	$1.01
106	325-673	HOUSING ASS’Y	$53.28
107	945-161	BRUSH CAP DH40FA/FB/MA/MB SB75	$1.41
108	999-073	CARBON BRUSH AUTO (pair) CR10V	$13.28
109	958-900	BRUSH HOLDER CR13VA/V/2 CM4SB2	$5.78
110	938-477	Hex. Socket Set Screw M5X8	$1.10
111	310-111	BEARING BUSHING (B) H45SB2/MA	$7.35
112	323-085	TAIL COVER	$15.56
113	307-811	TAP SCREW w/FLANGE D4x16 G12SR	$1.01
114	317-492	SUPPORT (B) H45MR DH30PC2	$1.58
115	325-675	SWITCH (2P PILLAR TYPE)	$24.55
118	317-492	SUPPORT (B) H45MR DH30PC2	$1.58
120	984750	TAP SCREW w/FLANGE D4x16 C8	$1.01
121	960266	CORD CLIP C7BD/SB C8 DH38YE	$1.01
122	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.01
122	938051	CORD ARMOR D10.1 M12V H45SB2	$1.01
123	500-249Z	CORD, ELECTRICAL, 2 WIRES	$26.43
124	326-651	FELT PACKING	$1.61
626	995-344	FLAT HD SCREW LH M6x25 DV20VB2	$1.29
