Hitachi DH30PC Rotary Hammer Parts

Hitachi DH30PC Rotary Hammer Parts Image

Hitachi DH30PC Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

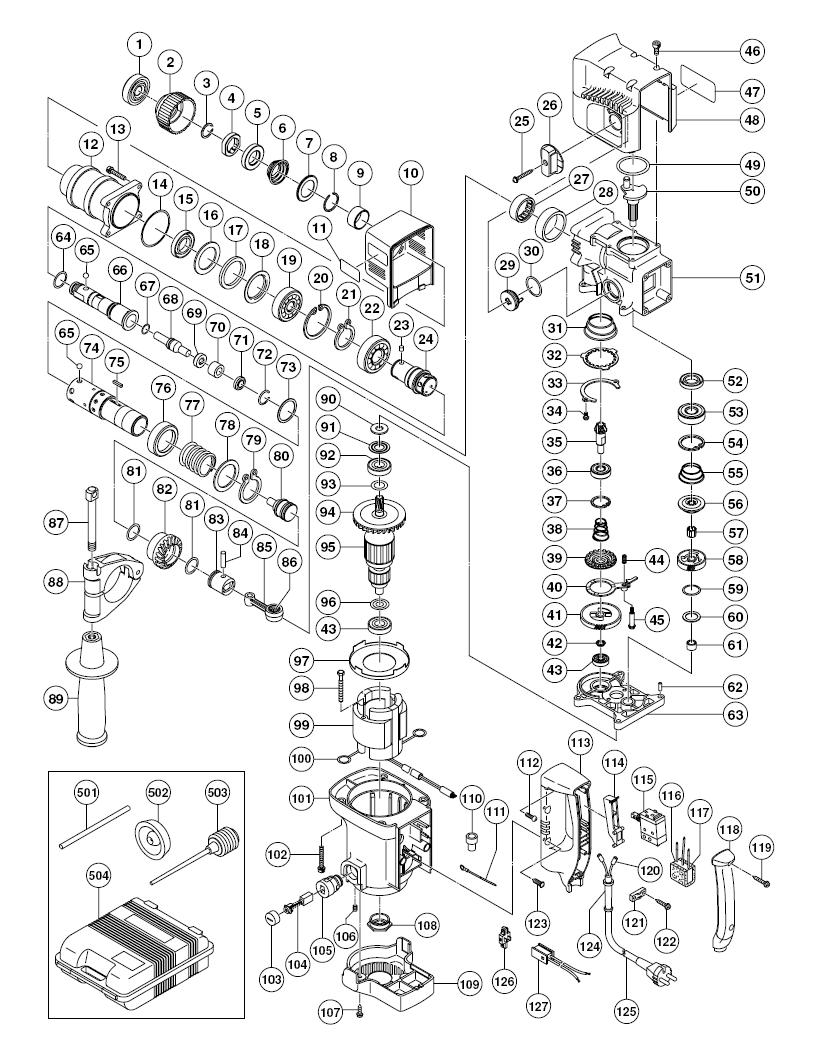

Hitachi DH30PC Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 318-028 FRONT CAP DH30PC DH25PB $2.93
2 320-352 GRIP DH30PC $2.93
3 306-340 STOPPER RING DH22PG DH30PC2 $1.31
4 320-349 HOLDER SLEEVE DH30PC $11.51
5 320-353 BALL HOLDER DH30PC $10.69
6 320-351 HOLDER SPRING DH30PC $1.58
7 320-354 SPRING HOLDER (B) DH30PC $2.93
8 676-432 RETAINING RING DH30PC $1.02
9 320-350 SLEEVE DH30PC $10.69
10 320-355 CYLINDER CASE COVER DH30PC $6.81
12 320-323 CYLINDER CASE DH30PC $18.95
13 992-253 HEX SOCKET HD BOLT M5x25DH25PB $1.45
14 990-067 O-RING (1AS-50) NV45AC H45MR/Y $1.65
15 320-324 OIL SEAL DH30PC DH30PC2 $2.93
16 320-344 WASHER (B) DH30PC $2.93
17 320-325 DAMPER (B) DH30PC DH30PC2 $2.93
18 320-326 DAMPER WASHER (B) DH30PC $4.34
20 948-227 RETAINING RING WH16 WR12DH $1.31
21 948-310 RETAINING RING DH24PB D30SHAFT $1.41
22 690-6T2 BALL BEARING DH20V DH25PA/B $15.92
23 320-343 NEEDLE DH40MR DH30PC DH40FR $2.93
24 320-330 RETAINER SLEEVE (B) DH30PC $74.77
25 307-028 SCREW W/FLANGE D4x25 CR13VA/2 $1.01
26 320-360 CHANGE LEVER DH30PC $8.49
27 320-307 NEEDLE BEARING DH30PC $9.88
28 320-972 BEARING BUSHING DH30PC $2.93
29 320-358 SHIFT LEVER DH30PC $4.34
30 320-359 O-RING (B) DH30PC $1.58
31 320-308 PLATE SPRING DH30PC $1.58
32 320-309 LOCK PLATE DH30PC $2.93
33 320-310 PLATE HOLDER DH30PC $1.58
34 993-982 SEAL LOCK SCREW M4x6 DH30PC $1.02
35 320-311 THIRD PINION DH30PC $20.37
37 983-748 RETAINING RING NV45AC D24SHAFT $1.01
38 320-313 CLUTCH SPRING (B) DH30PC $2.93
39 320-314 CLUTCH (B) DH30PC $10.69
40 320-361 SHIFT PLATE DH30PC $12.90
41 320-315 SECOND GEAR DH30PC $24.22
42 320-316 SLEEVE (B) DH30PC $2.93
43 608VVM BALL BEARING G10SR SP18SA $5.78
44 320-363 SHIFT SPRING DH30PC $1.58
45 320-362 SHIFT GUIDE DH30PC $2.93
46 878-356 SEAL LCK HEX SCKT HD BLT M4x10 $1.02
48 320-356 CRANK CASE COVER DH30PC $19.52
49 314-030 O-RING DH30PC $1.02
50 320-318 CRANKSHAFT DH30PC $36.12
51 320-368 CRANK CASE ASS'Y DH30PC $83.05
52 981-851 OIL SEAL DH38YE DH30PC2 $2.64
53 600-2VV BALL BEARING 6002VVCMPS2L $8.43
54 948-001 RETAINING RING D13VB2 DV20VB $1.70
55 320-320 CLUTCH SPRING (A) DH30PC $1.58
56 320-321 CLUTCH (A) DH30PC $20.37
57 320-932 NEEDLE CAGE DH30PC $5.74
58 320-322 FIRST GEAR DH30PC $38.86
59 320-317 THRUST BALL BEARING DH30PC $5.74
60 320-319 WASHER (A) DH30PC $1.58
61 670-714 NEEDLE BEARING (HK0810) D13Y $5.78
62 949-756 PIN D4x12 (10pc) DH30PC $2.14
63 320-365 GEAR COVER DH30PC $30.57
64 320-340 O-RING DH30PC $1.58
65 959-156 STEEL BALL D7.0 DH20DV 10PS $1.58
66 320-329 RETAINER SLEEVE DH30PC $88.63
67 311-819 O-RING (B) DH30PC $2.33
68 320-331 SECOND HAMMER DH30PC $14.29
69 320-332 HAMMER HOLDER DH30PC $6.28
70 320-333 DAMPER DH30PC $2.93
71 320-334 DAMPER HOLDER DH30PC $6.28
72 320-335 STOPPER RING DH30PC $1.58
73 320-341 WASHER (A) DH30PC $1.58
74 320-328 CYLINDER DH30PC $83.05
75 982-696 FEATHER KEY 3x3x15 DH25V G12SE $1.06
76 320-336 PUSHING RING DH30PC $10.69
77 320-337 SPRING (A) DH30PC $7.68
79 320-339 RETAINING RING DH30PC D34SHAFT $1.58
80 320-346 STRIKER DH30PC $13.72
81 320-347 O-RING DH30PC $5.74
82 320-345 THIRD GEAR DH30PC $36.12
83 320-348 PISTON DH30PC $9.88
84 319-581 PISTON PIN DH30PC DH30PC2 $1.58
85 982-647 CONNECTING ROD ASSY DH30PC $27.36
86 956-406 NEEDLE BEARING, NTN 8Q-HK08 10D $10.31
87 313-080 HANDLE BOLT DH40MA/MB/FA/FB $10.42
88 320-357 HANDLE HOLDER DH30PC $15.92
90 320-366 FELT PACKING DH30PC $1.58
91 320-367 PACKING WASHER DH30PC $2.93
92 140808-1 N/A $73.60
93 971-736 WASHER (B) H45MA H45SB2 $1.01
94 319-930 FAN DH30PC $4.34
95 360-561U ARMATURE ASS'Y 110-120v DH30PC $105.18
96 982-631 WASHER (A)H45SB2 DH24PE/B/C/B2 $0.80
97 980-931 FAN GUIDE DH25V/H45MA/H45SB2 $3.77
98 953-121 HEX TAPPING SCREW D5x50 C7BMR $1.01
99 340-507G STATOR ASS'Y 110v-120v DH30PC $83.05
100 926-208-001 SPRING WASHER 8, DPC7000 $2.51
101 319-590 HOUSING ASS'Y DH30PC $24.52
102 319-589 HEX SCKT HD BLT M5x35 DH30PC $1.58
103 945-161 BRUSH CAP DH40FA/FB/MA/MB SB75 $1.41
104 999-073 CARBON BRUSH AUTO (pair) CR10V $13.28
105 958-900 BRUSH HOLDER CR13VA/V/2 CM4SB2 $5.78
106 938051 CORD ARMOR D10.1 M12V H45SB2 $1.01
107 307-811 TAP SCREW w/FLANGE D4x16 G12SR $1.01
108 310-111 BEARING BUSHING (B) H45SB2/MA $7.35
109 319-587 TAIL COVER DH30PC $6.81
110 957-150-040 CTRL.PARTS(CARB.),DCS340 $14.61
112 307-294 MACHINE SCREW W/WASHER M5x16 $1.02
113 319-597 HANDLE DH30PC $19.52
114 319-594 TRIGGER DH30PC $1.58
115 319-593 SWITCH (A) (2P PILLAR TYPE) $30.56
116 986011 TAP SCREW D5x30 GP2/S2 CR18DL $1.31
117 317-492 SUPPORT (B) H45MR DH30PC2 $1.58
118 319-598 HANDLE COVER DH30PC $19.52
119 301-653 TAP SCREW w/FLANGE D4x20 C7SB $1.05
120 981373 TUBE(D) C15FB C10FS C8FB2 $1.24
121 937-631 CORD CLIP M12V2 M12SA2 C8FB2 $1.01
122 984750 TAP SCREW w/FLANGE D4x16 C8 $1.01
123 305-558 SCREW W/FLANGE D5x25 C10FS $1.24
124 953327 CORD ARMOR D8.8 D10VH SV13YB $1.01
124 938051 CORD ARMOR D10.1 M12V H45SB2 $1.01
125 500-249Z CORD, ELECTRICAL, 2 WIRES $26.43
126 2918660004 WASHER $0.89
127 319-596 PLUG (B) DH30PC $9.02
