Hitachi DH24PC3 Rotary Hammer Parts

Hitachi DH24PC3 Rotary Hammer Parts Image

Hitachi DH24PC3 Parts

Download Schematic

Time to buy a new tool?

Hitachi DH24PC3

15/16 Inch SDS Plus ...

$165.99

Free Shipping

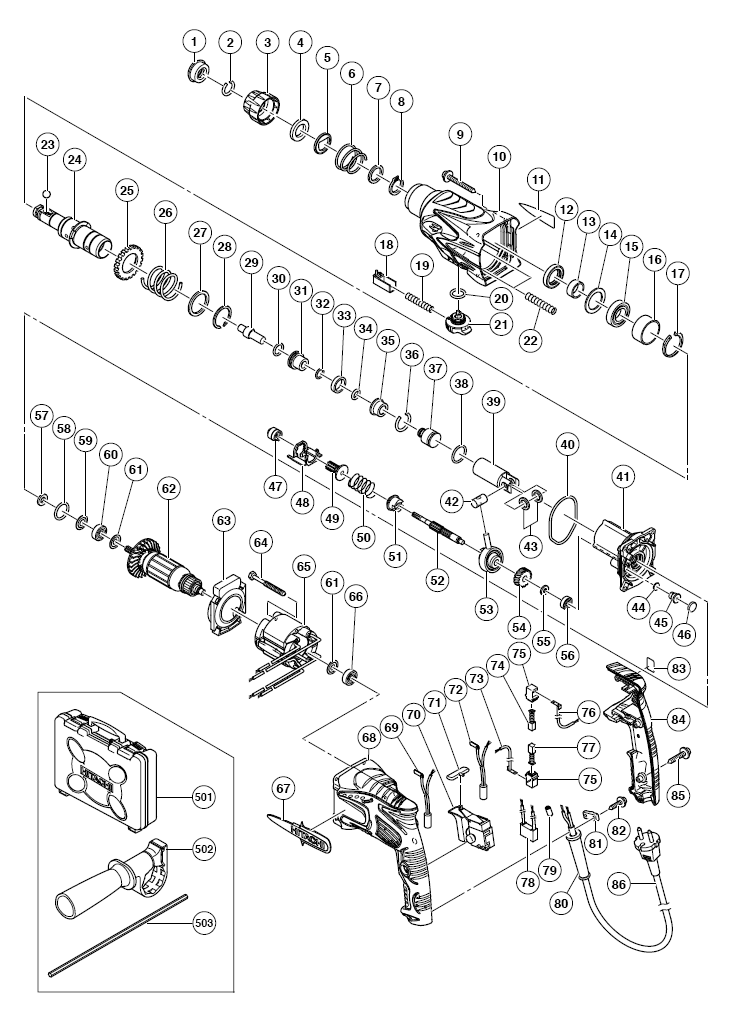

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	306-345	FRONT CAP DH24PB/PD/PE/VB	$2.80
2	306-340	STOPPER RING DH22PG DH30PC2	$1.31
3	324-527	GRIP	$3.16
4	324-528	BALL HOLDER	$6.17
5	324-526	HOLDER PLATE	$3.16
6	322-812	HOLDER SPRING DH22PB DH24PB2	$1.54
7	984-118	WASHER (B) DH24PE/PC/VD/PB	$1.06
8	939-547	RETAINING RING DH24PF D20SHAFT	$3.55
9	301-654	SCREWw/FLANGE D5x35 G18SE2/3	$1.85
10	324-605	GEAR COVER ASS’Y	$131.20
12	307-688	OIL SEAL DH24PB/B2/B3/C/PE	$3.54
13	322-815	SLEEVE DH22PB DH24PB2/3	$1.54
14	323-232	FELT PACKING (B) DH24PC2/PC3	$1.54
15	690-4DD	BALL BEARING DH24PC2 DH22PB	$18.81
16	324-522	SLEEVE (A)	$3.16
17	322-813	RETAINING RING DH22PB 37SHAFT	$1.54
18	324-530	PUSHING BUTTON	$1.69
19	317-223	PUSHING SPRING DH24PC DH24PE(S	$1.64
20	878-885	O-RING S-18 NR90AC/2/AA/NV45AC	$1.24
21	324-603	CHANGE LEVER	$7.34
22	317-238	SPRING (B) DH24PC DH24PE(S)	$1.58
23	959-156	STEEL BALL D7.0 DH20DV 10PS	$1.58
24	323-184	CYLINDER DH24PC2 DH24PC3	$75.24
25	323-185	SECOND GEAR DH24PC2 DH24PC3	$18.68
26	317-233	SPRING (A) DH24PC DH24PE(S)	$6.55
27	317-234	WASHER (A) DH24PC DH24PE(S)	$2.96
28	317-235	RETAINING RING DH24PC D30SHAFT	$1.58
29	324-525	SECOND HAMMER	$6.17
30	944-486	O-RING (1AP-20) NV50AG WH16	$1.01
31	324-523	HAMMER HOLDER	$10.92
32	322-802	O-RING (B) DH24PB3/PC3/PF3	$2.86
33	322-805	DAMPER (A) DH24PF3/PC3/PB3	$1.54
34	322-808	O-RING (C) DH22PB DH24PB2	$1.54
35	324-524	DAMPER HOLDER	$6.17
36	322-807	STOPPER RING DH22PB DH24PB2	$1.54
37	324-535	STRIKER	$9.73
38	322-834	O-RING (I.D.16) DH24PB2 DH24PC	$2.86
39	324-534	PISTON	$16.85
40	322-793	O-RING (I.D. 66.5) DH22PB	$2.86
41	324-542	INNER COVER ASS’Y	$35.94
42	322-798	PISTON PIN DH22PB/H DH24PB2	$1.54
43	322-799	WASHER (C) DH24PB2/3 DH24PC2/3	$1.54
44	324-543	FELT PACKING (A)	$1.69
45	324-545	VALVE	$1.69
46	324-544	FELT PACKING (B)	$1.69
47	323-249	PINION SLEEVE DH24PC2 DH24PC3	$43.07
48	318-522	LOCK PLATE DH24PF3 DH24PC3	$20.64
49	323-181	SECOND PINION DH24PC2/3	$16.81
50	323-182	CLUTCH SPRING DH24PC2/3	$1.54
51	324-606	CLUTCH	$14.47
52	323-180	SECOND SHAFT DH24PF3/PC2/3	$29.64
53	324-533	RECIPROCATING BEARING	$38.90
54	322-797	FIRST GEAR DH22PB DH24PB2/3	$11.48
55	322-795	SPACER DH22PB DH24PB2/3	$1.54
56	626-VVM	BALL BEARING 626VVC2PS2L DH24	$5.78
57	322-816	FELT PACKING DH22PB DH24PB2/3	$1.54
58	876-796	O-RING NV65AC/NV83A/2/DH24PB/	$1.06
59	322-818	PACKING WASHER DH22PB DH24PB2	$2.86
60	608-DDM	BALL BEARING 608DDC2PS2L C10FS	$6.03
61	982-631	WASHER (A)H45SB2 DH24PE/B/C/B2	$0.80
62	360-720U	ARMATURE ASS’Y 110V-120V	$74.63
63	324-531	FAN GUIDE	$3.16
64	961-672	HEX HD TAPPING SCRW D4x50 W6V4	$0.86
65	340-635C	STATOR 110V-120V	$62.74
66	608VVM	BALL BEARING G10SR SP18SA	$5.78
67	324-604	HITACHI PLATE	$4.66
68	324-553	HOUSING	$27.59
70	324-536	SWITCH (1P PILLAR TYPE)	$23.11
71	322-853	PUSHING BUTTON	$1.44
73	324-538	INTERNAL WIRE (A) (BLUE)	$4.66
74	999-041	CARBON BRUSH (pair) CJ110MV	$4.25
75	955-203	BRUSH HOLDER CJ110MV D13VB2	$3.11
76	324-537	INTERNAL WIRE (A) (BROWN)	$4.66
77	999-072	CARBON BRUSH AUTO (pair) D13V	$13.29
79	981373	TUBE(D) C15FB C10FS C8FB2	$1.24
80	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.01
80	938051	CORD ARMOR D10.1 M12V H45SB2	$1.01
81	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.01
82	984750	TAP SCREW w/FLANGE D4x16 C8	$1.01
84	324-554	HANDLE COVER	$14.47
85	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.05
86	500-249Z	CORD, ELECTRICAL, 2 WIRES	$26.43
502	324-548	SIDE HANDLE	$14.47
608	948-310	RETAINING RING DH24PB D30SHAFT	$1.41
610	959-150	STEEL BALL D6.35 10PS DH38YE	$1.41
617	995-344	FLAT HD SCREW LH M6x25 DV20VB2	$1.29
