Hitachi DH24PC Rotary Hammer Parts

Hitachi DH24PC Rotary Hammer Parts Image

Hitachi DH24PC Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

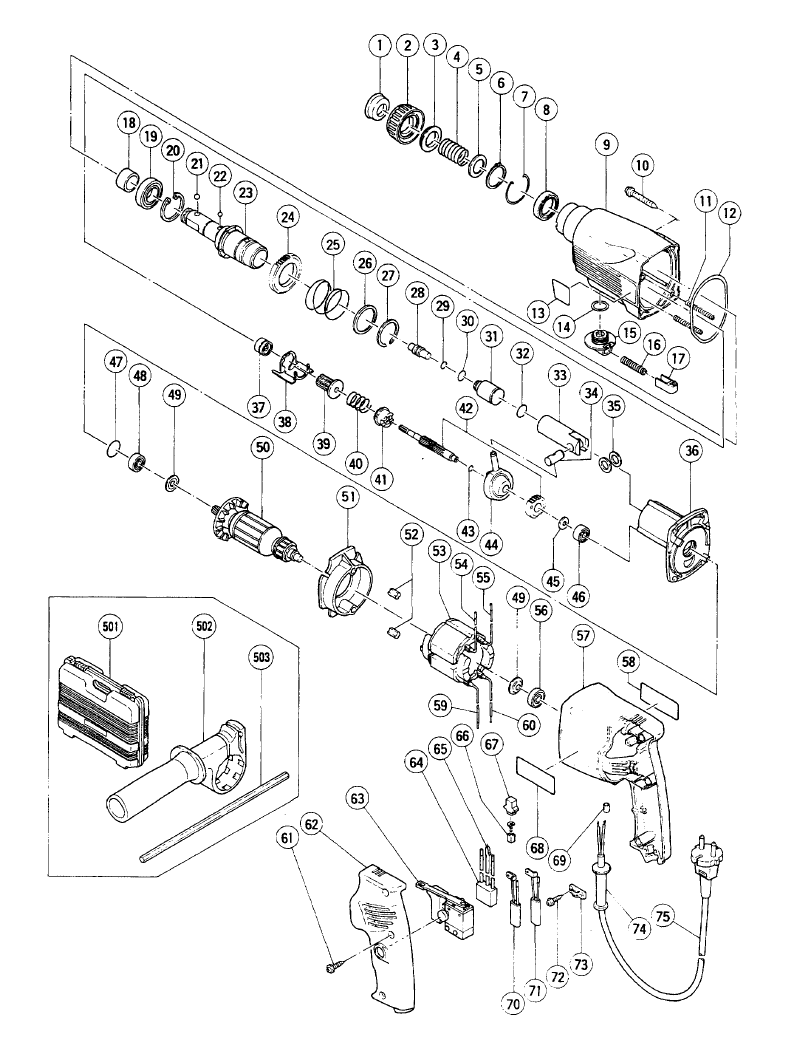

Hitachi DH24PC Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 306-345 FRONT CAP DH24PB/PD/PE/VB $3.38
2 317-229 GRIP DH24PC DH24PE(S) $3.60
3 317-230 BALL HOLDER DH24PC DH24PE(S) $13.06
4 306-342 HOLDER SPRING DH18VBK DH20DV $3.38
5 984-118 WASHER (B) DH24PE/PC/VD/PB $1.24
6 939-547 RETAINING RING DH24PF D20SHAFT $4.29
7 317-236 RETAINING RING DH24PC $1.89
8 307-688 OIL SEAL DH24PB/B2/B3/C/PE $4.29
9 317-221 GEAR COVER DH24PC $61.58
10 301-654 SCREWw/FLANGE D5x35 G18SE2/3 $2.21
11 317-238 SPRING (B) DH24PC DH24PE(S) $1.88
12 314-881 O-RING DH24PE/DH24PB/DH24PC $3.58
14 878-885 O-RING S-18 NR90AC/2/AA/NV45AC $1.48
16 317-223 PUSHING SPRING DH24PC DH24PE(S $1.97
18 307-690 SLEEVE DH24VB/VD/PB/PC/PE $10.99
19 690-4CM BALL BEARING 6904CM DH20DV $23.12
20 986-147 C-TYPE RETAINING RING D37 D13Y $1.24
21 959-156 STEEL BALL D7.0 DH20DV 10PS $1.88
22 959-154 STEEL BALL D5.556 DH24PE 10PS $1.59
23 317-231 CYLINDER DH24PC DH24PE(S) $104.44
24 317-232 SECOND GEAR DH24PC DH24PE(S) $16.72
25 317-233 SPRING (A) DH24PC DH24PE(S) $7.96
26 317-234 WASHER (A) DH24PC DH24PE(S) $3.58
27 317-235 RETAINING RING DH24PC D30SHAFT $1.88
28 317-384 SECOND HAMMER DH24PC DH24PE(S) $12.05
29 301-672 O-RING (B) DH20DV/DH24PB/PC/PE $1.24
30 301-680 O-RING DH24PB/PC/PE/VB $2.59
31 315-148 STRIKER DH20DV/DH24PC/DH24PE $13.06
32 301-670 O-RING (A) DH20DV DH24PB/PC/PE $2.88
33 301-668 PISTON DH20DV/DH24PB/PC/PE/VB $10.99
34 301-666 PISTON PIN DH20DV/DH24PB/PC/PE $5.56
36 314-880 INNER COVER DH24PE/PB/PC $25.54
37 317-240 PINION SLEEVE DH24PC $44.04
41 317-228 CLUTCH DH24PC DH24PE(S) $19.81
42 317-226 GEAR SHAFT SET DH24PC DH24PE(S $52.36
43 992-912 O-RING DH20DV/DH24PB/PC/PE/VB $1.27
44 317-225 RECIPROCATING BEARING DH24PC $113.35
45 301-663 SPACER DH24PB/PB2/PC/PC2/PE/PF $1.27
46 626-VVM BALL BEARING 626VVC2PS2L DH24 $7.02
47 876-796 O-RING NV65AC/NV83A/2/DH24PB/ $1.24
48 608-DDM BALL BEARING 608DDC2PS2L C10FS $7.33
49 982-631 WASHER (A)H45SB2 DH24PE/B/C/B2 $0.94
50 360-446U ARMATURE 110-115V DH24PB/PC/PE $87.25
51 314-879 FAN GUIDE DH24PE/B/C/D13VB2 $5.27
52 994-343 RUBBER BUSHING DH24PE DV20VB $1.75
53 340-398C STATOR 110-115V DH24PE/B/C $37.77
54 314-913 INTERNAL WIRE (A) (GRAY) DH24 $3.60
56 608VVM BALL BEARING G10SR SP18SA $7.02
57 314-889 HOUSING DH24PB/C/D13VB2/DV20VB $23.20
59 314-912 INTERNAL WIRE (A) (RED) DH24PB $3.58
60 314-915 INTERNAL WIRE (A) (WHITE) DH24 $3.60
61 301-653 TAP SCREW w/FLANGE D4x20 C7SB $1.24
62 314-891 HANDLE COVER DH24PB/DH24PC $14.03
63 314-916 SPEED CONTROL SWITCH (2P) 115V $40.92
64 986011 TAP SCREW D5x30 GP2/S2 CR18DL $1.55
65 302-488 EARTH TERMINAL CJ120V $1.18
66 999-041 CARBON BRUSH (pair) CJ110MV $5.15
66 999-072 CARBON BRUSH AUTO (pair) D13V $16.19
67 955-203 BRUSH HOLDER CJ110MV D13VB2 $3.75
69 981373 TUBE(D) C15FB C10FS C8FB2 $1.48
70 314-917 INTERNAL WIRE (B) (BLUE) D13VB $3.60
71 314-918 INTERNAL WIRE (B) (BROWN) DH24 $3.27
72 984750 TAP SCREW w/FLANGE D4x16 C8 $1.19
73 937-631 CORD CLIP M12V2 M12SA2 C8FB2 $1.19
74 938051 CORD ARMOR D10.1 M12V H45SB2 $1.19
74 953327 CORD ARMOR D8.8 D10VH SV13YB $1.19
75 500-249Z CORD, ELECTRICAL, 2 WIRES $29.92
