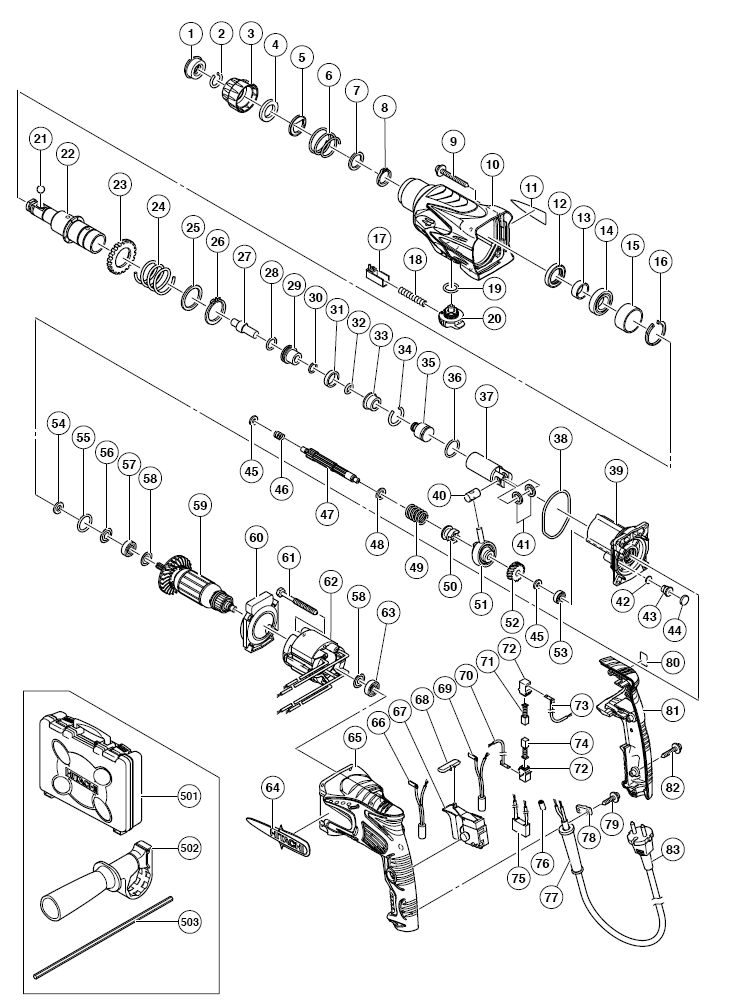

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	306-345	FRONT CAP DH24PB/PD/PE/VB	$3.38
2	306-340	STOPPER RING DH22PG DH30PC2	$1.55
3	324-527	GRIP	$3.46
4	324-528	BALL HOLDER	$6.77
5	324-526	HOLDER PLATE	$3.46
6	322-812	HOLDER SPRING DH22PB DH24PB2	$1.84
7	984-118	WASHER (B) DH24PE/PC/VD/PB	$1.24
8	939-547	RETAINING RING DH24PF D20SHAFT	$4.29
9	301-654	SCREWw/FLANGE D5x35 G18SE2/3	$2.21
10	324-546	GEAR COVER	$74.63
12	307-688	OIL SEAL DH24PB/B2/B3/C/PE	$4.29
13	322-815	SLEEVE DH22PB DH24PB2/3	$1.84
14	690-4DD	BALL BEARING DH24PC2 DH22PB	$22.95
15	324-522	SLEEVE (A)	$3.46
16	322-813	RETAINING RING DH22PB 37SHAFT	$1.84
17	324-530	PUSHING BUTTON	$1.84
18	317-223	PUSHING SPRING DH24PC DH24PE(S	$1.97
19	878-885	O-RING S-18 NR90AC/2/AA/NV45AC	$1.48
21	959-156	STEEL BALL D7.0 DH20DV 10PS	$1.88
22	322-814	CYLINDER DH22PB DH24PB2	$74.63
23	301-677	SECOND GEAR DH24PB/PB2/3/PE	$27.22
24	301-678	SPRING (A) DH24PB/PB2/3/PE/VB	$3.60
25	301-679	WASHER (A) DH24VD/VB/PE/PB2/3	$1.88
26	948-310	RETAINING RING DH24PB D30SHAFT	$1.67
27	324-525	SECOND HAMMER	$6.77
28	944-486	O-RING (1AP-20) NV50AG WH16	$1.19
29	324-523	HAMMER HOLDER	$11.99
30	322-802	O-RING (B) DH24PB3/PC3/PF3	$3.46
31	322-805	DAMPER (A) DH24PF3/PC3/PB3	$1.84
32	322-808	O-RING (C) DH22PB DH24PB2	$1.84
33	324-524	DAMPER HOLDER	$6.77
34	322-807	STOPPER RING DH22PB DH24PB2	$1.84
35	324-535	STRIKER	$10.68
36	322-834	O-RING (I.D.16) DH24PB2 DH24PC	$3.46
37	324-534	PISTON	$18.52
38	322-793	O-RING (I.D. 66.5) DH22PB	$3.46
39	324-542	INNER COVER ASS’Y	$36.65
40	322-798	PISTON PIN DH22PB/H DH24PB2	$1.84
41	322-799	WASHER (C) DH24PB2/3 DH24PC2/3	$1.84
42	324-543	FELT PACKING (A)	$1.84
43	324-545	VALVE	$1.84
44	324-544	FELT PACKING (B)	$1.84
45	322-795	SPACER DH22PB DH24PB2/3	$1.84
46	322-796	SPRING (B) DH22PB DH24PB2/3	$3.46
47	322-794	SECOND SHAFT DH22PB DH24PB2/3	$21.12
48	301-659	WASHER (B) DH24VB/VD DH24PB2/3	$1.27
49	301-660	CLUTCH SPRING DH24PB/PB2/3/PE	$1.27
50	324-532	CLUTCH	$11.99
51	324-533	RECIPROCATING BEARING	$39.67
52	322-797	FIRST GEAR DH22PB DH24PB2/3	$13.98
53	626-VVM	BALL BEARING 626VVC2PS2L DH24	$7.02
54	322-816	FELT PACKING DH22PB DH24PB2/3	$1.84
55	876-796	O-RING NV65AC/NV83A/2/DH24PB/	$1.24
56	322-818	PACKING WASHER DH22PB DH24PB2	$3.46
57	608-DDM	BALL BEARING 608DDC2PS2L C10FS	$7.33
58	982-631	WASHER (A)H45SB2 DH24PE/B/C/B2	$0.94
59	360-720U	ARMATURE ASS’Y 110V-120V	$74.63
60	324-531	FAN GUIDE	$3.46
61	961-672	HEX HD TAPPING SCRW D4x50 W6V4	$1.00
62	340-635C	STATOR 110V-120V	$62.74
63	608VVM	BALL BEARING G10SR SP18SA	$7.02
64	324-539	HITACHI PLATE	$5.11
65	324-553	HOUSING	$28.14
68	322-853	PUSHING BUTTON	$1.56
70	324-538	INTERNAL WIRE (A) (BLUE)	$5.11
71	999-041	CARBON BRUSH (pair) CJ110MV	$5.15
72	955-203	BRUSH HOLDER CJ110MV D13VB2	$3.75
73	324-537	INTERNAL WIRE (A) (BROWN)	$5.11
74	999-072	CARBON BRUSH AUTO (pair) D13V	$16.19
76	981373	TUBE(D) C15FB C10FS C8FB2	$1.48
77	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.19
77	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
78	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.19
79	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
81	324-554	HANDLE COVER	$15.90
82	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.24
83	500-249Z	CORD, ELECTRICAL, 2 WIRES	$29.92
502	324-548	SIDE HANDLE	$15.90
608	948-310	RETAINING RING DH24PB D30SHAFT	$1.67
610	959-150	STEEL BALL D6.35 10PS DH38YE	$1.67
617	995-344	FLAT HD SCREW LH M6x25 DV20VB2	$1.53
