Hitachi D10VG Electric Drill Parts

Hitachi D10VG Parts

Download Schematic

Time to buy a new tool?

Hitachi D10VG

3/8 Inch Drill 9.0 A...

$117.99

Free Shipping

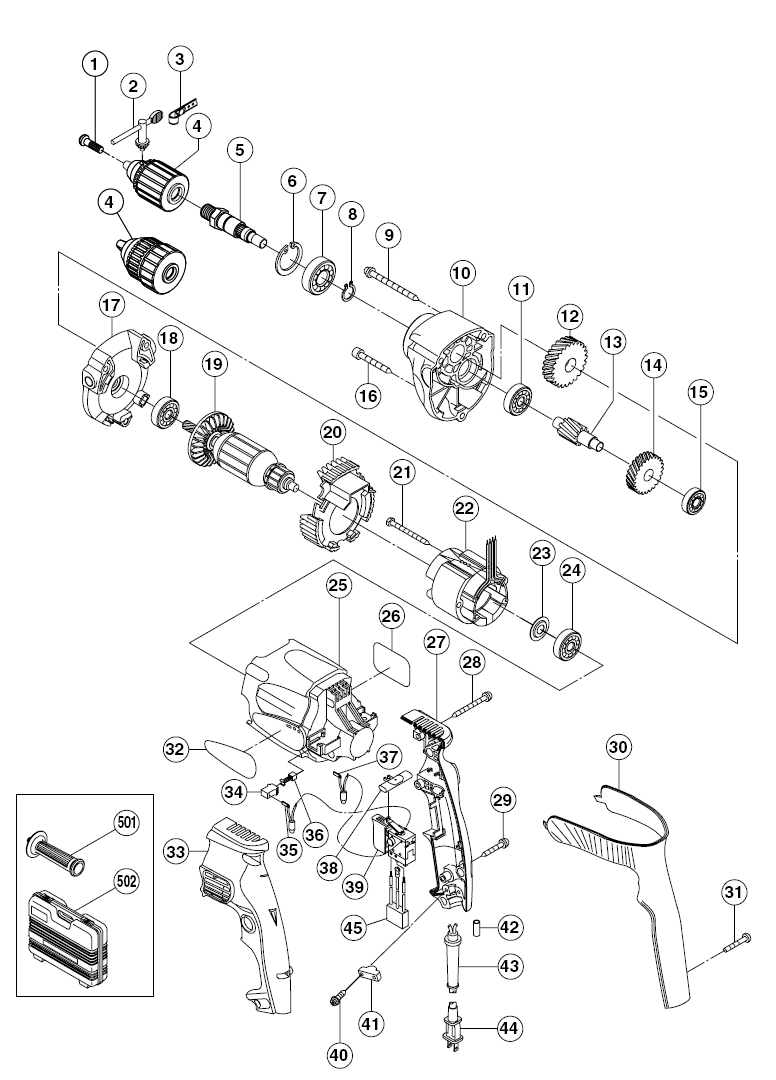

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	311-959	SPECIAL SCREW LH M6x23 DS18DL	$1.87
5	319-346	SPINDLE (A)	$18.03
6	948-001	RETAINING RING D13VB2 DV20VB	$1.70
7	600-2VV	BALL BEARING 6002VVCMPS2L	$8.43
8	939-544	RETAINING RING D13 D15SHAFT	$2.80
9	305-701	TAP SCREW w/FLANGE D5x60 D13VB	$1.06
10	319-345	GEAR COVER (A)	$30.86
11	627-VVM	BALL BEARING 627VVMC2EPS2S	$5.78
12	319-347	FINAL GEAR (A)	$7.58
13	319-545	SECOND PINION (A)	$10.01
14	319-544	FIRST GEAR	$6.36
15	606-ZZM	BALL BEARING 606ZZC2PS2L D10VG	$6.26
16	316-458	TAPPING SCREW D5X40 (BLACK)	$1.73
17	319-344	INNER COVER	$33.94
18	608-DDM	BALL BEARING 608DDC2PS2L C10FS	$6.03
19	360-543U	ARMATURE ASS’Y 110V-120V	$113.76
20	319-329	FAN GUIDE	$4.81
21	981-421	HEX HD TAPPING SCREW D4x55	$0.86
22	340-486C	STATOR 120V	$52.36
23	982-631	WASHER (A)H45SB2 DH24PE/B/C/B2	$0.80
24	608VVM	BALL BEARING G10SR SP18SA	$5.78
25	319-328	HOUSING	$16.75
27	319-331	HANDLE (B)	$6.99
28	303-694	TAPPING SCREW (W/FLANGE) D4X35 (BLACK)	$1.17
29	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.05
30	319-332	GRIP COVER	$16.17
31	319-337	SCREW (PLASTIC TIE) D4X25	$1.73
33	319-330	HANDLE (A)	$6.99
34	955-203	BRUSH HOLDER CJ110MV D13VB2	$3.11
35	319-341	INTERNAL WIRE (BLUE) 86L	$1.73
36	999-041	CARBON BRUSH (pair) CJ110MV	$4.25
37	319-340	INTERNAL WIRE (BROWN) 86L	$1.73
38	316-166	PUSHING BUTTON	$1.73
39	319-339	SWITCH (1P SCREW TYPE) W/LOCK	$33.94
40	984750	TAP SCREW w/FLANGE D4x16 C8	$1.01
41	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.01
42	981373	TUBE(D) C15FB C10FS C8FB2	$1.24
43	953327	CORD ARMOR D8.8 D10VH SV13YB	$1.01
44	500240z	CORD, ELECTRICAL, 2 WIRES	$14.86
601	317-676	HOOK (A) W6VB2 W6VA3 W8VB	$2.96
