Hitachi C8FSHE Electric Saw Parts

Hitachi C8FSHE Parts

Download Schematic

Time to buy a new tool?

Hitachi C8FSHE

8-1/2 Inch Sliding C...

$353.99

Page-1

Page-2

Page-3

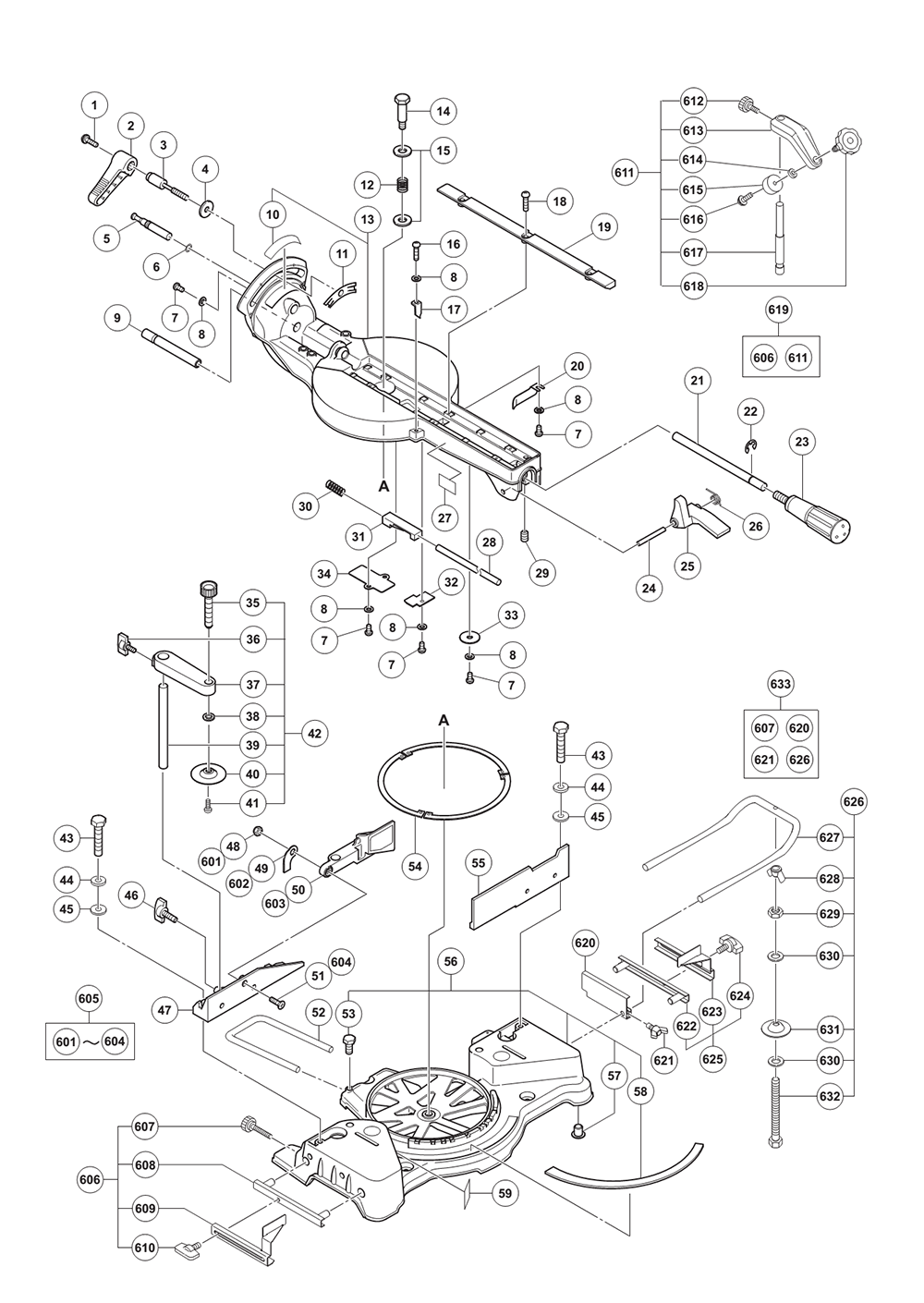

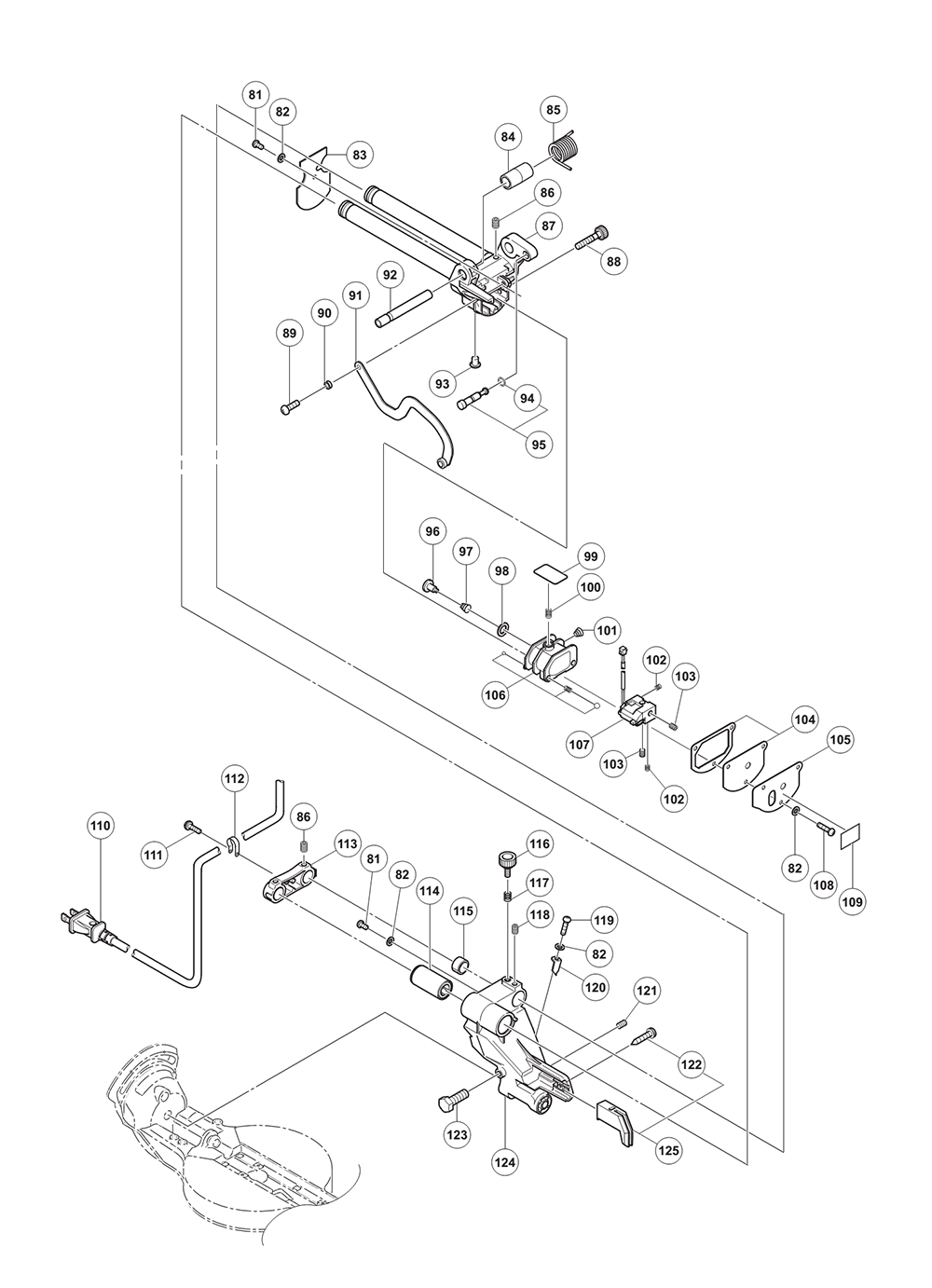

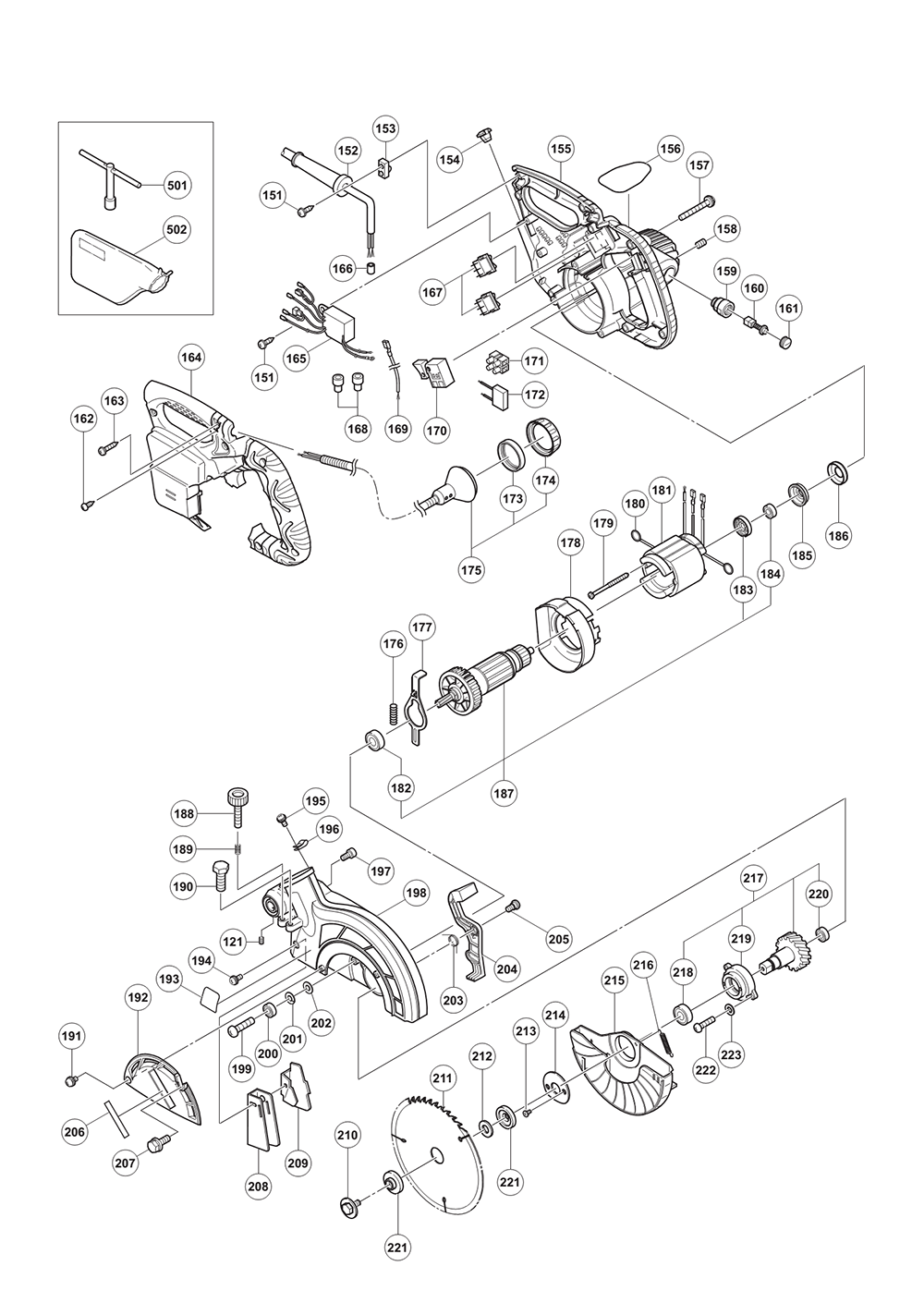

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	935-196	MACHINE SCREW W/WASHER M4x12	$1.02
2	312-488	CLAMP LEVER C10FCB/FSH/FS	$9.03
6	996-407	O-RING (1AP 12) C12LDH CR18DL	$1.31
8	949-429	WASHER M4 C8FB2 CC14 10PS	$1.06
15	949-437	WASHER M12 C8FB2 C10FS 10PS	$1.87
16	949-217	MACHINE SCREW M4x12 (10pc)	$1.41
22	673-489	RETAINING RING CD14F D5SHAFT	$1.01
33	875-249	THRUST WASHER NV50AA NV65AC	$1.28
35	302-522	KNOB BOLT M10x66 C10FCB	$10.16
36	301-806	WING BOLT M6x15 M12V C10FCB	$1.06
40	302-532	VISE PLATE C10FCB C12FDH/LDH	$2.68
43	949-678	BOLT M8x35 (10pcs) C10FCH	$2.33
45	949-433	WASHER M8 C10FS CC14 10PS	$1.05
48	963-837	NYLON NUT M6 NR83AA/2/3 NC65AC	$1.01
51	949-342	FLAT HD SCREW M6x25 C10RA 10PS	$1.88
53	949-610	BOLT M6x10 (10pc) C10FSB	$1.31
57	323-606	BASE RUBBER C12LC C12LCH	$1.32
82	949-429	WASHER M4 C8FB2 CC14 10PS	$1.06
84	322-889	SLEEVE C10FCE/2 C10FCH/2	$1.32
90	998-980	SPACER C10FS C8FB2 P12RA P12R	$1.06
93	323-606	BASE RUBBER C12LC C12LCH	$1.32
94	984-528	O-RING (P-6) C10FCB C10FSH	$1.01
95	302-518	STOPPER PIN ASSY C10FCB, C10FSH	$4.07
96	305-180	CLUTCH SCREW C12LSH C12RSH	$4.08
97	305-179	CLUTCH SPRING C10FS C12RSH/LSH	$1.06
101	305-179	CLUTCH SPRING C10FS C12RSH/LSH	$1.06
110	500-434Z	CORD, ELECTRICAL, 2 WIRE C7SB	$19.02
110	EC162	Power Tools Replacement Electical Cords (SJO) 16...	$14.19
111	935-196	MACHINE SCREW W/WASHER M4x12	$1.02
112	948-193	NYLON CLIP C8FB2 C10FS C12FSA	$1.05
117	947-859	LOCK SPRING C7BD C7SB C8 M12V	$1.05
118	307-956	HEX SOCKET SET SCREW M6x10	$1.02
119	949-217	MACHINE SCREW M4x12 (10pc)	$1.41
122	305-558	SCREW W/FLANGE D5x25 C10FS	$1.24
123	303-409	NYLOCK BOLT M8x25 C8FB2/FSE/H	$1.66
151	984750	TAP SCREW w/FLANGE D4x16 C8	$1.01
152	938051	CORD ARMOR D10.1 M12V H45SB2	$1.01
153	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.01
154	319-349	CORD BRUSH C10FSH C12LSH	$1.58
157	322-123	MACHINE SCREW w/WASHERS M5x40	$1.54
158	938-477	Hex. Socket Set Screw M5X8	$1.10
160	999021	CARBON BRUSH (pair) G10/12SR2	$4.25
163	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.05
171	958-308Z	PILLAR TERMINAL (A) M8V WH22SA	$5.74
179	960-108	HEX TAPPING SCREW D4X60 TR6	$1.01
182	608VVM	BALL BEARING G10SR SP18SA	$5.78
183	315-877	DUST SEAL G12S2 G12SA2 G12SA3	$1.58
184	600-0VV	BALL BEARING 6000VVCMPS2L	$8.89
189	988-821	LOCK SPRING C10FS C12FSA	$3.21
190	303-409	NYLOCK BOLT M8x25 C8FB2/FSE/H	$1.66
191	996-274	SCREW W/WASHERS M5x8 C8FB2	$1.06
194	935-196	MACHINE SCREW W/WASHER M4x12	$1.02
195	935-196	MACHINE SCREW W/WASHER M4x12	$1.02
196	980-523	NYLON CLIP C10FSH C12FDH	$1.02
197	877-839	SL LK HEX HD BOLT M5x10 H90SB	$1.05
199	949-260	SCREW M6x25 10PS CD14F C8FSHE	$1.58
200	606-ZZM	BALL BEARING 606ZZC2PS2L D10VG	$6.26
202	949-425	WASHER M6 C7BD/SB/D/SC 10PS	$1.01
205	322-950	SPECIAL SCREW M6 C10FCE C10FCH	$1.32
210	998-335	BOLT (LH) w/WASHER M7x17.5	$1.01
213	949-322	FLAT HEAD SCREW M4x10 (10pc)	$1.05
214	307-731	COVER C10FS C12FSA C8FSE/FSHE	$2.96
216	317-203	RETURN SPRING C6DC/2 C18DSL	$2.98
220	608VVM	BALL BEARING G10SR SP18SA	$5.78
221	308-789	WASHER (D) C10FS C10FCE2	$16.77
222	949-241	MACHINE SCREWS M5x20 10PS	$2.02
502	322-955	DUST BAG (BLACK)	$11.50
601	963-837	NYLON NUT M6 NR83AA/2/3 NC65AC	$1.01
604	949-342	FLAT HD SCREW M6x25 C10RA 10PS	$1.88
610	301-806	WING BOLT M6x15 M12V C10FCB	$1.06
612	998-836	KNOB BOLT M6x11 C8FB2/FB C10FS	$1.82
614	306-985	WASHER (H) CC14SE C12LSH	$1.02
616	304-043	MACH. SCREW w/WASHER M4x10 BLK	$1.02
617	318-967	VISE SHAFT C10FCB C12FDH	$2.96
624	301-806	WING BOLT M6x15 M12V C10FCB	$1.06
629	949-556	NUT M6 C12LSH/RSH 10PS	$1.81
