Hitachi C7BMR Electric Saw Parts

Hitachi C7BMR Parts

Download Schematic

Time to buy a new tool?

Hitachi C7BMR

7-1/4 Inch Magnesium...

$129.99

Free Shipping

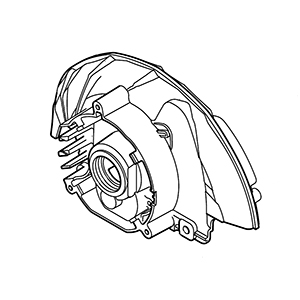

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	328-043	GEAR COVER	$47.95
3	961-729	CUSHION C7BD C7SB C7SC C8 C7YA	$1.24
4	949-794	FLAT HD SCREW M6x20 C7SB 10PS	$2.04
5	982-027	NEEDLE BEARING (HK1010) C7SB	$11.79
6	320-960	SPINDLE AND GEAR SET	$24.62
7	302-433	BEARING HOLDER C7BD/SB/C8/C7YA	$4.17
8	992-013	FLAT HD SCREW M5x14 C7SB C8	$1.24
9	600-3VV	BALL BEARING 6003VVCMPS2L	$9.09
10	961-807	BUSHING C7BD2 C7SB2 C8 C7YA	$3.23
11	328-049	RETURN SPRING	$1.50
12	328-044	LOWER GUARD	$22.87
13	302-435	BEARING COVER CR13VA C7SB C7BD	$2.54
14	990-430	SEAL LOCK FLAT HD SCREW M4x10	$1.55
15	320-970	WASHER (A)	$5.15
17	320-953	WASHER (B)	$5.15
18	320-971	BOLT (W/FLANGE) M8X15.5	$1.84
19	328-045	LEVER	$1.50
20	935-196	MACHINE SCREW W/WASHER M4x12	$1.20
21	328-504	SEAL LOCK SCREW (W/SP. WASHERS) M6X10	$1.50
22	328-503	LEVER (A) W/O STOPPER	$4.08
23	328-048	LOCK NUT	$1.50
24	320-975	WASHER	$1.88
25	328-506	HOUSING ASS’Y	$70.44
27	328-501	S HOLDER	$18.72
28	600-0VV	BALL BEARING 6000VVCMPS2L	$10.83
29	302-428	WASHER (A) C7BD C7SB C8 C7YA	$1.27
30	937-623	BRUSH TERMINAL C8 C7SB/2 H55SC	$1.24
31	340-527C	STATOR ASS’Y 120V	$67.72
32	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
33	328-046	FAN GUIDE	$1.50
34	360-577U	ARMATURE ASS’Y 120V	$114.42
35	320-959	LOCK LEVER	$3.50
36	980-700	DUST WASHER (B) DH38YE H45SB	$1.24
37	620-2VV	BALL BEARING 6202VVCMPS2L P12R	$7.64
38	303-792	RUBBER RING C7BD2 C10FCE2	$1.15
39	953-121	HEX TAPPING SCREW D5x50 C7BMR	$1.19
41	303-292	HEX. SOCKET SET SCREW M5X5	$1.10
42	938-241	BRUSH HOLDER C7BD2 C7BMR	$6.83
43	999-038	CARBON BRUSH (pair) C12FSA C8	$5.15
44	945-161	BRUSH CAP DH40FA/FB/MA/MB SB75	$1.67
45	311-945	TAPPING SCREW (W/FLANGE) D4X10 (BLACK)	$1.19
46	320-950	SWITCH (1P SCREW TYPE) C7BD2	$33.82
47	938-307	Pillar Terminal	$3.23
48	328-507	HANDLE (A)	$12.05
49	997-841	MACH. SCREW w/WASHER M5x50 1pc	$1.27
50	328-042	HANDLE (B)	$12.05
51	880-734	MACHINE SCREW M5x25 C12LSH	$0.98
52	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.24
53	930-804	TERMINAL M4.0 10PS DH40FA/MB	$3.23
54	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
55	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.19
56	938051	CORD ARMOR D10.1 M12V H45SB2	$1.19
57	500-453Z	CORD, ELECTRICAL, 2 WIRES	$36.27
58	308-109	SLOTTED HD.SET SCREW M6x8 C6DC	$1.19
59	328-047	BASE ASS’Y	$51.72
60	322-260	SEAL LOCK SCREW (W/SP. WASHERS) M6X14	$2.42
61	328-502	LEVER (A) W/STOPPER	$4.08
62	328-048	LOCK NUT	$1.50
63	320-975	WASHER	$1.88
