Hitachi C12LDH Electric Saw Parts

Hitachi C12LDH Parts

Download Schematic

Time to buy a new tool?

Hitachi C12LDH

12 Inch Dual Bevel M...

$391.99

Page-1

Page-2

Page-3

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	323-141	SPRING (B) C10FCH C12FDH	$1.56
2	323-137	LASER HOLDER (A) C10FCH C12FDH	$1.56
3	949-531	SPLIT PIN D2x12(10 PCS) C10FCH	$1.16
4A	328943	Laser Holder (b)	$2.66
5	949-900	ROLL PIN CD14F D3X14 10PCS	$3.70
7	962-782	SET SCREW M5x6 C7SC D13	$1.55
8	323-144	SPECIAL BOLT M5 C10FCH C12FDH	$1.56
9	975-144	CABLE TIE C10FS C12FDH C12LDH	$1.19
10A	331876	Laser Base Ass'y - INCLUDE.11	$5.04
12	323-143	WASHER C10FCH C12FDH C12LDH	$1.56
13	323-140	SPRIING (A) C10FCH C12FDH	$1.56
14	324-711	Laser Module (a) - INCLUD.15	$65.69
14A	331879	Laser Module (a) Ass'y - INCLUDE.15	$77.07
16	324-971	Rack	$4.33
17	935-196	MACHINE SCREW W/WASHER M4x12	$1.20

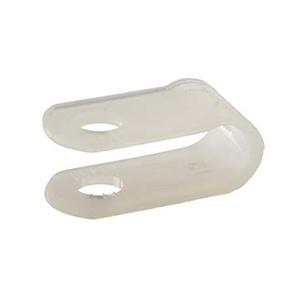

18	973-313	NYLON CLIP C12LC C12LCH C12LSH	$1.16
20	322-935	CLAMP LEVER C10FCE/2 C10FCH/2	$2.96
21	325-032	Bolt (left Hand) M10	$9.80
22	325-033	Knob (a)	$5.69
23	325-035	Planet Gear	$1.84
24	325-036	Pinion (a)	$10.68

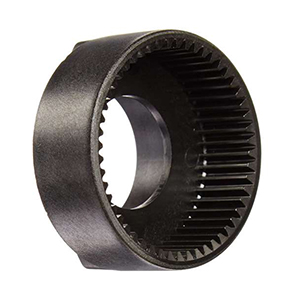

25	325-034	Ring Gear	$5.69
26	325-037	Plate (h)	$1.56
28	962-553	Retaining Ring For D28 Shaft	$1.19
34	939-542	RETAINING RING D12SHAFT 10 PCS	$2.54
35	325-030	Shaft (d)	$8.98
36	322-934	WASHER M16 C10FCE/2 C10FCH/2	$1.56
38	324-972	Hinge Cover	$1.56
39	323-684	LINER (D) C12LC C12LCH C12FCH	$1.56
40	307-956	HEX SOCKET SET SCREW M6x10	$1.20
41	323-594	SLEEVE C12LC C12LCH C12FCH	$1.56
42	323-595	SPRING (A) C12LC C12LCH C12FCH	$6.77
43	325-027	Hinge Ass'y - INCLUD.32	$38.39
44	949-660	Hex. Socket Hd. Bolt M6x20 (10 Pcs.)	$3.60
45	984-528	O-RING (P-6) C10FCB C10FSH	$1.20
46	302-518	STOPPER PIN ASSY C10FCB, C10FSH	$4.93
47	996-407	O-RING (1AP 12) C12LDH CR18DL	$1.55
48	325-028	SET PIN	$5.69
49	324-973	Dust Guide Ass'y - INCLUD.58,59	$9.80
51	323-593	SHAFT (C) C12LC C12LCH C12FCH	$4.33
52	325-029	Bevel Plate	$1.56
54	303-006	SPACER D4x10 P12R/P12RA	$1.27
57	949-221	CR.RE.PAN HD SCREW M4x20 10PS	$1.18
58	322-963	DUST GUIDE HOLDER C10FCE/2	$1.56
60	324-968	Scale Plate Ass'y - INCLUD.61,62	$2.96
61	324-969	Scale (b)	$1.84
62	324-970	Scale (c)	$1.56
65	324-978	Liner (b)	$2.96
67	949-423	WASHER M4 (10pc) DH40MA/MB	$1.19
68	324-977	Gear (b)	$6.77
69	325-019	Nylock Hex. Socket Hd. Bolt M8x20	$1.84
70	324-974	Indicator (b)	$1.56
72	680-418	NYLON NUT M12 C10FCE C10FCH	$3.46
73	949-821	HEX SKT HD BOLT M5x16 10PS	$3.02
75	325-031	Hinge Plate	$5.69
76	323-627	SPRING PLATE C12LC C12LCH	$8.41
78	949-655	HEX SOCK HD BOLTM8x16 H65 10PS	$4.29
79	323-609	SPACER (A) C12LC C12LCH C12FCH	$1.56
81	324-987	Plate Cap	$1.56
82	323-680	SIDE HANDLE C12LC C12LCH	$4.33
83A	329314	Laser Holder Ass'y - INCLUDE.1-10A,12B-14	$70.08
101	325-046	Table Insert (a)	$4.33
102	323-649	TABLE INSERT (B) C12LC C12LCH	$2.96
104	975-348	NYLON NUT M8 C10FCB	$1.19
105	318-929	WASHER (F) C10FCB	$1.88
107	318-927	INDICATOR (A) C10FCB	$1.88
108	324-976	Turn Table Ass'y - INCLUD.128	$189.00
110	325-021	Cord Cover (a)	$1.56
112	324-986	Cord (a) 100mm	$5.11
113	324-984	Packing (e)	$1.56
114	324-983	Cord (d)	$3.46
115	323-616	PANEL SHEET (A) C12LC C12LCH	$1.84
116	323-615	INDICATION PANEL ASS'Y C12LC	$5.69
117	323-608	PACKING (D) C12LC C12LCH	$1.56
118	324-979	Monitor Ass'y - INCLUD.114,124,125	$193.70
120	324-985	Insulating Case	$1.56
123	325-026	Cord (a) 310mm	$5.11
124	324-981	Cord (c) 300mm	$5.11
125	324-982	Cord (c) 330mm	$5.11
127A	323-619	ENCODER C12LC C12LCH C12LSH	$48.78
128	305-592	NEEDLE D5x19.8 CJ65V2 CJ65VA2	$1.27
131	323-622	PACKING (B)C12LC C12LCH C12LSH	$1.56
132	323-623	DUST COVER C12LC C12LCH	$1.56
135	323-678	KNOB BOLT C12LC C12LCH C12FCH	$2.96
139	302-532	VISE PLATE C10FCB C12FDH/LDH	$3.23
140	949-216	MACHINE SCREW M4X10 (10 PCS.)	$1.19
141	322-954	VISE SHAFT C10FCE/2 C10FCH/2	$2.96
142	949-678	BOLT M8x35 (10pcs) C10FCH	$2.81
143	949-457	SPRING WASHER M8 (10 PCS.)	$1.18
144	949-433	WASHER M8 C10FS CC14 10PS	$1.24
146	324-995	Knob (b)	$1.56
147	323-142	SPRING (C) C10FCH C12FDH	$1.56
148	324-993	Sub Fence (c) Ass'y - INCLUD.149	$9.80
150	325-049	Fence (b)	$26.57
151	949-342	FLAT HD SCREW M6x25 C10RA 10PS	$2.26
152	949-795	Flat Hd. Screw M6x35 (10 Pcs.)	$2.17
153	963-837	NYLON NUT M6 NR83AA/2/3 NC65AC	$1.20
154	324-994	Plate (d) 35mm	$1.56
155	325-271	Sub Fence (b) Ass'y - INCLUD.156	$19.40
157	323-625	LINER (A) C12LC C12LCH C12FCH	$4.33
158	302-317	SCREW M5x16 C12LSH/RSH (BLACK)	$1.27
160	324-975	Gear (a)	$9.06
161	323-603	PACKING (A)C12LC C12LCH C12LSH	$2.96
162	322-910	HOLDER C10FCE C10FCH C12FDH	$2.96
163	949-610	BOLT M6x10 (10pc) C10FSB	$1.55
164	987-512	MACHSCREW W/WASHER M5x16 C15FB	$0.95
165	323-605	HOOK C12LC C12LCH C12FCH	$1.56
167	325-264	Base Ass'y - INCLUD.173-176	$239.81
168	323-626	SHAFT (B) C12LC C12LCH C12FCH	$2.96
169	325-270	Sub Fence (a) Ass'y - INCLUD.170	$23.80
171	324-990	Plate (d) 24.5mm	$1.56
172	324-988	Fence (a)	$20.76
173	949-510	RIVET D2.5x4.8 (10pc) C15FB	$1.19
176	323-656	SCALE (A) C12LC C12LCH	$7.87
177	949-432	BOLT WASHER M6 (10 PCS.)	$1.20
201	325-048	Cord	$14.20
202	990-541	MACHINE SCREW (W/WASHERS) M5X16	$1.24
203	325-013	Handle Ass'y - INCLUD.215	$30.74
204	325-022	Cord Cover (b)	$2.96
205	949-828	Hex. Socket Hd. Bolt M5x70 (10 Pcs.)	$8.36
208	940-778	CORD ARMOR D10.7 C10FA C15FB	$3.19
209	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.19
214	959-141	CONNECTOR 50092 (10 PCS.)	$6.26
215	325-014	Switch Label (a)	$1.56
216	323-634	SWITCH (A) (1P TYPE) C12LC	$7.59
217	323-635	Switch (b) (1p Type)	$7.59
218	324-999	Cord (b)	$8.05
219	984750	TAP SCREW w/FLANGE D4x16 C8	$1.19
220	322-911	SWITCHING POWER SUPPLY C10FCH	$48.78
221	301-653	TAP SCREW w/FLANGE D4x20 C7SB	$1.24
222	325-043	Switch Handle (a).(b) Set	$30.74
223	325-261	Internal Wire (a) (blue)	$7.59
224	325-262	Internal Wire (a) (yellow)	$7.59
225	325-263	Internal Wire (a) (black)	$7.59
226	324-998	Switch (3p Faston Type) W/o Lock	$12.63
228	325-002	Housing Cover	$2.96
229	322-123	MACHINE SCREW w/WASHERS M5x40	$1.84
230	325-000	Vinyl Tube	$3.46
231	937-623	BRUSH TERMINAL C8 C7SB/2 H55SC	$1.24
232	340-648D	Stator Ass'y 120v - INCLUD.231	$80.07
233	953-174	HEX. HD. TAPPING SCREW D5X55	$1.55
234	325-045	Housing Ass'y - INCLUD.235,236	$33.28
235	938-477	Hex. Socket Set Screw M5X8	$1.19
236	938-241	BRUSH HOLDER C7BD2 C7BMR	$6.83
237	999-038	CARBON BRUSH (pair) C12FSA C8	$5.15
238	945-161	BRUSH CAP DH40FA/FB/MA/MB SB75	$1.67
239	322-915	FAN GUIDE C10FCE/2 C10FCH/2	$2.96
240	360-743U	Armature Ass'y 120v - INCLUD.241-244	$80.07
241	600-0VV	BALL BEARING 6000VVCMPS2L	$10.83
242	302-428	WASHER (A) C7BD C7SB C8 C7YA	$1.27
243	325-003	Dust Washer (b)	$1.56
244	620-1VV	BALL BEARING 6201VVCMPS2L	$6.67
245	949-755	HexSockHDBoltM6x16 NR83AA 10PS	$3.23
246	325-004	Gear Case	$150.28
247	980-523	NYLON CLIP C10FSH C12FDH	$1.20
248	988-101	BOLT (A) M10 C15FB C12LSH	$2.25
249	323-652	WASHER (B) C12LC C12LCH C12FCH	$5.69
251	325-023	Washer (a)	$9.80
252	325-005	Spindle Ass'y - INCLUD.253-255,257-259	$48.57
254	325-008	Bearing Cover (a)	$1.56
255	690-4DD	BALL BEARING DH24PC2 DH22PB	$22.95
256	323-208	MACHINE SCREW w/WASHERS M6x20	$1.56
257	325-007	Bearing Holder (a)	$12.54
258	325-006	Spindle And Gear Set	$24.36
263	949-431	BOLT WASHER M5 (10 PCS.)	$1.88
264	323-675	SPINDLE COVER C12LC C12LCH	$1.56
266	325-047	Gear Case Cover Ass'y - INCLUD.267	$5.69
267	323-654	Caution Label (b) - FOR POSITION ADJUSTMENT OF L...	$1.56
270	324-443	PULLEY (A)	$6.77
271	961-157	SUPER LOCK WASHER	$1.16
272	949-560	NUT M10*1.5 T=8 C10FC/2 10PS	$2.42
273	324-427	BELT (200H13) 16X508	$27.53
274	325-009	Pinion Ass'y - INCLUD.279	$22.15
279	608VVM	BALL BEARING G10SR SP18SA	$7.02
280	983- 545	NEEDLE ROLLER C12LSH C12FCH	$1.19
281	325-259	Bearing Holder (b)	$4.33
282	949-241	MACHINE SCREWS M5x20 10PS	$2.42
283	325-018	Spring	$1.56
284	325-017	STOPPER PIN (B)	$2.96
286	325-016	Pulley Cover	$27.39
288	322-948	WASHER M7 C10FCE/2 C10FCH/2	$1.56
289	325-041	Link	$7.59
290	322-950	SPECIAL SCREW M6 C10FCE C10FCH	$1.56
291	322-947	SPECIAL SCREW (C) M5 C10FCE/2	$1.56
292	322-938	WASHER M10 C10FCE/2 C10FCH/2	$1.56
293	318-363	FLAT HD SCREW M4x10 (BLK)	$1.84
294	325-039	Protective Cover (b)	$19.21
295	323-672	COVER PLATE (B) ASS'Y C12LC	$8.98
296	323-673	CUSHION C12LC C12LCH C12FCH	$1.56
297	323-667	PROTECTIVE COVER (A) C12LC	$35.84
298	323-671	RETURN SPRING C12LC C12LCH	$1.56
300	325-040	Cover Plate (a)	$5.69
301	323-670	COVER WASHER C12LC C12LCH	$1.56
302	949-454	SPRING WASHER M5 (10 PCS.)	$1.18
303	949-236	Machine Screw M5X10 (10 Pcs.)	$1.55
304	949-215	MACHINE SCREW M4X8 (10 PCS.)	$1.24
305	325-038	Flat Hd. Screw M5x10 (black)	$1.84
306	949-434	WASHER M10 10PS C8FB2 C12FSA	$1.94
503	322-955	DUST BAG (BLACK)	$16.99
607	323-682	Wing Bolt M6x85	$25.09
610	301-806	WING BOLT M6x15 M12V C10FCB	$1.24
612	321-549	HOLDER	$23.82
613	949-313	WING NUT M6 (10 PCS.)	$5.50
614	949-556	NUT M6 C12LSH/RSH 10PS	$2.17
615	322-047	VISE PLATE	$1.84
616	949-425	WASHER M6 C7BD/SB/D/SC 10PS	$1.19
617	323-681	High Tension Bolt M6x105	$19.84
618	974-561	STOPPER	$7.96
619	949-404	WING BOLT M6X20 (10 PCS.)	$8.32
622	321-551	KNOB BOLT M10X54	$16.06
623	998-836	KNOB BOLT M6x11 C8FB2/FB C10FS	$2.18
625	306-985	WASHER (H) CC14SE C12LSH	$1.20
626	964-851	BASE RUBBER	$1.24
627	304-043	MACH. SCREW w/WASHER M4x10 BLK	$1.20
628	318-967	VISE SHAFT C10FCB C12FDH	$3.58
