Hitachi C12FDH Electric Saw Parts

Hitachi C12FDH Electric Saw Parts Image

Hitachi C12FDH Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Hitachi C12FDH
12 Inch Dual Compoun...
$311.99
Page-1
Page-2
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image

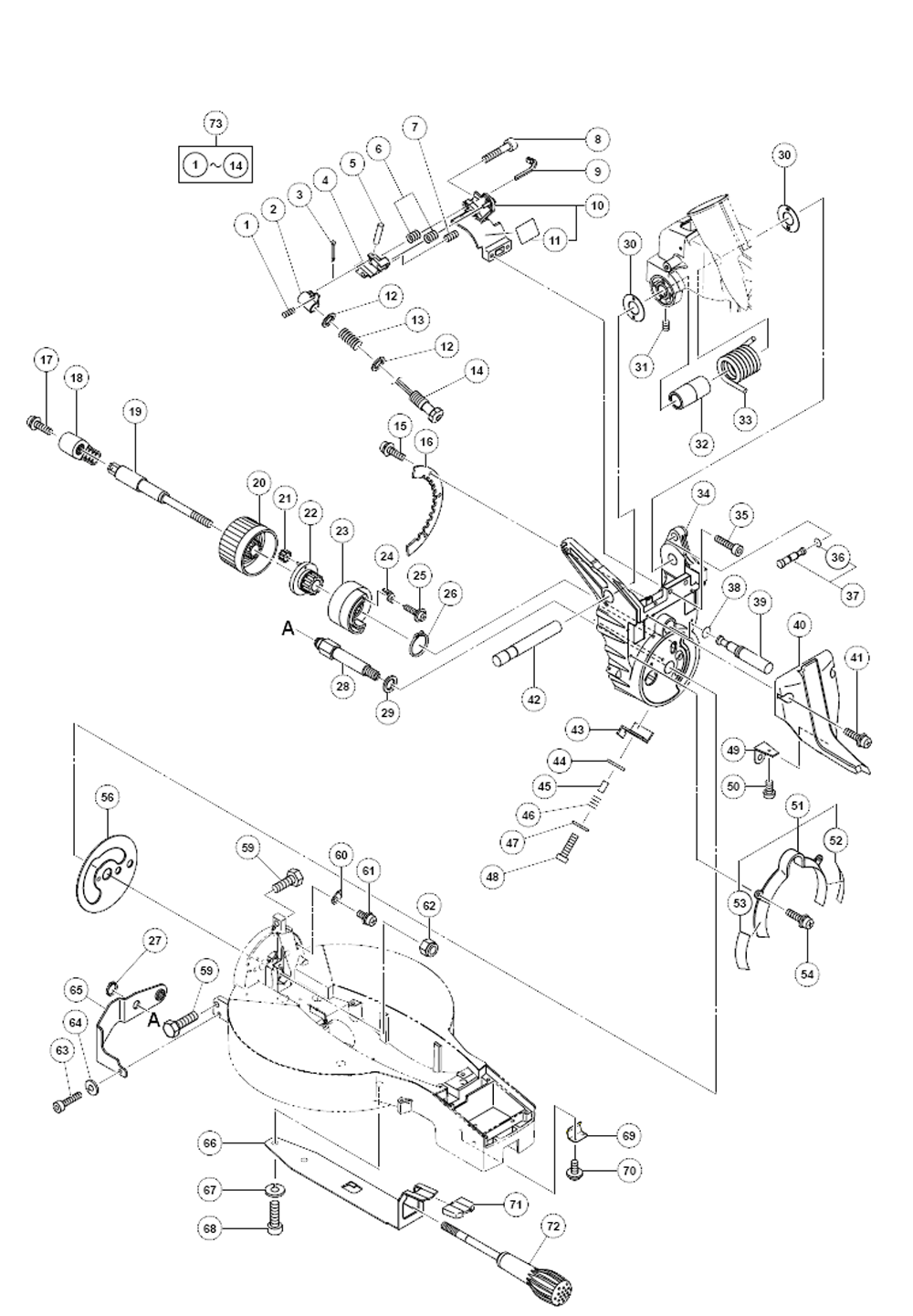

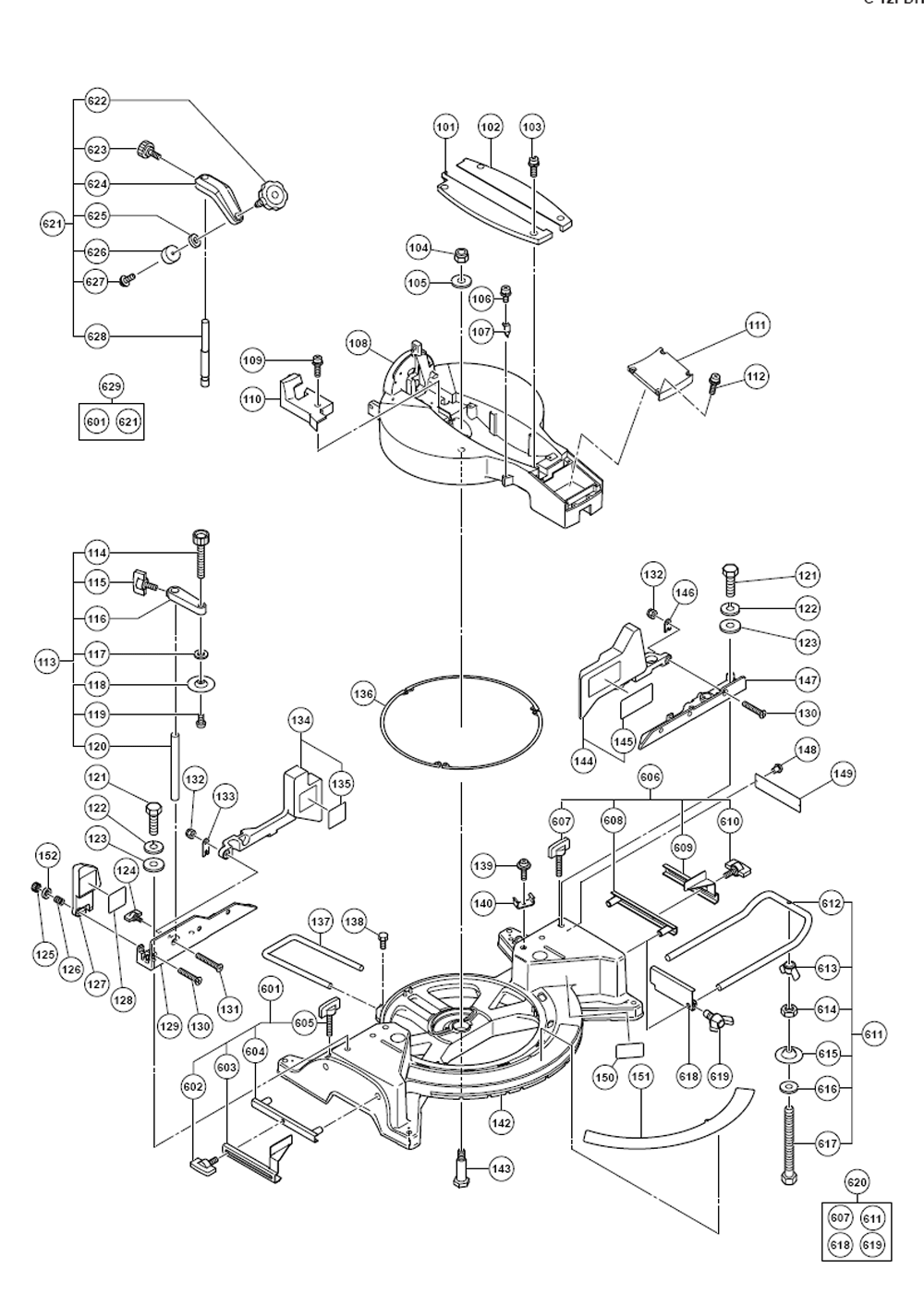

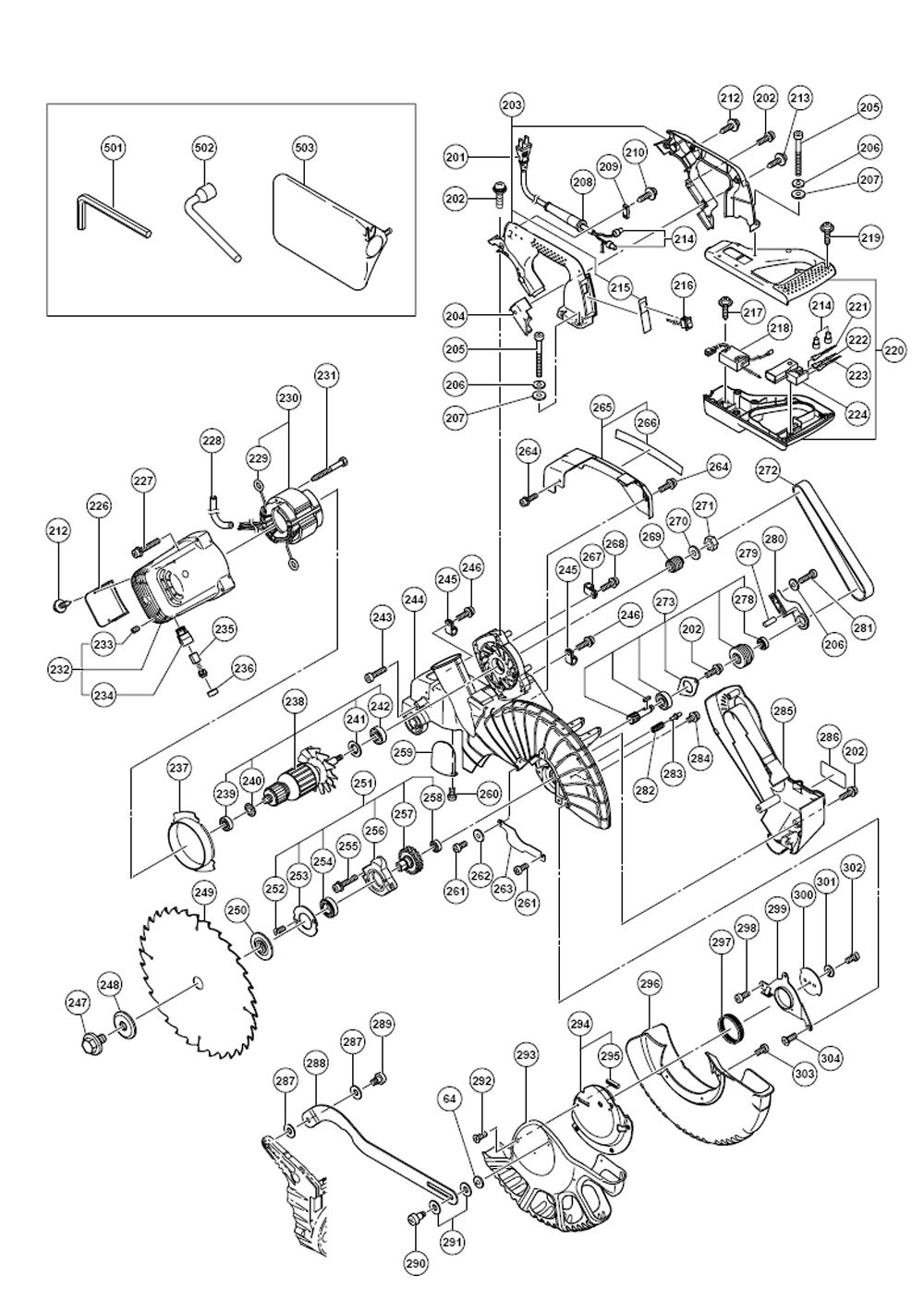

Hitachi C12FDH Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 323-141 SPRING (B) C10FCH C12FDH $1.32
2 323-137 LASER HOLDER (A) C10FCH C12FDH $1.32
3 949-531 SPLIT PIN D2x12(10 PCS) C10FCH $0.98
4 323-138 LASER HOLDER (B) C12FDH C12LDH $5.11
5 949-900 ROLL PIN CD14F D3X14 10PCS $3.06
6 323-142 SPRING (C) C10FCH C12FDH $1.32
7 962-782 SET SCREW M5x6 C7SC D13 $1.31
8 323-144 SPECIAL BOLT M5 C10FCH C12FDH $1.32
9 975-144 CABLE TIE C10FS C12FDH C12LDH $1.01
10 323-139 LASER BASE ASS'Y C10FCH $10.08
12 323-143 WASHER C10FCH C12FDH C12LDH $1.32
13 323-140 SPRIING (A) C10FCH C12FDH $1.32
17 323-208 MACHINE SCREW w/WASHERS M6x20 $1.31
18 322-935 CLAMP LEVER C10FCE/2 C10FCH/2 $2.45
25 307-811 TAP SCREW w/FLANGE D4x16 G12SR $1.01
27 939-542 RETAINING RING D12SHAFT 10 PCS $2.11
29 322-934 WASHER M16 C10FCE/2 C10FCH/2 $1.32
30 323-684 LINER (D) C12LC C12LCH C12FCH $1.32
31 307-956 HEX SOCKET SET SCREW M6x10 $1.02
32 323-594 SLEEVE C12LC C12LCH C12FCH $1.32
33 323-595 SPRING (A) C12LC C12LCH C12FCH $5.57
36 984-528 O-RING (P-6) C10FCB C10FSH $1.01
37 302-518 STOPPER PIN ASSY C10FCB, C10FSH $4.07
38 996-407 O-RING (1AP 12) C12LDH CR18DL $1.31
42 323-593 SHAFT (C) C12LC C12LCH C12FCH $3.58
45 303-006 SPACER D4x10 P12R/P12RA $1.07
46 323-142 SPRING (C) C10FCH C12FDH $1.32
47 949-423 WASHER M4 (10pc) DH40MA/MB $1.01
48 949-221 CR.RE.PAN HD SCREW M4x20 10PS $1.00
49 322-963 DUST GUIDE HOLDER C10FCE/2 $1.32
50 949-214 MACH. SCREW M4x6 10PCS C10FC $2.10
54 993-539 SCREWw/WASHER M4x16 SV12SD/V $1.07
61 304-043 MACH. SCREW w/WASHER M4x10 BLK $1.02
62 680-418 NYLON NUT M12 C10FCE C10FCH $2.86
63 949-821 HEX SKT HD BOLT M5x16 10PS $2.50
66 323-627 SPRING PLATE C12LC C12LCH $6.91
68 949-655 HEX SOCK HD BOLTM8x16 H65 10PS $3.55
69 323-609 SPACER (A) C12LC C12LCH C12FCH $1.32
70 307-635 MACH SCREW w/SP. WASHER M4x10 $0.98
72 323-680 SIDE HANDLE C12LC C12LCH $3.57
102 323-649 TABLE INSERT (B) C12LC C12LCH $2.46
104 975-348 NYLON NUT M8 C10FCB $1.01
105 318-929 WASHER (F) C10FCB $1.58
106 304-043 MACH. SCREW w/WASHER M4x10 BLK $1.02
107 318-927 INDICATOR (A) C10FCB $1.57
109 993-539 SCREWw/WASHER M4x16 SV12SD/V $1.07
112 993-539 SCREWw/WASHER M4x16 SV12SD/V $1.07
114 323-678 KNOB BOLT C12LC C12LCH C12FCH $2.46
115 301-806 WING BOLT M6x15 M12V C10FCB $1.06
118 302-532 VISE PLATE C10FCB C12FDH/LDH $2.68
120 322-954 VISE SHAFT C10FCE/2 C10FCH/2 $2.46
121 949-678 BOLT M8x35 (10pcs) C10FCH $2.33
123 949-433 WASHER M8 C10FS CC14 10PS $1.06
124 301-806 WING BOLT M6x15 M12V C10FCB $1.06
126 323-142 SPRING (C) C10FCH C12FDH $1.32
130 949-342 FLAT HD SCREW M6x25 C10RA 10PS $1.88
132 311-144 NYLON NUT M6 C10FSB C12LSH $1.02
136 323-625 LINER (A) C12LC C12LCH C12FCH $3.58
137 322-910 HOLDER C10FCE C10FCH C12FDH $2.46
138 949-610 BOLT M6x10 (10pc) C10FSB $1.31
139 987-512 MACHSCREW W/WASHER M5x16 C15FB $0.81
140 323-605 HOOK C12LC C12LCH C12FCH $1.32
143 323-626 SHAFT (B) C12LC C12LCH C12FCH $2.46
148 949-510 RIVET D2.5x4.8 (10pc) C15FB $1.01
208 940-778 CORD ARMOR D10.7 C10FA C15FB $2.64
209 937-631 CORD CLIP M12V2 M12SA2 C8FB2 $1.01
210 984750 TAP SCREW w/FLANGE D4x16 C8 $1.01
212 307-811 TAP SCREW w/FLANGE D4x16 G12SR $1.01
213 307-811 TAP SCREW w/FLANGE D4x16 G12SR $1.01
216 323-634 SWITCH (A) (1P TYPE) C12LC $6.25
217 984750 TAP SCREW w/FLANGE D4x16 C8 $1.01
219 301-653 TAP SCREW w/FLANGE D4x20 C7SB $1.05
227 322-123 MACHINE SCREW w/WASHERS M5x40 $1.54
229 937-623 BRUSH TERMINAL C8 C7SB/2 H55SC $1.06
233 938-477 Hex. Socket Set Screw M5X8 $1.10
234 938-241 BRUSH HOLDER C7BD2 C7BMR $5.63
235 999-038 CARBON BRUSH (pair) C12FSA C8 $4.25
236 945-161 BRUSH CAP DH40FA/FB/MA/MB SB75 $1.41
237 322-915 FAN GUIDE C10FCE/2 C10FCH/2 $2.46
239 600-0VV BALL BEARING 6000VVCMPS2L $8.89
240 302-428 WASHER (A) C7BD C7SB C8 C7YA $1.07
243 949-755 HexSockHDBoltM6x16 NR83AA 10PS $2.68
245 980-523 NYLON CLIP C10FSH C12FDH $1.02
246 935-196 MACHINE SCREW W/WASHER M4x12 $1.02
247 988-101 BOLT (A) M10 C15FB C12LSH $1.87
248 323-652 WASHER (B) C12LC C12LCH C12FCH $4.69
252 318-363 FLAT HD SCREW M4x10 (BLK) $1.54
254 690-4DD BALL BEARING DH24PC2 DH22PB $18.81
255 323-208 MACHINE SCREW w/WASHERS M6x20 $1.31
258 608VVM BALL BEARING G10SR SP18SA $5.78
259 322-926 LASER COVER(A) C10FCH C12F/LDH $1.32
261 323-040 MACHINE SCREW M5x10 (BLK) $1.32
263 323-675 SPINDLE COVER C12LC C12LCH $1.32
264 993-539 SCREWw/WASHER M4x16 SV12SD/V $1.07
271 949-560 NUT M10*1.5 T=8 C10FC/2 10PS $2.02
278 608VVM BALL BEARING G10SR SP18SA $5.78
279 983- 545 NEEDLE ROLLER C12LSH C12FCH $1.01
281 949-241 MACHINE SCREWS M5x20 10PS $2.02
284 304-043 MACH. SCREW w/WASHER M4x10 BLK $1.02
287 322-948 WASHER M7 C10FCE/2 C10FCH/2 $1.31
289 322-950 SPECIAL SCREW M6 C10FCE C10FCH $1.32
290 322-947 SPECIAL SCREW (C) M5 C10FCE/2 $1.32
291 322-938 WASHER M10 C10FCE/2 C10FCH/2 $1.32
292 318-363 FLAT HD SCREW M4x10 (BLK) $1.54
294 323-672 COVER PLATE (B) ASS'Y C12LC $7.38
295 323-673 CUSHION C12LC C12LCH C12FCH $1.32
296 323-667 PROTECTIVE COVER (A) C12LC $31.65
297 323-671 RETURN SPRING C12LC C12LCH $1.32
298 323-040 MACHINE SCREW M5x10 (BLK) $1.32
300 323-670 COVER WASHER C12LC C12LCH $1.32
503 322-955 DUST BAG (BLACK) $11.50
602 301-806 WING BOLT M6x15 M12V C10FCB $1.06
610 301-806 WING BOLT M6x15 M12V C10FCB $1.06
614 949-556 NUT M6 C12LSH/RSH 10PS $1.81
616 949-425 WASHER M6 C7BD/SB/D/SC 10PS $1.01
623 998-836 KNOB BOLT M6x11 C8FB2/FB C10FS $1.82
625 306-985 WASHER (H) CC14SE C12LSH $1.02
627 304-043 MACH. SCREW w/WASHER M4x10 BLK $1.02
628 318-967 VISE SHAFT C10FCB C12FDH $2.96
