Hitachi C10FCD Electric Saw Parts

Hitachi C10FCD Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

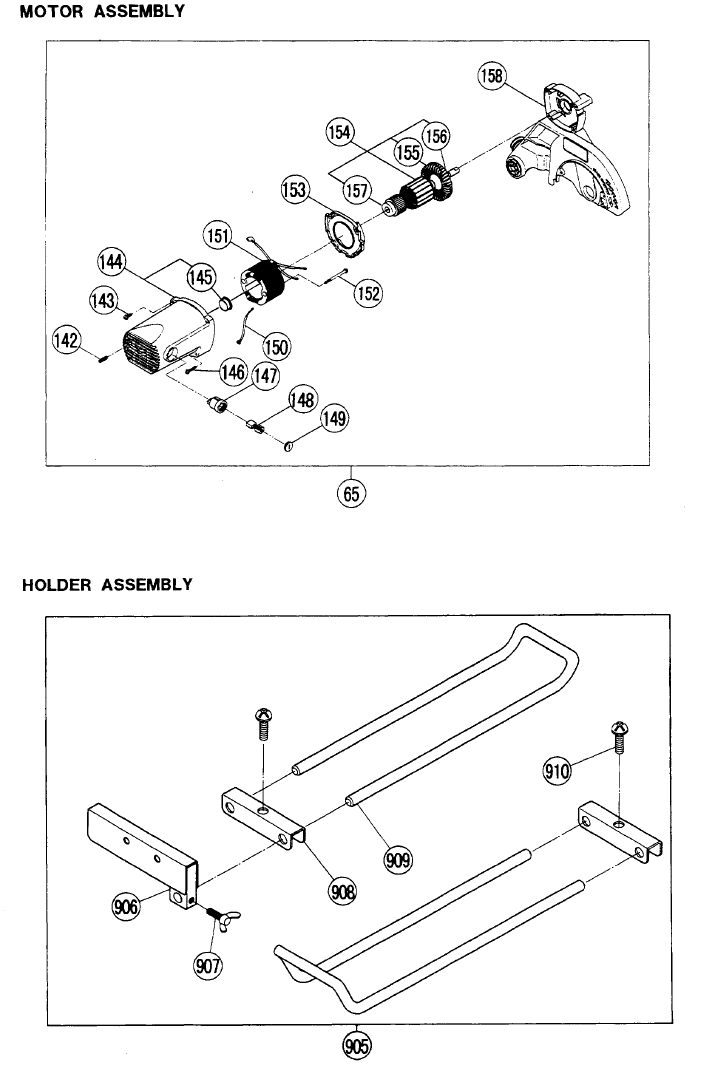

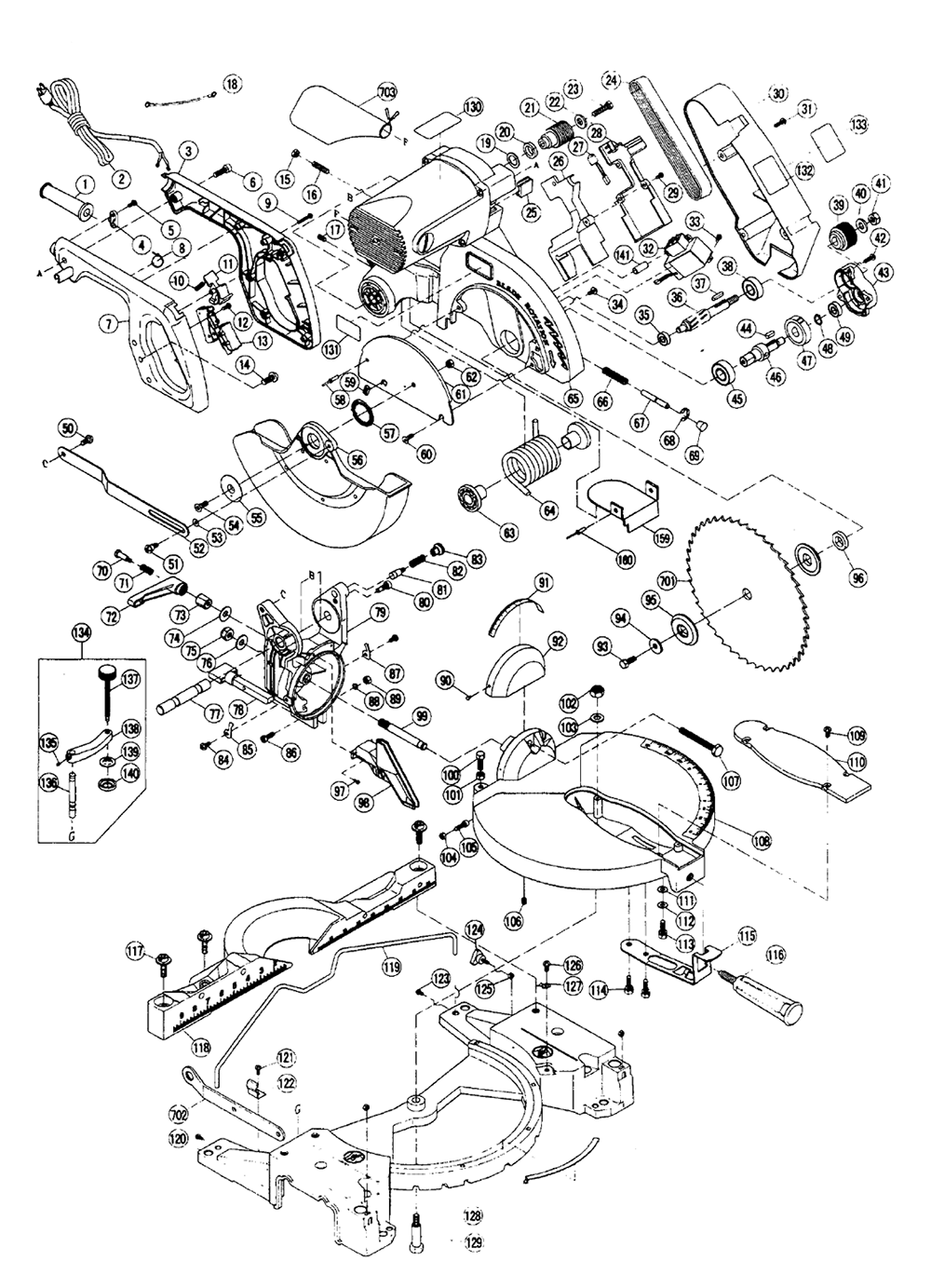

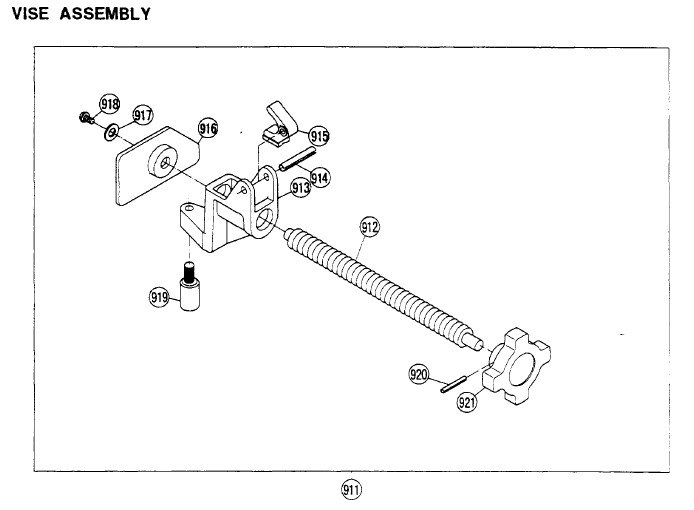

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	311-096	CORD GUARD C10FC C10FC2	$3.96
2	317-546	POWER CABLE C10FCD	$9.99
4	311-070	CORD-CLAMP C10FC/FC2/FCD 10PS	$4.72
5	317-548	PAN HD TAP SCREWS D4x12 (10pc)	$2.09
6	949-780	HexSockHDBoltM8x35 C10FCD 10PS	$7.96
8	317-550	LOCKING CABLE TIE C10FCD	$0.38
9	317-551	PAN HD TAP SCREWS D4x25 (10pc)	$2.09
11	317-552	BUTTON SWITCH C10FCD	$1.04
12	311-103	TRUSS HD TAP SCREW D4x12(10pc)	$3.02
13	317-553	TRIGGER SWITCH C10FCD C10FM	$25.47
14	949-271	CR.RE.PAN HD SCREW M8x20 10PS	$3.28
15	949-556	NUT M6 C12LSH/RSH 10PS	$2.17
17	968-247	HEX SOCKET SET SCREW M6x10 1EA	$1.03
18	317-554	LEAD WIRE C10FCD	$2.42
19	317-555	FLAT WASHERS M13 (10pc) C10FCD	$7.30
20	317-556	MAGNET C10FCD	$3.63
21	317-557	PULLEY (A) C10FCD	$6.78
22	317-558	FLAT WASHERS (10pc) C10FCD	$2.09
23	949-613	BOLT M6x16 (10pc) C10FS C10RA	$2.26
24	317-559	V-RIBBED BELT C10FCD	$33.07
25	317-560	PROTECTOR WIRE C10FCD	$1.66
26	317-561	CONNECTOR BOX C10FCD	$3.28
27	317-562	PICK UP C10FCD	$35.48
28	317-563	CONNECTOR BOX COVER C10FCD	$2.74
29	995-062	TAPPING SCREW W/WASHER D4 X 16	$1.27
30	317-564	REAR COVER C10FCD	$7.23
31	949-239	SCREWS M5x16 10PS NV50A1 CC12Y	$1.75
32	317-565	CONTROLLER (R) C10FCD	$229.02
34	317-567	CR.RE ROUND WASHER HD SCREW	$1.94
35	607-ZZM	BALL BEARING 607ZZC2PS2L	$6.88
36	317-569	GEAR SHAFT C10FCD	$17.24
37	31 7-570	PARALLEL KEY, 10PCS C10FCD	$8.24
38	600-1VV	BALL BEARING 6001VVCMPS2L	$9.97
39	317-571	PULLEY (B) C10FCD	$12.08
40	317-572	FLAT WASHER , 10PCS C10FCD	$2.09
42	949-239	SCREWS M5x16 10PS NV50A1 CC12Y	$1.75
43	317-573	GEAR BOX C10FCD	$11.35
44	317-574	PARALLEL KEY (10pc) C10FCD	$6.83
46	317-576	CUTTER SHAFT C10FCD	$13.26
47	317-577	HELIX GEAR C10FCD	$18.04
48	317-578	C-RING , 10PCS C10FCD	$3.04
49	608VVM	BALL BEARING G10SR SP18SA	$7.02
50	314-980	TRUSS HD STEP SCREW M6x12 10pc	$8.71
51	317-579	CR.RE TRUSS HD RND SCREW 10PS	$8.24
52	317-580	LEVER C10FCD	$3.42
53	317-505	FLAT WASHER M6 10PS NV50AP/2	$2.09
54	317-582	CR.RE.ROUND HD SCREW M6x16 10p	$2.09
55	317-583	COLLAR C10FCD	$0.92
56	317-584	PC-GUARD ASSY C10FCD	$16.99
57	314-987	SPRING GUARD C10FCD	$8.37
58	311-036	RIVET C10FC/C10FC2/FCD 10PS	$19.23
59	317-585	BUMPER C10FCD (10 PCS )	$4.00
60	317-586	CR.ER.COUNT DH SCRW M5x12 20PS	$2.09
61	317-587	CUTTER SHAFT GUARD C10FCD	$5.58
62	314-522	SPECIAL NUT CHUCK M6 RB18DL	$1.75
63	317-588	SHAFT SLEEVE C10FCD	$0.53
64	317-589	TORSION SPRING C10FCD	$5.36
65	317-590	MOTOR C10FCD	$284.48
66	317-600	SPRING C10FCD 10PCS	$4.46
67	317-601	BRACKET STOP C10FCD	$0.95
68	317-602	E-RING , 10PCS C10FCD	$2.09
69	311-016	CAP RUBBER (10pc) C10FC/C10FC2	$3.02
70	317-362	SPECIAL SCREWS (10pc) C10FC	$20.95
71	317-363	COMPRESSION SPRING 10pc C10FC2	$2.57
72	317-364	BEVEL LOCK HANDLE C10FC/C10FC2	$5.30
73	317-365	HANDLE COLLAR C10FC/C10FC2 1PC	$3.63
74	317-603	FLAT WASHER 10PCS C10FCD	$2.09
75	317-604	NUT CHUCK, 10PCS C10FCD	$3.04
76	317-603	FLAT WASHER 10PCS C10FCD	$2.09
77	317-606	SHAFT PIVOT C10FCD	$3.42
78	317-607	LOCATING BAR C10FCD	$4.13
79	317-608	ANGLE REGULATOR C10FCD	$28.12
80	317-610	BRACKET STOP C10FCD	$1.43
81	317-611	COMPRESSION SPRING, 10PCS	$2.09
82	317-612	PLUNGER HANDLE C10FCD	$2.37
83	317-609	SET BOLT C10FCD	$1.43
84	949-236	Machine Screw M5X10 (10 Pcs.)	$1.55
85	317-613	NEEDLE POINTER C10FCD	$0.71
86	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
87	317-614	NEEDLE POINTER C10FCD	$0.71
88	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
89	317-615	NUT CHUCK, 10PCS C10FCD	$2.09
90	31 1-042	DRIVE SCREW D2.3 X 5 C10FCD	$3.02
91	317-616	Tilting Scale(Miter Ga) C10FCD	$0.63
92	317-617	PLATE COVER C10FCD	$3.63
93	317-618	HexSockHDBoltM8x25 C10FCD 10PS	$7.30
94	317-619	WASHER BLADE C10FCD	$3.13
95	317-428	COLLAR C10FCD	$1.43
96	317-620	ARBOR COLLAR C10FC C10FC2	$6.64
97	949-239	SCREWS M5x16 10PS NV50A1 CC12Y	$1.75
98	317-621	CHIP DEFLECTOR C10FCD	$4.40
99	317-622	SHAFT PIVOT C10FCD	$1.55
101	949-556	NUT M6 C12LSH/RSH 10PS	$2.17
103	311-047	FLAT WASHER (10 pcs) C10FCD M8	$3.02
104	949-556	NUT M6 C12LSH/RSH 10PS	$2.17
105	317-623	HexSetScrewM6x25 C10FCD10PS	$3.04
106	968-247	HEX SOCKET SET SCREW M6x10 1EA	$1.03
107	311-108	Hex Sock HD Bolt M10x65 (10pc)	$1.32
108	317-624	TABLE C10FCD	$97.50
109	949-216	MACHINE SCREW M4X10 (10 PCS.)	$1.19
110	317-625	TABLE INSERT C10FCD	$2.66
111	317-626	WASHER C10FCD 10PS	$2.57
112	317-627	FLAT WASHER C10FCD/RA2 10PS	$2.26
113	317-628	HexSockHDScrew&WashC10FCD 10PS	$2.09
114	317-628	HexSockHDScrew&WashC10FCD 10PS	$2.09
115	317-630	COIL SPRING, C10FCD	$5.83
117	317-632	HEX SCKT CAP SCREW M8x45 (10pc	$10.13
119	317-634	EXTENSION STAY C10FCD	$5.83
120	317-635	BASE C10FCD	$65.31
121	317-636	CR.RE. PAN HD.TAP SCREW (10pc)	$2.09
123	949-236	Machine Screw M5X10 (10 Pcs.)	$1.55
124	317-637	CLAMP BOLT, 10PCS C10FCD	$15.82
125	949-555	Hex Nut M5 NR83A NV50A1 10PS	$1.24
126	949-236	Machine Screw M5X10 (10 Pcs.)	$1.55
127	317-638	ANGLE POINTER, 10PCS C10FCD	$3.04
128	317-639	SLIDE PLATE C10FCD	$1.43
129	317-640	CENTER SHAFT C10FCD	$3.90
132	310-871	CAUTION LABEL (E) C10FS/C10FCD	$1.72
135	968-247	HEX SOCKET SET SCREW M6x10 1EA	$1.03
136	317-643	SUPPORT C10FCD	$4.13
137	317-644	SCREW BAR C10FCD	$8.67
138	317-645	VISE BEARING C10FCD	$7.77
139	317-646	FLANGE C10FCD	$5.36
140	317-647	BUSH C10FCD	$1.20
141	317-641	FULL INSUL. FEMALE SLEEVE	$0.52
142	967-377	HEX SOCKET SET SCREW M5x8 10pc	$1.94
143	880-734	MACHINE SCREW M5x25 C12LSH	$0.98
144	317-592	HOUSING ASSY C10FCD	$30.11
146	997-841	MACH. SCREW w/WASHER M5x50 1pc	$1.27
150	317-593	INTERNAL WIRE C10FCD	$2.88
151	317-594	STATOR 115v C10FCD	$45.00
152	317-595	PAN HD TAP SC/WASH M5x60, 10pc	$4.94
153	317-596	FLOW GUIDE, C10FCD	$4.13
154	317-597	ARMATURE ASSY 115V C10FCD	$142.30
155	317-598	FLAT WASHER C10FCD 10PS	$4.94
158	317-599	ARM C10FCD	$91.05
159	317-824	PLATE COVER C10FCD	$2.69
160	317-825	RIVET C10FCD 10PS	$2.09
