Hitachi C10FCB Electric Saw Parts

Hitachi C10FCB Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	307-232	MACHINE SCREW W/WASHER M6x12	$1.19
2	312-488	CLAMP LEVER C10FCB/FSH/FS	$10.99
3	318-933	BOLT (LEFT HAND) C10FCB M10X40	$1.88
4	318-934	SPECIAL WASHER C10FCB	$1.88
5	318-939	SPRING C10FCB	$9.00
6	318-938	SLEEVE C10FCB	$5.27
7	318-951	HINGE C10FCB	$19.10

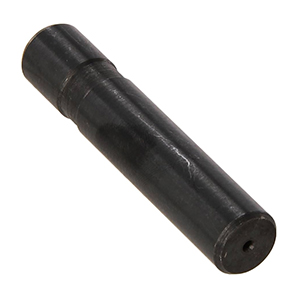

8	318-935	SHAFT (C) C10FCB	$3.58
9	984-528	O-RING (P-6) C10FCB C10FSH	$1.20
10	968-247	HEX SOCKET SET SCREW M6x10 1EA	$1.03
11	302-518	STOPPER PIN ASSY C10FCB, C10FSH	$4.93
12	317-200	MACHINE SCREW W/WASHER M4x8	$1.89
13	318-932	INDICATOR (B) C10FCB	$1.88
14	318-940	SHAFT (C) C10FCB	$6.98
15	318-936	GUARD C10FCB	$3.58
16	986011	TAP SCREW D5x30 GP2/S2 CR18DL	$1.55
18	302-522	KNOB BOLT M10x66 C10FCB	$12.38
19	301-806	WING BOLT M6x15 M12V C10FCB	$1.24
21	949-425	WASHER M6 C7BD/SB/D/SC 10PS	$1.19
22	302-532	VISE PLATE C10FCB C12FDH/LDH	$3.23
23	949-216	MACHINE SCREW M4X10 (10 PCS.)	$1.19
24	318-967	VISE SHAFT C10FCB C12FDH	$3.58
25	949-556	NUT M6 C12LSH/RSH 10PS	$2.17
26	949-432	BOLT WASHER M6 (10 PCS.)	$1.20
29	301-806	WING BOLT M6x15 M12V C10FCB	$1.24
30	307-221	BOLT W/WASHERS M8x35 C10FS	$1.20
31	318-949	FENCE (B) C10FCB	$14.39
32	975-348	NYLON NUT M8 C10FCB	$1.19
33	318-929	WASHER (F) C10FCB	$1.88
34	318-931	SCALE (B) C10FCB	$1.88
35	303-409	NYLOCK BOLT M8x25 C8FB2/FSE/H	$1.98
36	317-200	MACHINE SCREW W/WASHER M4x8	$1.89
37	318-927	INDICATOR (A) C10FCB	$1.88
38	318-947	TURN TABLE C10FCB	$73.86
40	949-239	SCREWS M5x16 10PS NV50A1 CC12Y	$1.75
42	998-814	SPACER C10FS C8FB2 C8FB C12FSA	$2.25
43	317-200	MACHINE SCREW W/WASHER M4x8	$1.89
44	318-926	LINER C10FCB	$7.67
45	318-945	SCALE (A) C10FCB	$6.98
46	318-948	FENCE (A) C10FCB	$12.38
47	967-150	Spring (c)	$1.24
48	959-153	STEEL BALL D12.7 C10FS 10 PS	$6.26
49	318-969	BASE C10FCB	$238.38
50	949-342	FLAT HD SCREW M6x25 C10RA 10PS	$2.26
51	301-806	WING BOLT M6x15 M12V C10FCB	$1.24
53	318-928	SHAFT (B) C10FCB	$3.58
54	500-453Z	CORD, ELECTRICAL, 2 WIRES	$36.27
55	940-778	CORD ARMOR D10.7 C10FA C15FB	$3.19
56	959-141	CONNECTOR 50092 (10 PCS.)	$6.26
59	302-434	SCREW w/WASHERS M5x45 BLACK	$1.27
60	318-955	HOUSING ASSY C10FCB	$47.18
61	966-426	HEX SOCKETSET SCREW M5x6 C10FS	$1.27
62	980-487	BRUSH HOLDER G18SE2 G23SC2	$8.45
63	999-044	CARBON BRUSH (pair) P12RA M12V (P06)	$5.15
63	P06	Carbon Brush Set Replaces Hitachi 999-044	$8.50
64	940-540	BRUSH CAP CC12Y G18SE2 G23SC2	$1.67
65	937-631	CORD CLIP M12V2 M12SA2 C8FB2	$1.19
66	302-086	SCREW W/FLANGE D4x20 WR12DM2	$1.27
67	340-472C	STATOR ASSEMBLY 115V C10FCB	$80.01
68	986011	TAP SCREW D5x30 GP2/S2 CR18DL	$1.55
70	318-959	HANDLE COVER C10FCB	$10.99
71	360-531U	ARMATURE ASSEMBLY C10FCB	$202.67
72	620-0VV	BALL BEARING 6200VVCMPS2L	$6.67
73	946-362	BEARING LOCK CR10V CR12V D13	$1.24
74	939-544	RETAINING RING D13 D15SHAFT	$3.38
75	600-2VV	BALL BEARING 6002VVCMPS2L	$10.25
76	318-941	LOCK LEVER C10FCB	$1.88
77	318-942	LOCK SPRING C10FCB	$1.88
78	938-108	TERMINAL FOR NOISE SUPPRESSOR	$1.27
79	986011	TAP SCREW D5x30 GP2/S2 CR18DL	$1.55
80	988-925	SWITCH (B) 1P PillarType C15FB	$28.79
81	958-715	TAP SCREW D4x10 DH50SB C7D	$1.55
82	951-895	LOCK OFF BUTTON C10FS C8FB2	$3.60
83	302-086	SCREW W/FLANGE D4x20 WR12DM2	$1.27
84	949-819	HEX SOCKET HD BOLT M5x10 10PS	$2.88
85	318-953	GEAR CASE C10FCB	$74.07
87	949-239	SCREWS M5x16 10PS NV50A1 CC12Y	$1.75
89	880-494	STOPPER SPRING NV65AH	$2.59
90	968-247	HEX SOCKET SET SCREW M6x10 1EA	$1.03
92	949-555	Hex Nut M5 NR83A NV50A1 10PS	$1.24
93	318-958	SPINDLE COVER C10FCB, C10FSB	$3.58
94	998-980	SPACER C10FS C8FB2 P12RA P12R	$1.24
95	949-236	Machine Screw M5X10 (10 Pcs.)	$1.55
97	998-980	SPACER C10FS C8FB2 P12RA P12R	$1.24
98	949-239	SCREWS M5x16 10PS NV50A1 CC12Y	$1.75
99	949-432	BOLT WASHER M6 (10 PCS.)	$1.20
100	606-ZZM	BALL BEARING 606ZZC2PS2L D10VG	$7.60
101	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
102	949-258	SCREW M6x20 (10 pc) C10FS	$1.97
103	949-432	BOLT WASHER M6 (10 PCS.)	$1.20
104	301-806	WING BOLT M6x15 M12V C10FCB	$1.24
105	949-568	LOCK NUT M8 (10pc) C8FB2	$1.88
106	949-626	BOLT M8x25 (10pc) CC14SC	$2.54
107	318-956	SPINDLE ASSEMBLY C10FCB	$47.18
108	608VVM	BALL BEARING G10SR SP18SA	$7.02
109	318-957	BEARING HOLDER C10FCB	$9.66
110	949-241	MACHINE SCREWS M5x20 10PS	$2.42
111	600-3VV	BALL BEARING 6003VVCMPS2L	$9.09
114	307-731	COVER C10FS C12FSA C8FSE/FSHE	$3.58
115	949-322	FLAT HEAD SCREW M4x10 (10pc)	$1.24
117	308-789	WASHER (D) C10FS C10FCE2	$20.45
120	998-838	WASHER (C) C10FS C8FB2	$8.67
121	940-845	WASHER C10FCB	$1.19
123	949-567	LOCK NUT M6 P12R P12RA 10PS	$1.27
124	949451	LOCK WASHER M3 (10pc) CB75F	$1.55
