DeWalt K15A-8P-Type-0 Compressor Parts

DeWalt K15A-8P-Type-0 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

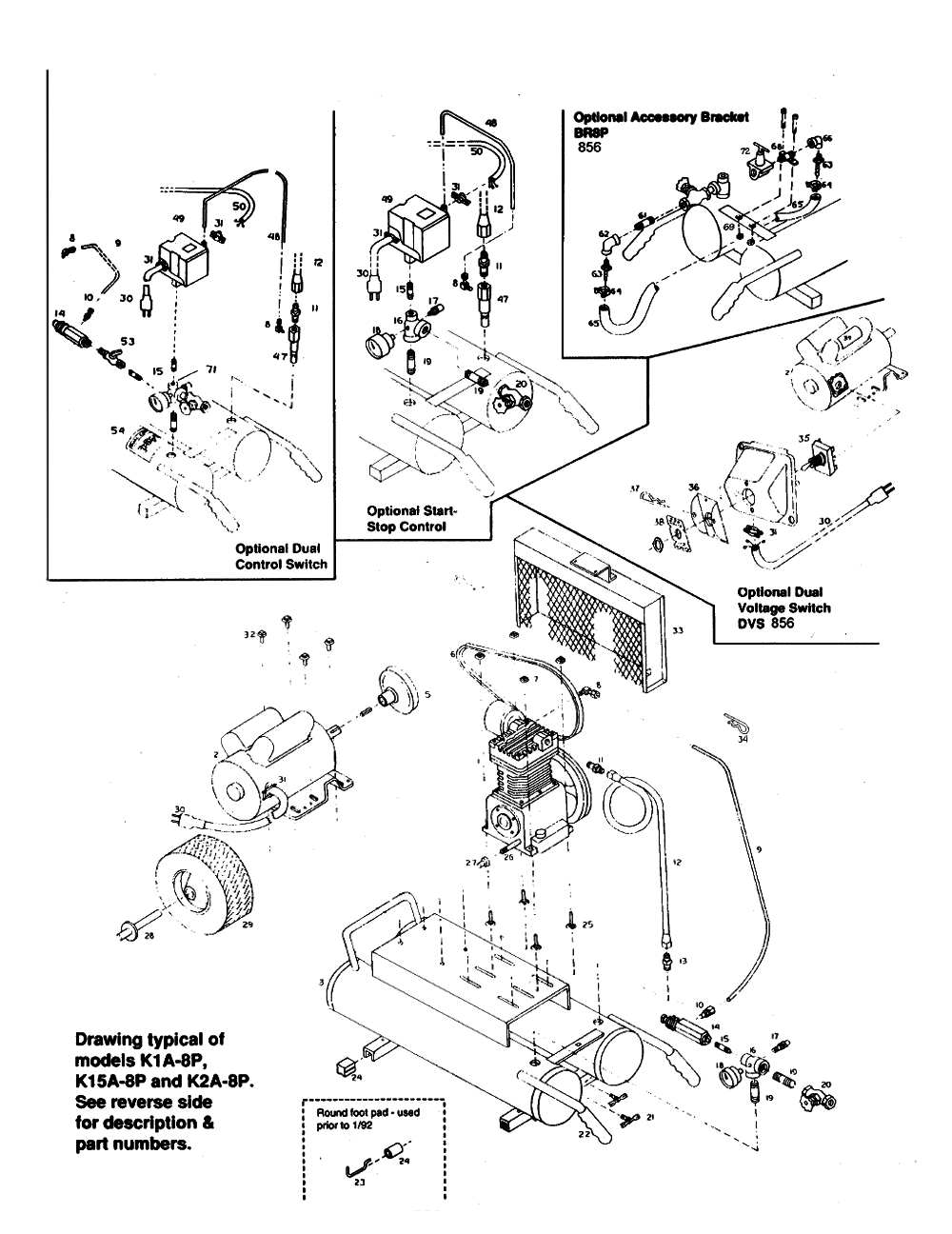

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	A13033	MOTOR	$498.46
5	5130191-00	PULLEY	$50.70
5	5134413-00	PULLEY	$64.33
6	5132147-00	BELT	$25.07
7	5130218-00	NUT	$1.12
9	5133627-00	CONTROL TUBE ASSY.	$38.30
10	5130021-00	CONNECTOR	$4.49
11	5130945-00	CONNECT	$7.71
12	5133620-00	AFTERCOOLER	$34.28
14	5130211-00	PILOT VALVE	$40.94
17	5130030-00	VALVE	$21.22
18	5130026-00	GAUGE	$27.53
18	5130026-00	GAUGE	$27.53
19	5130259-00	NIPPLE	$4.71
22	5130582-00	HANDL GRIP	$4.49
23	5134405-00	CLIP	$0.70
24	5130250-00	FOOT	$9.56
25	5136072-00	BOLT	$0.89
26	5130154-00	NIPPLE	$5.12
27	5130155-00	CAP	$7.32
28	5131684-00	AXLE	$11.58
29	5131659-00	WHEEL	$47.98
30	5131244-00	CORD & PLUG	$34.39
32	5130257-00	LOCK BOLT	$1.74
33	5132665-02	BELT GUARD	$97.27
35	5131519-00	TOGGLE SWITCH	$22.10
36	5130222-00	SWITCH COVER	$8.27
37	5130892-00	CLEVIS PIN	$1.62
38	5130573-00	DECAL	$3.72
39	5134387-00	DECAL	$5.52
47	5130268-00	CHECK VALVE	$19.97
48	5133627-00	CONTROL TUBE ASSY.	$38.30
49	5131501-00	PRESSURE SWITCH	$48.88
61	5130177-00	NIPPLE	$16.24
63	5130970-00	HOSE BARB	$6.15
64	5136480-00	HOSE CLAMP	$9.07
65	A13450	HOSE	$10.99
68	5132685-00	BRACKET	$8.30
69	5130218-00	NUT	$1.12
71	5131728-00	MANIFOLD	$52.41
72	5140112-76	REGULATOR ASSEMBLY	$78.97
856	5133085-00	DUAL VOLTAGE SWITCH	$99.41
