DeWalt DWP611PK Router Parts

DeWalt DWP611PK Parts

Download Schematic

Time to buy a new tool?

DeWalt DWP611PK

Premium Compact Rout...

$191.14

Page-1

Page-2

Page-3

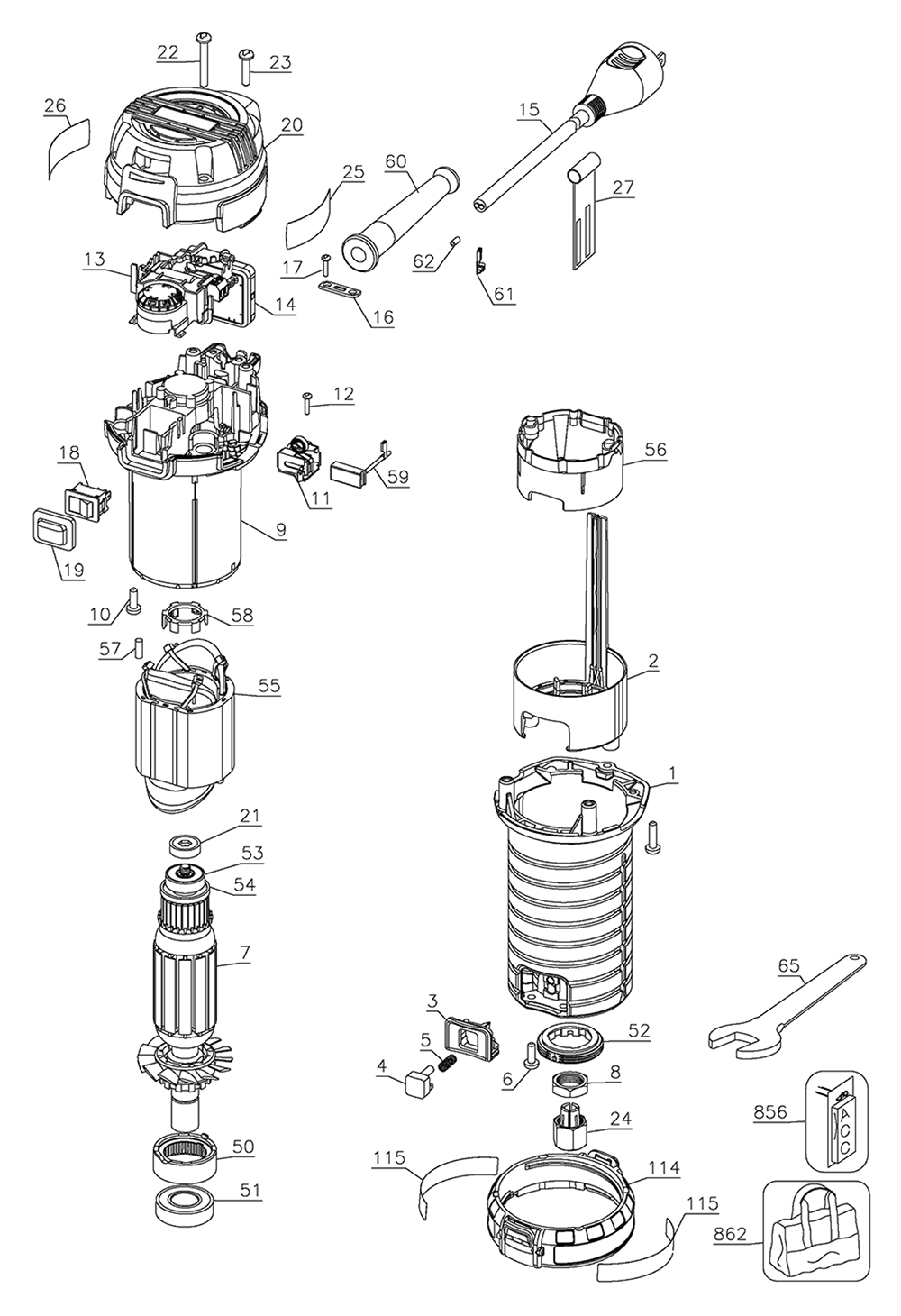

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A26126SV	MOTOR CAN	$43.82
2	N074107	LED ASSY	$32.03
3	A26131	INSERT	$1.16
4	N038183	SPINDLE LOCK BUTTON	$1.09
5	A23489	COMPRESSION SPRING	$1.16
6	330065-06	SCREW	$1.24

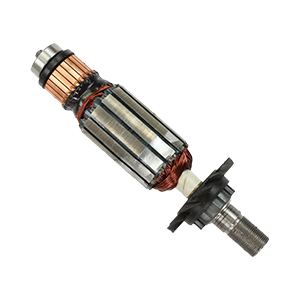

7	A26132SV	ARMATURE & BRG	$75.32
8	A25248	RETAINING NUT	$2.42

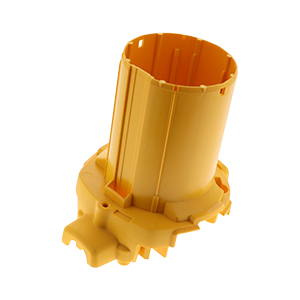

9	A23498	FIELD CASE	$9.10
10	330065-07	SCREW	$1.24
11	A27345	BRUSH HOLDER ASSY	$7.64
12	330019-01	SCREW, TORX HD	$1.23

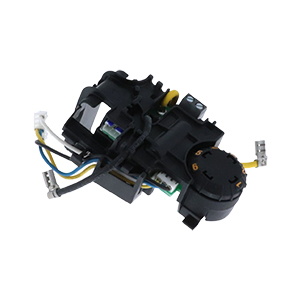

13	N074106	MODULE	$41.46

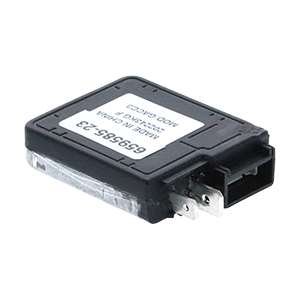

14	N074104	MODULE	$60.29
15	330072-98	CORD/8FT/18-2SJ	$11.53
15	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
16	329301-00	CLAMP, CORD	$1.24
17	330019-02	SCREW, PLASTITE	$1.23
18	887453	LOCK LEVER NT65GS NT65GB	$8.39
19	A29360	SWITCH BOOT	$1.16

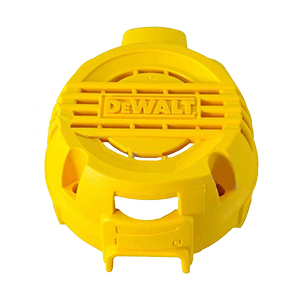

20	N038242	TOP CAP	$5.92
21	A27330	MAGNET	$3.70
22	330045-09	SCREW	$1.24
23	330065-08	SCREW	$1.24
24	A24215SV	COLLET	$16.66
25	N039267	SPEC. LABEL	$1.16
26	N039269	WARNING LABEL	$1.16
27	N039270	WARNING LABEL	$1.16
50	A26125	INSERT	$1.78
51	A27537	BALL BEARING	$3.38
52	A25250	SPANNER NUT	$1.16
53	330003-60	BEARING	$4.75
54	A25585	INSULATOR	$1.16
55	A21119	FIELD	$27.31
56	A23504	BAFFLE	$2.69
57	949638-02	PLUG, RUBBER	$1.24
58	A27937	WASHER	$1.16
59	A27343	BRUSH	$15.78
60	330005-01	PROTECTOR, CORD	$4.63
60	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
61	445964-00	RECEPTACLE	$1.24
62	444262-00	TERMINAL	$1.24
65	A27895	WRENCH	$3.70
100	N075229	BASE ASSEMBLY	$99.13
102	A23587	SCALE	$3.38
104	A24452	PIN	$1.16
105	A24764	ADJUSTMENT BLOCK	$3.38
106	330022-18	SET SCREW	$1.23
107	A24767	CLAMP PAD	$2.10
108	A24771	CLAMP LEVER	$3.38
109	A24770	PIN	$1.16
110	A27362	SPRING	$2.10
111	A27941	SUB BASE	$4.64
112	N029178	SCREW	$1.20
113	N028373	RETAINING RING	$1.16
114	A23984SV	DEPTH ADJUST RING	$9.73
115	A28466	ID LABEL	$1.16
200	N095607	BASE & COLUMN ASSY	$20.01
202	N095608	CARRIER ASSY.	$24.38
203	N042079	GUIDE PIN	$1.16
204	684179	RETAINING RING	$1.10
205	N037001	COMPRESSION SPRING	$1.28
206	N034346	SPRING SLEEVE	$1.28
207	A29112	COMPRESSION SPRING	$1.16
208	A29651	SPRING SLEEVE	$1.16
210	N027873	CLAMP PLATE	$1.16
211	N029880	COVER	$3.38
212	330045-06	SCREW	$1.24
213	N029497	BOLT	$3.38
214	N029508	TORSION SPRING	$1.16
215	N027646	LEVER	$1.28
216	608298-00	STAR WASHER	$1.21
217	324007-10	SCREW	$1.24
218	N039274	LABEL	$1.16
219	A28031	ROD	$2.10
220	N031168	ADJUSTER	$1.16
221	N027984	O-RING	$1.16
222	N027987	ADJUSTMENT KNOB	$2.74
223	608930-00	SCREW	$1.21
225	397560-00	KNOB	$3.71
226	607395-00	SCREW	$1.21
227	098197-09	LOCKWASHER	$1.21
228	A28435	SUB BASE	$7.50
240	652836-00	BALL	$1.41
241	326976-01	TURRET	$5.50
242	608928-00	SCREW, M5 X 20	$1.21
243	330015-04	NUT, HEX	$1.23
244	652835-00	SPACER	$1.12
245	652834-00	SPRING	$1.12
246	653599-00	WASHER	$1.12
247	330045-07	SCREW M4X20 T20	$1.24
260	N029502	ID LABEL	$1.28
261	N039275	SPEC. LABEL	$1.60
862	629053-00	TOOL BAG	$23.26
