DeWalt DWD460-Type-2 Electric Hammer Drill Parts

DeWalt DWD460-Type-2 Electric Hammer Drill Parts Image

DeWalt DWD460-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

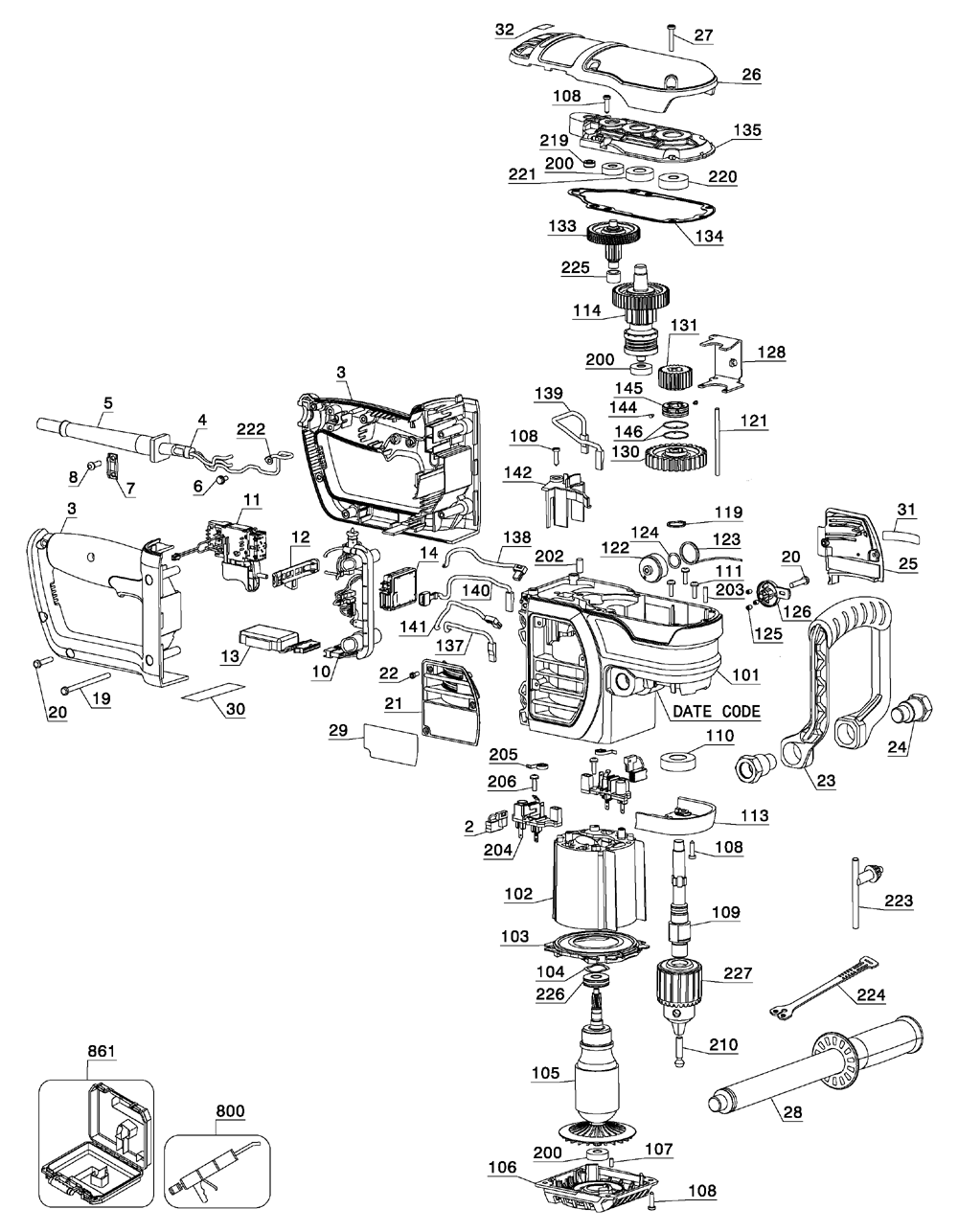

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price

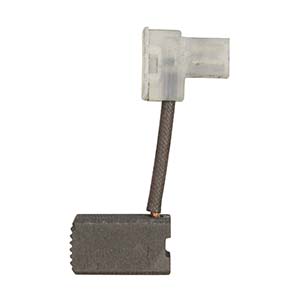

2	660804-00SV	BRUSH	$3.61
3	654946-00	HANDLE SET	$31.17
4	444518-98	CORD/10FT./16-3	$22.55
5	445338-00	PROTECTOR, CORD	$3.79

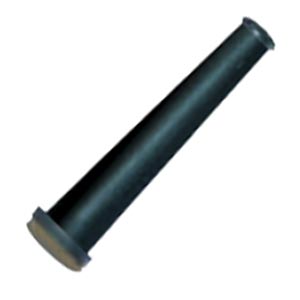

5	Boot-B	Strain Relief fits 14/2 + 16/2 + 16/3	$4.19
6	150036-00	SCREW, GROUND	$1.24
7	450877-00	CORD CLAMP	$2.07
8	330019-11	SCREW	$1.24
10	646486-00	WIRE HARNESS	$22.64
11	N079270	SWITCH	$35.34
12	636379-00	BAR	$1.01
13	644747-00	MODULE	$150.12
14	639062-01	MODULE	$49.71
19	330019-72	SCREW	$1.16
20	330019-32	SCREW	$1.23

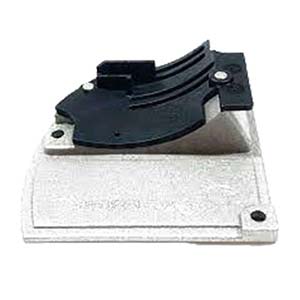

21	649086-00	BRUSH DOOR	$11.76
22	648777-00	SCREW	$1.18

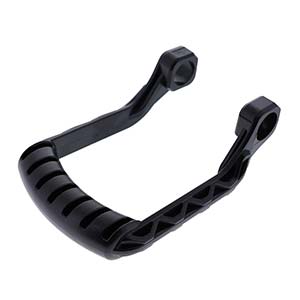

23	648853-00	BAIL HANDLE	$13.13

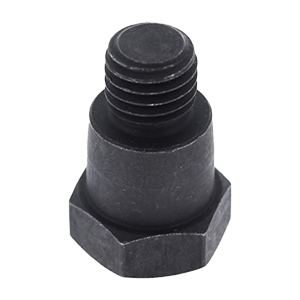

24	636385-00	ADAPTER	$4.23
25	649085-00	BRUSH DOOR	$10.74
26	650093-00	SHROUD	$13.74
27	330045-08	SCREW	$1.24

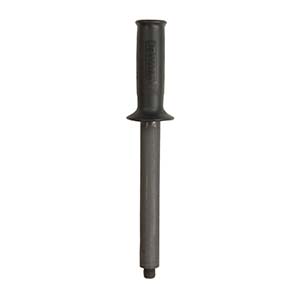

28	650546-00SV	SIDE HANDLE	$19.54
29	N088739	NAMEPLATE	$1.39
30	659573-00	WARNING LABEL	$1.16
31	659574-00	ID LABEL	$1.16
32	660154-00	LABEL	$1.09
101	N088734	GEAR CASE	$59.33
102	N182022	FIELD CASE ASSY	$34.86
103	636398-00	FAN BAFFLE	$2.25
104	448373-00	WASHER, SPRING	$1.24
105	636395-00SV	ARMATURE & BRGS.	$62.27
106	636345-00	END CAP	$24.00
107	145312-00	PLUG, RUBBER	$1.24
108	330045-06	SCREW	$1.24
109	N088737	SPINDLE	$17.94
110	330003-15	BALL BEARING	$7.68
111	330045-78	SCREW	$1.39
113	652831-00	COVER	$12.23
114	N030550SV	CLUTCH ASSEMBLY	$52.21
119	652890-00	RETAINING RING	$1.16
121	649351-00	PIN	$1.09
122	636387-00	HOLDER	$1.16
123	636386-01	SPRING	$1.09
124	650249-00	O-RING	$1.36
125	326467-00	DETENT	$1.24
126	636388-00	LEVER	$1.16
128	636360-00	SLIDER	$1.96
130	660510-00	GEAR	$23.62
131	N019978	GEAR	$13.09
133	636348-00	GEAR & PINION	$31.67
134	658818-00	GASKET	$2.58
135	636393-00	GEAR CASE COVER ASSEMBLY	$33.64
137	660938-00	LEAD	$1.21
138	660938-01	LEAD	$1.50
139	660938-02	LEAD	$1.76
140	660938-03	LEAD	$2.18
141	660938-04	LEAD	$1.50
142	652893-00	GUIDE	$1.50
144	660514-01	DETENT	$1.16
145	660513-00	SPACER	$5.29
146	660512-00	DETENT SPRING	$1.09
200	330003-60	BEARING	$4.75
202	330041-23	ROLLER PIN	$1.16
203	330041-07	ROLLER PIN	$1.16
204	616857-00	BRUSH HOLDER	$4.74
205	383387-00	SPRING, BRUSH	$4.28
206	176951-00	SCREW	$1.24
210	447735-02	SCREW	$1.40
219	636392-00	SLEEVE BEARING	$1.09
220	605040-60	BEARING	$4.96
221	330003-83	BALL BEARING	$5.58
222	395716-00	TERMINAL	$1.09
223	330034-16	CHUCK KEY	$1.98
224	065288-02	HOLDER	$2.13
225	386780-00	BEARING	$2.70
226	654944-00	BALL BEARING	$5.58
227	5140057-77	CHUCK & KEY	$80.58
800	286436-00	GREASE	$87.14
861	653089-00	KIT BOX	$73.21
