DeWalt DWD210G-Type-2 Electric Hammer Drill Parts

DeWalt DWD210G-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

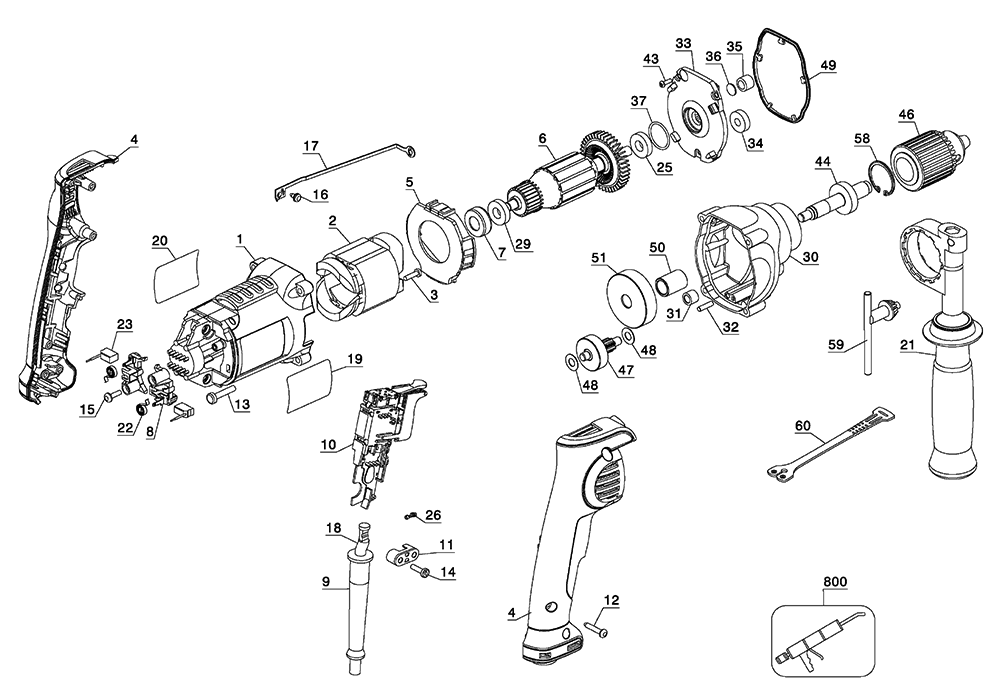

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	639593-00	FIELDCASE	$8.46
2	N047997SV	FIELD	$32.62
3	N068183	SCREW	$0.97
4	662703-02	HANDLE SET	$16.66
5	641824-00	FAN BAFFLE	$2.10
6	647864-02SV	ARMATURE & BRGS.	$53.94
7	631563-00	BOOT	$1.21
8	653892-01	BRUSH HOLDER ASSY	$3.26
9	330005-01	PROTECTOR, CORD	$4.63
9	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
10	N079273	SWITCH	$33.48
11	655058-00	CORD CLAMP	$1.56
12	330065-31	SCREW	$1.10
13	330045-15	SCREW, M5X20	$1.24
14	330065-07	SCREW	$1.24
15	176951-00	SCREW	$1.24
16	176923-00	SCREW	$1.24
17	653665-00	GROUND STRAP	$2.25
18	330010-12	CORDSET	$13.13
19	N106530	NAMEPLATE	$1.20
20	395047-00	ID LABEL	$1.24
21	663029-00	SIDE HANDLE	$17.82
22	662999-00	SPRING	$1.09
23	N032694	BRUSH	$2.69
25	N024085	BEARING	$4.64
26	88667-04	TERMINAL	$1.18
29	330003-60	BEARING	$4.75
30	654296-01SV	GEAR CASE ASSY.	$27.34
31	330004-01	BEARING, NEEDLE	$4.47
32	330041-07	ROLLER PIN	$1.16
33	645400-05SV	GEARCASE COVER	$17.94
34	605040-02	BALL BEARING	$3.92
35	330004-02	BEARING, NEEDLE	$4.28
36	652185-00	THRUST DISC	$1.09
37	99014-04	O RING	$0.99
43	98102-13	SCREW	$1.24
44	656366-00	OUTPUT SPINDLE	$22.44
46	5140060-13	1/2 CHUCK & KEY	$47.87
47	656364-00	INTER. SHAFT	$27.34
48	659185-00	THRUST WASHER	$1.09
49	648761-00	SEAL	$1.09
50	652781-00	SPACER	$2.04
51	652778-00	OUTPUT GEAR	$15.11
58	087692-00	RET RING	$3.35
59	330034-16	CHUCK KEY	$1.98
60	065288-01	CH KEY HOLDER	$1.87
800	286436-00	GREASE	$87.14
