DeWalt DWC860W

4.5 Inch Wet/Dry Mas...

$141.65

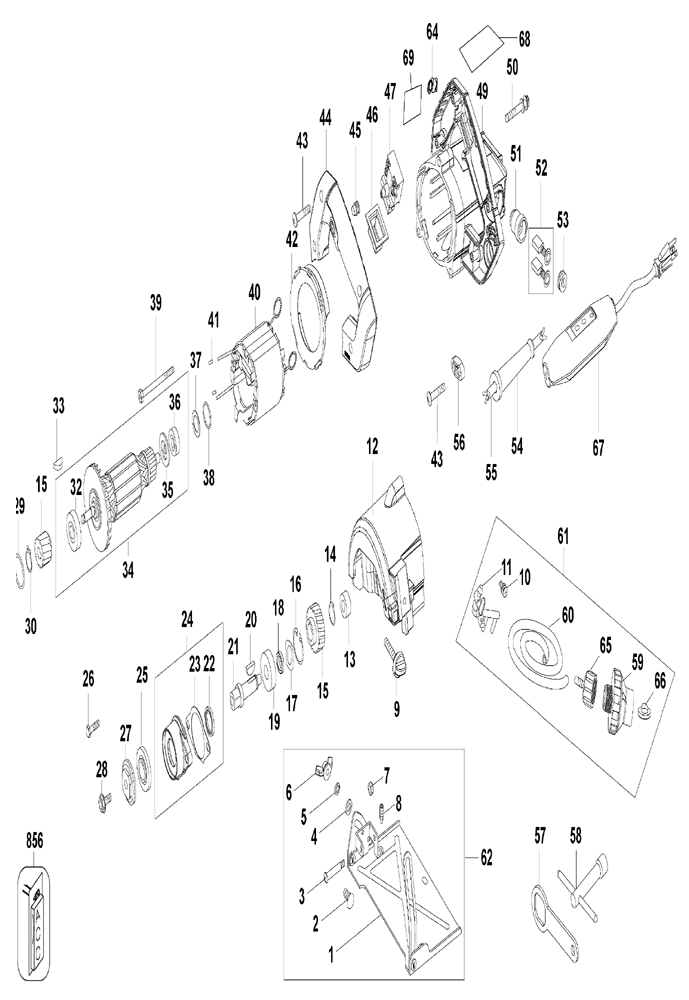

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	N016657	SHOE ASSEMBLY	$10.38
2	N016658	SCREW	$1.16
3	N016659	CARRIAGE BOLT	$1.03
4	N016660	FLAT WASHER	$0.97
5	N016661	LOCKWASHER	$0.97
6	N016662	WING NUT	$1.16
7	N017088	NUT	$0.97
8	N017089	SET SCREW	$1.03
9	N017178	KNOB	$2.74
10	N018154	SCREW & WASHER	$1.03
11	N018155	WATER SUPPLY	$1.03
12	N017179	GEAR CASE	$18.64
13	N017181	BALL BEARING	$2.74
14	N017182	RETAINER RING	$1.48
15	N028885	GEAR&PINION	$14.82
16	N017184	RETAINER RING	$1.48
17	N017185	WAVY WASHER	$1.16
18	N017186	BUSHING	$1.03
19	N017187	BALL BEARING	$1.03
20	N017188	KEY	$1.48
21	N017189	SPINDLE	$9.10
22	N017182	RETAINER RING	$1.48
23	N017190	GASKET	$1.03
24	N017191	GEAR CASE COVER	$6.56
25	N017193	INNER FLANGE	$2.74
26	N017194	HEX BOLT	$1.16
27	N017197	OUTER FLANGE	$2.74
28	N017198	ARBOR BOLT	$1.16
29	N017200	O-RING	$1.48
30	N017203	RETAINER RING	$1.16
32	N017206	BALL BEARING	$7.19
33	N017208	KEY	$1.48
34	N028855	ARMATURE ASSEMBLY	$52.67
35	N017210	SLINGER	$1.16
36	N017211	BALL BEARING	$4.02
37	N017212	FLAT WASHER	$1.03
38	N017213	O-RING	$1.09
39	N017214	SCREW	$1.16
40	N021066	FIELD	$25.62
41	N028877	TERMINAL	$1.03
42	N017631	BAFFLE	$1.48
43	N017632	SELF TAPPING SCREW	$0.97
44	N017633	HANDLE COVER	$6.56
45	N017634	SWITCH CAP	$1.03
46	N017635	SWITCH COVER	$1.66
47	N021067	SWITCH	$14.82
49	N017638	FIELD CASE	$26.13
50	N017639	SCREW W/WASHER	$1.03
51	N017640	BRUSH HOLDER	$4.64
52	N028884	BRUSH KIT	$6.56
53	N017642	BRUSH CAP	$1.16
54	N018149	STRAIN RELIEF	$1.16
55	N080219	CORDSET	$13.74
56	N018151	CORD CLAMP	$1.20
57	N016342	SPANNER WRENCH	$1.16
58	N016341	WRENCH	$1.86
59	5140091-87	CONNECTOR	$36.50
60	5140091-88	TUBING	$5.41
61	5140091-89	WET KIT	$48.06
62	N028853	BASE ASSEMBLY	$12.72
64	N035226	SEAL WASHER	$1.16
65	5140092-59	FITTING	$6.56
67	5140092-58	GFCI PLUG	$46.11
68	N073471	NAMEPLATE	$1.39
69	N080493	WARNING LABEL	$1.16
