DeWalt DW979K-2 Cordless Screwdriver Parts

DeWalt DW979K-2 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW979K-2

12.0V Cdls. Pistol G...

$206.04

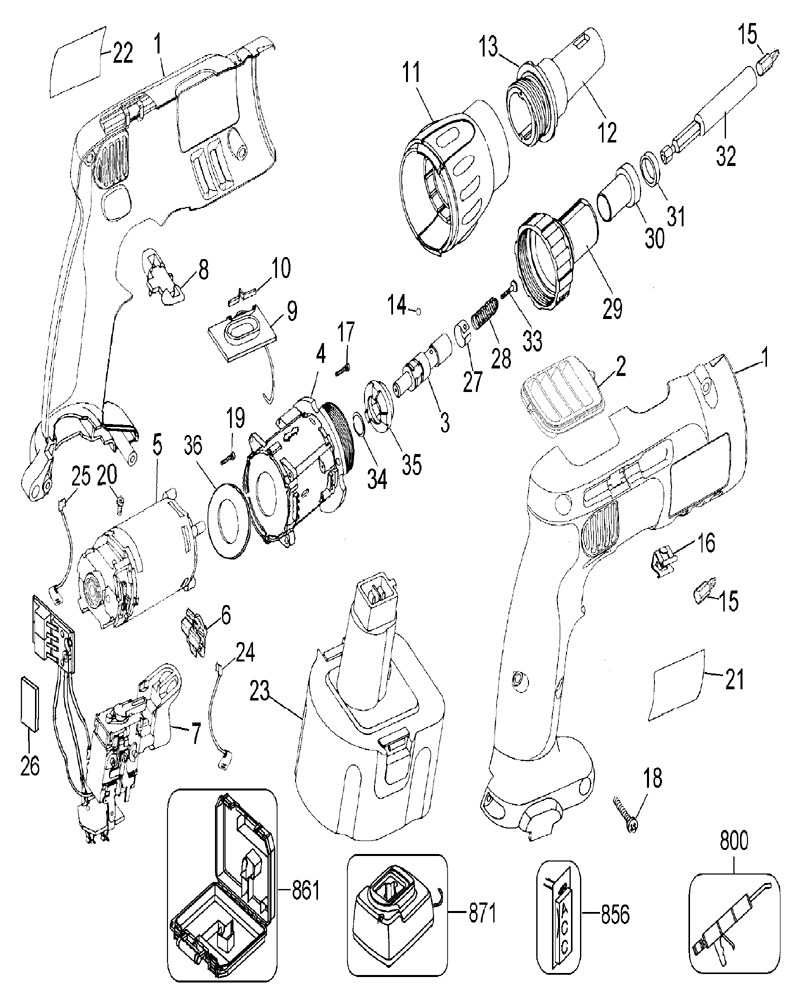

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	151791-01	CLAMSHELL SET	$28.31
2	151681-00	VENT, AIR	$3.35
3	96540-01	SPINDLE	$26.18
4	152576-00SV	TRANSMISSION	$53.77
5	393111-06	MOTOR & PINION	$66.16
6	389025-00SV	BRUSH PAIR KIT	$13.98
7	285348-00	KIT, SWITCH RPLM	$75.55
8	151678-00	BUTTON, FWD/REV	$1.40
9	150939-01	SHIFTER	$3.81
10	144658-00	SPRING	$1.24
11	151225-00	COLLAR ADJUST	$5.94
12	450770-01	LOCATOR	$13.24
12	448862-00	LOCATOR	$8.18
13	449890-00	SEAL, DUST	$5.49
14	696631-00	BALL	$1.80
15	607904-22	BIT, SCREWDRIVER	$1.12
16	148354-03	BIT CLIP	$1.24
17	330019-00	SCREW	$1.24
18	330013-04	SCREW	$1.17
19	098091-10	SCREW	$1.24
20	330045-00	SCREW, TAPTITE	$1.24
21	625622-00	NAME PLATE	$1.05
22	395657-00	ID LABEL	$1.24
23	152250-40	BATTERY PACK	$71.85
24	389025-00SV	BRUSH PAIR KIT	$13.98
25	389025-00SV	BRUSH PAIR KIT	$13.98
27	094518-00	RETAINER	$3.01
28	86211-00	SPRING	$1.40
29	448859-05	CLUTCH HOUSING	$15.85
30	450907-00	BEARING, SLEEVE	$5.78
31	696534-00	SEAL	$6.14
32	619773-02	BIT TIP HOLDER	$6.88
33	021287-00	GUIDE	$4.47
34	089210-00	RET RING	$1.80
35	603478-00	CLUTCH	$7.33
36	152482-00	SEAL, FOAM	$1.24
800	284778-00	GREASE, MOLYKOTE	$50.09
861	381121-00	BOX, KIT	$47.84
