DeWalt DW897-Type-3 Electric Shear & Nibbler Parts

DeWalt DW897-Type-3 Electric Shear & Nibbler Parts Image

DeWalt DW897-Type-3 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

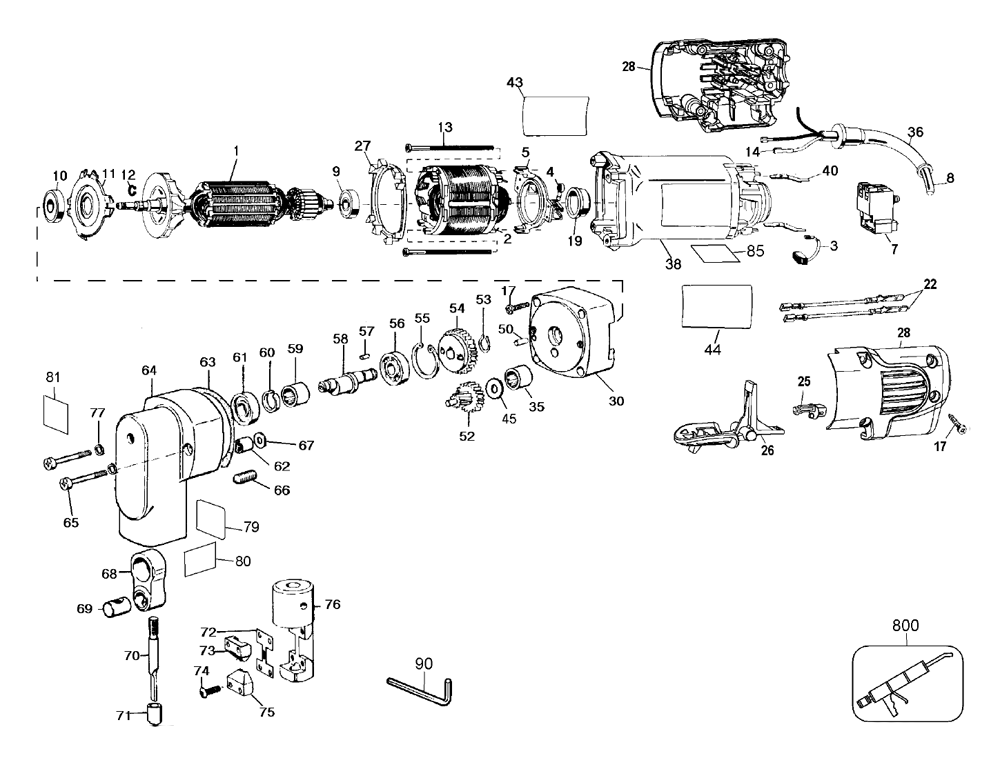

DeWalt DW897-Type-3 Electric Shear & Nibbler Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 619935-00SV ARMATURE $32.82
2 616325-00SV FIELD $30.79
3 445861-25 BRUSH $5.28
4 445860-00 SPRING, BRUSH $3.01
5 449899-05 RING, BRUSH $15.30
7 625238-00 SWITCH $5.69
7 625238-00 SWITCH $5.69
7 625238-00 SWITCH $5.69
8 330072-98 CORD/8FT/18-2SJ $11.53
8 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
9 330003-04 BEARING, BALL $9.84
10 330003-08 BEARING, BALL $10.00
11 150057-00 RETAINER, BRG. $3.81
12 444793-00 RING, RETAINING $1.24
13 445880-00 SCREW $1.24
14 464228-00 TERMINAL $1.24
17 330019-13 SCREW, M4X19 $1.24
19 445217-01 RUBBER CUP $1.58
22 N115041 LEAD ASSY. $1.97
25 397659-00 LOCK BUTTON $1.21
26 397655-00SV PADDLE ASSEMBLY $2.97
27 445876-00 BAFFLE, FAN $5.22
28 N107382 END CAP $7.24
30 150019-00SV COVER-GR.CASE $29.42
35 093128-00 NEEDLE BEARING $3.32
36 330005-01 PROTECTOR, CORD $4.63
36 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
38 445886-06SV CASE-FIELD $18.20
43 N142239 NAME PLATE $1.67
44 395047-00 ID LABEL $1.24
45 96498-00 WASHER $1.17
50 150021-04 PIN, DOWEL $1.24
52 150029-00SV GEAR & PINION $58.26
53 150021-03 RING, RETAINING $1.24
54 150032-00 GEAR, SPINDLE $29.92
55 283838-00 CLIP, RETAINING $2.44
56 283839-00 BEARING, BALL $14.75
57 150021-01 KEY $2.44
58 283840-00 SHAFT $159.40
59 283841-00 BEARING, NEEDLE $12.80
60 283842-00 RING, RETAINING $2.44
61 283858-00 BEARING, BALL $18.74
62 283844-00 BEARING, NEEDLE $23.39
63 150021-02 GASKET $3.81
64 283845-00 HOUSING $141.98
65 449376-00 SCREW $1.24
66 283846-00 SCREW, SET $8.11
67 150023-01 WASHER $1.56
68 283847-00 ROD, CONNECTING $130.15
69 283812-00 PIN, CONNECT.ROD $28.13
70 283848-00 PUNCH $101.23
71 283849-00 SLEEVE, PUNCH $11.34
72 283850-00 PLATE, WEAR $23.94
73 283851-00 GUIDE, PUNCH $121.31
74 283852-00 SCREW, M4 X 10 $1.40
75 283853-00 DIE $121.31
76 283854-00 SHOE $441.21
77 330016-01 WASHER $1.23
79 607078-00 WARNING LABEL $1.24
80 607077-00 WARNING LABEL $1.18
81 607076-00 WARNING LABEL $1.24
85 652122-00 WARNING LABEL $1.50
90 152693-00 DRIVER, TORX $3.35
90 150023-02 WRENCH, HEX $3.01
800 761995-01 GREASE, 6 OZ. $29.72
800 283484-01 GREASE, 32 OZ. $69.49
