DeWalt DW890-Type-3 Electric Shear & Nibbler Parts

DeWalt DW890-Type-3 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

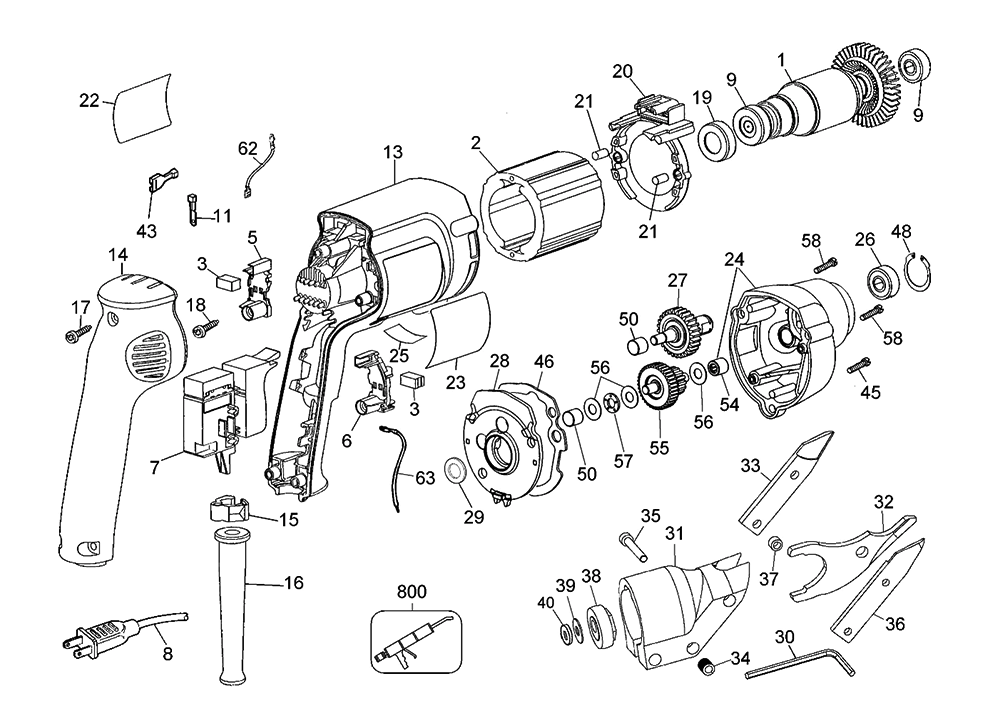

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	176853-00SV	ARMATURE & FAN	$44.96
2	176849-00	FIELD	$26.18
3	176846-04	BRUSH	$3.26
3	G58	Carbon Brush Set	$8.19
5	176801-02	HOLDER, LT.BRUSH	$5.49
6	176800-02	HOLDER, RT.BRUSH	$5.49
7	176830-39	SWITCH	$33.12
8	330072-98	CORD/8FT/18-2SJ	$11.53
8	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
9	330003-04	BEARING, BALL	$9.84
11	449192-00	TERMINAL	$1.24
13	396969-14	FIELD CASE	$16.79
14	176816-06	HANDLE COVER	$11.24
15	176829-00	CLAMP, CORD	$1.40
16	330005-01	PROTECTOR, CORD	$4.63
16	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
17	330019-13	SCREW, M4X19	$1.24
18	176951-00	SCREW	$1.24
19	389824-00	CUP	$9.08
20	176811-02	BAFFLE	$1.95
21	949638-02	PLUG, RUBBER	$1.24
22	395047-00	ID LABEL	$1.24
23	638584-00	NAME PLATE	$0.93
24	388657-01	GEAR CASE	$19.48
25	629284-00	LABEL	$0.77
26	330003-09	BEARING, BALL	$9.91
27	388668-01SV	SPINDLE & GEAR	$21.01
28	176650-00	GEAR CASE COVER	$18.49
29	23813-00	WASHER	$1.24
30	99056-06	WRENCH	$2.18
31	91971-00	HOUSING	$69.08
32	91970-00	BLADE	$42.74
33	91969-00	LEFT KNIFE	$45.94
34	91966-00	INSERT	$4.66
35	679889-00	SCREW, SPECIAL	$3.35
36	91967-00	RIGHT KNIFE	$34.20
37	91968-00	SPACER	$4.66
38	448393-01	ECCENTRIC	$55.66
39	091975-00	WASHER	$4.92
40	449893-00	SPACER	$1.24
43	136086-02	TERMINAL	$1.24
45	330019-14	SCREW	$1.24
46	176655-00	GASKET	$2.44
48	087692-00	RET RING	$3.35
50	093128-00	NEEDLE BEARING	$3.32
54	330004-00	BEARING, NEEDLE	$2.59
55	176731-00SV	SPINDLE & GEAR	$26.50
56	176732-00	WASHER, THRUST	$1.24
57	143079-00	WASHER, THRUST	$2.13
58	330019-16	SCREW	$1.24
62	176860-00	LEADWIRE	$1.24
63	176834-00	LEADWIRE	$1.24
800	761995-01	GREASE, 6 OZ.	$29.72
800	283484-01	GREASE, 32 OZ.	$69.49
