DeWalt DW756 Electric Grinder Parts

DeWalt DW756 Electric Grinder Parts Image

DeWalt DW756 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW756

6 Inch Heavy Duty Be...

$101.79

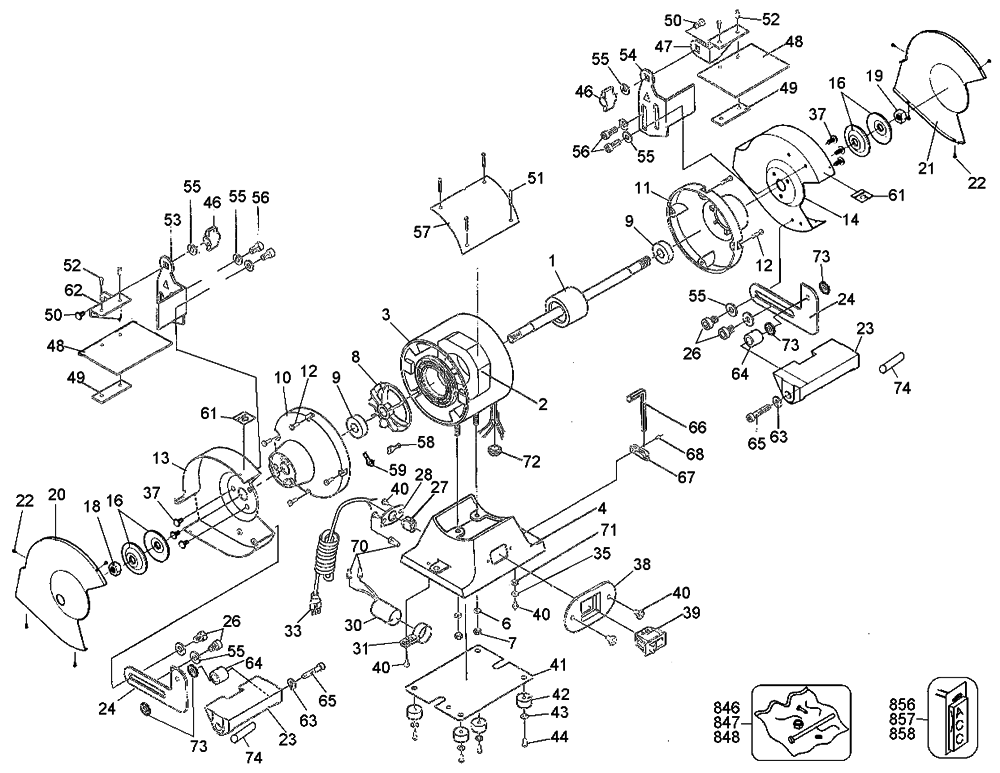

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140006-39	MOTOR ASSEMBLY	$97.41
2	5140006-39	MOTOR ASSEMBLY	$97.41
3	429570-00	STATOR HOUSING	$26.25
4	429580-00	BASE	$26.06
6	791534-00	WASHER, FLAT	$1.24

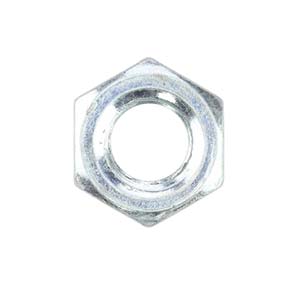

7	791535-00	NUT	$1.24
8	791536-00	FAN	$6.16
9	791537-00	BEARING, BALL	$9.08
10	429581-00	MOTOR COVER (L)	$12.09
11	429582-00	MOTOR COVER (R)	$12.09
12	791540-00	SCREW	$1.24
13	429583-00	WHEEL GUARD (L)	$9.25
14	429584-00	WHEEL GUARD (R)	$9.25
16	791543-00	COLLAR, WHEEL	$3.01
18	791544-00	NUT, L.WHEEL	$1.40
19	791545-00	NUT, R.WHEEL	$1.40
20	429585-00	GUARD COVER (L)	$8.14
21	429586-00	GUARD COVER (R)	$8.14
22	791548-00	SCREW	$1.24
23	286066-00	REST, TOOL	$5.45
24	286438-00	BRACKET	$4.46
26	286068-00	SCREW	$1.23
27	791552-00	BUSHING	$1.40
28	791553-00	PLATE	$3.01
30	791555-00	CAPACITOR	$12.61
31	791556-00	CLAMP, CAPACITOR	$3.64
33	761336-00	CORD/10'/18-3	$19.58
35	791560-00	WASHER, LOCK	$1.24
37	791562-00	SCREW	$1.24
38	286069-00	PLATE, SWITCH	$2.42
39	5140051-20	SWITCH	$8.70
40	791565-00	SCREW	$1.24
41	791566-00	PLATE, BASE	$8.45
42	791567-00	FOOT, RUBBER	$1.24
43	761365-00	WASHER	$1.23
44	791569-00	SCREW	$1.24
46	286065-00	KNOB	$1.88
47	761368-00	BRACKET, R.	$4.90
48	286439-00	SHIELD, EYE	$5.45
49	761367-00	PLATE, FLAT	$4.08
50	286064-00	BOLT, CARRIAGE	$1.23
51	791576-00	RIVET	$1.24
52	761373-00	SCREW	$1.23
53	761371-00	BRACKET, L. MTG.	$8.41
54	761369-00	BRACKET, R. MTG.	$8.41
55	5130830-00	FLAT WASHER	$1.05
56	286068-00	SCREW	$1.23
57	385497-00	NP:DW756 T1	$3.81
58	761361-00	TERMINAL	$1.23
59	94593-03	TERMINAL	$1.23
61	791584-00	LABEL, DIRECTION	$1.24
62	761370-00	BRACKET L.	$4.90
63	5130830-00	FLAT WASHER	$1.05
64	286054-00	SPACER	$1.23
65	286440-00	SCREW	$1.23
66	098000-11	WRENCH	$1.24
67	286059-00	CLIP, WRENCH	$1.23
68	286058-00	SCREW	$1.23
70	761359-00	NUT, WIRE	$2.76
72	761358-00	BUSHING	$2.76
72	761363-00	WASHER	$1.23
73	429678-00	STAR WASHER	$1.23
74	429691-00	JAM NUT	$2.87
846	286449-00	BAG, HARDWARE	$3.81
847	429640-00	HARDWARE BAG	$9.36
848	429588-00	HARDWARE BAG	$9.36
856	429602-00	6IN WIRE BRUSH	$19.15
857	429599-00	6IN WHEEL	$13.39
858	429633-00	6 BENCH WHL A60	$13.39
