Dewalt DW7464 Tool Table & Stand Parts

Dewalt DW7464 Parts

Download Schematic

Time to buy a new tool?

Dewalt DW7464

52 Inch Fence Rail S...

$196.99

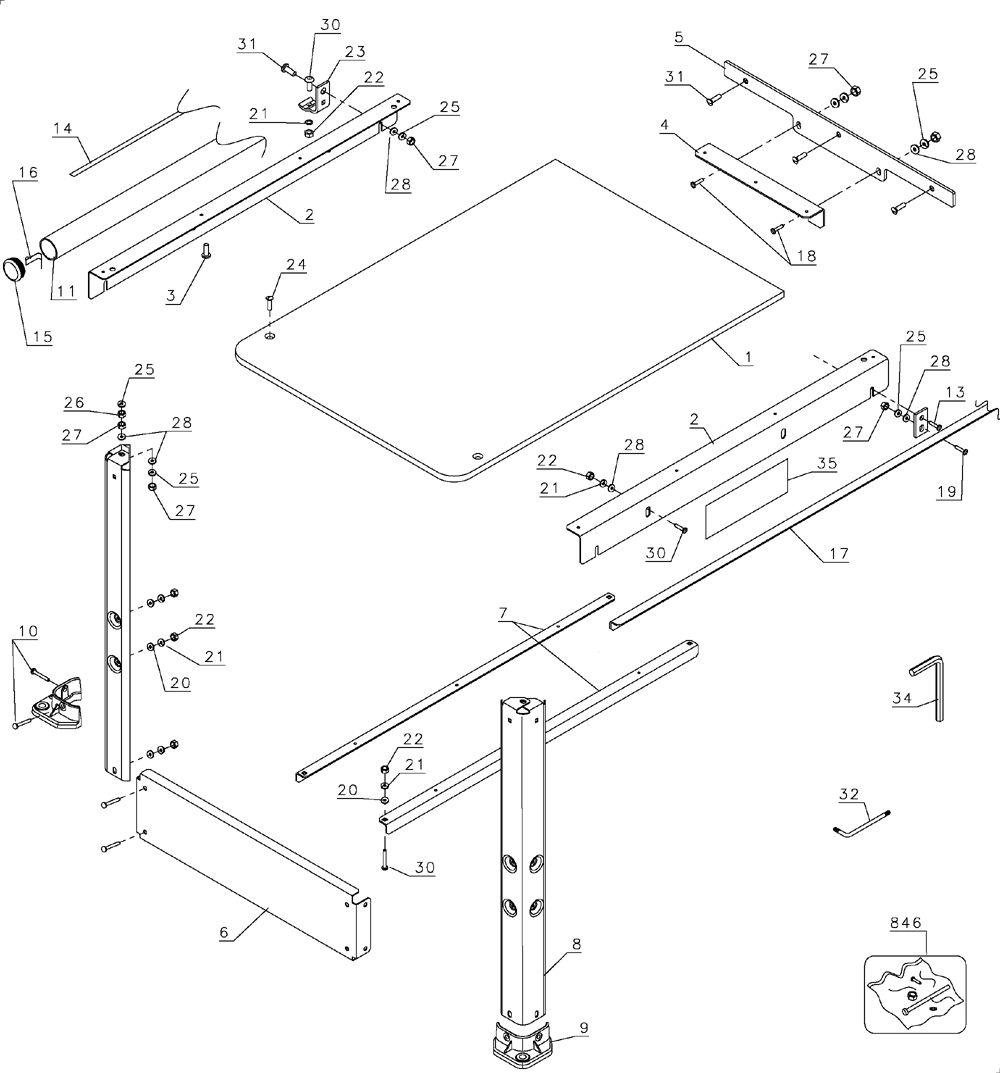

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	392121-00	TABLE TOP	$80.92
2	392122-00	SIDE RAIL	$27.69
3	429920-00	LOW ROOT SCREW	$1.24
5	392126-00	SUPP.BRACKET	$27.66
6	392124-00	LEG SUPPORT	$45.14
7	392125-00	SUPPORT RAILS	$15.02
8	388298-00	LEG	$25.68
9	388300-00	FOOT	$23.32
10	330045-32	SCREW	$1.24
11	389685-02	"FT.RAIL ASY,52"	$376.48
13	389918-00	BRACKET	$2.13
14	388254-01	"RIP SCALE,52-IN"	$14.16
15	388256-00	END CAP	$1.94
16	380105-03	BUTTON	$1.23
17	391764-00	"REAR RAIL,52-IN"	$38.60
18	5140095-70	SCREW	$2.10
19	98026-35	SCREW	$1.23
20	330016-03	WASHER, PLAIN	$1.24
21	098197-09	LOCKWASHER	$1.21
22	330015-03	NUT, HEX	$1.36
23	388257-00	FR RAIL SUPPORT	$9.90
24	98204-80	"SCREW,M10 X 80"	$3.40
25	98197-07	WASHER, LOCK	$1.24
26	330015-08	JAM NUT	$1.24
27	5140110-60	HEX NUT	$1.20
28	330016-04	WASHER	$1.24
30	98130-20	CARRIAGE BOLT	$1.23
31	5140095-71	FLAT HEAD SCREW	$3.38
32	152693-02	T40 TORX DRIVER	$3.35
32	152693-01	TORX DRIVER	$2.59
34	385928-00	6MM HEX WRENCH	$2.13
35	392388-00	NAMEPLATE	$1.24
