DeWalt DW745-Type-2 Electric Saw Parts

DeWalt DW745-Type-2 Electric Saw Parts Image

DeWalt DW745-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

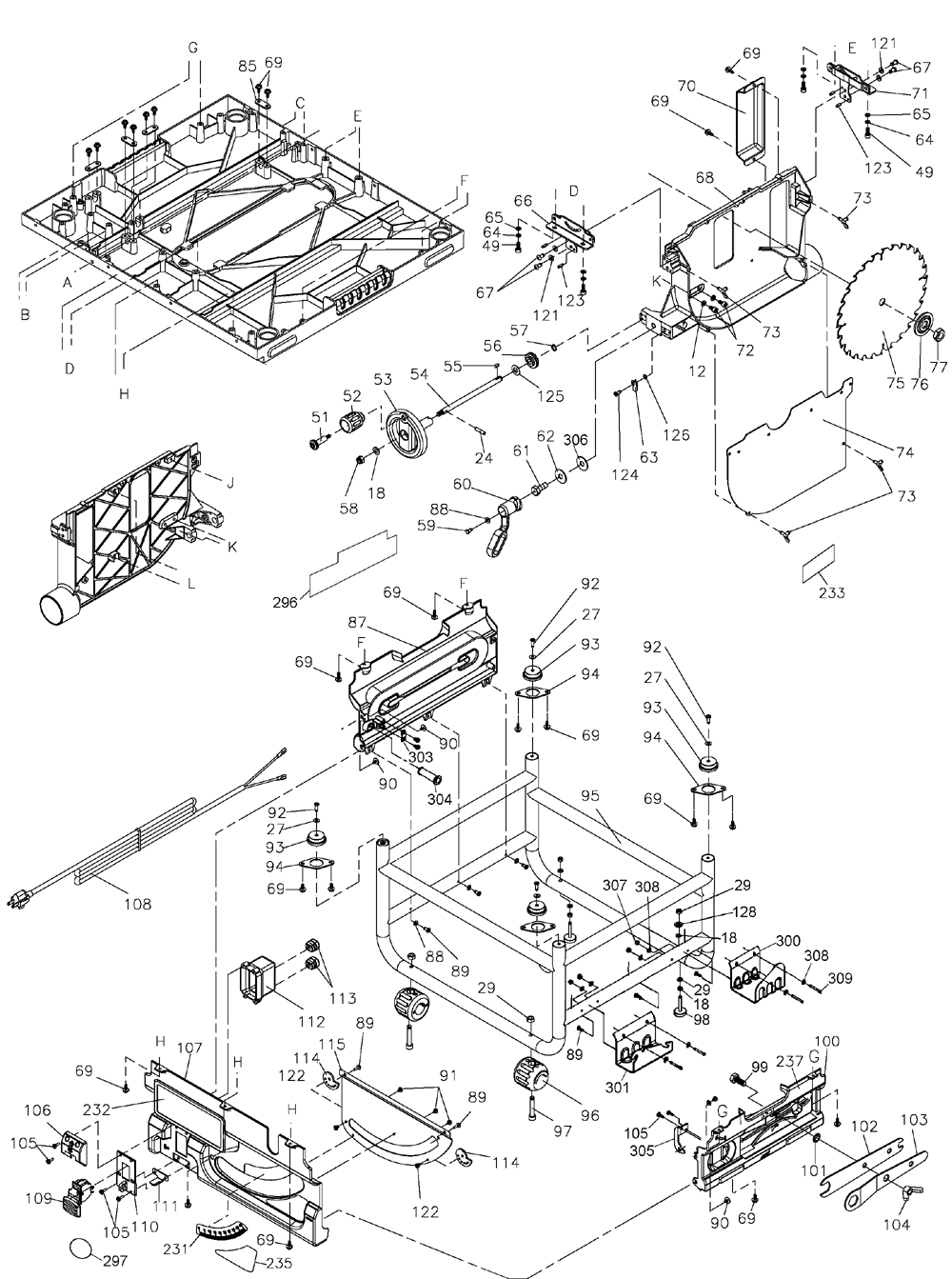

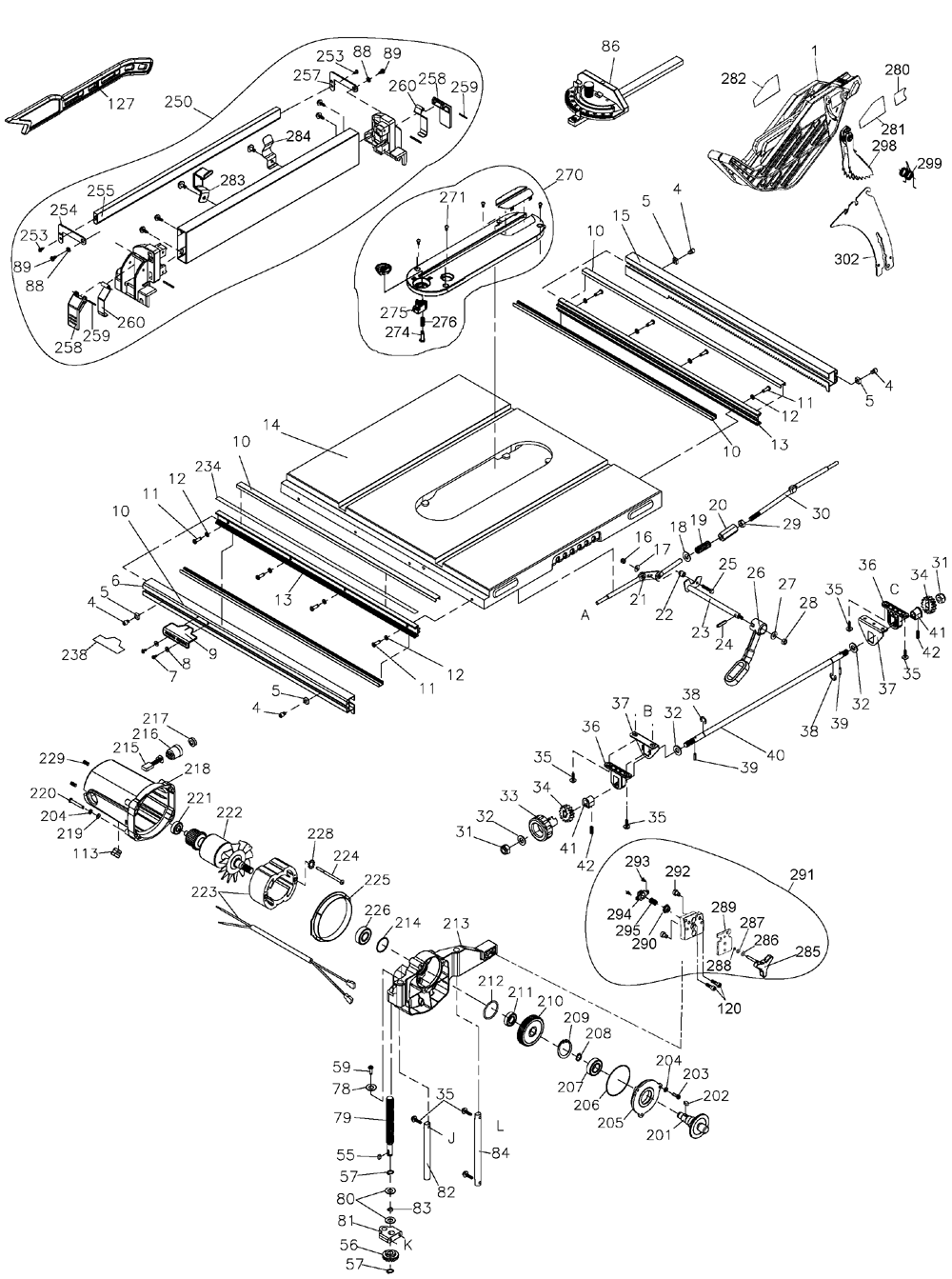

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A27418	GUARD ASSEMBLY	$67.59
4	5140032-02	LOCATING PIN	$1.21
5	5140032-03	NUT	$1.21
6	5140032-04	RAIL	$31.88
7	5140032-05	SCREW	$1.21
8	5140032-06	FLAT WASHER	$1.21
9	5140032-07	POINTER	$2.93
10	5140032-08	CAP	$1.31
11	5140032-09	SCREW	$1.21
12	5140011-65	LOCK WASHER	$1.18
13	5140032-10	RAIL	$17.38
14	5140060-91	TABLE	$263.63
15	5140032-12	RAIL	$44.34
16	5140032-13	NUT	$1.21
17	5140032-14	FLAT WASHER	$1.21
18	5140032-15	FLAT WASHER	$1.21
19	5140032-16	SPRING	$1.21
20	5140032-17	ADJUSTING SHAFT	$2.86
21	5140032-18	SHAFT	$9.97
22	5140032-19	BUSHING	$1.21
23	5140032-20	SHAFT	$9.81
24	5140032-21	DOWEL PIN	$1.21
25	5140032-22	SCREW	$1.21
26	5140032-23	RAIL LOCK LEVER	$6.06
27	5140032-24	FLAT WASHER	$1.21
28	5140032-25	NUT	$1.21
29	429989-57	NUT	$1.24
30	5140032-26	PIVOT BRACKET	$8.65
31	429901-00	LOCK NUT	$1.24
32	5140032-27	FLAT WASHER	$1.21
33	5140032-28	FENCE KNOB	$3.09
34	5140032-29	PINNION GEAR	$2.63
35	5140032-30	BOLT	$1.21
36	5140032-31	BRACKET	$1.99
37	5140032-32	BRACKET GAUGE	$4.81
38	5140032-33	E-RING	$1.21
39	5140032-34	DOWEL PIN	$1.21
40	5140032-35	GEAR ROD	$10.49
41	5140032-36	BEARING BLOCK	$1.75
42	5140032-37	SPRING PLATE	$1.21
49	5140032-44	CAP SCREW	$1.21
51	5140032-46	SHOULDER SCREW	$2.08
52	5140032-47	KNOB	$1.84
53	5140032-48	HANDWHEEL	$7.70
54	5140032-49	SHAFT	$7.08
55	5140032-50	KEY	$1.21
56	5140061-65	BEVEL GEAR	$7.77
57	5140032-52	RING	$1.21
58	429898-00	LOCKNUT	$1.24
59	5140010-48	SCREW	$1.18
60	5140117-78	BEVEL HANDLE replaces 5140032-55	$6.06
61	5140032-56	SCREW	$1.69
62	5140032-57	LOCKWASHER	$1.75
63	5140032-58	BEVEL POINTER	$1.69
64	5140010-05	LOCK WASHER	$1.18
65	5140032-59	FLAT WASHER	$1.21
66	5140032-60	FRONT TRUNION	$11.61
67	5140032-61	BUTTON HD SCREW	$1.21
68	A25631	CRADLE	$75.32
69	5140061-77	SCREW	$1.16
70	5140032-64	BLADE GUARD	$2.39
71	5140032-65	TRUNNION BRACKET	$11.61
72	5140032-66	CAP SCREW	$1.21
73	5140032-67	WING SCREW	$1.21
74	5140032-68	DUST COVER	$21.22
76	5140032-69	CLAMP WASHER	$2.22
77	429989-94	ARBOR NUT	$1.56
78	5140032-70	FLAT WASHER	$1.21
79	5140100-03	ELEVATING SCREW	$9.10
80	5140032-72	THRUST WASHER	$1.21
81	5140032-73	BLOCK	$5.99
82	5140100-04	ELEVATING SHAFT	$7.26
83	5140032-75	WASHER	$1.21
84	5140100-05	ELEVATING SHAFT	$9.73
85	5140032-77	PLATE	$1.21
86	5140032-78	MITER GAGE ASSY	$20.43
87	5140032-79	PANEL	$11.92
88	5140011-66	WASHER	$1.18
89	5140032-80	SCREW	$1.21
90	5140032-81	SHEET METAL SCREW	$1.21
91	5140032-82	SHEET METAL SCREW	$1.21
92	5140032-83	SCREW	$1.21
93	5140032-84	BUMPER	$1.21
94	5140032-85	PLATE	$1.21
95	5140061-73	ROLL CAGE	$151.53
96	5140032-87	FEET	$7.68
97	5140032-88	CAP SCREW	$1.21
98	5140032-89	FEET	$2.22
99	5140032-90	SCREW	$1.21
100	5140061-74	PANEL	$16.66
101	5140032-92	PUSH NUT	$1.21
102	5140061-75	WRENCH	$7.19
103	5140061-76	WRENCH	$8.34
104	5140032-95	WING NUT	$1.69
105	5140071-27	SCREW	$1.28
106	5140032-97	SWITCH COVER	$4.03
107	5140060-90	FRONT PANEL	$32.62
108	5140032-99	CORD	$30.64
109	5140033-00	SWITCH	$11.74
110	5140033-01	SWITCH PLATE	$1.37
111	5140033-02	SWITCH GUARD	$1.69
112	5140033-03	SWITCH BOX	$3.64
113	429991-43	GROMMET	$1.23
114	5140033-04	WASHER	$1.21
115	5140033-05	SUPPORT PLATE	$14.65
120	098120-16	SCREW	$1.23
121	5140033-38	WASHER, EX TOOTH	$0.26
122	5140033-39	SCREW	$1.21
123	5140033-40	DOWEL PIN	$1.21
124	5140033-41	SCREW	$1.21
125	5140033-42	FLAT WASHER	$1.21
126	5140033-43	WASHER, EX TOOTH	$0.52
127	5140033-44	PUSH STICK	$6.06
128	429898-05	LOCKWASHER, M8	$1.24
201	5140110-48	ARBOR ASSEMBLY	$53.95
201	5140103-68	ARBOR	$14.57
202	5140010-15	KEY	$1.33
203	5140032-09	SCREW	$1.21
204	5140033-09	LOCK WASHER	$1.21
205	5140033-10	GEAR CASE COVER	$8.71
206	5140033-11	O-RING	$1.75
207	5140033-12	BEARING	$16.14
208	5140033-13	RING	$1.21
209	5140010-11	RETAINING RING	$1.33
210	5140033-14	GEAR	$31.57
211	5140033-15	BEARING	$10.75
212	5140033-16	O-RING	$1.21
213	A25607	GEAR CASE	$33.80
214	5140033-18	O-RING	$1.21
215	5140033-19	BRUSH	$3.78
216	5140033-20	BRUSH HOLDER	$6.97
217	5140033-21	BRUSH CAP	$2.55
218	5140033-22	FIELD CASE	$24.81
219	5140033-23	FLAT WASHER	$1.21
220	5140033-24	SCREW	$1.21
221	5140033-25	BEARING	$9.81
222	5140033-26	ARMATURE	$178.01
223	5140033-27	FIELD	$79.55
224	5140033-28	SELF TAP SCREW	$1.21
225	5140033-29	BUFFER	$1.84
226	5140033-30	BEARING	$7.46
228	5140011-52	LOCK WASHER	$1.18
229	5140011-87	SET SCREW	$1.18
231	5140033-31	BEVEL SCALE	$2.39
232	5140033-32	DEWALT LABEL	$3.09
233	5140033-33	WARN LABEL	$2.93
234	5140033-34	SCALE LABEL	$2.76
235	A24522	NAMEPLATE	$2.61
237	5140033-36	LABEL	$2.39
238	5140033-37	WARNING LABEL	$4.81
250	5140060-89	FENCE ASSEMBLY	$63.76
253	5140033-45	SHEET METAL SCREW	$1.21
254	5140033-46	PLATE	$14.65
255	5140033-47	WORK SUPPORT	$12.39
257	5140033-48	PLATE	$1.44
258	5140033-49	PADDLE	$2.45
259	5140033-50	DOWEL PIN	$1.21
260	5140033-51	SPRING PLATE	$3.16
270	A26208	THROAT PLTE ASM	$30.47
271	5140033-53	SCREW	$1.21
274	A26205	SCREW	$2.55
274	5140033-54	SCREW	$1.21
275	A26204	CAM	$2.74
276	A26206	SPRING	$4.72
280	A26305	WARNING LABEL	$1.50
281	A24519	WARNING LABEL	$1.62
282	A24520	WARNING LABEL	$1.62
283	A23936	BRACKET	$1.56
284	A23927	CLIP	$1.16
285	A24987	KNOB	$4.96
286	A23717	LOCK WASHER	$1.09
287	A23715	WASHER	$1.21
288	A24988	RETAINING RING	$1.09
289	A25610	PLATE	$3.38
290	A25386	PISTON	$1.96
291	A25611	CLAMP ASSEMBLY	$29.68
292	A25437	SHOULDER SCREW	$1.56
293	A25929	FLAT HEAD SCREW	$1.36
294	A25389	COVER	$1.09
295	A25436	SPRING	$1.09
296	A24523	WARNING LABEL	$2.42
297	A28556	WARNING LABEL	$2.29
298	A26148	ANTI-KICKBACK	$20.59
299	A23334	SPRING	$3.95
300	A24990	BRACKET	$48.54
301	A24982	BRACKET	$48.54
302	A23280	RIVING KNIFE	$23.40
303	5140061-66	CLAMP	$1.48
304	5140061-67	CORD PROTECTOR	$2.74
305	A24345	BRACKET	$9.03
306	5140061-68	WASHER	$1.03
307	330015-01	NUT, HEX	$1.24
308	330016-26	WASHER, PLAIN	$0.22
309	5140061-69	SCREW	$1.28
