DeWalt DW744X-Type-4 Electric Saw Parts

DeWalt DW744X-Type-4 Electric Saw Parts Image

DeWalt DW744X-Type-4 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW744X-Type-4

10 Inch Jobsite Tabl...

$504.99

Page-1

Page-2

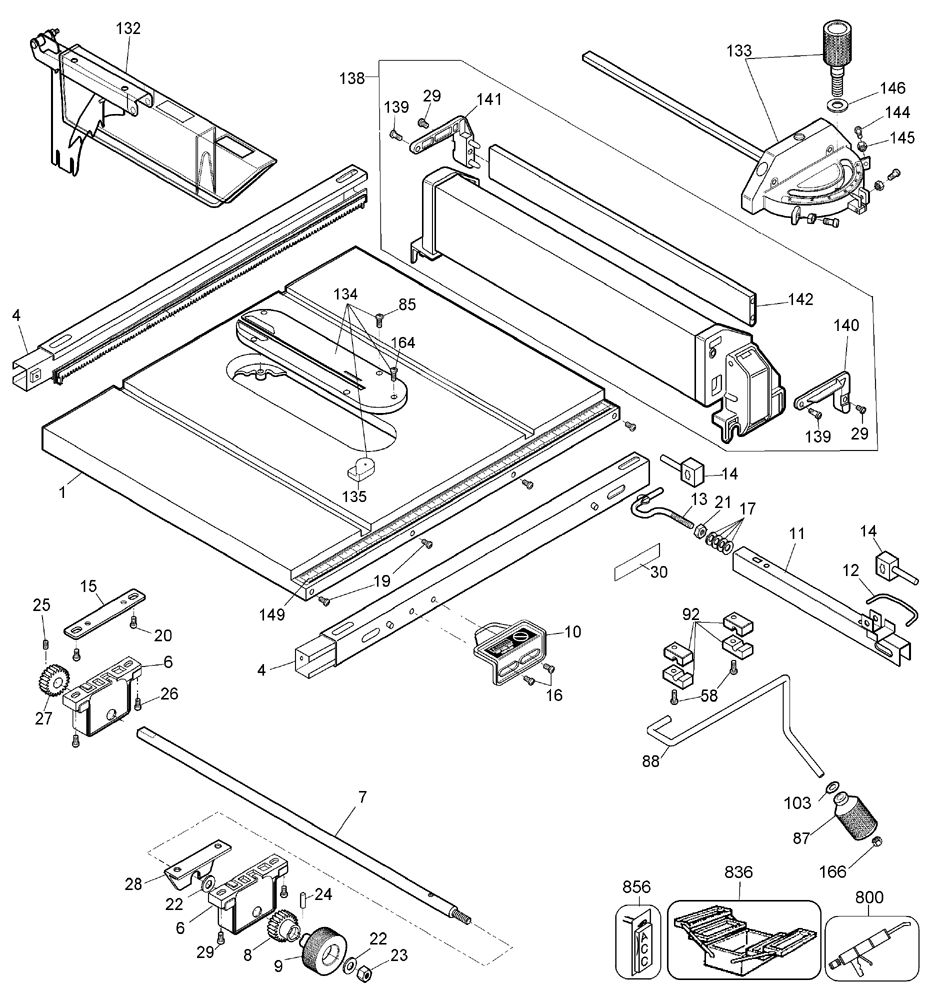

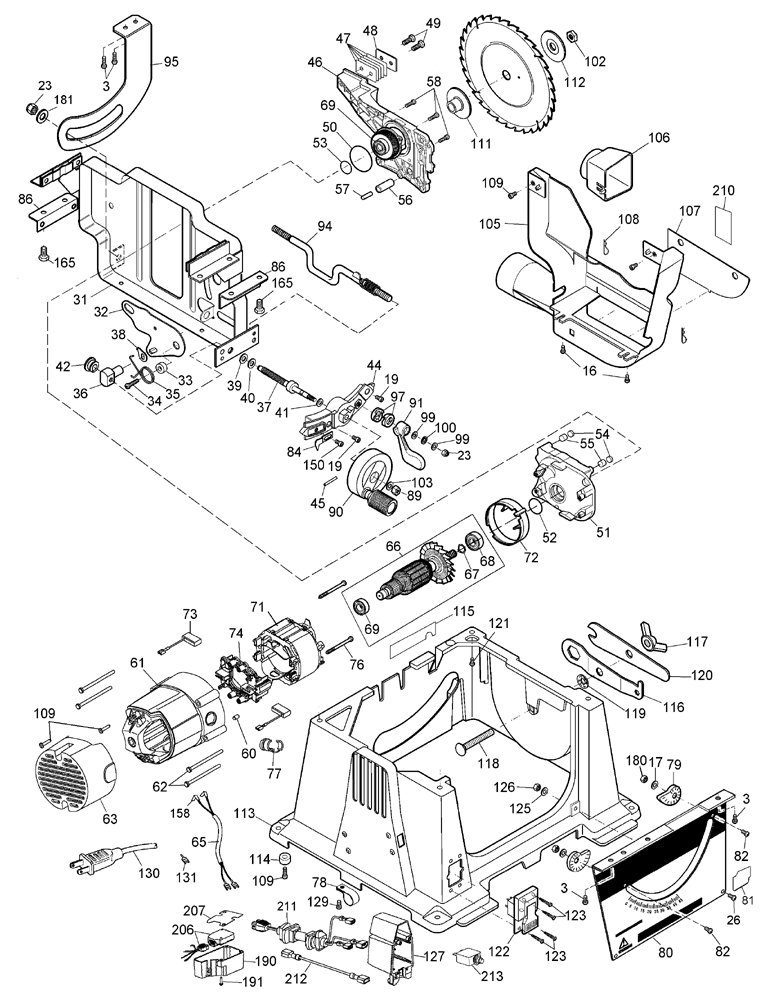

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	153524-14SV	TABLE	$283.13
3	330045-13	SCREW, TAPTITE	$1.23
4	387689-00	TELESC RAIL ASM	$53.85
6	153453-00	BRG ASY, PINION	$31.19
7	153472-00	SHAFT	$15.97
8	153434-00	PINION	$8.52
9	153433-01	KNOB	$4.46
10	398601-05SV	SCALE	$3.32
11	153381-01	LOCK ARM	$13.77
12	153384-00	LINK	$2.42
13	153385-00	LINK, THREADED	$2.76
14	604177-00	LOCK PIN	$3.81
15	153406-00	PLATE	$3.32
16	153460-00	SCREW	$1.23
17	153537-00	WASHER, BELLEVIL	$1.24
19	330045-24	SCREW, M6X20	$1.24
20	153459-01	SCREW	$1.23
21	385137-00	NUT, STOP	$1.24
22	330016-04	WASHER	$1.24
23	330021-03	NUT, STOP	$1.24
24	098162-18	SPRING PIN	$1.23
25	330022-02	SCREW	$1.23
26	330045-14	SCREW, M5 X 16MM	$1.24
27	386420-01	PINION	$5.38
28	153541-00	BRACKET	$4.46
29	330045-16	SCREW, TAPTITE	$1.24
30	627223-00	LABEL	$1.23
31	153547-00SV	PLATE ASY-SUPPT	$81.87
32	153419-00	LINK	$8.14
33	153449-00	SPACER	$2.76
34	330045-47	SCREW	$1.23
35	153447-00	SPRING	$4.08
36	386158-00	FOLLOWER NUT	$12.09
37	153473-00	SCREW ASY, HEIGT	$36.70
38	153446-00	RETAINER, SPRING	$2.76
39	153441-00	WASHER, THRUST	$1.23
40	380061-00	WASHER, WAVE	$2.21
41	153442-00	WASHER, THRUST	$1.23
42	153443-00	BUSHING, NYLON	$1.23
44	153424-01	BEARING BLOCK	$14.60
45	330036-08	PIN, ROLL	$1.23
46	153476-07	GEAR CASE COVER ASSEMBLY	$89.39
47	153403-01	SPLITTER SHIM	$1.23
48	153404-01	CLAMPING PLATE	$2.70
49	397423-00	SCREW	$1.12
50	153389-00	0-RING	$1.88
51	605671-00	GEAR CASE	$30.65
52	701297-00	O RING	$1.88
53	99180-24	O-RING	$1.40
54	153431-00	PAD, WEAR	$1.23
55	153432-00	SPACER	$1.23
56	085931-00	BEARING	$1.94
57	153402-00	PIN, ROLLER	$2.13
58	330045-16	SCREW, TAPTITE	$1.24
60	145312-00	PLUG, RUBBER	$1.24
61	391317-05	FIELD CASE	$15.81
62	98094-55	SCREW, M5 X 55MM	$1.24
63	605839-00	END CAP	$6.23
65	646121-00	MOTOR CORD	$9.73
66	632015-02SV	ARMATURE & BRGS	$59.10
67	144803-00	RING, RET.	$1.40
68	330003-13	BEARING, BALL	$4.96
69	330003-60	BEARING	$4.75
71	630994-02SV	FIELD	$35.14
72	391375-00	FAN BAFFLE	$3.89
73	381028-08	BRUSH & LEAD	$9.03
73	M35	Carbon Brush Set Replaces Dewalt 381028-08, 3810...	$8.50
74	389512-01	BRUSH RING ASM	$25.80
76	330019-19	SCREW, PLASTITE	$1.24
77	605155-00	BUSHING	$1.15
78	153511-00	CLAMP, CABLE	$1.23
79	618084-00	STOP, BEVEL	$1.12
80	613278-14SV	FRONT PANEL	$35.14
81	A24524	WARNING LABEL	$1.39
82	153637-01	SCREW	$1.23
84	153401-02	BEVEL POINTER	$1.77
85	330045-44	SCREW	$1.23
86	153518-00	BRACKET	$4.46
87	153417-01	KNOB	$2.13
88	391821-00	RAIL LOCK LEVER	$7.68
89	330015-03	NUT, HEX	$1.36
90	153412-00	CRANK ASSY	$17.00
91	153420-01	BEVEL HANDLE	$12.56
92	153379-00	BEARING, LEVER	$1.94
94	153423-00	ROD	$12.76
95	153405-00	BRACKET, REARLOC	$8.14
97	153421-00	CAM, LOCK	$4.08
99	153450-00	WASHER, THRUST	$1.23
100	153451-00	BEARING, THRUST	$1.88
102	153439-00	NUT, ARBOR	$2.42
103	330016-03	WASHER, PLAIN	$1.24
105	153353-00	SHROUD, DUST	$19.03
106	153528-00	TRANSITION, SHRD	$4.08
107	153418-00	COVER	$5.45
108	153498-00	PIN, COTTER	$1.23
109	330019-13	SCREW, M4X19	$1.24
111	153478-01	WASHER, INR CLMP	$12.29
112	153479-00	WASHER, OTR CLMP	$8.52
113	153351-06	BASE	$80.58
114	153496-00	FOOT, RUBBER	$1.23
115	627225-00	ID LABEL	$3.10
116	153430-00	WRENCH	$7.12
117	392666-00	WINGNUT	$1.40
118	153502-00	BOLT	$2.13
119	153503-00	NUT, SPEED	$1.23
120	153512-00	WRENCH	$4.15
121	153460-01	SCREW	$1.23
122	390246-00	SWITCH & SHROUD	$21.79
123	330019-05	SCREW, PLASTITE	$1.24
125	488807-00	FLAT WASHER	$1.12
126	148641-00	NUT, LOCK	$1.24
127	631901-01	SWITCH ENCLSR.	$3.71
129	330019-03	SCREW	$1.24
130	330079-98	CORD/10FT/14-2SJ	$18.37
130	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
131	450213-00	TERMINAL, FEMALE	$1.24
132	608668-03SV	GUARD ASSEMBLY	$36.56
133	391921-00	MITER GAUGE	$50.49
134	388292-00	THROAT PLTE ASM	$36.70
135	390858-00	CAM	$1.23
138	642141-00	FENCE ASSEMBLY	$50.77
139	153408-00	SCREW	$1.23
140	153428-00	SUPPORT, FRONT	$2.70
141	153429-00	SUPPORT, REAR	$2.70
142	153491-00	SUPPORT, WORK	$17.00
144	330045-08	SCREW	$1.24
145	330015-01	NUT, HEX	$1.24
146	99361-14	WASHER	$1.23
149	385920-00	SCALE	$4.82
150	330045-05	LOCK SCREW	$1.24
158	145332-00	TERMINAL	$1.24
164	330019-12	SCREW	$1.24
165	389198-00	SCREW	$1.23
166	389118-00	NUT	$1.23
180	330015-02	NUT, HEX	$1.23
181	153781-00	WASHER, PLAIN	$1.24
190	632077-01	COVER	$2.86
191	330045-08	SCREW	$1.24
206	N034005	CONTROL MODULE	$75.32
207	609468-00	THERMAL PAD	$1.94
210	657043-00	LABEL	$1.41
211	633330-01	WIRE HARNESS	$9.30
212	648037-00	JUMPER WIRE	$2.36
213	648036-00	CIRCUIT BREAKER	$5.22
800	429954-00	GREASE, 7LBS	$168.34
800	429954-01	GREASE, 1 LB.	$87.14
800	30301914-01	GREASE	$86.88
800	93488-00	GREASE	$11.93
836	385369-00	SHIM, ADJUSTMENT	$22.59
856	153521-05	LEG STAND	$98.43
