DeWalt DW734 Planer Parts

DeWalt DW734  Planer Parts Image

DeWalt DW734 Parts
12-1/2 Inch Heavy Duty Thickness Planer with 3-Knife Cutter Head
Time to buy a new tool?
http://www.toolpartspro.com/image/DW734/DW734-Dewalt-PB Breakdown Diagram
Page-1

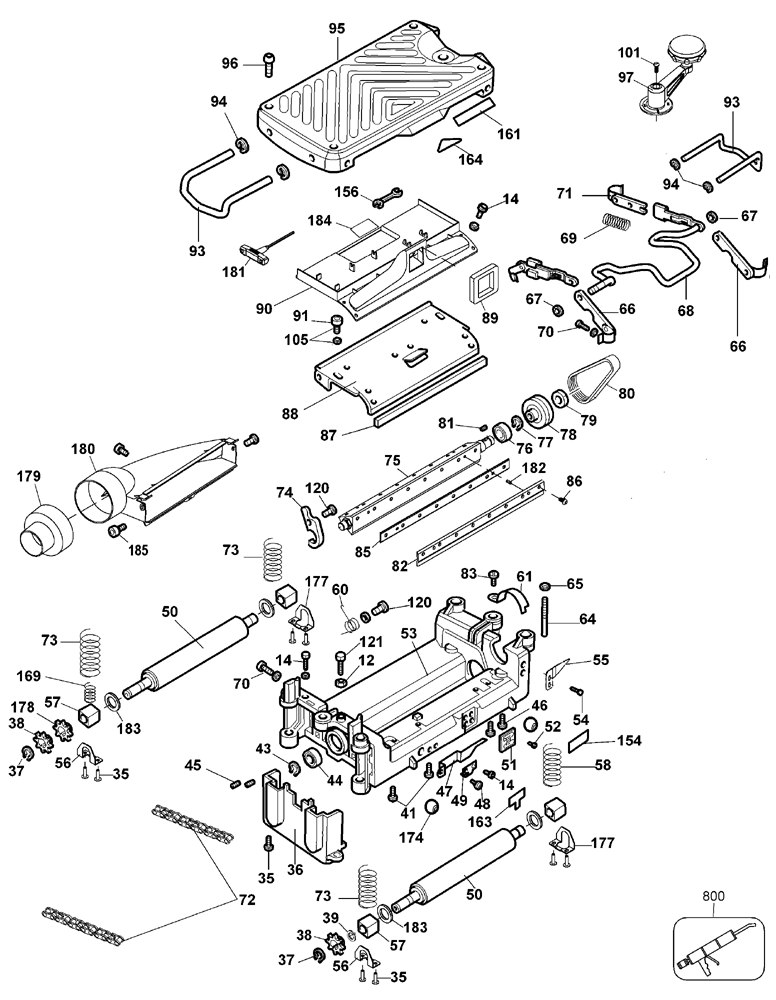

DW734-Dewalt-PB-1 Breakdown Diagram
Page-2

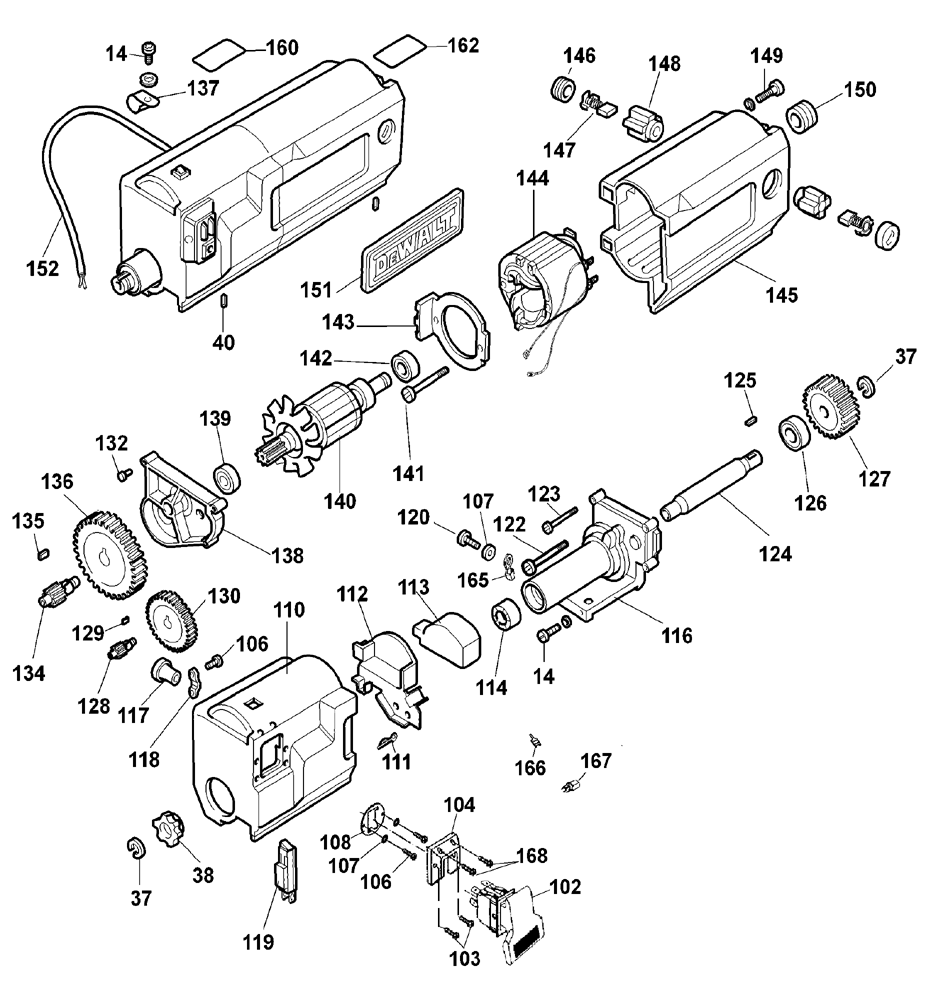

DW734-Dewalt-PB-2 Breakdown Diagram
Page-3

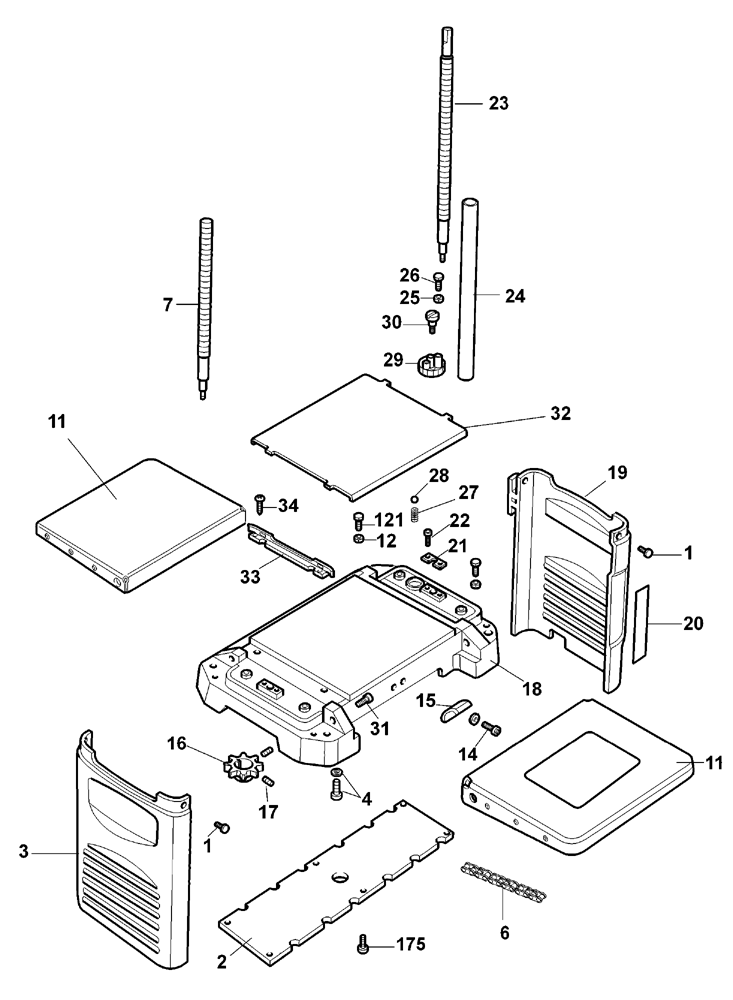

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 286052-00 SCREW $1.30
2 285895-00 COVER, BOTTOM $8.57
3 285896-00 COVER, LEFTSIDE $12.76
4 429699-00 SCREW & WASHER $1.30
6 429962-05 CHAIN $12.18
7 285899-00 SCREW $12.76
11 285903-00 TABLE $50.45
12 286256-00 NUT, HEX $1.30
14 429669-00 SCREW & WASHER $1.30
15 285907-00 PLATE, SPRING $2.22
16 285908-00 SPROCKET $4.49
17 285909-00 SCREW $1.30
18 5140006-90 BASE $113.36
19 285911-00 COVER, RIGHTSIDE $12.76
20 285912-00 SCALE $3.30
21 285913-00 PLATE $1.87
22 285914-00 SCREW $1.30
23 285915-00 SCREW $12.76
24 285916-00 STRUT $12.87
25 285917-00 NUT, HEX $1.30
26 5140071-77 SCREW $1.33
26 098022-25 HEX HD SCREW $1.30
27 285918-00 SPRING $1.30
28 285919-00 BALL, STEEL $1.30
29 285920-00 TURRET $9.76
29 5140071-75 TURRET $9.54
30 285921-00 SCREW $1.30
31 285922-00 SCREW $1.30
32 285923-00 PLATE, GASKET $26.69
33 285924-00 PLATE, GUIDE $3.50
34 285925-00 SCREW $1.30
35 429991-05 SCREW $1.29
36 285926-00 COVER, CHAIN $3.90
37 285927-00 RING, RETAINING $1.30
38 285928-00 SPROCKET $4.49
39 5140006-89 COLLAR $1.80
40 285930-00 PIN $1.30
41 429670-00 SCREW & WASHER $1.30
43 285933-00 RING, RETAINING $1.30
44 285934-00 BEARING, BALL $8.57
45 285935-00 SCREW $1.30
46 285936-00 SCREW $1.30
47 285937-00 INDICATOR $2.91
48 285938-00 SCREW $1.30
49 285939-00 PLATE, CONTACT $3.90
50 5140006-85 ROLLER $37.52
51 285941-00 PLATE, SCALE $4.77
52 330024-00 SCREW $1.30
53 5140006-88 HEAD $105.37
54 429962-02 SCREW $1.30
55 429962-06 POINTER $1.76
56 5140006-84 BRACKET $3.78
57 5140006-82 BUSHING $5.61
58 285946-00 SPRING $1.45
60 285948-00 SPRING $1.30
61 285949-00 COVER, PULLEY $3.30
64 285952-00 STUD, THREADED $2.22
65 285953-00 NUT, HEX $1.30
66 285954-00 BRACKET, FRT ROD $6.05
67 285955-00 RING, RETAINING $1.30
68 285956-00 ROD ASSEMBLY, CAN $31.41
69 285957-00 SPRING $1.45
70 429673-00 SCREW & WASHER $1.30
71 285959-00 BRACKET, REARROD $6.46
72 285960-00 CHAIN $6.31
73 285961-00 SPRING $1.87
74 5140006-87 LOCK LEVER $2.98
75 5140006-81 CUTTER HEAD $105.37
76 285964-00 BEARING, BALL $12.76
77 285965-00 RING, RETAINING $1.45
78 5140010-22 PULLEY $12.96
79 285967-00 NUT $1.30
80 429962-08 BELT $37.30
81 285969-00 KEY $1.30
82 5140006-79 BLADE CLAMP $16.63
83 285971-00 SCREW $1.30
85 5140071-51 BLADE $37.28
86 5140010-16 SCREW $1.22
86 5140067-11 HARDWARE BAG $21.89
87 285975-00 SEAL, DUST $2.55
88 285976-00 DEFLECTOR, CHIP $19.10
89 285977-00 SEAL, DUST $1.30
90 5140006-77 TRAY $11.10
91 285979-00 SCREW $1.21
93 285981-00 HANDLE $9.76
94 285982-00 RING, RETAINING $1.30
95 5140006-76 TOP COVER $51.16
96 285984-00 SCREW $1.30
97 429962-04 HANDLE ASSY $26.16
101 429962-03 SCREW $1.30
102 285990-00 SWITCH, ON/OFF $13.13
103 285991-00 SCREW $1.30
104 285992-00 COVER, SWITCH $2.22
105 429674-00 SCREW & WASHER $1.30
106 285994-00 SCREW $1.30
107 285995-00 WASHER, EX TOOTH $1.30
108 285996-00 PLATE, SWITCH $2.31
110 285998-00 HOUSING, SWITCH $17.06
111 285999-00 PIN $1.30
112 286000-00 PLATE $2.91
113 286001-00 SEAL, DUST $2.31
114 286002-00 BEARING, BALL $8.57
116 286003-00 CASE, GEAR $35.31
117 286004-00 RELIEF, STRAIN $2.31
118 286005-00 CLAMP, CORD $1.30
119 5140000-19 CIRCUIT BREAKER $9.83
120 429672-00 SCREW & WASHER $1.30
121 489128-00 HEX HD SCREW $1.14
122 286009-00 SCREW $1.30
123 286010-00 SCREW $1.30
124 286011-00 SPINDLE $12.76
125 286012-00 KEY, ROLL $1.30
126 286013-00 BEARING, BALL $8.57
127 286014-00 GEAR $12.76
128 5140006-92 GEAR & SHAFT $11.10
129 286016-00 KEY, ROLL $1.30
130 5140006-93 GEAR $12.96
132 286018-00 PIN $1.30
134 286019-00 SHAFT, GEAR $12.76
135 286020-00 KEY, ROLL $1.30
136 5140006-91 GEAR $14.80
137 286022-00 CLIP, WIRE $1.30
138 286023-00 COVER, GEAR CASE $12.76
139 286024-00 BEARING, BALL $8.57
140 286025-00 ARMATURE $136.65
141 286026-00 SCREW $1.30
142 286027-00 BEARING, BALL $8.57
143 286028-00 BAFFLE $8.57
144 286029-00 FIELD & LEADS $41.16
145 286030-00 CASE, FIELD $33.32
146 286031-00 CAP, BRUSH $1.87
147 286032-00 BRUSH $5.29
148 286033-00 HOLDER, BRUSH $7.71
149 286034-00 SCREW $1.30
150 429962-00 MOTOR PULLEY $20.18
151 286036-00 PLATE, DEWALT $4.68
152 286041-00 CORD/9'/14-3 SJ $22.82
154 286040-00 LABEL, WARNING $1.30
156 286039-00 WRENCH, OPEN END $3.50
160 618559-00 NAME PLATE $1.59
161 382589-00 LABEL, INSTR. $1.30
162 618560-00 WARNING LABEL $2.11
163 382588-00 LABEL $1.30
164 382586-00 LABEL, FEED $1.30
165 94593-03 TERMINAL $1.29
166 450213-00 TERMINAL, FEMALE $1.30
167 450212-00 TERMINAL, MALE $2.04
168 286424-00 SCREW, M3 $1.30
169 286425-00 SPRING $1.97
174 429676-00 RUBBER BUMPER $1.29
175 330045-13 SCREW, TAPTITE $1.29
177 5140006-83 BRACKET $3.78
178 5140010-81 SPROCKET $4.79
179 429615-00 VACUUM ADAPTOR $6.46
180 5140006-97 DUST HOOD $20.29
181 5140010-73 WRENCH $12.96
181 5140067-13 WRENCH $6.88
182 5140010-14 PIN $1.39
183 5140006-96 WASHER $2.51
184 386411-00 WARNING LABEL $1.58
800 286445-00 GREASE.14 OZ. $11.08
