DeWalt DW713 Electric Saw Parts

DeWalt DW713 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW713

10 Inch Single Bevel...

$219.00

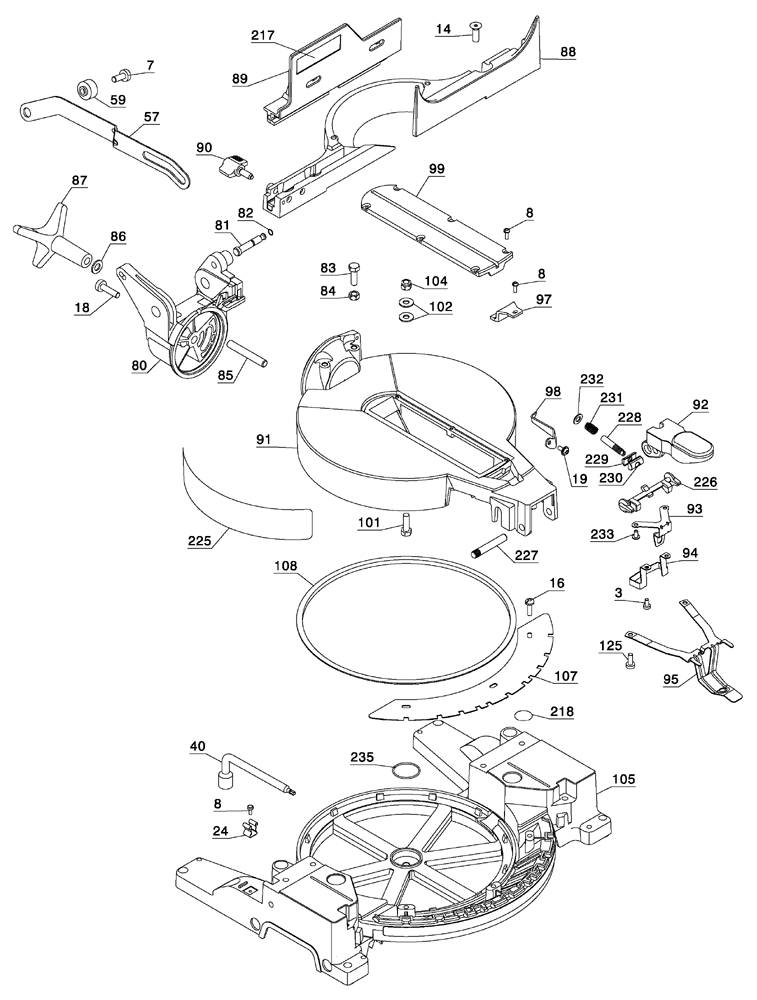

Page-1

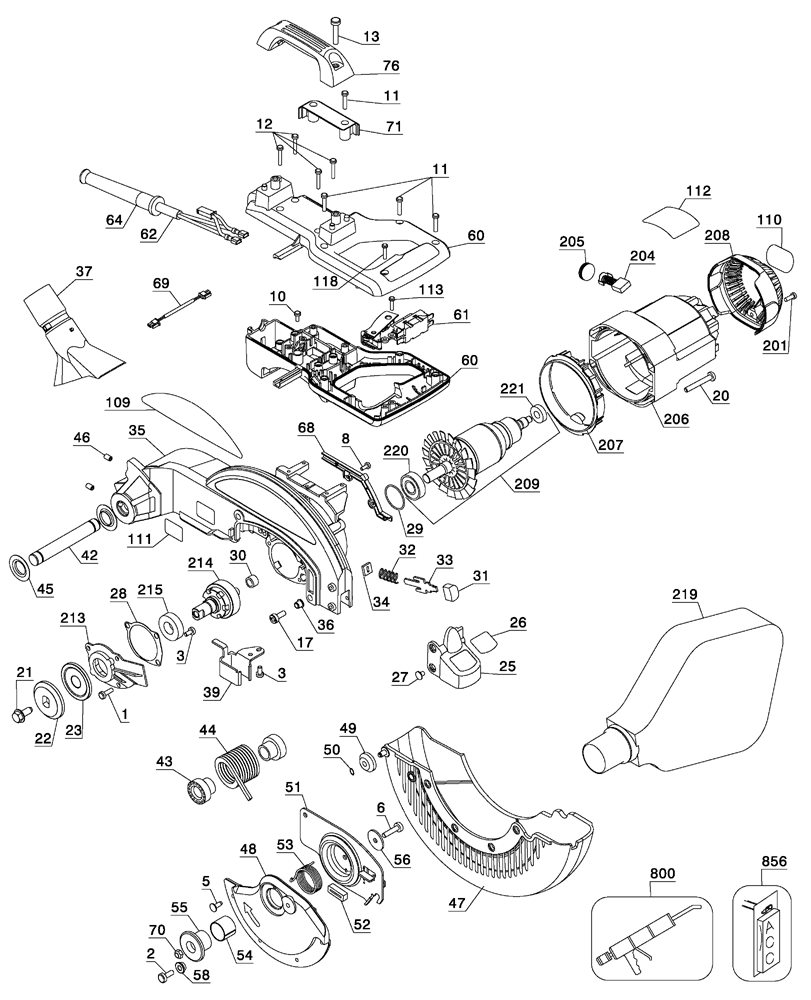

Page-2

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	330045-14	SCREW, M5 X 16MM	$1.24
2	330045-23	SCREW, TAPTITE	$1.21
3	330045-13	SCREW, TAPTITE	$1.23
5	385915-01	SCREW	$1.23
6	330045-25	SCREW, TAPTITE	$1.18
7	330045-32	SCREW	$1.24
8	330045-05	LOCK SCREW	$1.24
10	330045-45	SCREW	$1.24
11	330019-32	SCREW	$1.23
12	330045-08	SCREW	$1.24
13	330019-22	SCREW	$1.24
14	098105-03	SCREW	$1.10
16	604410-00	SCREW	$1.23
17	394589-01	SCREW	$1.84
18	330045-33	SCREW	$1.24
19	153460-00	SCREW	$1.23
20	614375-00	SCREW	$1.93
21	145344-01	BOLT	$1.40
22	151962-01	CLAMP, OUTER	$6.40
23	141987-06	ARBOR BUSHING	$9.34
24	391358-01	WRENCH HOLDER	$1.21
25	N026930	COVER	$2.69
26	631013-00	LABEL	$1.10
27	385915-02	SHOULDER SCREW	$1.28
28	391632-00	GASKET	$2.04
29	701297-00	O RING	$1.88
30	330004-06	BEARING, NEEDLE	$4.09
31	145350-03	BUTTON	$1.56
32	398736-00	SPRING	$1.23
33	146714-00	LOCK, SPINDLE	$4.47
34	146710-00	WIPER, FELT	$1.24
35	642122-00	ARM	$128.41
36	148608-00	INSERT	$2.13
37	394496-00	DUST CHUTE	$5.83
39	393731-00	GUARD	$3.09
40	608563-01	WRENCH	$5.52
42	146751-00	SHAFT, PIVOT	$14.82
43	398251-00	SPACER	$2.04
44	391606-00	TORSION SPRING	$28.36
45	148296-00	WASHER, SPRING	$1.24
46	150075-00	SCREW, SET	$1.24
47	641072-00	LOWER GUARD	$30.23
48	641326-00	PLATE	$18.28
49	146774-00	ROLLER, GUARD	$3.81
50	603232-00	RETAINING RING	$1.24
51	399139-00	PIVOT PLATE	$11.55
52	146768-00	BUMPER	$1.24
53	398735-00	SPRING	$2.13
54	148295-00	SLEEVE, PIVOT	$1.40
55	614843-00	PLATE, RETAINER	$1.21
56	148612-00	WASHER	$1.24
57	391630-00	GUARD LINK	$19.15
58	146740-01	SLEEVE, FLANGED	$2.21
59	399042-00	BUSHING	$3.89
60	640596-00	HANDLE ASSY	$31.65
61	391926-01	SWITCH	$26.73
62	647080-00	CORD ASSEMBLY	$44.85
64	330005-02	PROTECTOR, CORD	$4.37
68	640885-00	WIRE COVER	$1.72
69	618213-00	JUMPER	$3.51
70	385137-01	NUT, STOP	$1.41
71	618270-00	COVER	$2.69
76	396375-00	CARRYING HANDLE	$3.89
80	391578-00	TRUNNION	$69.27
81	387130-00	LOCKING PIN	$1.88
82	034158-00	O RING	$1.95
83	149368-00	BOLT	$1.24
84	99368-04	NUT	$1.24
85	146760-02	STUD	$2.04
86	330016-04	WASHER	$1.24
87	604634-00	BEVEL HANDLE	$17.27
88	642126-00	FENCE	$58.42
89	648857-00	LEFT FENCE	$35.14
90	147107-07	KNOB, LWR BEVEL	$3.78
91	640456-00	ROTARY TABLE	$153.00
92	649430-00	LOCK LEVER	$6.23
93	650051-00	PLATE	$3.96
94	650052-00	CLAMP PLATE	$4.20
95	650130-00	DETENT SPRING	$7.74
97	391634-00	POINTER	$3.08
98	391631-00	BEVEL POINTER	$3.08
99	146726-02	PLATE, KERF	$7.61
101	98025-25	SCREW	$1.23
102	153792-00	WASHER	$1.24
104	330021-02	NUT	$1.23
105	640457-00	BASE	$166.28
107	630233-00	DETENT PLATE	$28.08
108	391635-00	WEAR RING	$5.83
109	395021-00	LABEL	$3.08
110	391325-00	IDENT. LABEL	$1.69
111	623788-00	WARNING LABEL	$1.28
112	642753-00	NAME PLATE	$1.18
113	330019-03	SCREW	$1.24
118	330019-04	SCREW, PLASTITE	$1.23
125	330045-22	SCREW	$1.23
201	330019-13	SCREW, M4X19	$1.24
204	614367-00	BRUSH & LEAD	$4.71
205	614368-00	BRUSH CAP	$1.17
205	5140081-96	BRUSH CAP	$1.41
206	651764-00	FIELD & FLD.CSE	$98.43
207	614366-00	FAN BAFFLE	$3.69
208	614373-00	END CAP	$2.84
209	614364-00	ARMATURE & BRGS	$81.61
213	391573-00	GEAR CASE COVER	$9.67
214	392628-00	SPINDLE & GEAR	$36.10
215	330003-29	BALL BEARING	$12.17
217	618279-00	WARNING LABEL	$1.10
218	394976-00	LABEL, CAUTION	$1.28
219	147734-06	BAG, DUST	$19.09
220	330003-13	BEARING, BALL	$4.96
221	330003-04	BEARING, BALL	$9.84
225	629369-00	WARNING LABEL	$1.50
226	650034-00	CAM LEVER	$2.09
227	626611-00	DRIVE PIN	$1.84
228	626610-00	MITER LOCK ROD	$1.84
229	621321-00	NUT	$1.62
230	621322-00	NUT	$1.18
231	58698-00	SPRING	$1.24
232	330016-03	WASHER, PLAIN	$1.24
233	650142-00	SCREW	$1.18
235	049787-00	O RING	$2.59
800	5140061-28	GREASE	$31.74
800	93488-00	GREASE	$11.93
856	5140050-83	LENGTH STOP	$50.65
856	153650-00	MATERIAL CLAMP	$51.05
