DeWalt DW712-Type-1 Electric Saw Parts

DeWalt DW712-Type-1 Electric Saw Parts Image

DeWalt DW712-Type-1 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW712-Type-1

8-1/2 Inch Single-Be...

$444.38

Page-1

Page-2

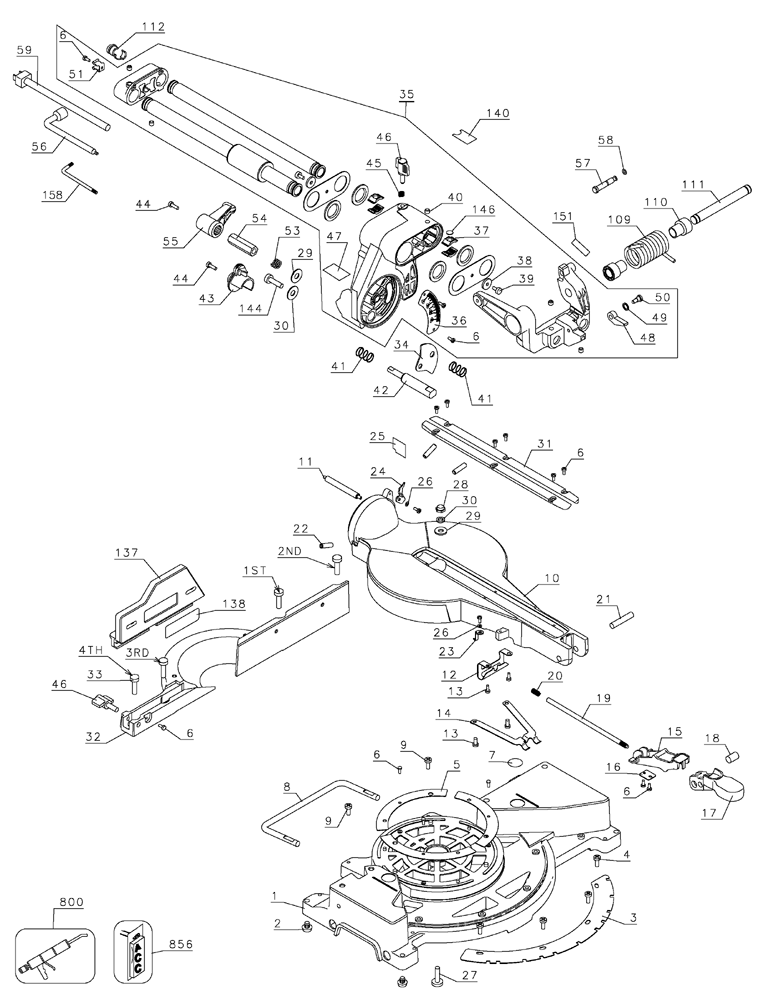

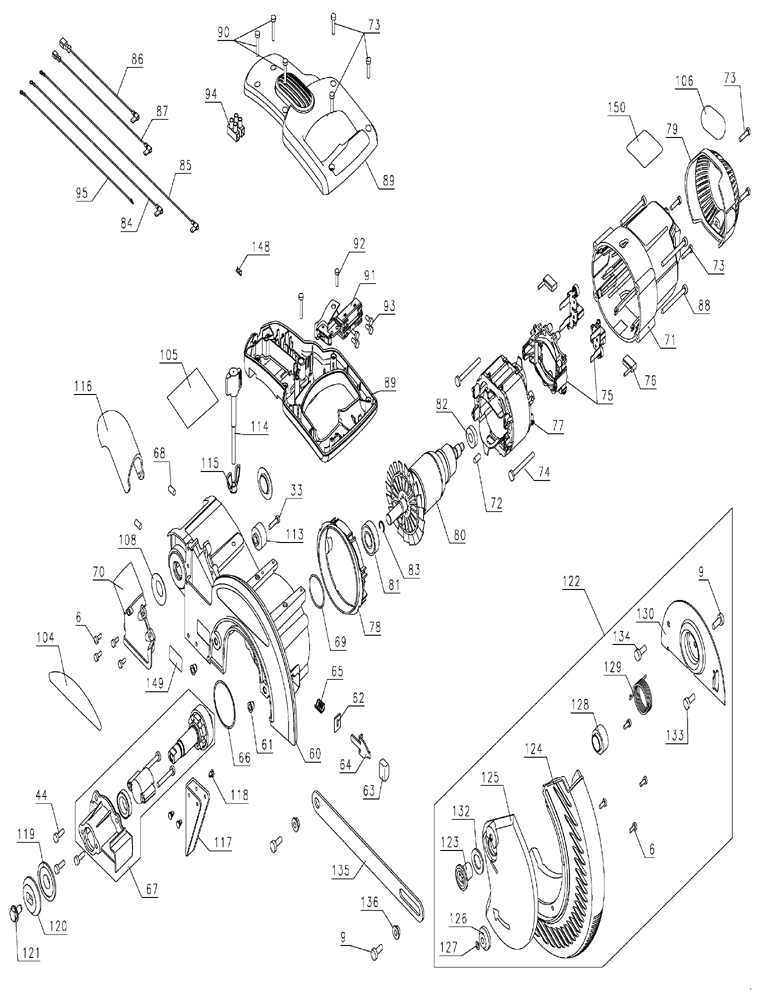

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	397038-00	BASE	$110.78
2	153612-00	FOOT, RUBBER	$1.58
3	397041-00	DETENT PLATE	$52.29
4	604987-00	SCREW	$1.20
5	397045-00	WEAR PLATE	$4.25
6	330045-05	LOCK SCREW	$1.24
7	610707-00	WARNING LABEL	$2.42
8	397042-00	BAR	$7.31
9	330045-23	SCREW, TAPTITE	$1.21
10	397087-00	TABLE ASSEMBLY	$174.03
11	397085-00	STUD	$5.49
12	397062-00	PLATE	$2.90
13	330045-55	SCREW	$1.23
14	397070-00	DETENT SPRING	$4.71
15	397073-00	ACTUATOR	$6.48
16	397075-00	CLAMP PLATE	$1.91
17	397065-00	LEVER	$5.49
18	629395-00	LOCK ASSY	$10.80
19	629395-00	LOCK ASSY	$10.80
20	761054-00	SPRING	$2.59
21	397063-00	PIN	$1.91
22	153576-03	SET SCREW	$1.83
23	397048-00	POINTER	$1.91
24	397090-00	POINTER	$1.91
25	605153-00	LABEL	$2.22
26	249233-00	WASHER	$1.20
27	98025-25	SCREW	$1.23
28	N044739	LOCK NUT	$1.28
29	153781-00	WASHER, PLAIN	$1.24
30	613270-00	WASHER	$1.20
31	397046-00	KERF PLATE	$4.71
32	397077-00	FENCE	$57.15
33	330045-33	SCREW	$1.24
34	603758-00	DUST SHIELD	$1.91
35	605699-00	RAIL & BRG. ASY	$466.57
36	397084-00	BEVEL SCALE	$5.49
37	397118-00	GUIDE	$6.48
38	153586-00	WASHER	$1.23
39	151799-00	SCREW, SHOULDER	$1.24
40	153576-04	SET SCREW	$1.53
41	397088-00	SPRING	$1.20
42	397083-00	BEVEL STOP PIN	$16.27
43	397086-00	KNOB	$3.70
44	330045-14	SCREW, M5 X 16MM	$1.24
45	606014-00	SPRING	$1.20
46	147107-06	BEVEL KNOB	$4.71
47	397081-00	LABEL	$2.90
48	153603-01	PAWL	$2.07
49	153655-00	WASHER, WAVY	$1.24
50	153639-00	SCREW, SHOULDER	$1.24
51	391358-00	WRENCH HOLDER	$2.04
53	397173-00	SPRING	$1.20
54	397089-00	NUT	$7.55
55	397080-00	BEVEL HANDLE	$6.48
56	608563-01	WRENCH	$5.52
57	387130-00	LOCKING PIN	$1.88
58	034158-00	O RING	$1.95
59	330079-98	CORD/10FT/14-2SJ	$18.37
59	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
60	397209-00	ARM	$147.28
61	148608-00	INSERT	$2.13
62	387732-00	FELT WASHER	$1.23
63	145350-00	BUTTON, LOCK	$1.40
64	397135-00	SPINDLE LOCK	$3.71
65	941586-00	SPRING	$1.20
66	616979-00	O-RING	$3.70
67	397210-00	GEAR CASE COVER ASSEMBLY	$81.61
68	150075-00	SCREW, SET	$1.24
69	696519-00	RING	$2.58
70	603726-00	DUST SHROUD	$1.91
71	391317-04	FIELD CASE	$14.19
72	145312-00	PLUG, RUBBER	$1.24
73	330019-13	SCREW, M4X19	$1.24
74	330019-19	SCREW, PLASTITE	$1.24
75	389512-01	BRUSH RING ASM	$25.80
76	381028-08	BRUSH & LEAD	$9.03
77	629392-00	FIELD	$50.89
78	391375-00	FAN BAFFLE	$3.89
79	391933-01	END CAP	$3.31
80	604288-00	ARMATURE & BRGS	$95.24
81	330003-13	BEARING, BALL	$4.96
82	330003-60	BEARING	$4.75
83	144803-00	RING, RET.	$1.40
84	145371-00	LEAD	$1.53
85	398832-00	LEAD	$1.53
86	398827-00	LEAD	$1.53
87	398822-00	LEAD	$1.53
88	330045-50	SCREW	$1.24
89	397177-00	HOUSING & COVER	$27.01
90	330045-08	SCREW	$1.24
91	606056-00	SWITCH	$23.41
92	330019-12	SCREW	$1.24
93	384127-01	SCREW	$1.24
94	326057-00	TERMINAL BLOCK	$2.44
95	660071-00	LEAD WIRE	$1.36
104	397134-00	LABEL	$21.69
105	604114-02	WARNING LABEL	$5.51
106	610722-00	LABEL	$2.42
108	148296-00	WASHER, SPRING	$1.24
109	397130-00	SPRING	$6.02
110	397129-00	SPACER	$1.91
111	397128-00	PIVOT SHAFT	$9.07
112	605155-00	BUSHING	$1.15
113	146753-00	BUSHING	$2.42
114	147107-05	DEPTH STOP	$9.07
115	613365-00	WING NUT	$1.20
116	148520-00	DEFLECTOR	$4.55
117	612788-00	DUST CHUTE	$2.90
118	607491-00	RIVET	$1.53
119	397137-00	INNER CL.WASHER	$9.07
120	397136-00	CLAMP WASHER	$6.48
121	145344-01	BOLT	$1.40
122	606357-00	GUARD ASSEMBLY	$62.03
123	399182-00	RETAINER	$3.70
124	399179-00	GUARD	$26.71
125	613460-00	PLATE	$25.21
126	146774-00	ROLLER, GUARD	$3.81
127	142273-00	RING, RETAINING	$1.24
128	603440-00	SLEEVE	$1.91
129	603439-00	SPRING	$2.44
130	399181-00	PIVOT PLATE	$4.71
132	612923-00	WASHER	$1.20
133	394589-01	SCREW	$1.84
134	153778-04	SCREW	$1.20
135	397159-00	GUARD LINK	$5.49
136	146740-02	SLEEVE	$1.91
138	618279-00	WARNING LABEL	$1.10
140	603856-00	LABEL	$2.28
144	612008-00	SCREW	$1.20
146	613497-00	SLUG	$1.20
148	444262-00	TERMINAL	$1.24
149	610721-00	WARNING LABEL	$21.31
150	610621-00	NAME PLATE	$16.79
158	385567-01	WRENCH	$3.51
800	5140061-28	GREASE	$31.74
800	93488-00	GREASE	$11.93
