DeWalt DW625-Type-2 Router Parts

DeWalt DW625-Type-2 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW625-Type-2

3 HP Variable Speed ...

$291.24

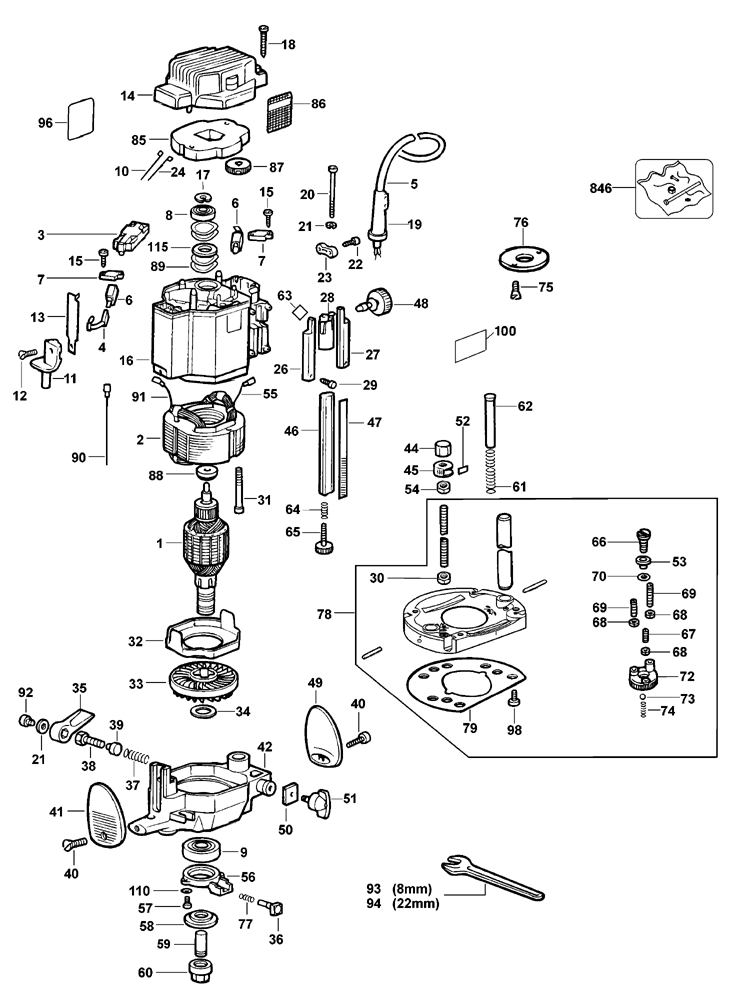

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	869074-06	ARMATURE	$116.38
2	868405-02	FIELD	$75.96
3	868128-00	SWITCH	$36.81
4	940146-01	BRUSH	$9.94
5	330079-98	CORD/10FT/14-2SJ	$18.37
5	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
6	761202-00	HOLDER, BRUSH	$5.67
7	761203-00	CLAMP	$1.24
8	605040-23	BALL BEARING	$5.22
9	868132-03	BEARING, BALL	$17.07
10	868129-09	LEAD	$1.24
11	868145-00	LEVER, SWITCH	$4.09
13	868123-00	ACTUATOR, SWITCH	$4.09
14	868144-01	END CAP	$12.85
15	949896-12	SCREW	$1.10
16	942934-03	CASE, FIELD	$55.96
17	860079-03	CIRCLIP	$1.62
18	249220-00	SCREW	$1.24
19	942277-00	PROTECTOR, CORD	$1.69
21	930248-00	WASHER	$1.24
23	284048-00	CLAMP, CABLE	$2.21
24	868129-10	LEAD	$1.24
26	248395-00	SUPPORT, LENS(L)	$4.28
27	248394-00	SUPPORT, LENS(R)	$4.28
28	868124-01	LENS	$3.71
29	949896-12	SCREW	$1.10
30	761225-02	NUT	$1.24
31	248934-00	SCREW	$1.24
32	942902-01	BAFFLE	$6.69
33	868126-00	FAN	$8.11
34	868127-00	WASHER	$1.67
35	942906-00	LEVER, CLAMP	$7.98
36	942930-00	LOCK, SPINDLE	$5.22
37	942909-00	SPRING	$1.24
38	868204-00	SCREW	$8.49
39	942908-00	PIN	$2.21
41	869355-00	REPAIR KIT	$16.52
42	942898-00	HOUSING, LOWER	$123.87
44	868150-00	NUT	$1.80
45	942910-00	SUPPORT	$8.11
46	868122-00	RACK	$9.94
47	248339-00	SCALE	$2.21
48	761243-05	PINION	$16.60
49	869355-00	REPAIR KIT	$16.52
50	868119-00	PLATE	$2.13
51	939840-05	SCREW, WING	$3.18
52	942912-00	SPRING	$1.24
53	720675-00	WASHER	$1.40
54	942911-00	LOCK	$7.04
56	942900-03	CLAMP	$6.87
57	249424-02	SCREW	$1.10
58	942901-00	NUT	$10.13
59	868116-01	1/2 COLLET	$30.90
59	868149-00	COLLET, 1/4-INCH	$31.31
60	942893-01	COLLET NUT	$6.79
61	868115-00	SPRING	$2.13
62	868566-01	ROD	$1.84
63	868121-00	GRADUATION	$1.17
64	761258-00	SPRING	$0.99
65	868125-00	SCREW	$2.77
66	249432-00	SCREW	$2.03
67	942931-02	SCREW	$1.24
68	330015-04	NUT, HEX	$1.23
69	942931-01	SCREW	$1.24
70	761264-00	SPRING	$1.24
73	720664-00	BALL	$1.24
74	868082-00	SPRING	$1.51
75	249412-20	SCREW	$1.24
76	868151-00	BUSHING, GUIDE	$27.69
77	942904-00	SPRING	$1.24
78	98014-40	SCREW	$1.23
78	329820-49	PLATE, BASE	$116.90
79	940459-00	BASE, SUB	$14.12
85	868142-02	PC BOARD	$48.97
86	248340-00	LABEL	$1.50
87	249067-01	WHEEL, SPD.REG.	$3.16
88	868141-00	POLE PIECE	$6.56
89	248978-00	WAVY WASHER	$1.18
90	868129-07	LEAD	$1.24
92	249424-21	SCREW	$1.24
93	761287-00	WRENCH 8 MM	$5.39
98	860205-04	SCREW	$1.28
100	248343-00	LABEL	$0.99
110	932839-00	WASHER	$1.24
115	868127-01	SPACER	$2.45
