DeWalt DW621-Type-3 Router Parts

DeWalt DW621-Type-3 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

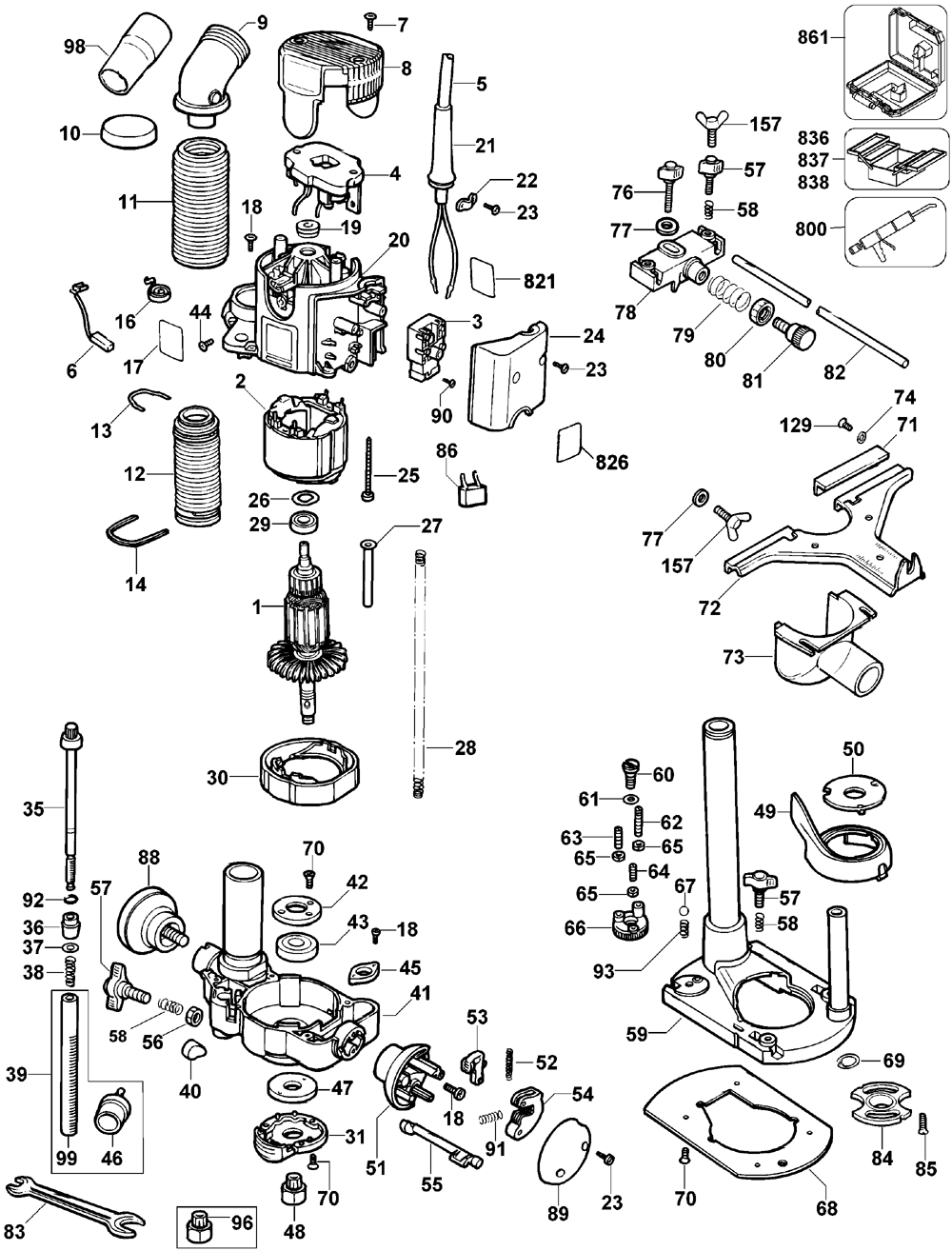

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	N030338	ARMATURE	$201.97
2	N030422	FIELD	$36.75
3	323132-00	SWITCH, ON/OFF	$16.02
4	326297-01	MODULE, ELECTRON	$69.53
5	330076-20	CORD SET	$22.79
6	580017-01	BRUSH	$4.73
7	330065-13	SCREW	$1.24
8	326259-01	CAP, END	$8.18
9	327434-01	ADAPTOR	$7.04
10	326287-00	CAP	$3.64
11	326268-00	BELLOWS	$5.22
12	326283-00	SPRING	$8.54
13	326279-00	CLIP	$1.24
14	326607-00	CLIP	$1.40
16	326667-01	SPRING, BRUSH	$2.44
17	578774-00	IDENT. LABEL	$3.01
18	324006-00	SCREW	$1.24
19	326251-00	MAGNET	$4.09
20	328252-01	HOUSING, MOTOR	$54.13
21	770235-00	PROTECTOR, CORD	$2.60
22	821070	CORD CLAMP	$1.62
23	330065-06	SCREW	$1.24
24	326258-01	COVER, SWITCH	$5.59
25	330065-10	SCREW	$1.24
26	326845-00	WASHER, SPRING	$1.40
27	329016-00	GUIDE	$2.13
28	323395-13	SPRING	$4.66
29	605040-63	BEARING	$3.38
30	326604-00	BAFFLE, FAN	$4.66
31	326616-03	SPNDLE.LOCK ASY	$14.57
35	326600-00	ADJUSTER	$11.24
36	326265-01	SCALE	$2.21
37	321118-00	WASHER	$1.24
38	323395-14	SPRING	$1.40
39	329027-49	RACK & PINION	$39.22
40	326602-00	INSERT	$4.66
41	328254-01	HOUSING, LOWER	$90.04
42	326285-00	CLAMP	$4.66
43	570936-01	BALL BEARING	$19.87
44	330065-04	SCREW	$1.24
45	326606-00	GUIDE	$1.40
46	326294-02	PINION	$8.86
47	326673-01	RING, LOCKING	$11.24
48	326286-03	COLLET & NUT	$39.13
49	326273-00	GUARD, DUST	$3.64
50	326599-01	CAP	$2.07
51	326598-01	HANDLE ASY.HALF	$4.28
52	323395-10	SPRING	$1.40
53	326601-00	ACTUATOR	$2.21
54	326252-01	TRIGGER	$3.64
55	326256-00	LEVER	$5.22
56	949726-05	NUT	$1.24
57	326573-01	SCREW, WING	$3.16
58	868082-00	SPRING	$1.51
59	328253-00	BASEPLATE	$88.22
60	326610-00	SCREW	$2.71
61	327012-00	WASHER, SPRING	$1.24
62	868109-00	SCREW	$1.18
63	942931-01	SCREW	$1.24
64	942931-02	SCREW	$1.24
65	860083-02	NUT	$1.24
66	326662-00	TURRET	$5.22
67	720664-00	BALL	$1.24
68	326270-00	BASE, SUB	$13.98
69	324821-00	CIRCLIP	$1.40
70	945121-00	SCREW, M4X0.7	$1.24
71	328788-00	GUIDE	$4.57
72	328784-00	FENCE	$12.44
73	328786-00	EXHAUST	$5.44
74	330016-01	WASHER	$1.23
76	326573-02	"SCREW,WING"	$4.28
77	330016-02	WASHER, PLAIN	$1.24
78	328785-00	BRACKET	$12.44
79	323395-21	SPRING	$1.24
80	942918-02	SCALE	$1.58
81	326239-00	ADJUSTER	$9.31
82	579510-00	GUIDE ROD	$9.36
83	31351301	SPANNER	$7.19
84	329120-01	ADAPTOR	$9.67
85	911141-00	SCREW	$1.24
86	949877-01	CAPACITOR	$4.14
88	326300-00	KNOB	$9.08
89	326313-01	HANDLE, CVR.HALF	$6.16
90	911026	SCREW KIT	$7.09
91	323395-22	SPRING	$15.90
92	323711-26	RING, O	$1.40
93	868082-00	SPRING	$1.51
96	326286-04	COLLET & NUT	$28.01
98	328592-00	ADAPTOR, VACUUM	$3.64
99	326309-01	RACK	$22.06
129	324006-00	SCREW	$1.24
157	326573-01	SCREW, WING	$3.16
800	870889-02	GREASE	$11.24
821	1009200-07	NAME PLATE	$1.78
826	490086-00	WARNING LABEL	$1.05
837	559585-98	GUIDE	$123.44
837	559585-96	GUIDE	$82.52
838	559585-98	GUIDE	$123.44
861	578772-53	KIT BOX	$51.26
