Dewalt DW616PK Router Parts

Dewalt DW616PK Parts

Download Schematic

Time to buy a new tool?

Dewalt DW616PK

1-3/4 HP Fixed Base ...

$203.65

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

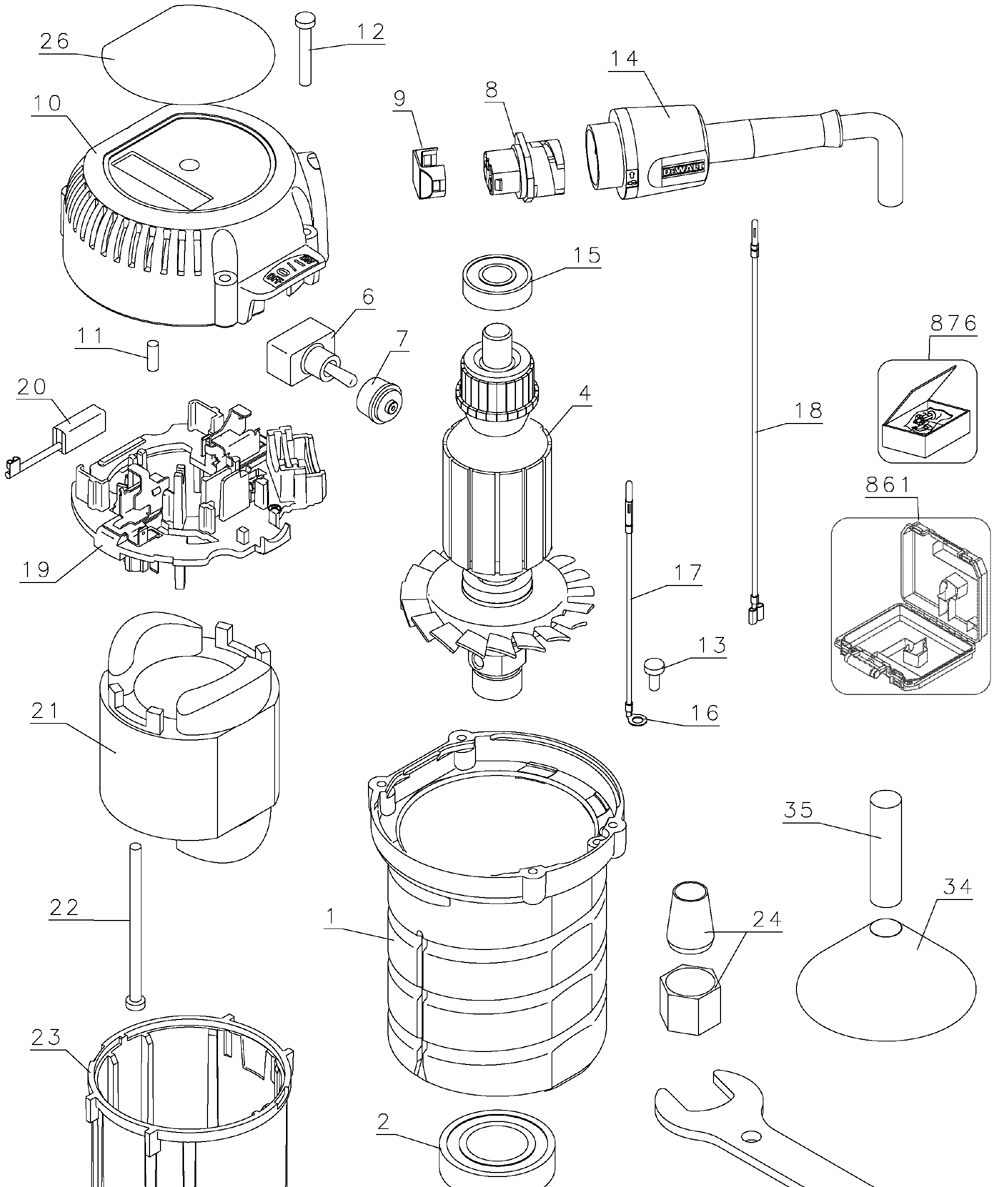

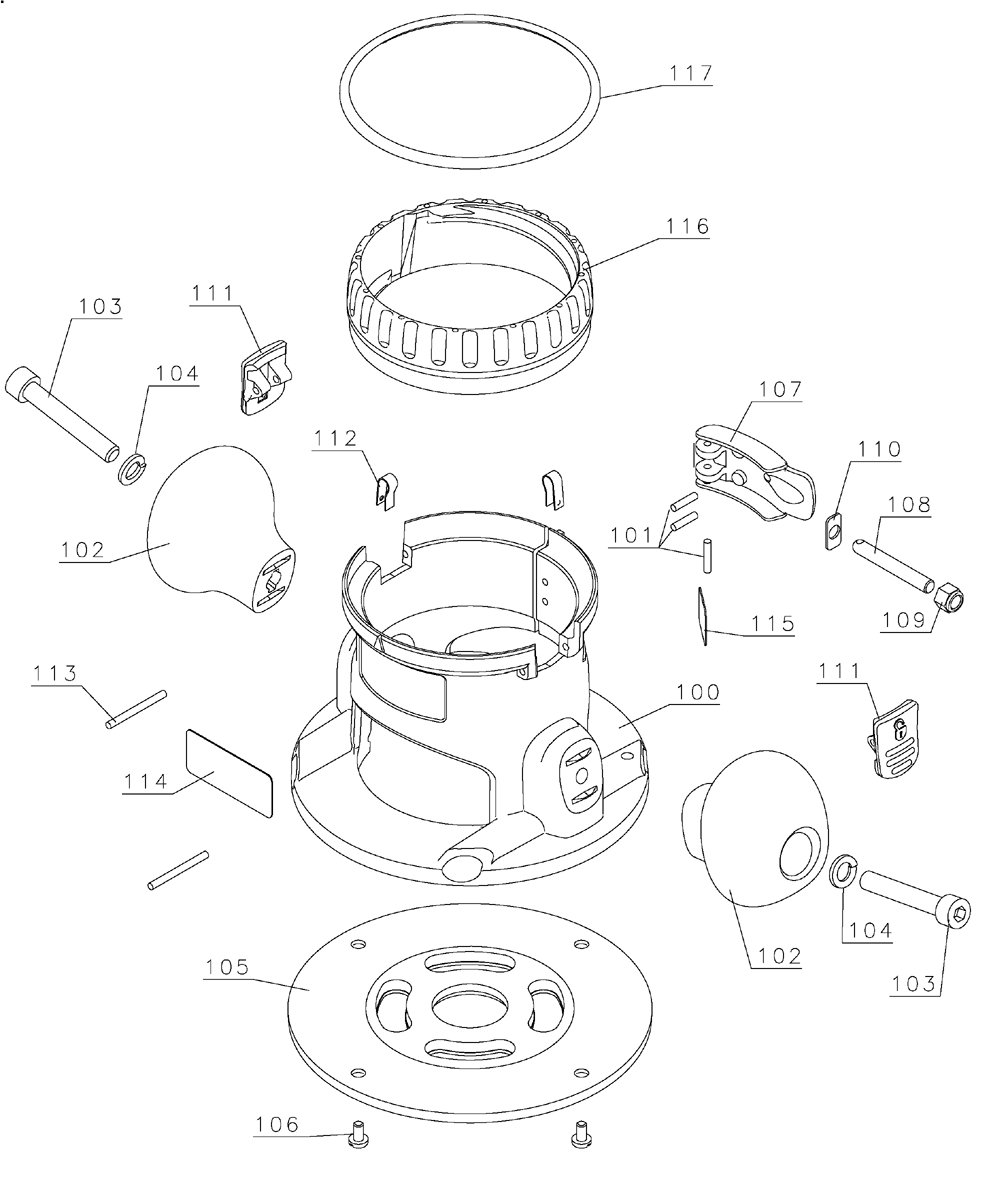

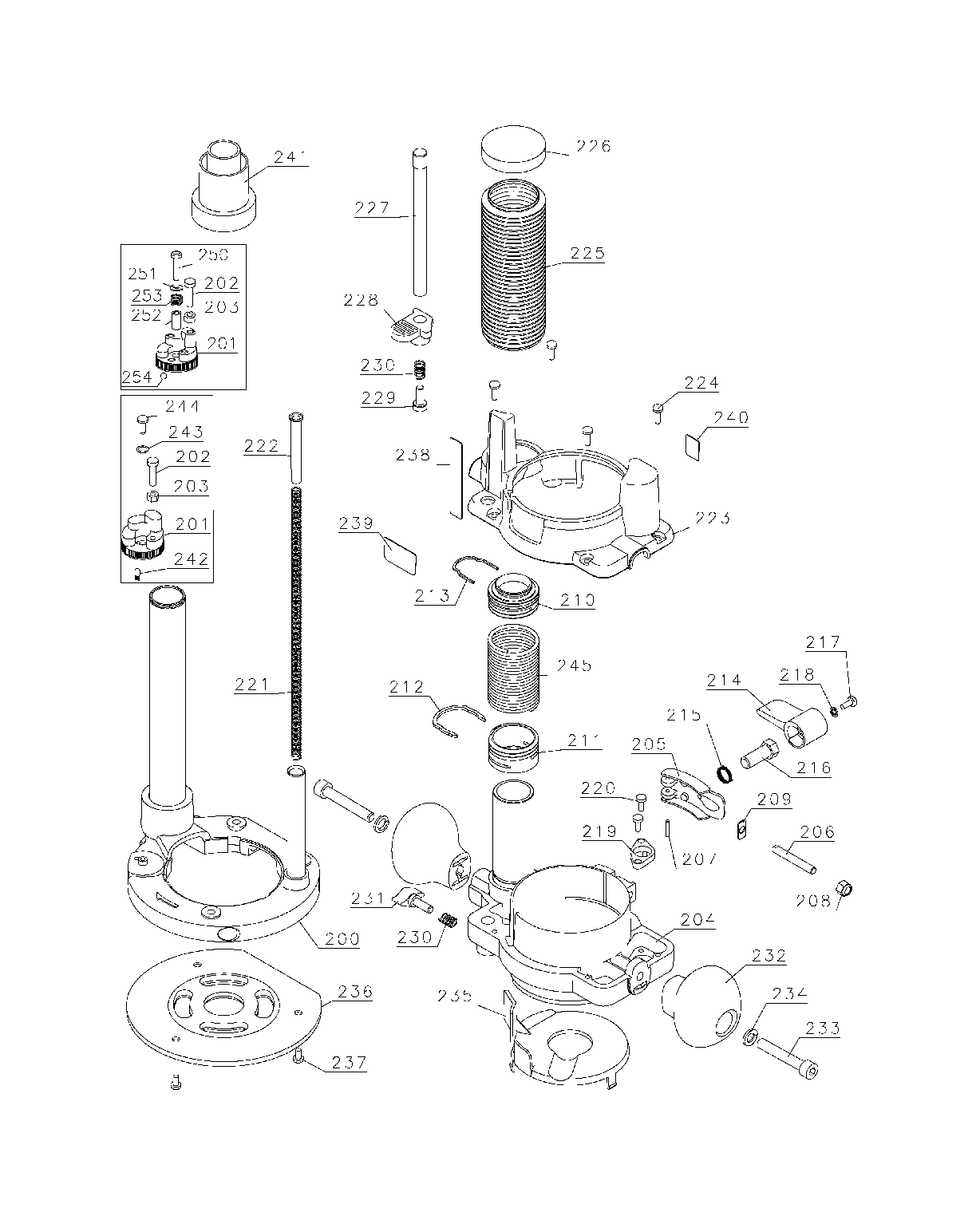

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	396310-01	MOTOR HOUSING	$38.92
2	146555-01	BEARING, BALL	$16.32
3	394219-00	CLAMP NUT	$3.71
4	398221-00SV	ARMATURE & BRG.	$65.55
5	330045-57	SCREW	$1.21
6	399064-00	TOGGLE SWITCH	$9.12
7	399028-00	SWITCH BOOT	$3.35
8	397500-00	RECEPTACLE	$4.73
9	397501-00	WIRE GUARD	$2.92
10	397564-00	END CAP	$9.12
11	33055-00	PLUG	$1.17
12	330045-09	SCREW	$1.24
13	150036-00	SCREW, GROUND	$1.24
14	399063-00	CORDSET	$28.06
15	330003-09	BEARING, BALL	$9.91
16	053650-03	TERMINAL	$1.24
17	608552-00	GROUND WIRE	$1.29
18	608551-00	LEADWIRE	$1.44
19	397566-01	BRUSH RING ASM	$26.08
20	398139-01	BRUSH ASSEMBLY	$5.92
21	397569-00SV	FIELD	$33.51
22	330019-27	SCREW, TORX	$1.24
23	398216-00	FIELD CASE	$9.12
24	326286-04	COLLET & NUT	$28.01
24	326286-03	COLLET & NUT	$39.13
25	399068-00	WRENCH	$3.71
26	612616-00	NAME PLATE	$1.87
34	607523-00	SUB BASE ALIGN. CONE	$2.25
35	607522-00	BASE ALIGN. SHAFT	$3.71
100	396308-00	FIXED BASE	$43.52
101	330041-45	ROLL PIN	$1.21
102	397560-00	KNOB	$3.71
103	607395-00	SCREW	$1.21
104	098197-09	LOCKWASHER	$1.21
105	397531-01	SUB BASE	$30.80
105	397531-00	SUB BASE	$30.80
106	609842-00	SCREW	$1.21
107	397503-00	CLAMP LEVER	$7.33
108	397504-00	THREADED ROD	$1.91
109	330021-01	NUT, STOP	$1.21
110	606623-00	SPACER	$1.99
111	397406-00	LATCH RELEASE	$1.91
112	397411-00	SPRING	$1.21
113	330041-44	ROLLER PIN	$1.21
114	397450-00	ID LABEL	$1.21
115	397451-00	LABEL	$1.21
116	396311-00	ADJUSTING RING	$5.50
117	612054-00	ADJUSTING RING	$1.99
200	398086-00S	BASE ASSEMBLY	$41.83
201	326976-01	TURRET	$5.50
202	608928-00	SCREW, M5 X 20	$1.21
203	330015-04	NUT, HEX	$1.23
204	398052-00	CARRIER ASSEMBLY	$50.19
205	397503-00	CLAMP LEVER	$7.33
206	397504-00	THREADED ROD	$1.91
207	330041-45	ROLL PIN	$1.21
208	330021-01	NUT, STOP	$1.21
209	606623-00	SPACER	$1.99
210	608920-00	SPRING	$1.21
211	608919-00	SPRING	$1.21
212	608925-00	RETAINING CLIP	$1.21
213	608926-00	RETAINING CLIP	$1.21
214	608924-00	LOCK LEVER	$2.92
215	608933-00	SPRING TORSION	$1.21
216	608929-00	LOCK BOLT	$1.91
217	324007-10	SCREW	$1.24
218	608298-00	STAR WASHER	$1.21
219	608931-00	GUIDE BUSHING	$1.21
220	330045-45	SCREW	$1.24
221	608975-00	COMPR. SPRING	$1.91
222	608932-00	SLEEVE	$1.21
223	397950-00	CARRIER COVER	$1.24
224	330045-45	SCREW	$1.24
225	608921-00	BELLOWS	$4.73
226	608922-00	CAP	$1.91
227	608589-00	DEPTH ROD	$3.71
228	608978-00	ZERO ADJUSTMENT	$1.21
229	396635-01	THUMB SCREW	$1.91
230	609118-00	COMPR. SPRING	$1.05
231	608930-00	SCREW	$1.21
232	397560-00	KNOB	$3.71
233	607395-00	SCREW	$1.21
234	098197-09	LOCKWASHER	$1.21
235	606275-00	DUST SHROUD	$3.71
236	606246-00	SUB BASE	$30.80
237	609842-00	SCREW	$1.21
238	397448-00	DEPTH SCALE	$1.21
239	397449-00	IDENT LABEL	$1.21
240	606907-00	LABEL	$1.21
241	608805-00	VACUUM ADAPTER	$1.91
242	326467-00	DETENT	$1.24
243	391352-00	SPRING WASHER	$1.21
244	330045-57	SCREW	$1.21
245	608972-00	SPRING, EXT.	$3.71
250	330045-07	SCREW M4X20 T20	$1.24
251	653599-00	WASHER	$1.12
252	652835-00	SPACER	$1.12
253	652834-00	SPRING	$1.12
254	652836-00	BALL	$1.41
861	397684-00	KIT BOX	$53.68
876	397591-00	MOTOR ASSEMBLY	$131.15
