DeWalt DW505K-Type-1 Electric Hammer Drill Parts

DeWalt DW505K-Type-1 Electric Hammer Drill Parts Image

DeWalt DW505K-Type-1 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

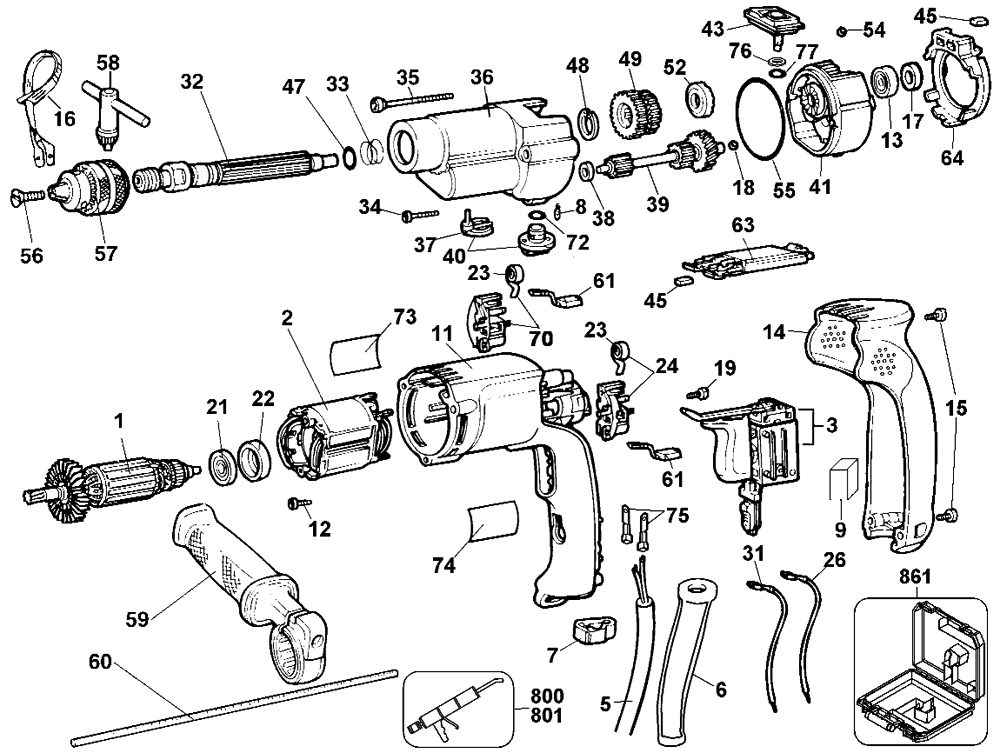

DeWalt DW505K-Type-1 Electric Hammer Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 387614-00SV ARMATURE $40.41
2 429942-00 FIELD $25.81
3 429990-00 SWITCH KIT $50.68
5 330072-98 CORD/8FT/18-2SJ $11.53
5 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
6 330005-01 PROTECTOR, CORD $4.63
6 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
7 176829-00 CLAMP, CORD $1.40
8 326467-00 DETENT $1.24
9 930026-01 BUMPER $1.40
12 390198-00 SCREW $1.24
13 330003-03 BEARING, BALL $4.96
14 610142-02 HANDLE COVER $5.36
15 330065-08 SCREW $1.24
16 065288-02 HOLDER $2.13
18 936840-00 BALL, STEEL $1.24
19 330065-06 SCREW $1.24
21 330003-03 BEARING, BALL $4.96
22 389824-00 CUP $2.35
22 949721-03 CUP $1.95
23 402759-00 SPRING, BRUSH $1.24
24 390523-00 BRUSH HOLDER, L $3.92
31 940988-77 WIRE, LEAD $1.53
32 628831-00 SPINDLE $21.77
33 931890-00 SPRING $1.24
34 330065-13 SCREW $1.24
35 330065-10 SCREW $1.24
36 1006352-00 GEAR CASE $33.32
37 628891-00 SELECTOR ASSEMBLY $8.44
38 932933-00 WASHER $1.24
39 401741-00SV SPINDLE&GR.ASY $36.81
40 628891-00 SELECTOR ASSEMBLY $8.44
41 583951-00 GEAR CASE COVER $26.16
43 401750-00SV LEVER ASSY $5.67
45 949638-02 PLUG, RUBBER $1.24
47 930028-00 RING, O $1.24
48 944137-00 RING $1.24
49 397239-01 GEAR $6.84
52 945706-00 CLUTCH $9.08
54 000903-00 BALL $1.24
55 401847-00 SEAL $1.24
56 575237-00 SCREW $1.24
57 5140021-91 CHUCK & KEY $33.32
58 330034-08 KEY, CHUCK $4.96
59 939794-00 HANDLE ASSEMBLY $16.02
60 940357-00 GAUGE, DEPTH $4.09
61 176949-17 BRUSH $2.94
63 429990-00 SWITCH KIT $50.68
64 176811-00 BAFFLE $6.42
70 390524-00 BRUSH HOLDER, R $4.09
72 61145-00 RING $1.40
74 395047-00 ID LABEL $1.24
75 448387-00 TERMINAL $1.24
76 176659-00 WASHER, THRUST $1.88
77 50050-00 RING $2.13
800 761995-01 GREASE, 6 OZ. $29.72
801 283484-01 GREASE, 32 OZ. $69.49
861 613598-00 KITBOX $32.52
