DeWalt DW505-Type-3 Electric Hammer Drill Parts

DeWalt DW505-Type-3 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

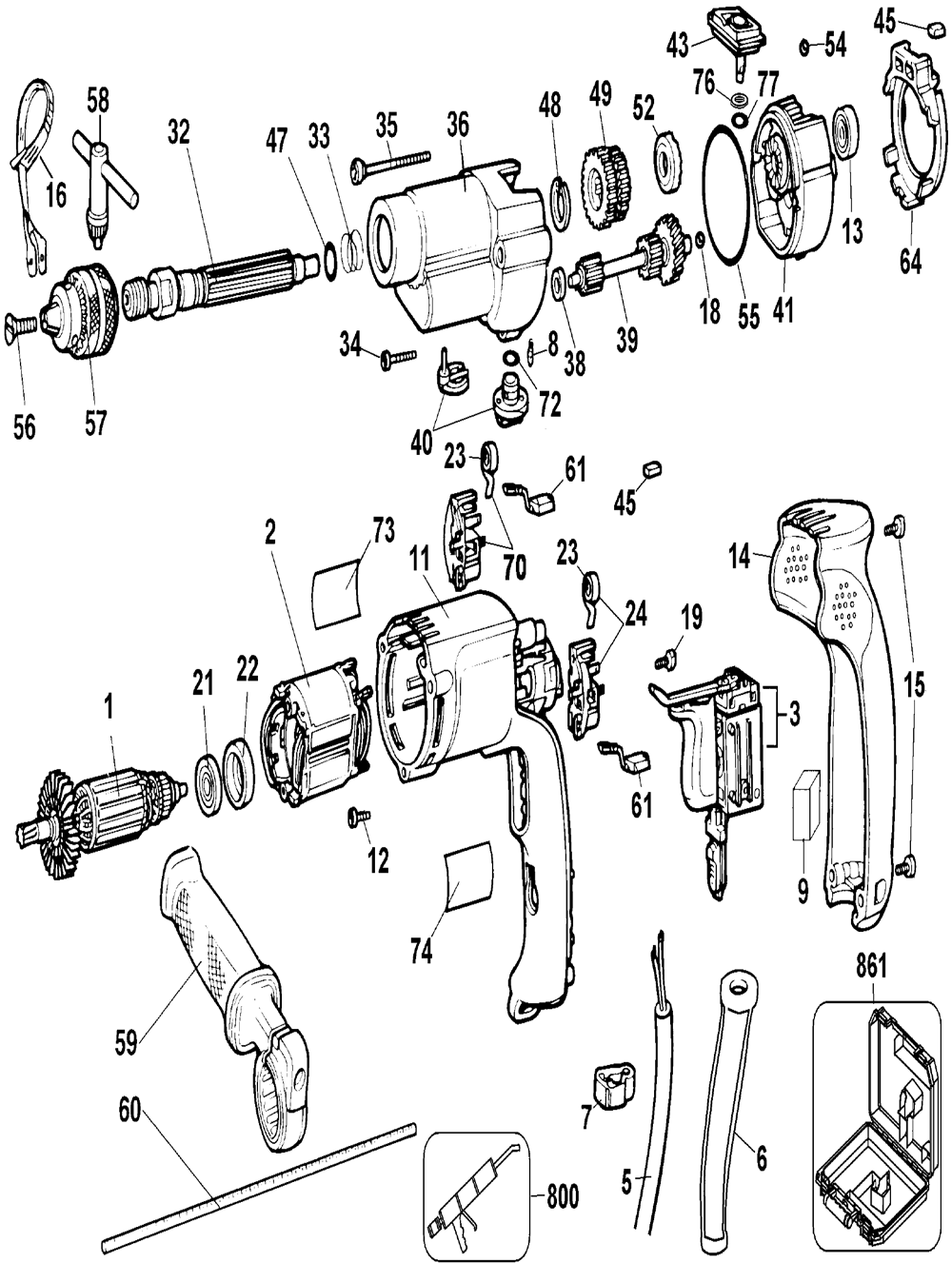

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	387614-00SV	ARMATURE	$40.41
2	619838-04SV	FIELD	$22.67
3	621884-00	SWITCH	$33.32
5	330072-98	CORD/8FT/18-2SJ	$11.53
5	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
6	330005-01	PROTECTOR, CORD	$4.63
6	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
7	176829-00	CLAMP, CORD	$1.40
8	326467-00	DETENT	$1.24
9	930026-01	BUMPER	$1.40
11	390005-08	"CASE,FIELD"	$11.99
12	390198-00	SCREW	$1.24
13	330003-04	BEARING, BALL	$9.84
14	610142-02	HANDLE COVER	$5.36
15	330019-13	SCREW, M4X19	$1.24
16	065288-02	HOLDER	$2.13
18	936840-00	BALL, STEEL	$1.24
19	330065-06	SCREW	$1.24
21	330003-04	BEARING, BALL	$9.84
22	389824-00	CUP	$9.08
23	402759-00	SPRING, BRUSH	$1.24
24	390523-00	BRUSH HOLDER, L	$3.92
32	628831-00	SPINDLE	$21.77
33	931890-00	SPRING	$1.24
34	330019-14	SCREW	$1.24
35	330019-30	SCREW	$1.24
36	1006352-00	GEAR CASE	$33.32
38	932933-00	WASHER	$1.24
39	401741-00SV	SPINDLE&GR.ASY	$36.81
40	628891-00	SELECTOR ASSEMBLY	$8.44
41	583951-00	GEAR CASE COVER	$26.16
43	401750-00SV	LEVER ASSY	$5.67
45	949638-02	PLUG, RUBBER	$1.24
47	930028-00	RING, O	$1.24
48	144803-00	RING, RET.	$1.40
49	397239-01	GEAR	$6.84
52	945706-00	CLUTCH	$9.08
54	000903-00	BALL	$1.24
55	401847-00	SEAL	$1.24
56	605256-01	SCREW	$1.24
57	5140021-91	CHUCK & KEY	$33.32
58	330034-08	KEY, CHUCK	$4.96
59	939794-00	HANDLE ASSEMBLY	$16.02
60	940357-00	GAUGE, DEPTH	$4.09
61	176949-17	BRUSH	$2.94
64	176811-00	BAFFLE	$6.42
70	390524-00	BRUSH HOLDER, R	$4.09
72	61145-00	RING	$1.40
73	641846-00	NAMEPLATE	$1.23
74	395047-00	ID LABEL	$1.24
76	176659-00	WASHER, THRUST	$1.88
77	50050-00	RING	$2.13
800	761995-01	GREASE, 6 OZ.	$29.72
800	283484-01	GREASE, 32 OZ.	$69.49
861	613598-00	KITBOX	$32.52
