DeWalt DW384-Type-2 Electric Saw Parts

DeWalt DW384-Type-2 Electric Saw Parts Image

DeWalt DW384-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

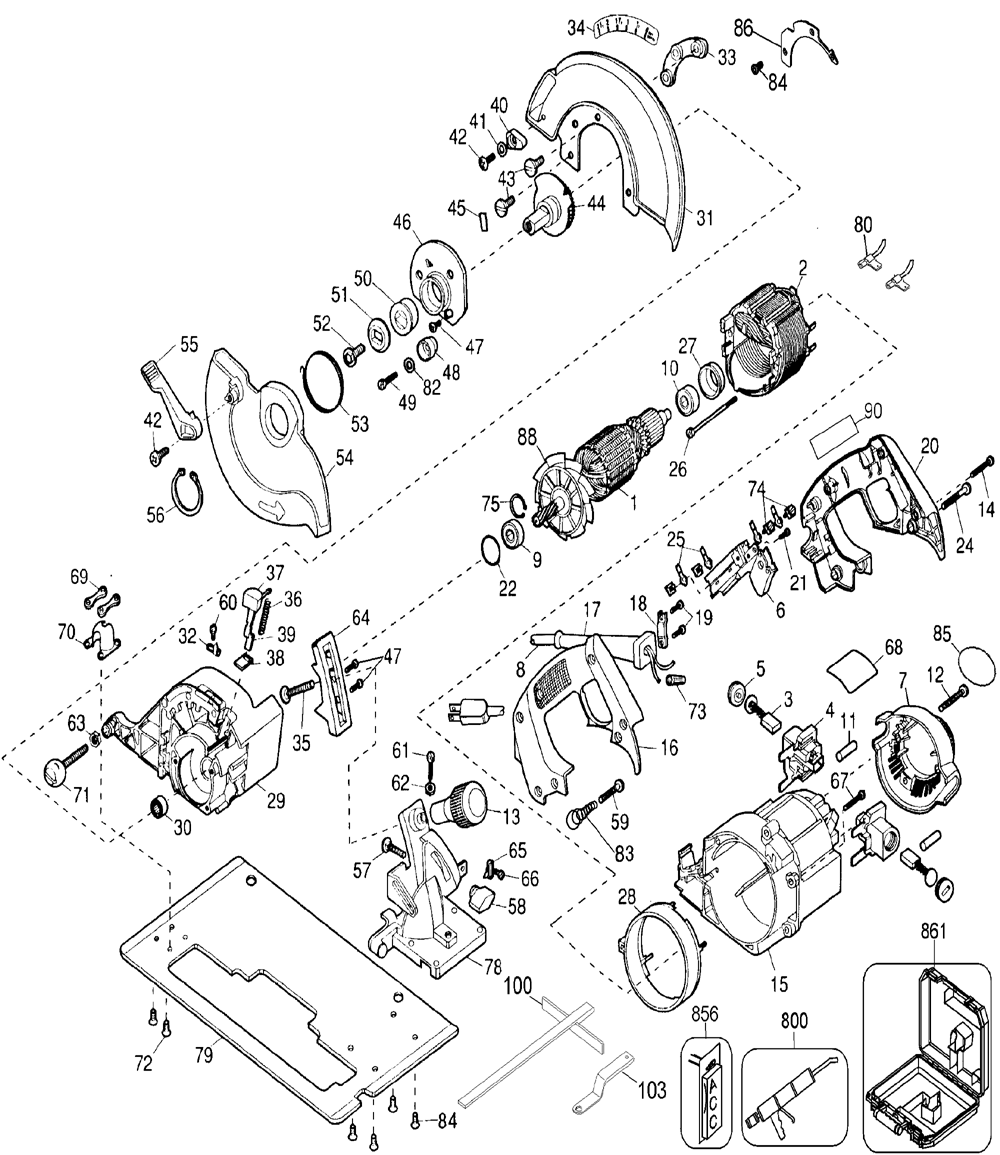

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	144785-12SV	ARMATURE & FAN	$86.39
2	N078040SV	FIELD	$53.41
3	145323-06	BRUSH	$5.92
4	147097-09	BRUSH HOLDER	$13.93
5	448084-01	CAP, BRUSH	$1.48
6	429977-00	SWITCH KIT	$24.95
7	382251-00	CAP, END	$6.42
8	330078-98	CORD/10 FT/16-2	$21.40
8	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
9	330003-75	BEARING, BALL	$9.12
10	330003-09	BEARING, BALL	$9.91
11	87205-00	PLUG	$1.24
12	330019-20	SCREW	$1.24
13	145439-04	KNOB	$7.98
14	330019-14	SCREW	$1.24
15	144945-05	FIELD CASE	$27.54
17	445338-00	PROTECTOR, CORD	$3.79
17	Boot-B	Strain Relief fits 14/2 + 16/2 + 16/3	$4.19
18	3618-00	CLAMP	$1.24
19	148461-00	SCREW, PLASTITE	$1.24
20	394149-01	HANDLE ASM	$13.98
21	330019-10	SCREW	$1.24
22	701297-00	O RING	$1.88
24	330019-21	SCREW	$1.24
25	053650-00	TERMINAL	$1.24
26	330019-19	SCREW, PLASTITE	$1.24
27	137382-00	SLEEVE	$1.40
28	145301-00	BAFFLE, FAN	$5.40
29	284466-00	CASE KIT, GEAR	$48.43
30	330004-06	BEARING, NEEDLE	$4.09
31	149519-02	GUARD, UPPER	$29.07
32	145340-00	POINTER	$1.24
33	5140030-87	SLIDER	$2.86
34	147193-02	LABEL, DEPTHSCAL	$1.58
35	148624-00	BOLT, SPECIAL	$1.40
36	150466-00	SPRING	$1.24
37	145350-00	BUTTON, LOCK	$1.40
38	145351-00	WIPER	$1.24
39	145349-00	LEVER, LOCK	$3.16
40	145318-00	BUMPER	$1.24
41	488807-00	FLAT WASHER	$1.12
42	098094-13	SCREW	$1.24
43	330045-55	SCREW	$1.23
43	151799-00	SCREW, SHOULDER	$1.24
44	145353-10SV	SPINDLE & GEAR	$56.30
45	147194-00	SEAL, FOAM	$1.24
46	610906-00	GEAR CASE COVER	$18.56
47	98102-13	SCREW	$1.24
48	145375-02	BUMPER	$1.24
49	98096-19	SCREW	$1.24
50	145342-00	WASHER, I.CLAMP	$6.16
51	145343-01	CLAMP, OUTER BLD	$3.81
52	145344-00	SCREW, SPECIAL	$1.24
53	605015-00	SPRING	$1.91
54	655180-00	LOWER GUARD	$22.97
55	389572-00	LEVER	$2.10
56	388496-00	RETAINING RING	$1.18
57	098128-35	CARRIAGE BOLT	$1.24
58	147107-00	KNOB	$3.64
59	144949-00	SCREW, SHOULDER	$1.24
60	330045-05	LOCK SCREW	$1.24
61	098004-36	SCREW	$1.24
62	330015-04	NUT, HEX	$1.23
63	330015-03	NUT, HEX	$1.36
64	147058-00	BRACKET, FRONT	$10.13
65	145341-00	POINTER	$1.24
66	330045-04	SCREW	$1.24
67	330045-19	SCREW	$1.24
69	145449-00	PLATE	$1.24
70	145423-01	CLAMP, BALL	$1.40
71	147099-00	SWIVEL, BALL	$8.45
72	98102-10	SCREW, M4-U0	$1.24
73	32114-01	CONNECTOR	$1.23
74	384127-01	SCREW	$1.24
75	144803-00	RING, RET.	$1.40
78	148194-00	QUADRANT/SLIDE	$33.12
79	145425-01SV	SHOE	$70.14
79	145315-01	SHOE	$40.41
80	145332-00	TERMINAL	$1.24
82	150246-00	WASHER, PLAIN	$1.24
83	150941-00	SPRING	$1.24
84	98102-08	SCREW, M4 X 12	$1.24
85	611980-00	IDENT. LABEL	$1.18
86	151108-00	SLIDE, RETAINER	$3.01
88	144793-00	FAN	$6.16
103	145378-01	WRENCH	$2.68
800	790206-00	GREASE, 6 OZ.	$36.71
861	621123-00	KIT BOX	$45.23
