DeWalt DW378GT-Type-1 Electric Saw Parts

DeWalt DW378GT-Type-1 Electric Saw Parts Image

DeWalt DW378GT-Type-1 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

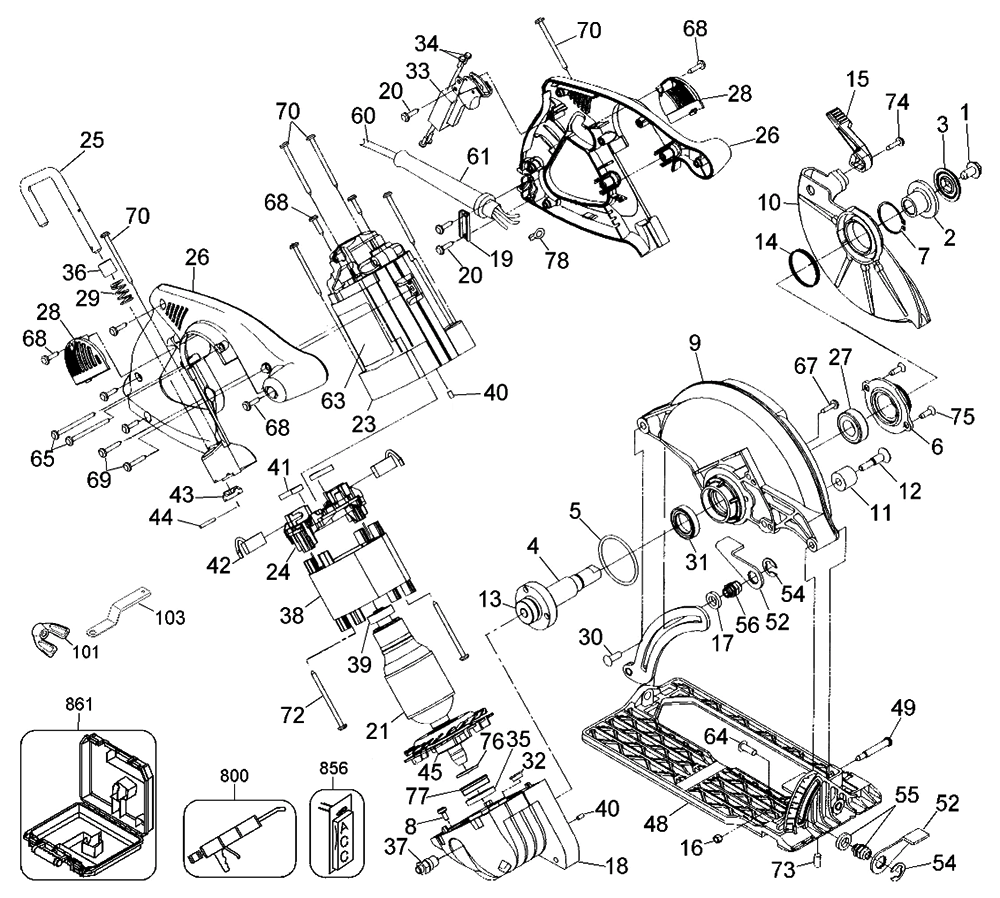

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	145344-01	BOLT	$1.40
2	381018-00	CLMP WASHER IN	$9.73
3	381017-00	CLMP WASHER OUT	$8.73
4	381004-00	SPINDLE ASM	$61.21
5	381067-00	O-RING	$1.24
6	647437-00	HUB & SPRING	$15.96
7	388496-00	RETAINING RING	$1.18
8	385865-00	SCREW	$1.24
9	381057-00SV	UPPER GUARD	$68.45
10	656823-00SV	LOWER GUARD	$21.62
11	381066-00	BUMPER	$1.24
12	381075-00	SHOULDER SCREW	$2.07
13	330003-08	BEARING, BALL	$10.00
14	647437-00	HUB & SPRING	$15.96
15	394877-00	L GUARD LEVER	$2.13
16	148641-00	NUT, LOCK	$1.24
17	610744-00	ACORN NUT	$2.07
18	381058-00SV	GEAR CASE ASM	$75.55
19	381065-00	CORD CLAMP	$1.24
20	330019-02	SCREW, PLASTITE	$1.23
21	381054-00SV	ARMATURE & BRGS	$98.30
23	381020-00	FIELD CASE	$16.26
24	381024-00	BRUSH RING ASM	$28.49
25	381050-01	HOOK	$5.11
26	381063-00	CLAMSHELL HDL	$20.20
27	330003-29	BALL BEARING	$12.17
28	381032-00	BRUSH DOOR	$2.07
29	381052-00	HOOK SPRING	$1.24
30	429913-00	BOLT & NUT	$3.09
31	381042-00	SHAFT SEAL	$3.72
32	381043-00	BREATHER	$7.25
33	381033-00	SWITCH	$14.70
34	384127-01	SCREW	$1.24
35	381059-00	SHAFT SEAL	$6.16
36	381051-00	BUSHING	$1.24
37	388828-00SV	SPINDLE LOCK	$19.23
38	381056-00	FIELD	$46.61
39	330003-09	BEARING, BALL	$9.91
40	145312-00	PLUG, RUBBER	$1.24
41	381024-00	BRUSH RING ASM	$28.49
42	381028-10	BRUSH & LEAD	$10.31
43	381053-00	DETENT BUSHING	$2.13
44	330043-01	COILED PIN	$1.24
45	330003-13	BEARING, BALL	$4.96
48	381071-00SV	SHOE	$61.21
49	396631-00	SHOULDER SCREW	$1.24
52	145347-00	LEVER, LOCK	$3.16
54	152211-00	RING, RETAINING	$1.40
55	610744-00	ACORN NUT	$2.07
56	610625-00	ACORN NUT	$2.45
60	386789-00	CORD/14-3SJ/9FT	$29.56
61	330005-02	PROTECTOR, CORD	$4.37
63	611967-00	NAMEPLATE	$0.94
64	098128-37	CARRIAGE BOLT	$1.24
65	330019-30	SCREW	$1.24
67	330045-15	SCREW, M5X20	$1.24
68	330019-13	SCREW, M4X19	$1.24
69	330019-14	SCREW	$1.24
70	330045-20	SCREW, M5X45	$1.24
72	330019-27	SCREW, TORX	$1.24
73	381069-00	SET SCREW	$1.24
74	098094-13	SCREW	$1.24
75	98103-17	SCREW	$1.24
76	381045-00	O-RING	$1.24
77	381068-00	SEAL SLEEVE	$11.24
78	150339-00	TERMINAL	$1.23
103	145378-01	WRENCH	$2.68
800	449562-01	LUBRICANT-6 OZ.	$26.65
