Dewalt DW359-Type-4 Electric Saw Parts

Dewalt DW359-Type-4  Electric Saw Parts Image

Dewalt DW359-Type-4 Parts
Time to buy a new tool?

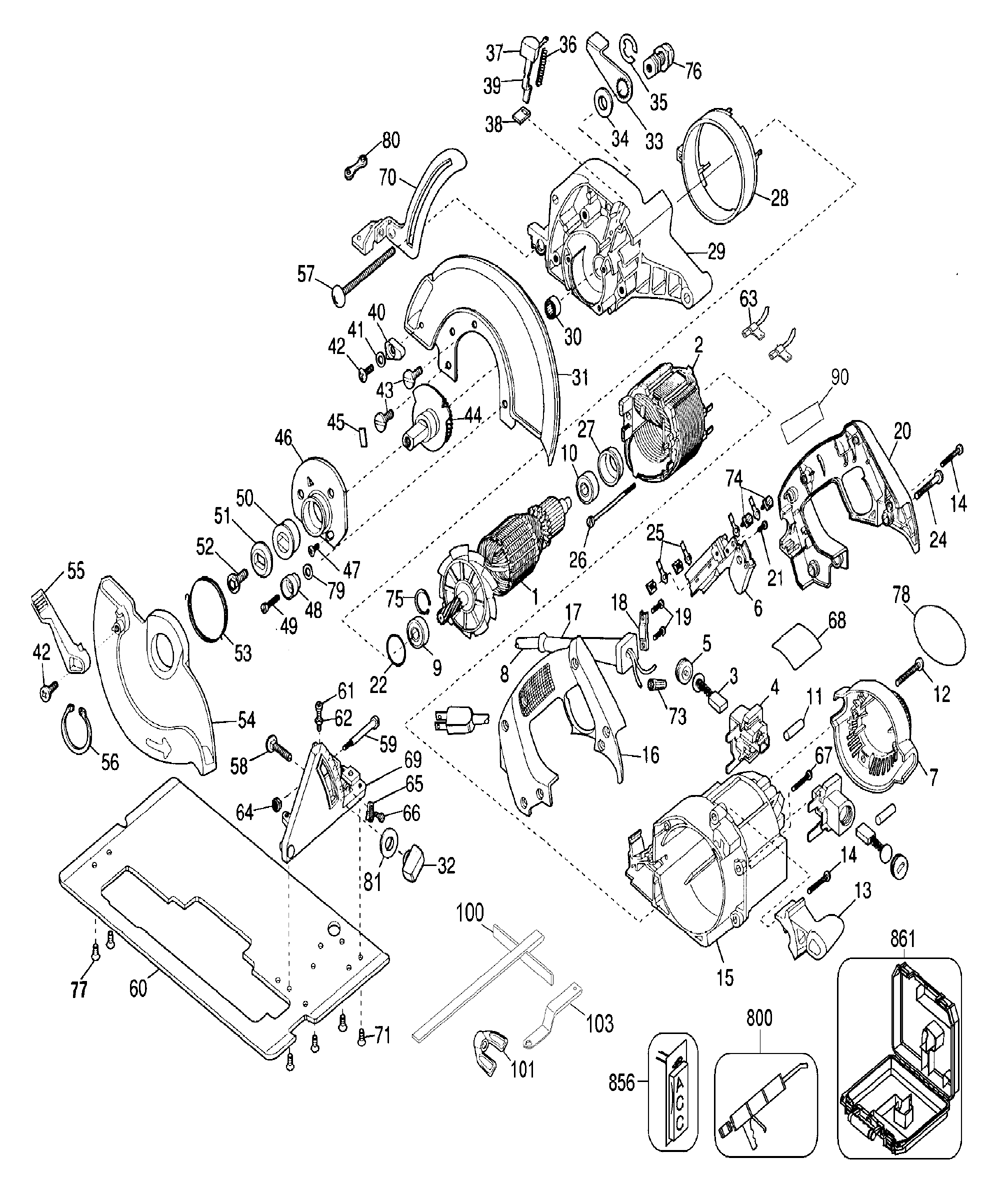

Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 380240-01 ARMATURE & FAN $67.10
2 144795-00 FIELD $32.57
3 145323-06 BRUSH (M34) $6.21
3 M34 This item will be shipped Free Carbon Brush Set of 2 Piece Replaces Dewalt 1453... $8.50
4 147097-09 BRUSH HOLDER $14.61
5 448084-01 CAP, BRUSH $1.54
6 395373-00 SWITCH $20.85
7 382251-00 CAP, END $6.72
8 330079-98 CORD/10FT/14-2SJ $19.29
9 330003-75 BEARING, BALL 6202-RS $9.57
9 SE 6202-RS This item will be shipped Free Superior Electric SE 6202-RS Replacement Ball Be... $7.99
9 SE 6202-2RS This item will be shipped Free Superior Electric SE 6202-2RS Replacement Ball B... $7.99
9 SE 6202ZZ This item will be shipped Free Superior Electric SE 6202ZZ Replacement Ball Bea... $7.99
10 330003-09 BEARING, BALL 6001ZZ $10.40
11 87205-00 PLUG $1.30
12 330019-20 SCREW $1.30
13 144942-02 HANDLE,FRONT $10.63
14 330019-14 SCREW $1.30
15 144945-05 FIELD CASE $27.54Disc
16 394149-00 HANDLE SET $14.68
17 445338-00 PROTECTOR, CORD $3.96
18 381065-00 CORD CLAMP $1.30
19 330019-11 SCREW $1.30
21 330019-10 SCREW $1.30
22 701297-00 O RING $1.97
24 330019-21 SCREW $1.30
25 053650-00 TERMINAL $1.30
26 330019-18 SCREW, PLASTITE $1.29
27 137382-01 "SLEEVE,RUBBER" $1.45
28 145301-01 BAFFLE,FAN $5.67
29 000000-00 No Longer Available $0.00Disc
30 330004-06 BEARING, NEEDLE $4.29
31 149519-00 GUARD,UPPER $27.25
32 395889-00 KNOB $1.30
33 145347-00 LEVER, LOCK $3.30
34 152014-00 WASHER $1.30
35 152211-00 RING, RETAINING $1.45
36 150466-00 SPRING $1.30
37 145350-00 BUTTON, LOCK $1.45
38 145351-00 WIPER $1.30
39 145349-00 LEVER, LOCK $3.30
40 145318-00 BUMPER $1.30
41 488807-00 Replaces 1246102 -FLAT WASHER $1.17
42 098094-13 SCREW $1.30
43 330045-23 SCREW, TAPTITE $1.27
44 145353-10SV SPINDLE & GEAR $59.11
45 147194-00 SEAL, FOAM $1.30
46 610906-00 GEAR CASE COVER $19.47
47 098102-13 SCREW $1.26
48 145375-02 BUMPER $1.30
49 330045-27 SCREW $1.30
50 145342-00 WASHER, I.CLAMP $6.46
51 145343-01 CLAMP, OUTER BLD $3.98
52 145344-00 SCREW, SPECIAL $1.30
53 605015-00 SPRING $1.99
54 655178-00 LOWER GUARD $12.34
55 389572-00 LEVER $2.20
56 388496-00 RETAINING RING $1.22
57 148457-00 BOLT,CARRIAGE $1.97
58 098128-25 BOLT, CARRIAGE $1.18
59 396631-00 SHOULDER SCREW $1.30
60 145319-05SV SHOE ASSY $62.29
60 388808-01 SHOE $27.10
61 098004-36 SCREW $1.30
62 330015-04 NUT, HEX $1.29
63 145332-00 TERMINAL $1.30
64 148641-00 NUT, LOCK $1.30
65 145341-00 POINTER $1.30
66 330045-04 SCREW $1.30
67 330045-19 SCREW $1.30
68 000000-00 No Longer Available $0.00Disc
69 148193-02SV QUADRANT $44.13
70 148195-00 BRACKET,PIVOT $20.03
71 98102-14 SCREW $1.30
73 32114-01 CONNECTOR $1.29
74 384127-01 SCREW $1.30
75 144803-00 RING, RET. $1.45
76 152015-03 NUT,ACORN $2.16
77 098102-13 SCREW $1.26
78 149521-01 LABEL,IDENT $1.30
79 150246-00 WASHER, PLAIN $1.30
80 145449-00 PLATE $1.30
81 46084-00 WASHER $1.30
100 DW3278 RIP FENCE $0.00Disc
103 145378-01 WRENCH $2.80
800 790206-00 GREASE, 6 OZ. $38.53
