Dewalt DW328K-Type-2 Electric Saw Parts

Dewalt DW328K-Type-2 Electric Saw Parts Image

Dewalt DW328K-Type-2 Parts

Download Schematic

Time to buy a new tool?

Dewalt DW328K-Type-2

Heavy-Duty Variable ...

$278.25

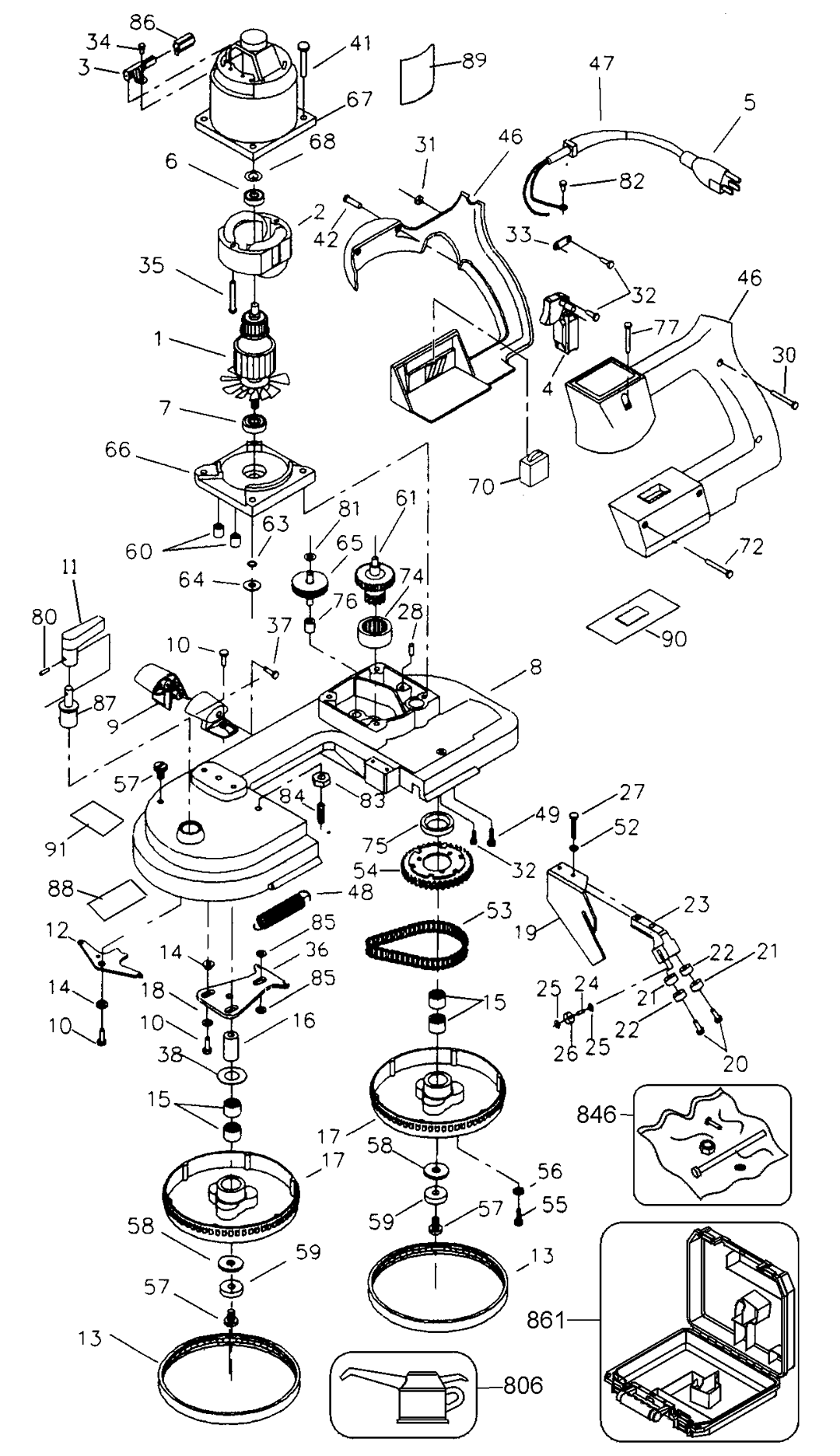

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A01749SV	ARMATURE	$57.24
2	886639	FIELD 120V T3	$56.95
3	874289	BRUSH & RETAINER ASY	$7.08
4	5140066-97	SWITCH	$19.27
5	879182	CORD	$11.68
6	855284	BEARING	$11.21
7	851054SV	BALL BEARING	$4.57
8	879811SV	FRAME ASSY	$95.75
9	A03070	SS/A HANDLE SET	$6.77
10	696276	SCREW	$1.09
11	865398	KNOB	$17.44
12	861851	YOKE	$36.48
13	A02807	PULLEY- RUBBER TIRE	$14.97
14	878725	BUSHING	$6.50
15	803858	BEARING	$8.32
16	863047	PULLEY SHAFT	$22.36
17	861702	DRIVE PULLEY	$41.87
18	802318	WASHER	$1.36
19	873951	STOP	$5.12
20	884286	SCREW	$1.36
21	863569	GUIDE	$4.47
22	849197SV	BALL BEARING	$4.89
23	872871	BLADE GUIDE HOLDER	$27.73
24	861663	PIN	$5.21
25	861664	WASHER	$1.36
26	N238459	BEARING REPLACES 882511SV	$3.20
27	866061	SCREW	$1.36
28	801710	PIN	$2.86
30	844644	SCREW	$1.36
31	869687	NUT	$1.28
32	859227	SCREW	$1.36
33	861434	CORD CLAMP	$1.36
34	859802	SCREW	$1.36
35	853480	SCREW	$1.28
36	878661	YOKE KIT	$36.48
37	879678	SCREW	$1.18
38	803679	WASHER	$1.36
41	838733	SCREW	$2.51
42	861810	SCREW	$1.28
47	810716	RELIEVER	$4.13
48	873581	SPRING	$12.36
49	864449	SCREW	$1.60
52	802429	INT LOCK WASHER	$1.36
53	888879	CHAIN	$22.36
54	877616	SPROCKET	$19.42
55	800191	SCREW	$1.36
56	802417	WASHER	$1.36
57	847213	SCREW	$1.36
58	863134	WASHER	$4.73
59	803435	WASHER	$1.36
60	841767	BEARING	$9.55
61	861131	SPUR GEAR	$56.22
63	802851	O RING	$1.36
64	862534	SLINGER	$1.91
65	861845	INTER GEAR	$54.26
66	861844	INTER PLATE ASY	$36.41
68	842610	SPRING-PRELOAD	$1.56
70	N059510	SPEED CONTROL	$13.80
72	860902	SCREW	$1.46
74	859849	BEARING	$10.94
75	865090	SEAL	$5.96
76	803193	BEARING	$6.44
77	878813	SCREW	$1.28
80	802329	PIN	$1.36
81	848741	WASHER	$1.36
82	802848	SCREW	$1.28
83	801372	NUT	$2.74
84	907133	SCREW	$6.94
85	802203	RING	$1.36
86	865323	BRUSH HOLDER	$2.17
87	696217	TENSION SHAFT	$22.43
846	694978	GUIDE HARDWARE	$50.60
861	884337	CARRYING CASE	$101.00
