DeWalt DW317K-Type-1 Electric Saw Parts

DeWalt DW317K-Type-1 Electric Saw Parts Image

DeWalt DW317K-Type-1 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
DeWalt DW317K-Type-1
Compact Jig Saw Kit
$79.00
Tool Diagram    (Click image to Zoom in) View larger Image

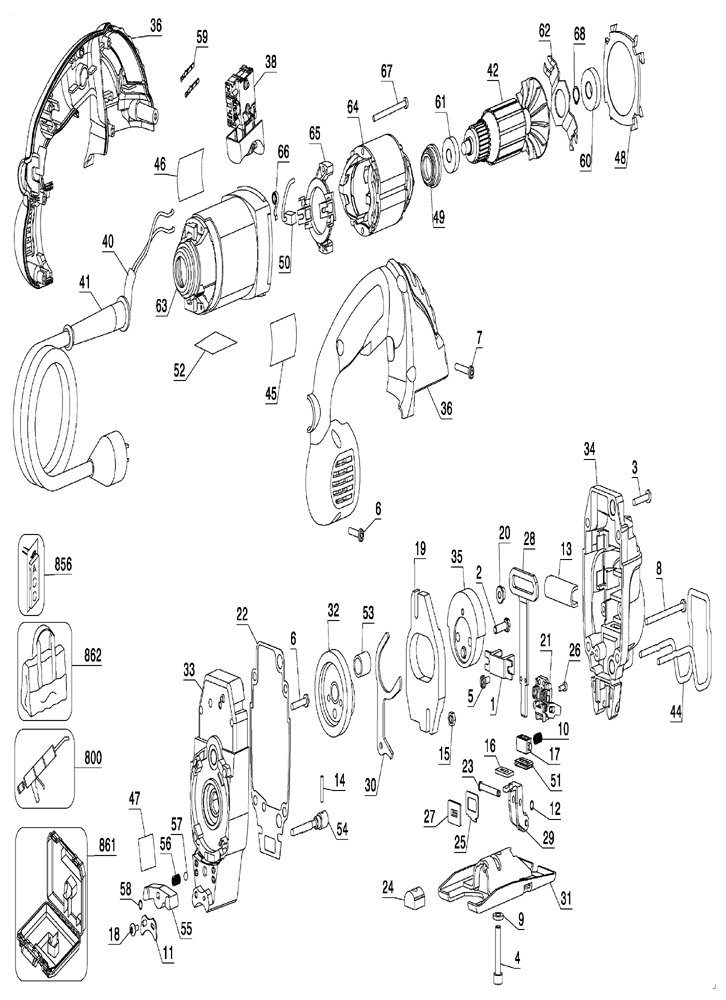

DeWalt DW317K-Type-1 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 627380-00 BEARING CARRIER $1.69
2 098022-26 SCREW $1.12
3 330045-08 SCREW $1.24
4 949701-13 SCREW $1.24
5 330045-45 SCREW $1.24
6 330019-14 SCREW $1.24
7 330019-13 SCREW, M4X19 $1.24
8 330019-27 SCREW, TORX $1.24
9 98198-05 WASHER $1.17
10 586646-00 SPRING, COMP. $1.84
11 449977-00 QUADRANT $3.64
12 133825-00 RING $1.24
13 626990-00 FELT OILER $1.43
14 98185-20 PIN $1.17
15 330015-07 NUT, HEX $1.24
16 582263-00 FELT SEAL $1.10
17 582259-00 BEARING $1.84
18 080164-00 SCREW $1.23

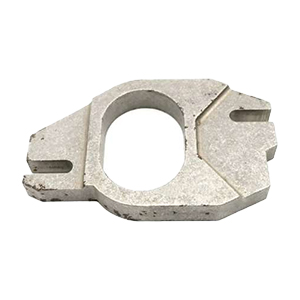

19 133761-00 WEIGHT $12.80
20 620203-01 ROLLER $1.28
21 623199-00 BLADE CLAMP ASY $9.29
22 623489-00 GASKET $1.43
23 133820-00 PIN $3.35
24 133750-00 CLAMP $3.64
25 133751-00 SHIELD $3.64
26 370167-00 SCREW $1.24
27 133755-00 SEAL $3.35
28 623188-00 RECIP. SHAFT $11.72
29 623190-00 BELL CRANK $5.98
30 133799-00 FORK $15.30
31 133770-00 SHOE $21.06
32 133827-02SV GEAR & BEARING $43.08
33 625341-00 GEAR CASE ASSEMBLY $35.33
34 623193-00 COVER $16.67
35 623201-00SV CRANK PLATE $3.13
36 623250-00 HANDLE SET $11.72
38 5140102-24 SWITCH KIT $24.98
40 330072-98 CORD/8FT/18-2SJ $11.53
40 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
41 330005-01 PROTECTOR, CORD $4.63
41 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
42 618805-00SV ARMATURE $28.52
44 625260-00 WIRE GUARD $4.31
45 625376-00 NAME PLATE $1.28
46 395047-00 ID LABEL $1.24
47 609729-00 LABEL, INSTR. $1.12
48 445876-00 BAFFLE, FAN $5.22
49 445217-01 RUBBER CUP $1.58
50 445861-25 BRUSH $5.28
51 582262-00 SEAL $1.10
52 627204-00 WARNING LABEL $1.28
53 330004-06 BEARING, NEEDLE $4.09
54 384199-00 ROD, CONTROL $7.61
55 448809-00 KNOB $5.40
56 604892-00 SPRING $1.24
57 475-00 BALL $1.24
58 384198-00 RING, RETAINING $2.77
59 449192-00 TERMINAL $1.24
60 605040-15 BALL BEARING $3.70
61 330003-04 BEARING, BALL $9.84
62 445874-00 BRG. RETAINER $1.24
63 445857-03 CASE, FIELD $15.02
64 618913-00 FIELD $12.05
65 449899-05 RING, BRUSH $15.30
66 445860-00 SPRING, BRUSH $3.01
67 445880-00 SCREW $1.24
68 444793-00 RING, RETAINING $1.24
800 283484-01 GREASE, 32 OZ. $69.49
800 761995-01 GREASE, 6 OZ. $29.72
861 393455-00 KIT BOX $45.94
