DeWalt DW310K-Type-1

1-1/8 Inch Heavy Dut...

$141.28

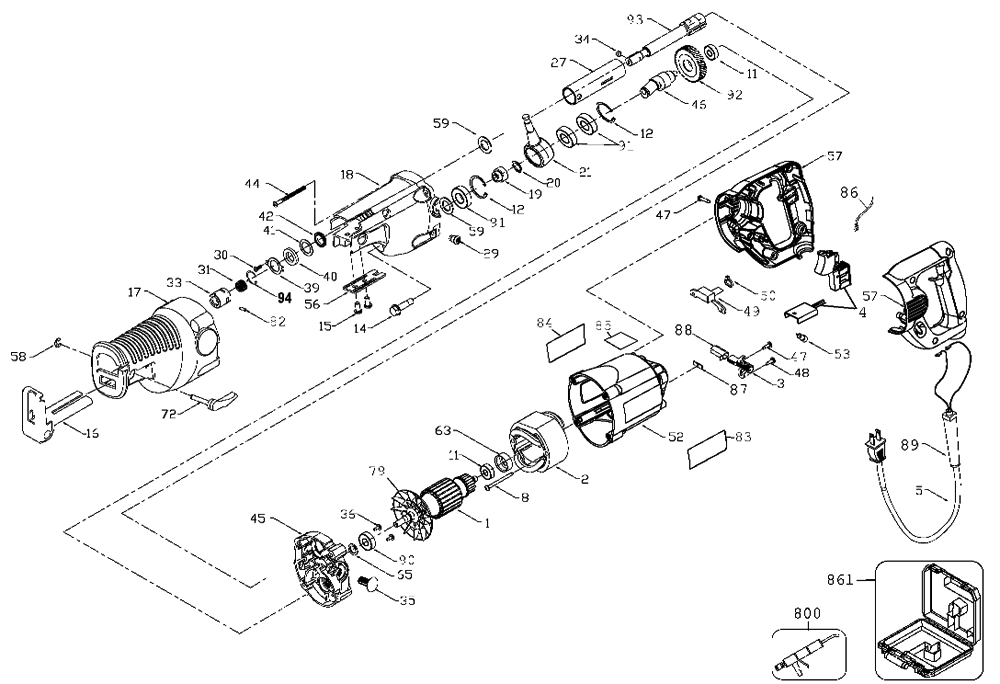

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	634812-00SV	ARMATURE	$56.95
2	634810-00SV	FIELD	$26.10
3	874289	BRUSH & RETAINER ASY	$7.08
4	N133290	VS SWITCH	$51.20
5	330081-08	CORD, 16-2SJ	$11.70
8	882704	SCREW	$1.36
11	855284	BEARING	$11.21
12	802302	RING	$1.36
14	879421	SCREW	$3.72
15	906952	SCREW	$1.28
16	911450SV	SS/A-SHOE ASSEMBLY	$12.27
17	906966	INSULATOR BOOT	$9.88
18	906701	FRONT HOUSING	$38.54
19	879429	SPACER	$1.36
20	853246	RING	$1.36
21	890819	WOBBLE PLATE	$15.80
27	883213	CARRIER TUBE ASSY	$16.19
29	892440	SET SCREW	$1.09
30	882255	SCREW	$1.36
31	648924-00	SPRING	$1.18
33	897774	COLLAR	$17.17
34	648594-00	CLAMP PIN	$2.98
35	879447	PLUG	$2.02
36	882187	SCREW	$1.36
39	879458	PLATE	$1.36
40	879457	FELT SEAL	$1.36
41	684931	WASHER	$1.28
42	902998	SEAL	$1.91
44	330019-19	SCREW, PLASTITE	$1.24
45	906705	INTERMEDIATE PLATE	$20.86
46	883097SV	DRIVE SHAFT	$28.87
47	330019-13	SCREW, M4X19	$1.24
48	882703	SCREW	$1.36
49	695077	MOUNTING BRKET TRIAC	$3.14
50	690673	WIRE TIE	$1.36
52	631342-00	FIELD CASE	$10.55
53	846249	NUT	$2.17
56	906043	PLATE	$2.35
57	631234-01	HANDLE SET	$15.96
58	697965	RET RING	$1.36
59	882348	FELT SEAL	$2.01
63	694432	BEARING MOUNT	$1.36
65	801852	SEAL	$1.36
72	651021-00	SHOE LEVER	$4.55
79	878904	FAN	$2.10
82	638557-00	SPIRAL PIN	$1.05
83	636945-00	ID LABEL	$1.05
84	616390-00	NAME PLATE	$1.05
85	636944-00	WARNING LABEL	$1.05
86	898878	LEAD	$1.84
87	865321	BRUSH INSULATOR	$1.36
88	865323	BRUSH HOLDER	$2.17
89	330005-01	PROTECTOR, CORD	$4.63
89	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
90	330003-17	BEARING, BALL	$9.84
91	879431	BEARING-BALL	$3.49
92	879401	GEAR	$13.87
93	N074353	RECIP-SHAFT KIT	$56.64
800	286445-00	GREASE.14 OZ.	$11.08
800	875914	TUBE GREASE	$10.31
800	875667	LUBRICANT-4LBS	$39.32
861	635353-00	KIT BOX	$38.16
