DeWalt DW304PK-Type-2 Electric Saw Parts

DeWalt DW304PK-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

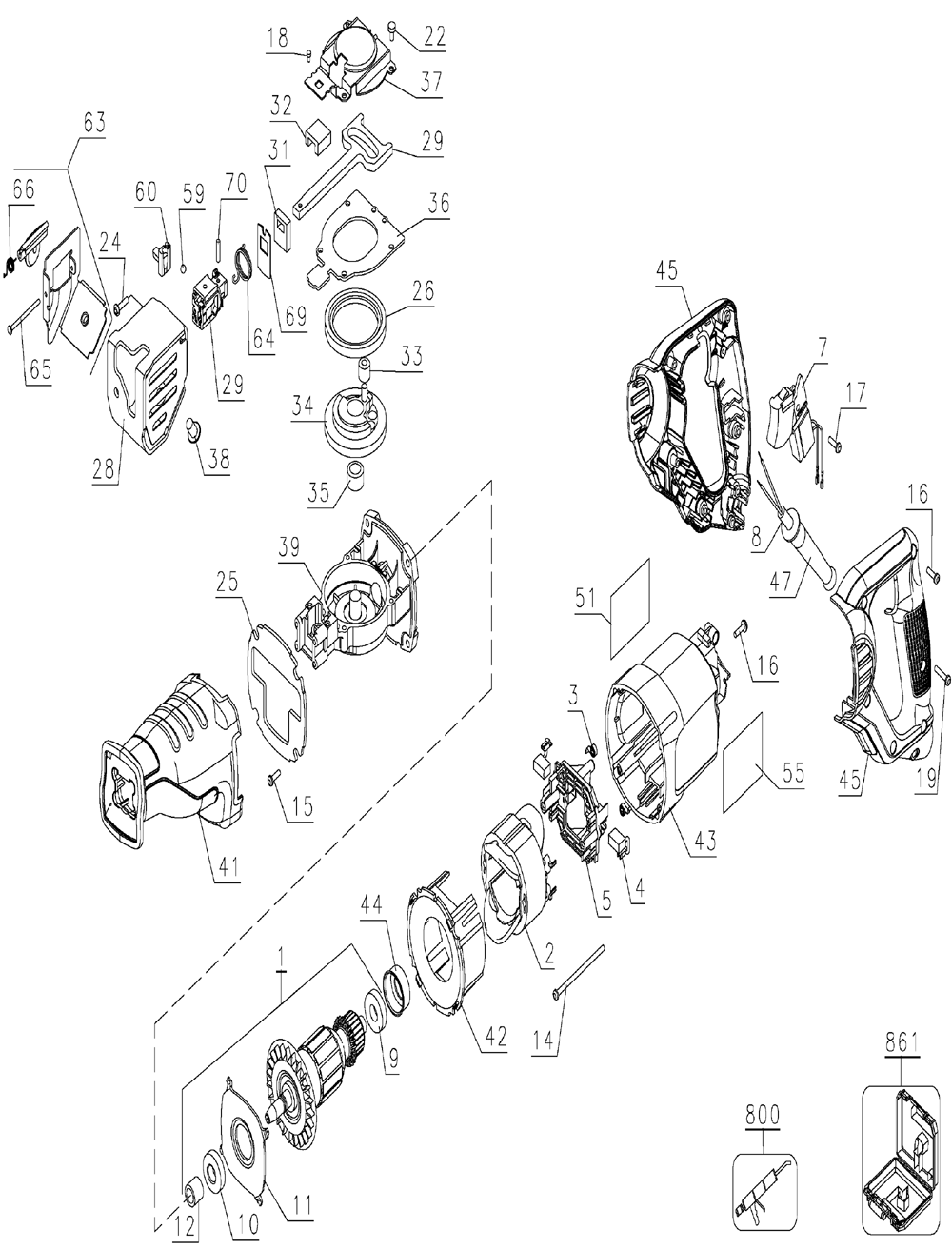

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	616355-00SV	ARMATURE & BRGS.	$39.47
2	448719-80SV	FIELD	$17.16
3	383387-00	SPRING, BRUSH	$4.28
4	384719-01	BRUSH	$3.58
5	383597-01	RING, BRUSH	$18.12
7	N054825SV	SWITCH	$36.33
8	330072-98	CORD/8FT/18-2SJ	$11.53
8	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
9	330003-09	BEARING, BALL	$9.91
10	330003-09	BEARING, BALL	$9.91
11	383476-00	PLATE, BEARING	$3.16
12	616345-00	PINION SUPPORT	$1.89
14	330019-18	SCREW, PLASTITE	$1.23
15	330019-15	SCREW	$1.24
16	330019-32	SCREW	$1.23
17	330019-01	SCREW, TORX HD	$1.23
18	158472-00	SCREW	$1.24
19	330019-14	SCREW	$1.24
22	144457-02	SCREW	$1.24
24	142940-00	SCREW	$1.24
25	146576-00	GASKET	$4.47
26	616393-00	THRUST RING	$3.09
28	616340-00	SHOE	$7.00
29	N064499SV	SHAFT ASSEMBLY	$26.08
31	609488-00	FELT SEAL	$1.24
32	604644-01	BEARING	$3.81
33	385238-00	NEEDLE BEARING	$3.72
34	448503-14SV	GEAR	$48.76
35	135531-00	BEARING, NEEDLE	$4.09
36	616394-00	PLATE	$3.51
37	448489-03	PLATE, COVER	$8.91
38	099279-08	SCREW	$1.24
39	616333-00SV	GEAR CASE	$23.11
41	N028019	COVER	$8.46
42	382750-01	FAN BAFFLE	$4.09
43	382747-12	FIELD CASE	$10.91
44	137382-02	SLEEVE	$1.21
45	N017723	HANDLE SET	$9.17
47	330005-01	PROTECTOR, CORD	$4.63
47	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
51	N083667	NAMEPLATE	$1.30
55	627212-00	ID LABEL	$1.28
59	000903-00	BALL	$1.24
60	N092351	SLIDER	$8.77
60	616363-00	SLIDER	$5.28
63	616356-00	LEVER ASSEMBLY	$4.31
64	616343-01	SPRING	$1.10
65	396016-00	PIN	$1.24
66	396017-00	SPRING	$1.24
69	608202-00	RETAINER	$1.21
70	330041-27	ROLL PIN	$1.24
800	429698-00	GREASE:4 LB CAN	$72.67
861	N003337	KITBOX	$27.34
