DeWalt DW239 Electric Drill & Driver Parts

DeWalt DW239 Electric Drill & Driver Parts Image

DeWalt DW239 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW239

1/2 Inch 0-850 RPM V...

$139.23

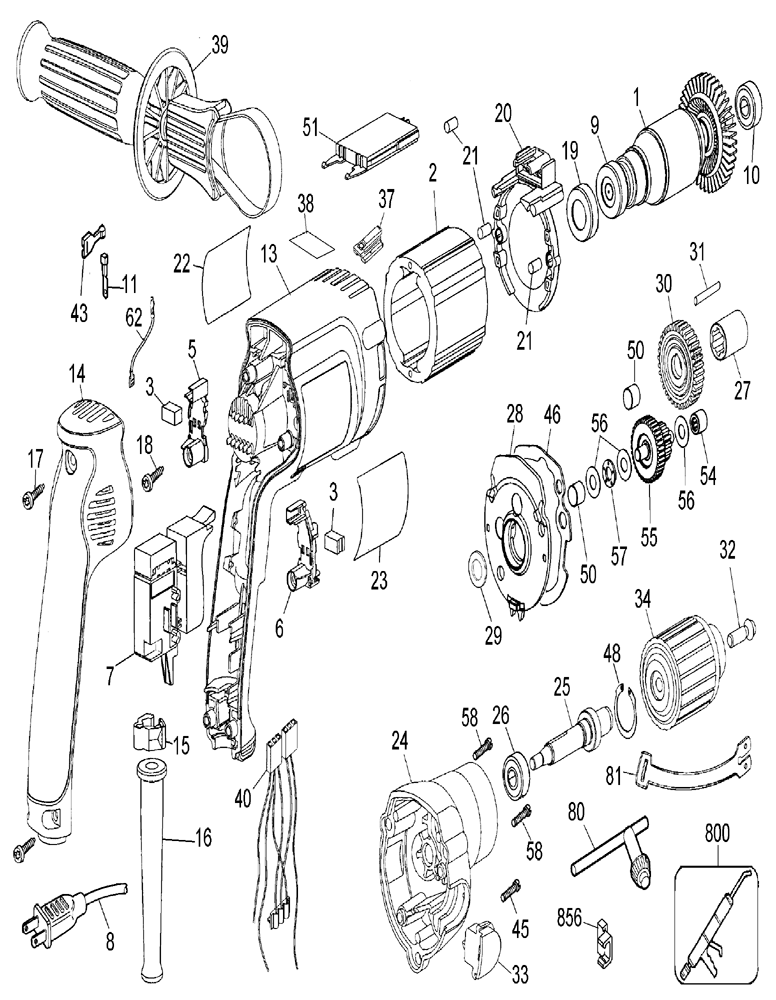

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	176850-00SV	ARMATURE & FAN	$44.96
2	176848-00SV	FIELD	$31.74
3	176846-04	BRUSH	$3.26
3	G58	Carbon Brush Set	$8.19
5	176801-02	HOLDER, LT.BRUSH	$5.49
6	176800-02	HOLDER, RT.BRUSH	$5.49
7	176830-00	SWITCH, VSR	$22.18
8	330072-98	CORD/8FT/18-2SJ	$11.53
8	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
10	330003-04	BEARING, BALL	$9.84
11	449192-00	TERMINAL	$1.24
13	390005-05	FIELD CASE	$11.99
14	610141-01	HANDLE COVER	$19.92
15	176829-00	CLAMP, CORD	$1.40
16	330005-01	PROTECTOR, CORD	$4.63
16	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
17	330065-08	SCREW	$1.24
18	176951-00	SCREW	$1.24
19	132332-00	SLEEVE	$3.16
20	176811-00	BAFFLE	$6.42
21	949638-02	PLUG, RUBBER	$1.24
22	395047-00	ID LABEL	$1.24
23	611754-00	NAME PLATE	$1.05
24	176634-06SV	GEAR CASE	$21.61
25	176638-00	SPINDLE, OUTPUT	$19.09
26	330003-09	BEARING, BALL	$9.91
27	176691-00	SPACER	$2.44
28	388761-00	GEAR CASE COVER	$9.94
29	23813-00	WASHER	$1.24
30	176639-00	GEAR, OUTPUT	$19.09
31	099227-05	PIN	$1.24
32	605256-01	SCREW	$1.24
33	176640-00	CAP	$2.77
34	429662-00	1/2 CHUCK & KEY	$53.11
37	176947-00	LENS	$2.07
38	607963-00	LABEL	$1.21
39	382272-00	HANDLE ASY, SIDE	$17.07
40	176866-00	HARNESS, WIRE	$26.38
43	136086-02	TERMINAL	$1.24
45	330019-14	SCREW	$1.24
46	176655-00	GASKET	$2.44
48	087692-00	RET RING	$3.35
50	093128-00	NEEDLE BEARING	$3.32
51	622427-02	MODULE	$51.89
54	330004-00	BEARING, NEEDLE	$2.59
55	176647-00SV	SPINDLE&GEAR	$27.55
56	091817-00	WASHER	$1.24
57	091644-00	THRUST BEARING	$5.11
58	330019-16	SCREW	$1.24
62	176860-00	LEADWIRE	$1.24
80	330034-06	CHUCK KEY	$5.76
80	330034-03	CHUCK KEY	$6.37
81	065288-02	HOLDER	$2.13
800	286436-00	GREASE	$87.14
856	176929-00	CLIP, LOCK-OUT	$1.24
