DeWalt DW235G-Type-3 Electric Drill & Driver Parts

DeWalt DW235G-Type-3 Electric Drill & Driver Parts Image

DeWalt DW235G-Type-3 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

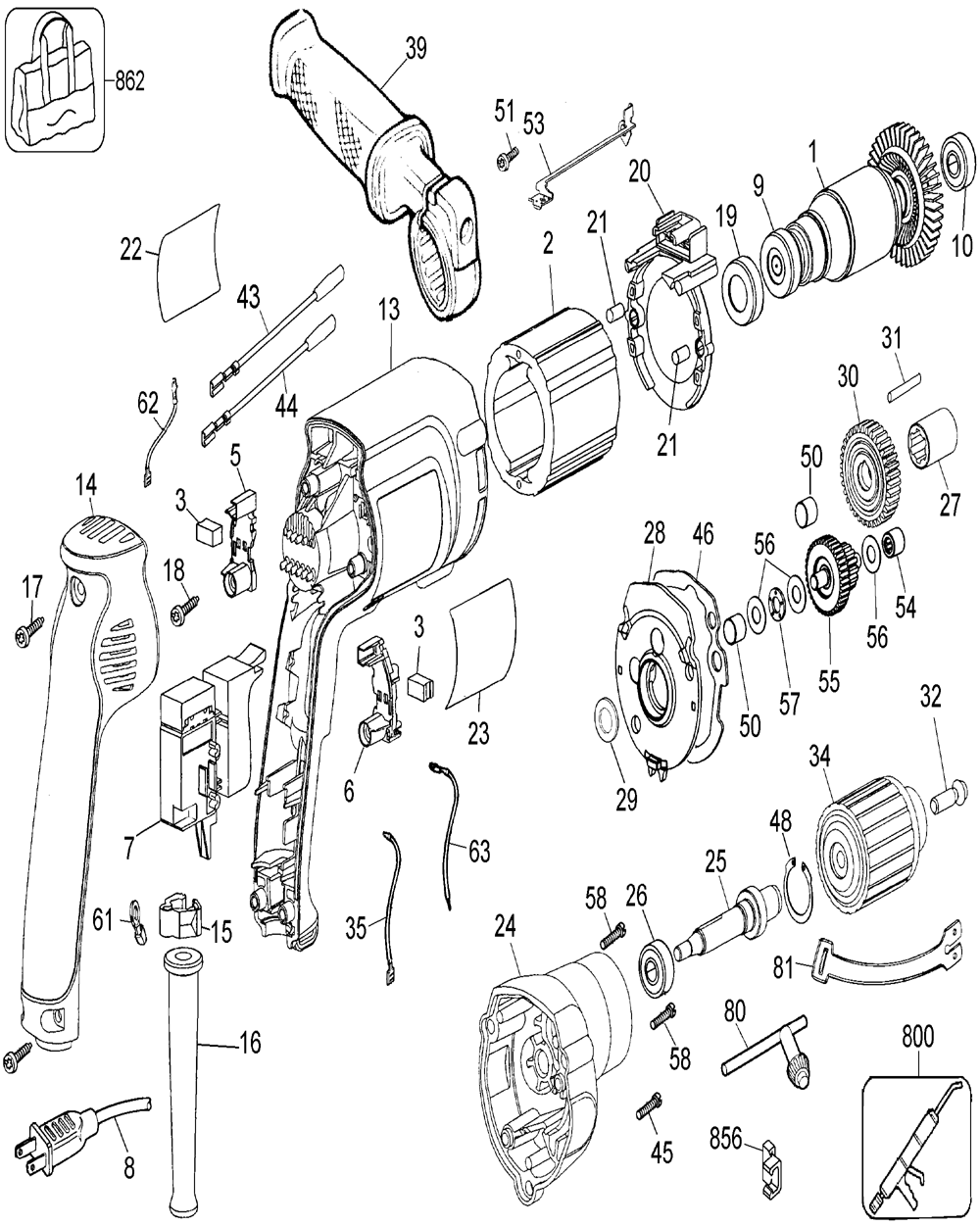

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	176850-00SV	ARMATURE & FAN	$44.96
2	176848-00SV	FIELD	$31.74
3	176846-04	BRUSH	$3.26
3	G58	Carbon Brush Set Replaces Dewalt 176846-04, 1768...	$8.50
5	176801-02	HOLDER, LT.BRUSH	$5.49
6	176800-02	HOLDER, RT.BRUSH	$5.49
7	621884-00	SWITCH	$33.32
8	N081018	CORDSET	$13.55
9	330003-04	BEARING, BALL	$9.84
10	330003-04	BEARING, BALL	$9.84
13	604996-01	FIELD CASE	$8.44
14	610142-02	HANDLE COVER	$5.36
15	176833-00	CLAMP, CORD	$1.88
16	330005-01	PROTECTOR, CORD	$4.63
16	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
17	330019-13	SCREW, M4X19	$1.24
18	176951-00	SCREW	$1.24
19	389824-00	CUP	$2.35
20	176811-00	BAFFLE	$6.42
21	949638-02	PLUG, RUBBER	$1.24
22	395047-00	ID LABEL	$1.24
23	N081026	NAMEPLATE	$1.16
24	176634-06SV	GEAR CASE	$21.61
25	176638-00	SPINDLE, OUTPUT	$19.09
26	330003-09	BEARING, BALL	$9.91
27	176691-00	SPACER	$2.44
28	388761-00	GEAR CASE COVER	$9.94
29	23813-00	WASHER	$1.24
30	176639-00	GEAR, OUTPUT	$19.09
31	099227-05	PIN	$1.24
32	605256-01	SCREW	$1.24
34	5140060-13	1/2 CHUCK & KEY	$47.87
35	N081029	LEADWIRE ASSY.	$1.16
39	939794-00	HANDLE ASSEMBLY	$16.02
43	616118-02	LEADWIRE ASSY.	$1.21
44	616118-03	LEADWIRE ASSY.	$1.21
45	330019-14	SCREW	$1.24
46	176655-00	GASKET	$2.44
48	087692-00	RET RING	$3.35
50	093128-00	NEEDLE BEARING	$3.32
51	176923-00	SCREW	$1.24
53	176813-00	STRAP, GROUND	$3.35
54	330004-00	BEARING, NEEDLE	$2.59
55	176647-00SV	SPINDLE&GEAR	$27.55
56	091817-00	WASHER	$1.24
57	091644-00	THRUST BEARING	$5.11
58	330019-16	SCREW	$1.24
61	053650-00	TERMINAL	$1.24
62	176860-00	LEADWIRE	$1.24
63	176860-03	LEADWIRE	$1.60
80	330034-16	CHUCK KEY	$1.98
81	065288-02	HOLDER	$2.13
800	286436-00	GREASE	$87.14
856	659129-00	"CLIP,LOCK-OUT"	$1.21
862	629053-00	TOOL BAG	$23.26
