DeWalt DW120K
1/2 Inch Heavy Duty ...
$263.56
Tool Diagram    (Click image to Zoom in) View larger Image

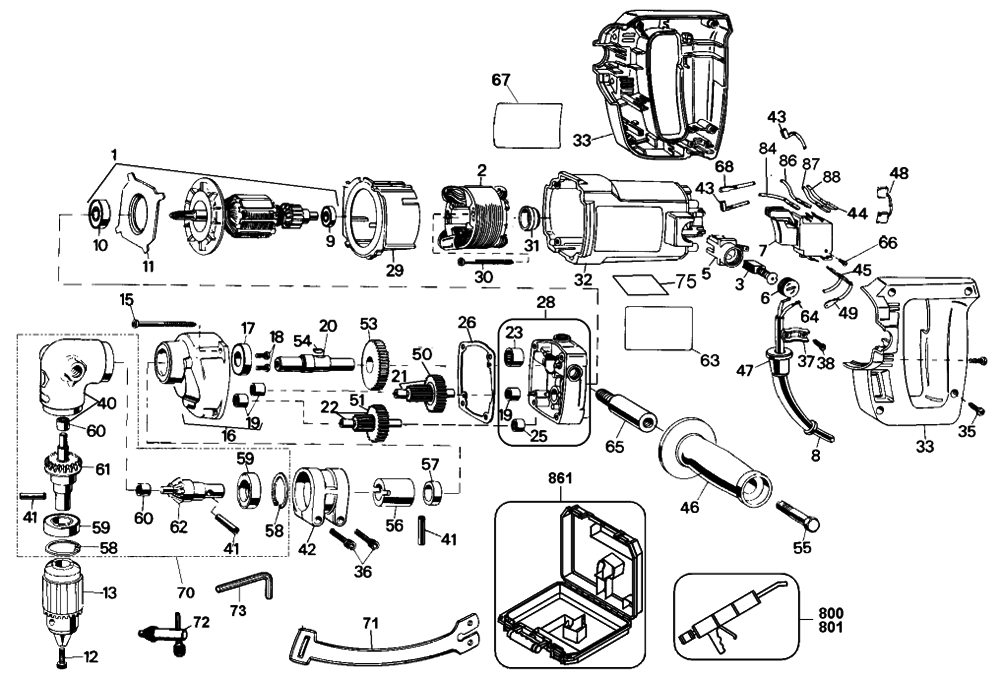

DeWalt DW120K Electric Drill & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 450130-00SV ARMATURE & FAN $68.45
2 449458-71SV FIELD $28.98
3 450374-12 BRUSH & SPRING $5.11
3 M11 This item will be shipped Free Carbon Brush Set Replaces Dewalt 450374-12, 4503... $8.50
5 448083-01 HOLDER, BRUSH $7.35
6 448084-01 CAP, BRUSH $1.48
7 88324-01 SWITCH, TRIGGER $34.86
8 330072-98 CORD/8FT/18-2SJ $11.53
8 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
9 330003-04 BEARING, BALL $9.84
10 330003-09 BEARING, BALL $9.91
11 448079-00 PLATE, BEARING $5.40
12 016643-00 SCREW $1.24
13 429598-00 CHUCK & KEY $102.94
15 330019-30 SCREW $1.24
16 449481-00SV CASE- GEAR $25.77
17 700964-00 BEARING, BALL $8.56
18 052819-00 SCREW $1.24
19 330004-02 BEARING, NEEDLE $4.28
20 450494-00 SPINDLE $34.93
21 449489-02 GEAR&SPINDLE $31.31
22 449486-02 SPINDLE & GEAR $32.61
23 135937-00 BEARING, ROLLER $3.35
25 449493-00 BEARING, NEEDLE $3.13
26 450485-00 GASKET $4.28
28 449483-00SV COVER-GEAR CASE $46.10
29 447786-00 BAFFLE, FAN $8.11
30 330019-18 SCREW, PLASTITE $1.23
31 445217-02 SLEEVE $2.77
32 447799-07 CASE, FIELD $17.54
33 450498-08 HANDLE ASSEMBLY $18.02
35 330019-13 SCREW, M4X19 $1.24
36 15559-00 SCREW $1.89
37 86634-00 CLAMP, CORD, CURV $2.07
38 330013-03 SCREW $1.24
40 N063572 HOUSING & SIDE HNDL $72.64
41 157326-00 PIN, SPIRAL $2.21
43 135110-00 TERMINAL $1.24
44 680131-01 RECEPTACLE $1.23
45 136086-00 TERMINAL $1.24
46 086319-20 SIDE HANDLE $3.51
46 625712-00 SIDE HANDLE $8.44
47 330005-01 PROTECTOR, CORD $4.63
47 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
48 158491-00 LEAD $1.40
49 146459-00 TERMINAL $1.24
50 450492-00 GEAR $21.69
51 449487-00 GEAR $16.02
53 400147-00 GEAR $18.20
54 007027-00 KEY $1.24
55 086319-20 SIDE HANDLE $3.51
56 450497-00 ADAPTOR $8.45
57 450502-00 SPACER $7.04
58 046934-00 RING $2.59
59 330003-16 BEARING, BALL $10.38
60 037462-00 NEEDLE BEARING $3.64
61 133294-01 GEAR $78.65
62 133295-01 PINION $80.58
63 627212-00 ID LABEL $1.28
64 64787-00 TERMINAL $1.17
65 625712-00 SIDE HANDLE $8.44
66 98001-06 SCREW $1.24
67 651678-00 NAME PLATE $1.18
68 448172-00 TERMINAL $1.24
70 N054799SV HEAD ASSY $140.98
71 065288-02 HOLDER $2.13
72 330034-03 CHUCK KEY $6.37
72 625712-00 SIDE HANDLE $8.44
72 131296-16 CHUCK KEY $22.84
73 444402-00 WRENCH $3.01
75 651681-00 WARNING LABEL $1.50
800 429698-00 GREASE:4 LB CAN $72.67
861 380865-02 KIT, HANDLE $2.25
861 637475-00 LATCH ASSEMBLY $3.38
861 381189-00 BOX, KIT $50.52
