DeWalt DW078KE

18V Self Leveling Ex...

$784.99

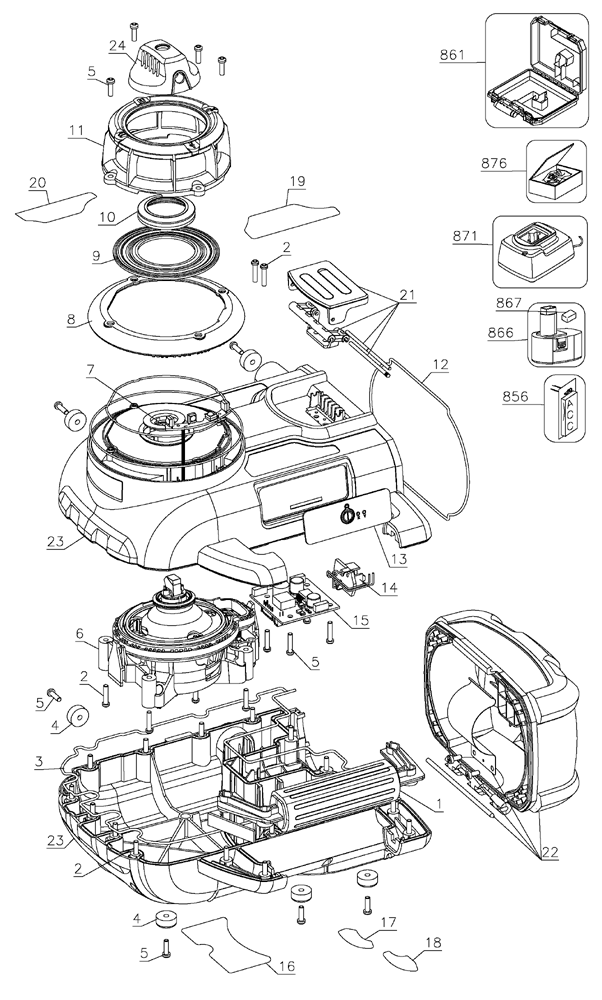

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140048-00	HANDLE	$31.74
2	5140048-14	SCREW	$1.36
3	5140048-08	O RING	$13.46
4	387857-00	RUBBER FEET	$5.43
5	5140048-15	SCREW	$1.36
6	5140048-05	CORE MECHANISM	$974.73
7	5140048-17	PCB ASSEMBLY	$60.48
8	5140048-18	WINDOW	$11.28
9	5140048-10	BELLOWS RETAINER	$5.99
10	5140048-13	BELLOWS	$9.04
11	5140048-01	ROLL CAGE	$97.66
12	5140048-09	O RING	$9.04
13	650590-00	KEYPAD	$41.19
14	5140048-11	TERMINAL BLOCK	$2.44
15	5140048-07	REGULATOR ASSEMBLY	$132.74
16	659409-00	NAME PLATE	$20.59
17	647205-00	LABEL	$17.21
18	647206-00	LABEL	$17.21
19	647203-00	DANGER LABEL	$11.76
20	648561-00	DANGER LABEL	$11.76
21	5140048-04	LATCH ASSEMBLY	$92.94
22	5140048-03	BATTERY DOOR	$80.58
23	5140048-02	CLAMSHELL SET	$331.54
24	5140056-85	PRISM COVER	$13.46
856	650563-00	REMOTE ASSY	$46.37
856	5140056-83	REMOTE DOOR ASSY	$2.86
861	648493-00	KIT BOX	$55.84
867	645221-00	BATTERY CAP	$1.18
871	388683-12	1 HOUR CHARGER	$80.53
876	5140048-06	SHIPPING CARTON	$72.55
