DeWalt DW073K

18-Volt Heavy Duty C...

$372.99

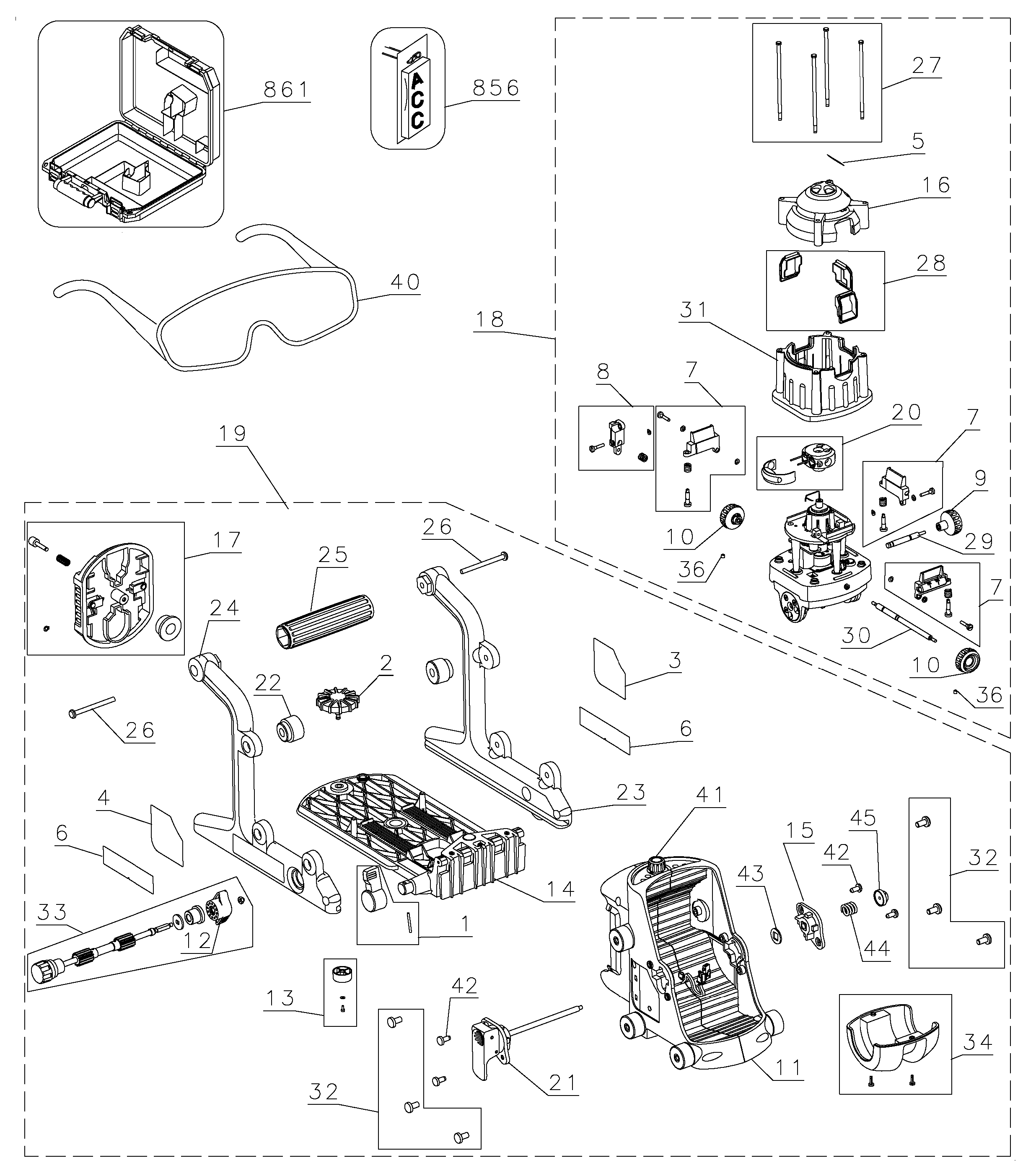

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	593054-00	LOCK KNOB	$1.43
2	595613-00	BASE OFFSET KNOB KIT	$3.58
3	429980-03	WARNING LABEL	$1.17
4	100-000402-001	NAME PLATE	$1.19
5	429980-05	WARNING LABEL	$1.17
6	429980-06	ROLLBAR LABEL	$1.17
7	595499-00	VIAL REPAIR KIT	$12.05
8	595612-00	PLUMB VIAL REPL. KIT	$6.79
9	638757-00SV	ADJ. KNOB (Y)	$2.22
10	638757-01	ADJ. KNOB (X)	$2.97
11	595521-00	CONTROL HOUSING WITH CAGE	$224.59
12	429980-12	PINION LOCK KNOB	$3.56
13	595613-00	BASE OFFSET KNOB KIT	$3.58
14	429980-14	BASEPLATE	$46.69
15	595547-00	RT PIVOT INSERT	$1.20
16	429980-16	JAMPOT CAP	$22.54
18	429980-18	CALIBRATED UNIT & JAMPOT	$400.43
19	595521-00	CONTROL HOUSING WITH CAGE	$224.59
20	429980-20	LASER HEAD	$220.67
21	429980-21	LEFT PIVOT INSERT	$13.93
22	200-000130-001	ISOLATOR	$12.44
23	593065-00	ROLL CAGE-RIGHT	$8.96
24	593066-00	ROLL CAGE-LEFT	$8.96
25	604660-00	HANDLE	$3.41
26	429980-26	SCREW	$1.94
27	100-000590-001	SCREW	$1.21
28	429980-28	WINDOW FRAME	$1.17
29	593309-00	ADJ. SCREW SHORT	$4.73
30	593308-00	ADJ. SCREW LONG	$6.03
31	593005-00	JAMPOT	$5.99
32	100-000489-001	SCREW	$1.24
33	200-000157-001	SHAFT REPAIR KIT	$32.78
34	429980-41	FARING	$5.77
36	593277-00	SET SCREW	$1.20
40	603367-00	GLASSES	$18.66
41	593150-00	KNOB	$1.91
42	593267-00	SCREW, THD.FORM	$1.16
43	593257-00	SPECIAL WASHER	$1.04
44	593283-00	SPRING	$1.04
45	593284-00	PIVOT NUT	$2.51
856	388683-12	1 HOUR CHARGER	$80.53
856	651034-01	BATTERY PACK	$117.91
856	595553-00	TARGET CARD	$8.86
861	398937-00	KITBOX	$84.36
866	651034-01	BATTERY PACK	$117.91
