DeWalt DG7000BC Generator Parts

DeWalt DG7000BC Parts

Download Schematic

Time to buy a new tool?

DeWalt DG7000BC

7000 Watt Commercial...

$2,369.99

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

Page-8

Page-9

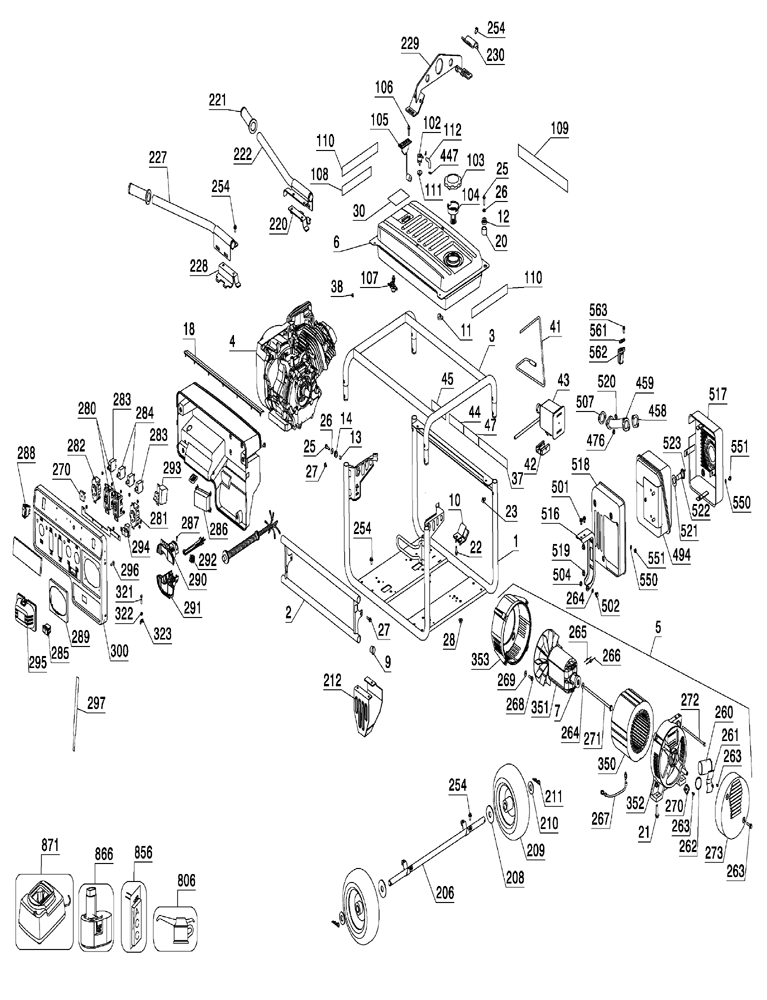

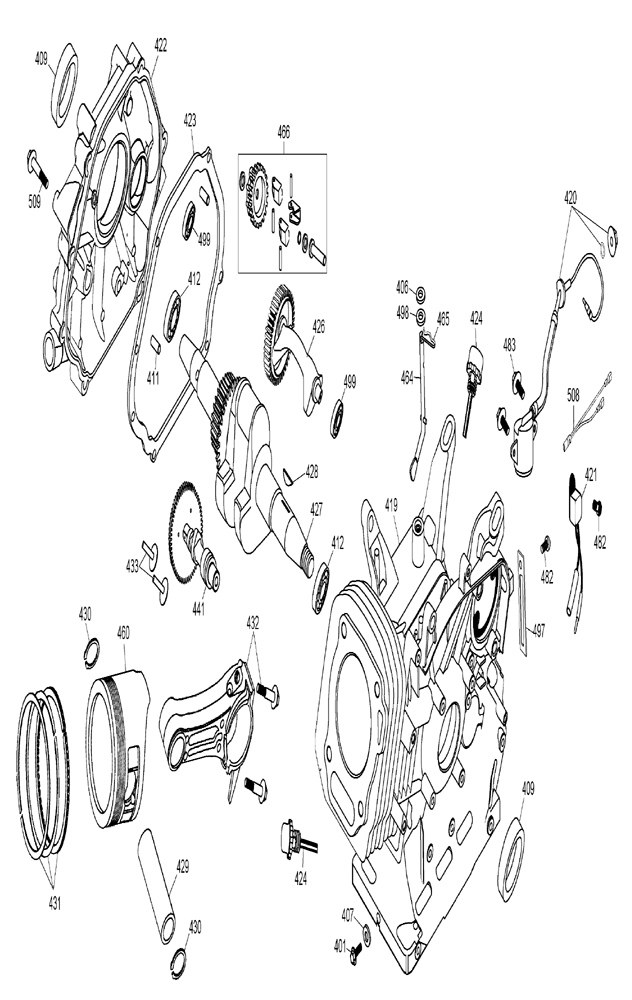

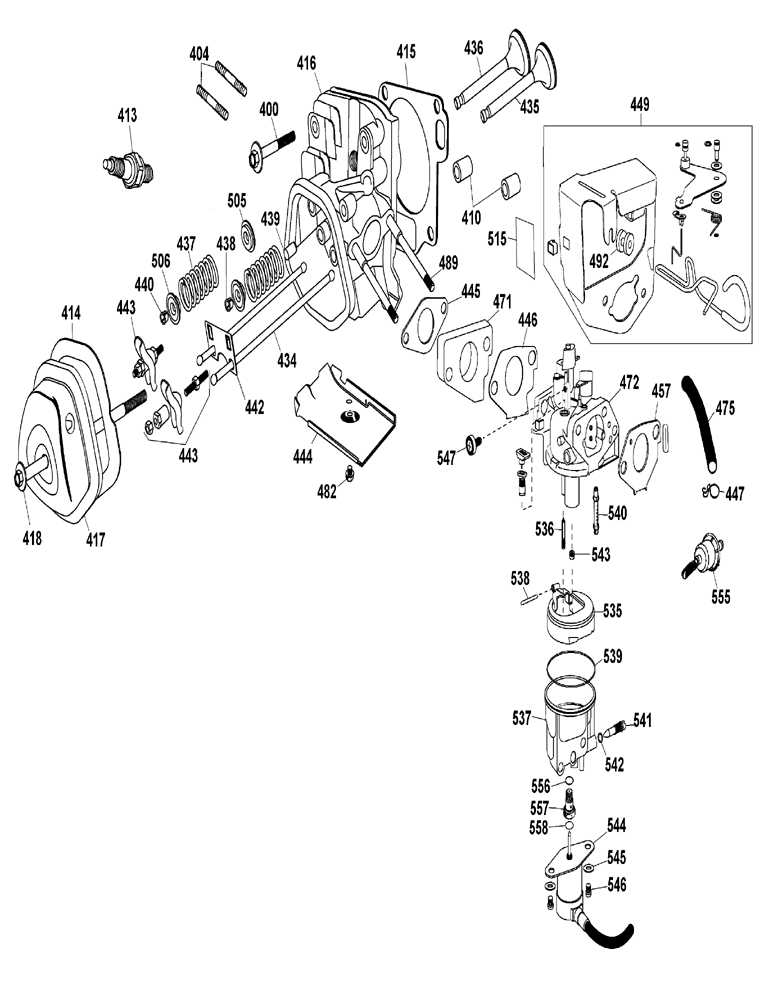

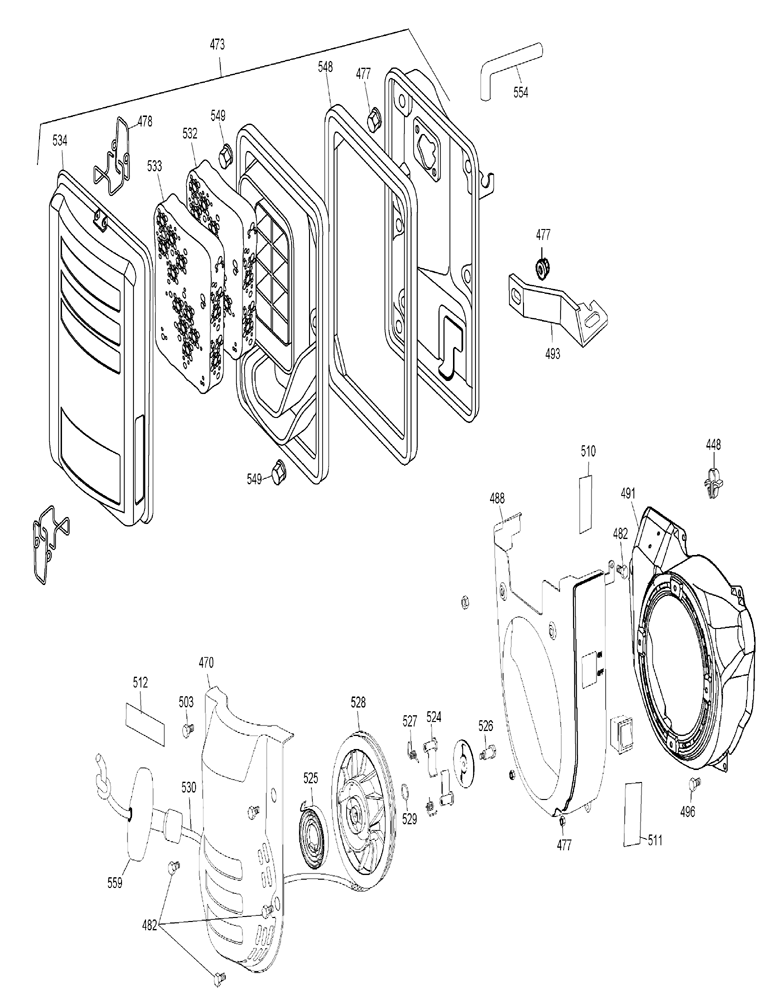

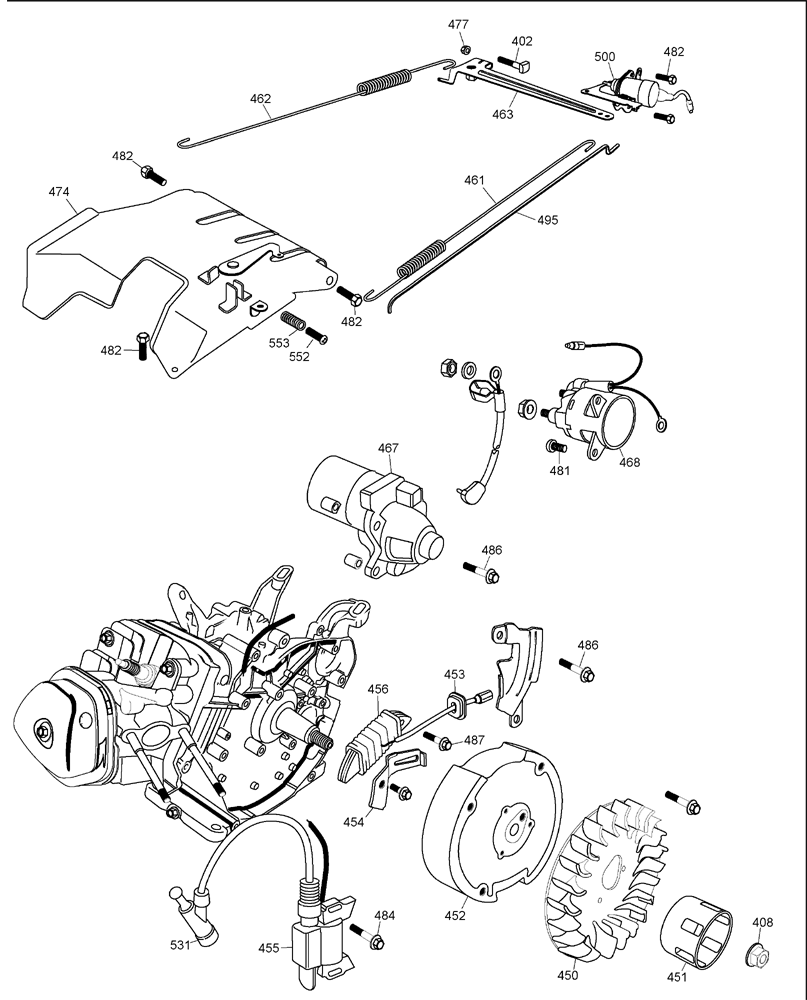

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	642816-01	LOWER FRAME	$277.27
2	641402-01	ROLLBAR ASSEMBLY	$63.18
3	640010-01	UPPER FRAME ASSY	$183.44
4	N021089	ENGINE	$1,065.10
6	N001024	FUEL TANK	$203.50
9	641800-00	BUSHING	$1.56
10	637707-00	ISOLATOR	$23.76
11	640062-00	GROMMET	$1.12
13	640059-00	INSERT	$1.12
14	640058-00	GROMMET	$1.56
18	637766-00	RUBBER SEAL	$9.85
20	640060-00	INSERT	$1.12
22	645055-00	BOLT	$2.13
23	A17233	SELF TAPPING SCREW	$2.71
25	645025-00	BOLT	$1.50
26	645033-00	WASHER	$1.41
27	645029-00	SELF TAPPING SCREW	$1.24
28	645024-00	NUT	$1.46
37	646564-00	WARNING LABEL	$3.49
38	1000002066	HOSE CLAMP	$1.41
44	N004046	WARNING LABEL	$1.09
102	N000981	VALVE	$25.84
103	N001344	FUEL CAP	$24.68
104	285816-34	FUEL FILTER	$16.54
105	285816-35	GAUGE	$12.66
106	285816-21	BOLT	$1.62
107	285818-33	FUEL VALVE	$11.34
108	285816-54	LABEL	$1.84
109	285816-58	ID LABEL	$1.84
110	285816-57	ID LABEL	$1.41
111	N000982	GROMMET	$1.56
112	N001358	TUBE	$2.86
206	647133-00	AXLE	$19.48
208	647128-00	WASHER	$1.28
209	647122-00	WHEEL	$58.63
210	647129-00	WASHER	$1.12
211	647151-00	COTTER PIN	$1.12
212	648587-00	FOOT	$17.34
220	647154-00	L. HANDLE CLAMP	$6.64
221	647125-00	HANDLE GRIP	$2.55
222	647734-00	LEFT HANDLE	$24.48
227	647735-00	RIGHT HANDLE	$24.48
228	647127-00	R. HANDLE CLAMP	$6.64
229	641758-00	ASSY SKYHOOK PAINTED	$26.03
230	647124-00	BRACKET	$3.41
254	647160-00	BOLT	$5.84
271	D26299	BOLT	$5.84
272	D26293	BOLT	$1.84
273	A19023	END COVER	$28.01
287	330019-13	SCREW, M4X19	$1.24
288	N001190	START SWITCH	$67.47
289	637671-00	BEZEL	$4.96
290	N003926	HOUSING COVER	$7.68
291	N003924	HOUSING, ASSEMBLY	$7.68
292	1000003117	TERMINAL BOARD	$5.58
293	641521-00	CIRCUIT BREAKER	$132.14
294	1000002764	SWITCH	$48.76
295	1000003737	BATTERY COVER	$19.36
296	330019-48	SCREW	$1.23
300	N008343	PANEL ASSEMBLY	$1,071.66
321	643315-00	BOLT	$1.41
322	643316-00	NUT	$1.41
323	643317-00	WINGNUT	$3.06
350	A11926	STATOR	$266.27
351	A11925	ROTOR	$129.80
352	637709-00	END BELL	$56.32
400	285814-01	BOLT	$2.84
401	285815-94	DRAIN PLUG	$4.82
402	285814-03	BOLT	$3.04
404	285814-06	BOLT	$1.99
406	285814-08	WASHER	$1.12
407	285814-10	WASHER	$1.12
408	285814-12	SPECIAL NUT	$2.84
409	285814-14	OIL SEAL	$7.32
410	285814-16	DOWEL PIN	$2.09
411	285814-18	DOWEL PIN	$2.09
412	285814-22	BALL BEARING	$26.49
413	285800-98	SPARK PLUG	$4.57
414	285814-25	GASKET	$11.60
415	285820-74	GASKET	$7.89
416	285814-31	CYLINDER HEAD	$93.11
417	285820-78	COVER	$12.92
418	285814-34	BOLT	$6.12
419	285814-37	CRANKCASE	$217.80
421	285814-40	OIL ALERT UNIT	$55.71
422	285814-43	CASE COVER	$123.60
423	285814-46	GASKET	$12.00
424	285814-48	CAP ASSEMBLY	$17.32
426	285814-51	COUNTER BALANCE	$140.37
427	285816-29	CRANKSHAFT	$250.75
428	285817-20	WOODRUFF KEY	$1.50
429	285814-59	PISTON PIN	$13.82
430	285814-61	CLIP	$2.26
431	285814-64	RING SET	$57.72
432	285814-67	CONNECTING ROD	$96.47
433	285814-69	LIFTER	$15.16
434	285814-72	PUSH ROD	$7.78
435	285814-75	INTAKE VALVE	$20.87
436	285814-78	VALVE	$60.60
437	285814-80	VALVE SPRING	$4.80
438	285814-83	RETAINER	$8.96
439	285814-85	SEAL	$7.65
440	285814-87	ROTATOR VALVE	$5.34
441	285814-91	CAMSHAFT	$164.98
442	285814-93	PLATE ASSEMBLY	$3.78
443	285814-95	ARM ASSY	$25.21
444	285815-01	SHROUD ASSEMBLY	$13.30
445	285815-04	GASKET	$3.13
446	285815-08	GASKET	$2.45
447	285815-09	CLIP	$1.34
447	285818-78	CLIP	$1.09
448	285815-10	CLIP	$5.00
449	285816-48	CONTROLLER	$143.44
450	285815-16	FAN	$25.73
451	285815-19	STARTER PULLEY	$27.62
452	285815-22	FLYWHEEL	$147.00
453	285815-23	GROMMET	$5.26
454	285815-24	GROMMET	$5.76
455	285815-27	IGNITION COIL	$26.55
456	285815-28	COIL	$88.03
457	285815-30	GASKET	$3.16
458	285815-34	GASKET	$6.20
459	285818-49	MANIFOLD	$26.73
460	285815-37	PISTON	$59.89
461	285815-39	SPRING	$4.57
462	285815-42	SPRING	$5.30
463	285815-45	ARM	$22.30
464	285815-48	SHAFT	$11.54
465	285815-49	LOCK PIN	$0.98
466	285815-53	GOVERNOR ASSEMBLY	$26.58
467	285815-54	MOTOR ASSEMBLY	$120.48
468	285815-55	CONTACTOR	$71.87
471	285818-48	INSULATOR	$6.33
472	285820-75	CARBURETOR	$57.98
473	285815-66	AIR FILTER	$74.92
474	285815-71	CONTROL ASSY	$54.35
475	285818-08	HOSE	$14.13
475	N006433	HOSE FUEL	$4.62
475	N006528	HOSE FUEL	$5.58
476	285815-73	NUT	$1.62
477	285815-74	NUT	$1.62
478	285818-96	CLAMP	$1.48
481	285815-83	BOLT	$1.62
482	285815-86	BOLT	$1.62
483	285815-88	BOLT	$1.62
484	285815-90	BOLT	$1.62
486	285815-93	BOLT	$1.99
487	285816-37	BOLT	$1.62
488	285815-97	HOUSING COVER	$80.75
489	285815-98	STUD	$2.68
491	285816-05	BLOWER HOUSING	$50.32
492	285816-07	BUSHING	$1.75
493	285816-10	BRACKET	$12.38
494	N001231	MUFFLER	$198.10
495	285816-14	ROD	$4.92
496	285816-24	STUD	$2.36
497	285816-25	CABLE TIE	$1.62
498	285816-26	OIL SEAL	$4.84
499	285816-27	BALL BEARING	$11.40
500	285816-31	SOLENOID	$63.30
503	285816-36	BOLT	$1.62
505	285814-88	SEAT	$3.49
506	285816-45	RETAINER	$8.96
507	285816-46	GASKET	$6.20
508	285816-40	CONNECTING WIRE	$6.26
509	285816-51	BOLT	$1.84
510	1000001983	LABEL	$2.01
511	285816-44	LABEL	$1.41
512	285816-53	ID LABEL	$1.41
515	N060942	LABEL	$2.24
516	285816-61	BRACKET	$25.21
517	285816-62	MUFFLER COVER	$65.31
518	285816-63	MUFFLER COVER	$81.92
519	285816-64	NUT	$1.84
520	285816-55	BOLT	$1.84
521	1000004021	GASKET	$1.56
522	285816-68	SPARK ARRESTOR	$27.24
523	285816-67	BOLT	$1.84
524	285816-76	RATCHET	$1.98
525	285816-77	SPRING	$13.06
526	285816-78	BOLT	$1.98
527	285816-79	SPRING	$1.98
528	285816-80	PULLEY	$13.06
529	285816-81	SPRING	$4.48
530	285816-82	ROPE	$12.36
531	285816-83	CAP ASSEMBLY	$1.41
532	285818-24	AIR FILTER	$19.48
533	285818-24	AIR FILTER	$19.48
534	285816-75	COVER	$25.21
535	285816-87	FLOAT	$4.42
536	285816-88	VALVE	$2.85
537	285816-89	BOWL	$2.85
538	285816-90	PIN	$1.12
539	285816-91	O-RING	$1.98
540	285816-92	NOZZLE	$3.28
541	285816-93	SCREW	$1.28
542	285816-94	GASKET	$1.62
543	285816-95	MAIN JET	$2.36
543	285817-18	MAIN JET	$9.59
544	285816-84	SOLENOID	$21.62
545	285816-86	SPRING WASHER	$1.12
546	285816-85	SCREW	$1.12
547	285816-97	SCREW	$1.56
548	285817-04	SEAL	$2.85
549	285817-03	NUT	$1.12
550	5140010-05	LOCK WASHER	$1.18
551	285815-85	BOLT	$1.62
552	1349856	PAN HEAD SCREW	$4.42
553	285817-19	SPRING	$9.59
554	285815-31	TUBE	$8.24
555	285817-46	FUEL FILTER	$17.82
555	5140062-32	FUEL FILTER	$9.66
556	285818-26	GASKET	$1.98
557	285818-27	BOLT	$2.13
558	285818-28	O-RING	$2.13
559	285818-39	HANDLE	$26.63
561	1000004019	GASKET	$1.24
562	N000322	VALVE	$10.51
563	285816-36	BOLT	$1.62
856	647134-00	WHEEL KIT	$286.08
871	388683-12	1 HOUR CHARGER	$80.53
