DeWalt DCD959KX Cordless Hammer Drill Parts

DeWalt DCD959KX Parts

Download Schematic

Time to buy a new tool?

DeWalt DCD959KX

1/2 Inch 13mm 18V Co...

$306.34

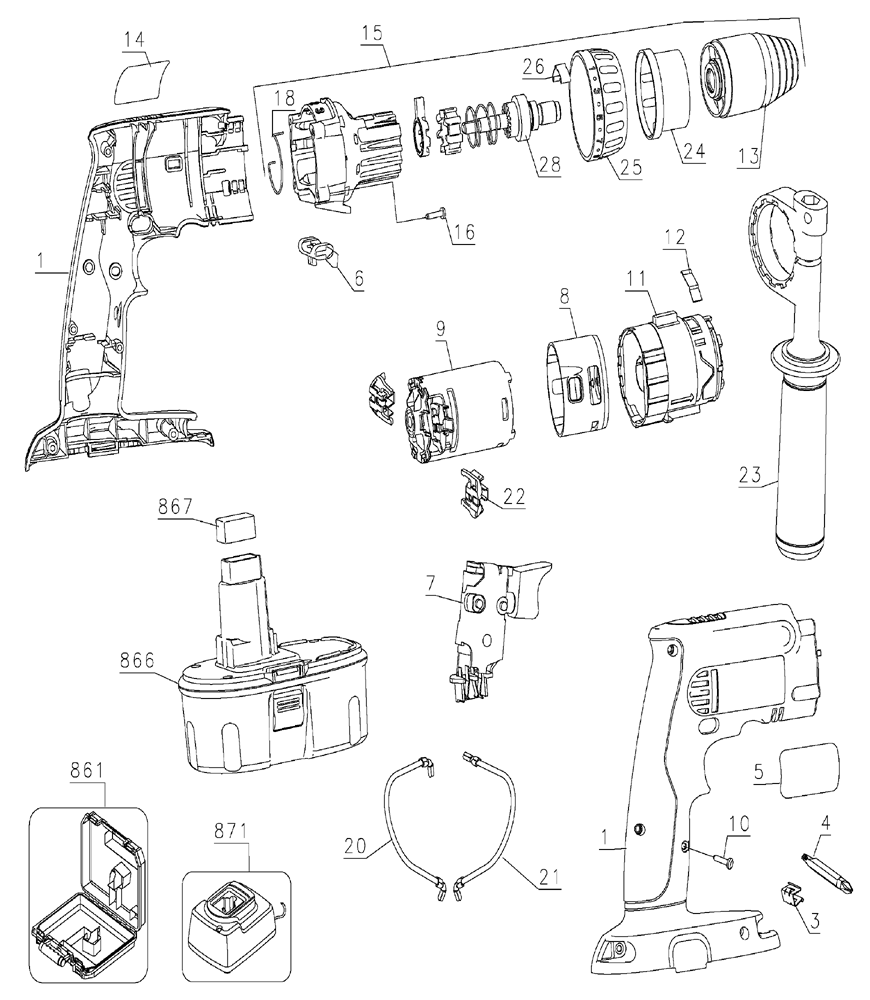

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	N026313	GEAR CASE ASSY	$90.34
24	652378-00	RETAINING PLATE	$5.92
25	650470-00	LOCK RING	$5.29
26	652379-00	ANVIL	$1.28
27	654110-00	PIN	$1.09
28	N017098SV	GEAR ASS'Y.	$7.47
29	N038862	COMPRESSION SPRING	$1.73
30	650444-00	RING GEAR	$3.63
31	N017099SV	GEAR ASSEMBLY	$9.52
32	N030490SV	GEAR ASSEMBLY	$12.28
33	657453-00SV	SHIFTER ASSEMBLY	$9.04
34	654927-00SV	BAFFLE ASSEMBLY	$1.56
42	N014498SV	CLAMSHELL SET	$20.25
43	N020621SV	SWITCH-V.S.R.	$48.54
44	N031214SV	BRUSH BOX SET	$11.01
45	N023147SV	ARMATURE ASSEMBLY	$25.61
46	648124-00	MAGNET RING	$25.57
47	N007948	BEARING CAP	$0.39
48	650414-00	BUTTON(FWD/REV)	$1.36
49	N031214SV	BRUSH BOX SET	$11.01
50	148354-03	BIT CLIP	$1.24
51	N028034	ID LABEL	$1.16
52	682211-00	SCREW, TORX	$1.24
53	330019-52	SCREW PLASTITE	$1.21
54	N014681	DETENT SPRING	$1.14
56	650421-00	SIDE HANDLE	$9.03
61	N042783SV	GEAR CASE ASSY	$193.11
70	N037632	NAME PLATE	$1.16
800	N017298	GREASE	$59.33
861	660141-00	KITBOX	$27.93
867	645221-00	BATTERY CAP	$1.18
871	388683-12	1 HOUR CHARGER	$80.53
